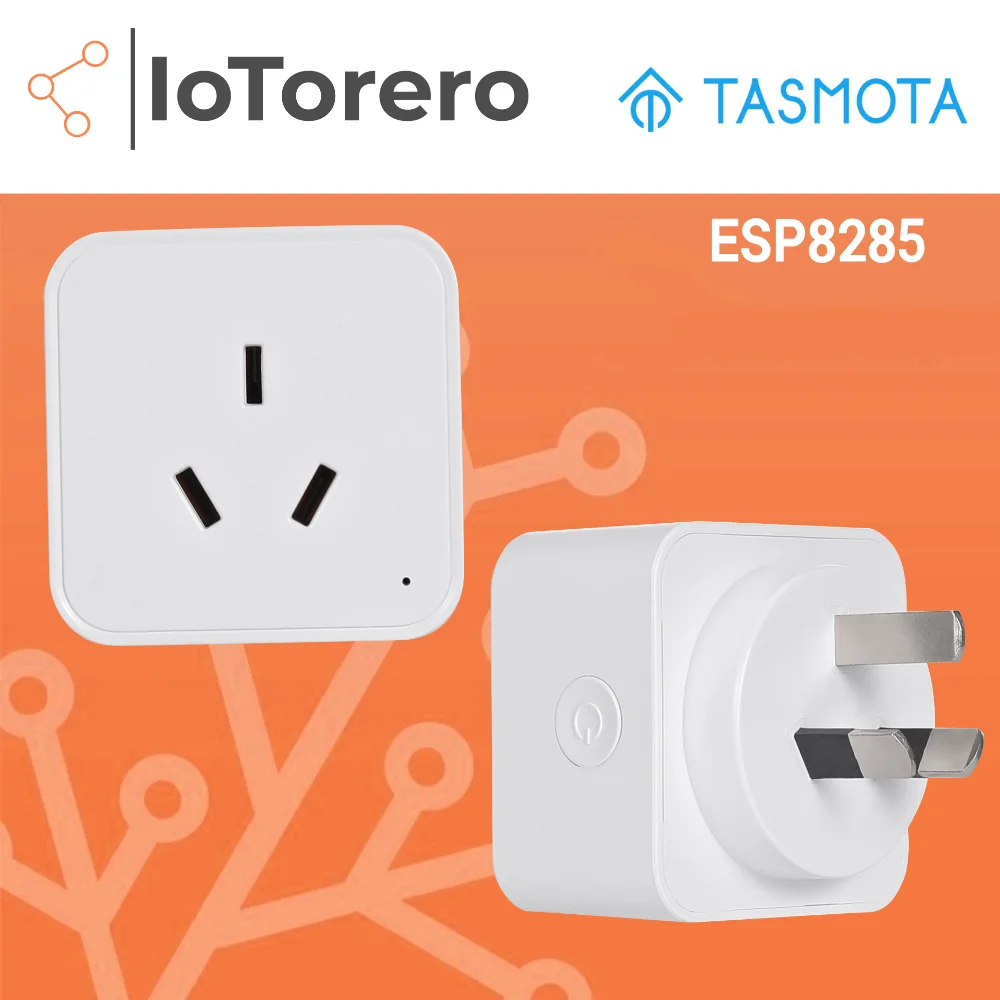

IoTorero Tasmota MQTT ESP8285 AU Plug Consumption Monitoring 10A Works With Home Assistant

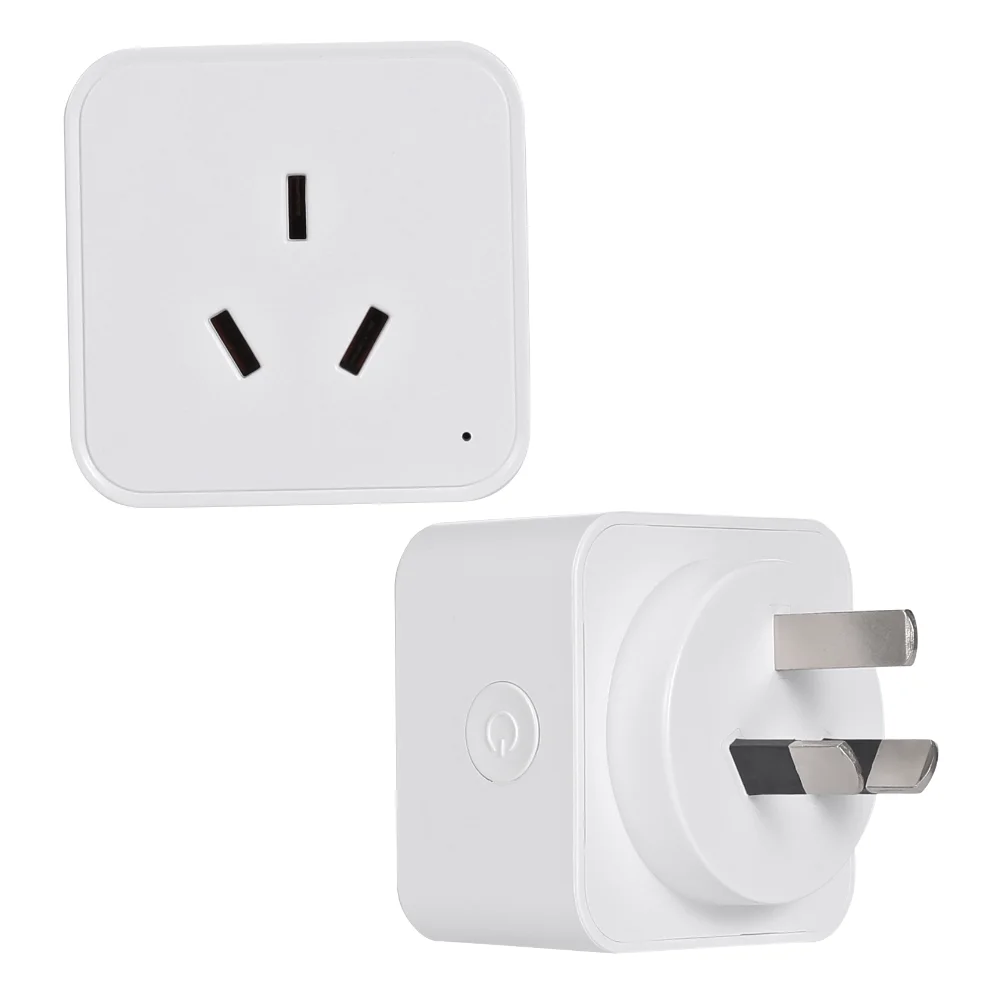

ESP8285 Tasmota MQTT AU Plug
The latest full version
Fully compatible with official Tasmota OTA server
Pre configed GPIO plug and play
Pre flashed before assembling

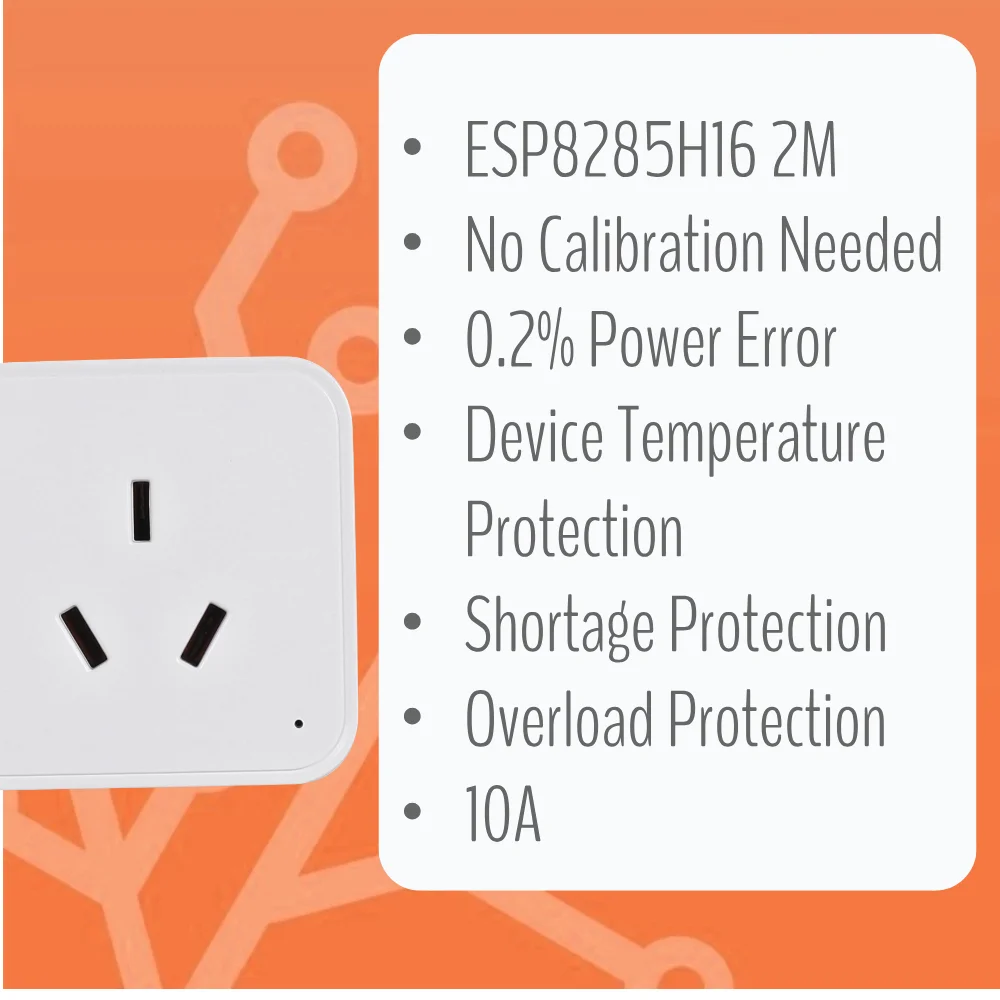

Build in ESP8285 chip with 2M flash
Build in HLW8032 power statistics chip

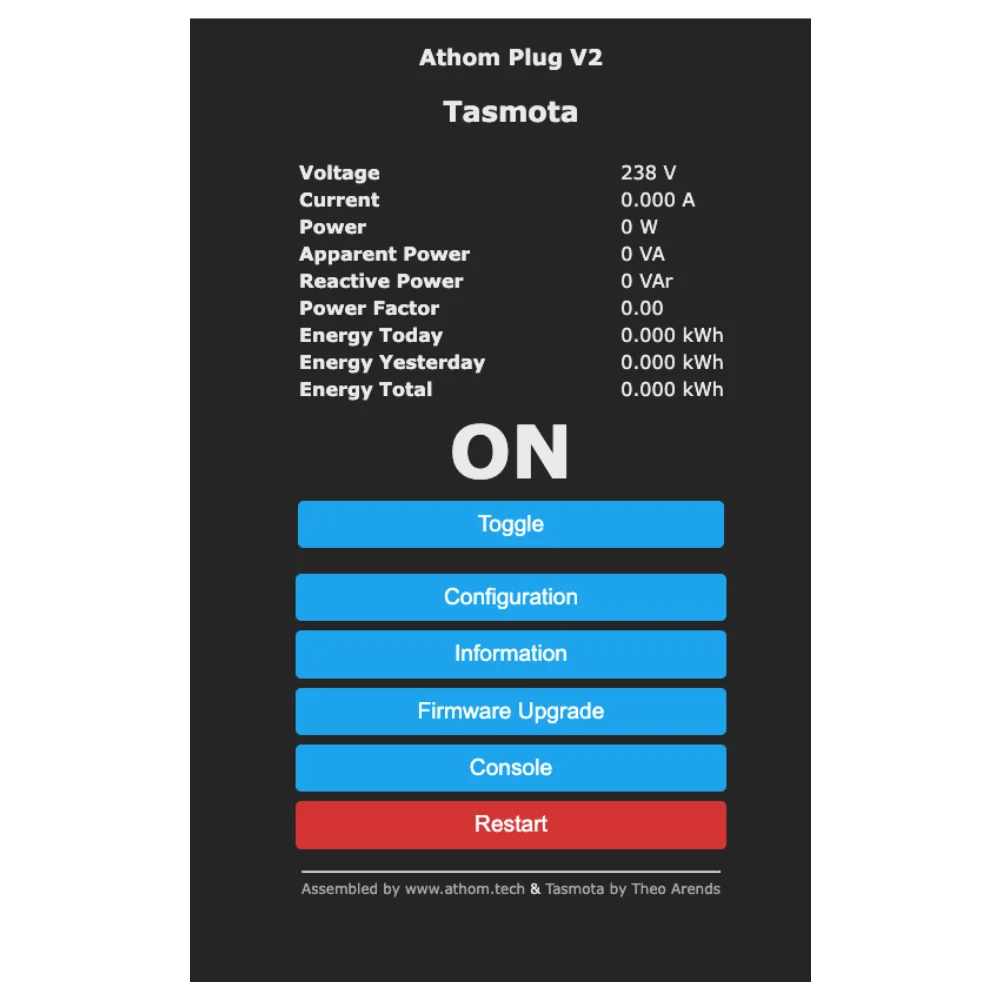

Total local control with quick setup and updates. Control using MQTT, Web UI, HTTP or serial. Automate using timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible.
NO calibration needed
The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%
Specification
Input voltage：100-240VAC 50/60Hz
Wireless standard：IEEE802.11b/g/n,2.4GHz
Housing Color：Whtie
Operation Temperature：-20℃～+50℃
Plastic material:ABS+PC
Fire-protection rating:94-V0
Tasmota Template:
{“NAME”:”Athom Plug V2″,”GPIO”:[0,0,0,3104,0,32,0,0,224,576,0,0,0,0],”FLAG”:0,”BASE”:18}
GPIO
GPIO3： CSE7766 Rx
GPIO5： Button1
GPIO12 ：Relay1
GPIO13 ：LedLinki
Note
HLW8032 occasionally report invalid power measurements for load values below 5W. During this situation it sometimes reports a valid load. By setting SetOption39 to 128 (default) it must read at least 128 invalid power readings before reporting there is no load.

To discard all loads below 6W simply set SetOption39 1 (0 will reset to default on next restart) so it will report no load below 6W.
