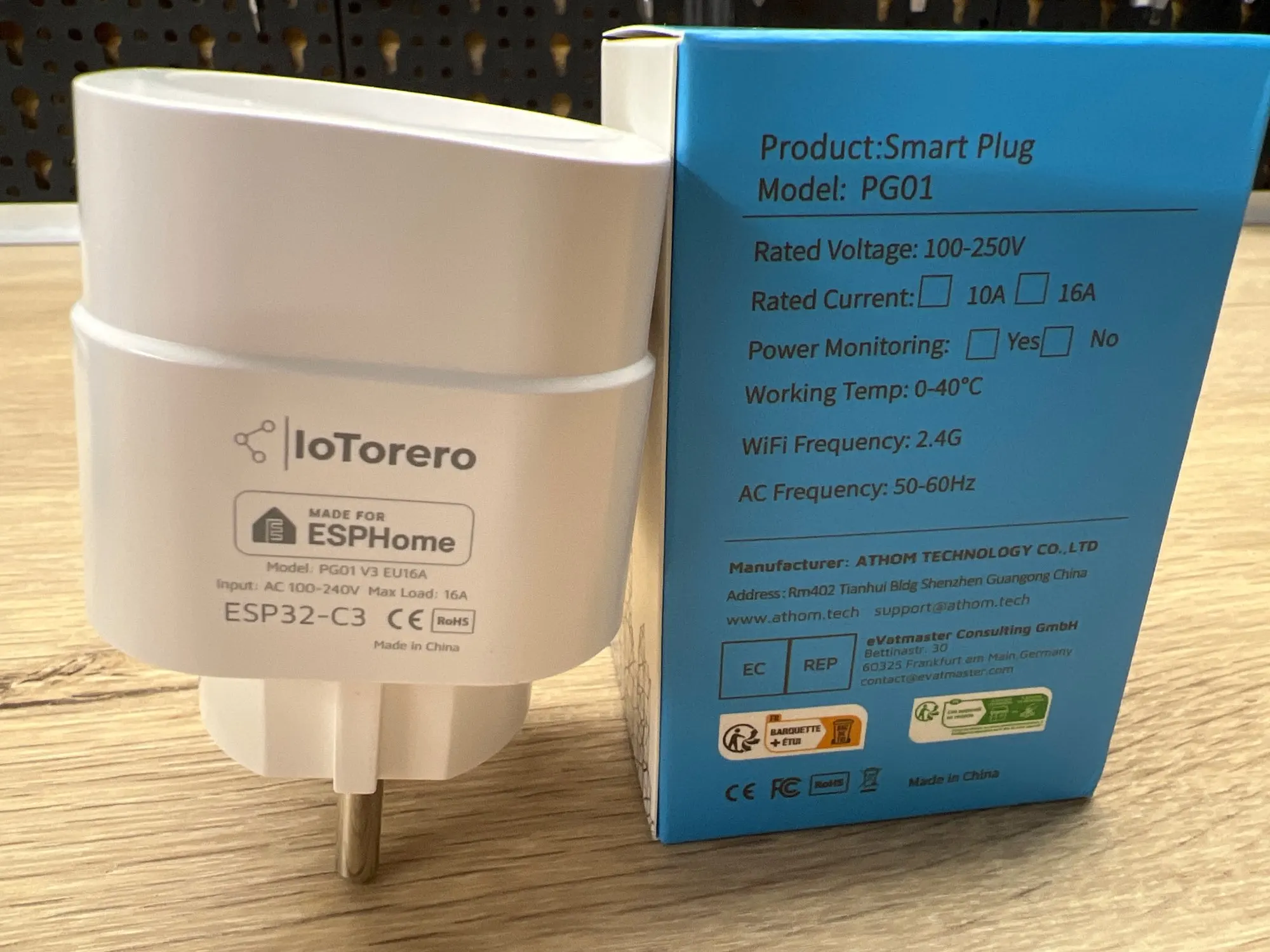

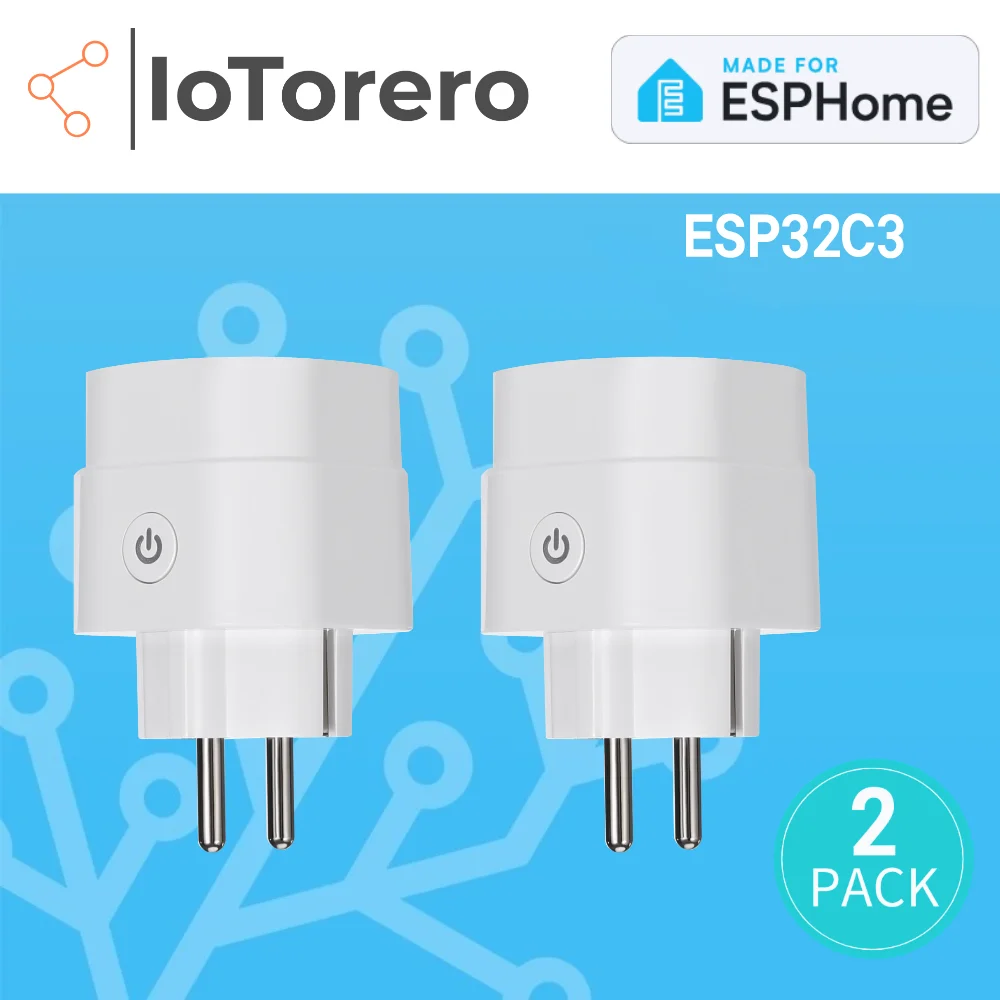

IoTorero Made For ESPHome ESP32C3 EU Plug 2 Pack Consumption Monitoring 16A Works With Home Assistant

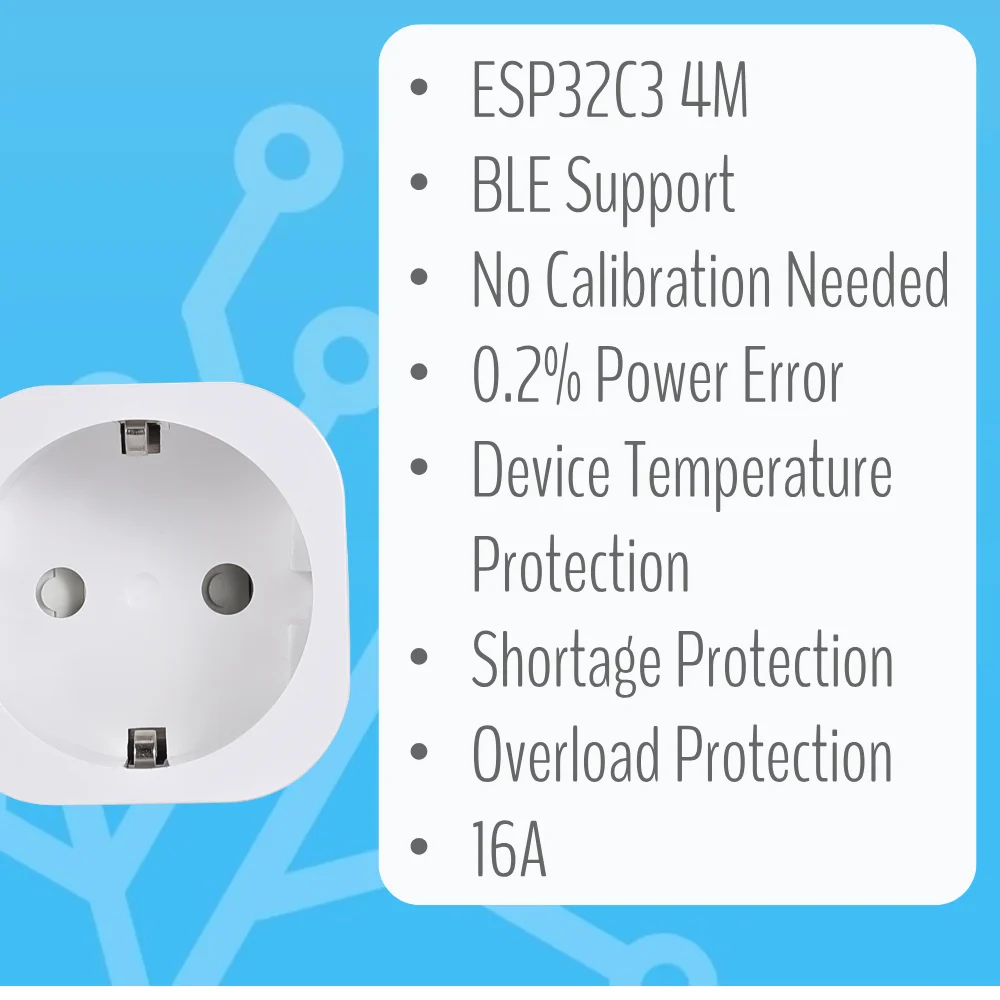

Officially Made For ESPHome ESP32C3 EU Plug
Pre configed GPIO plug and play
Pre flashed before assembling

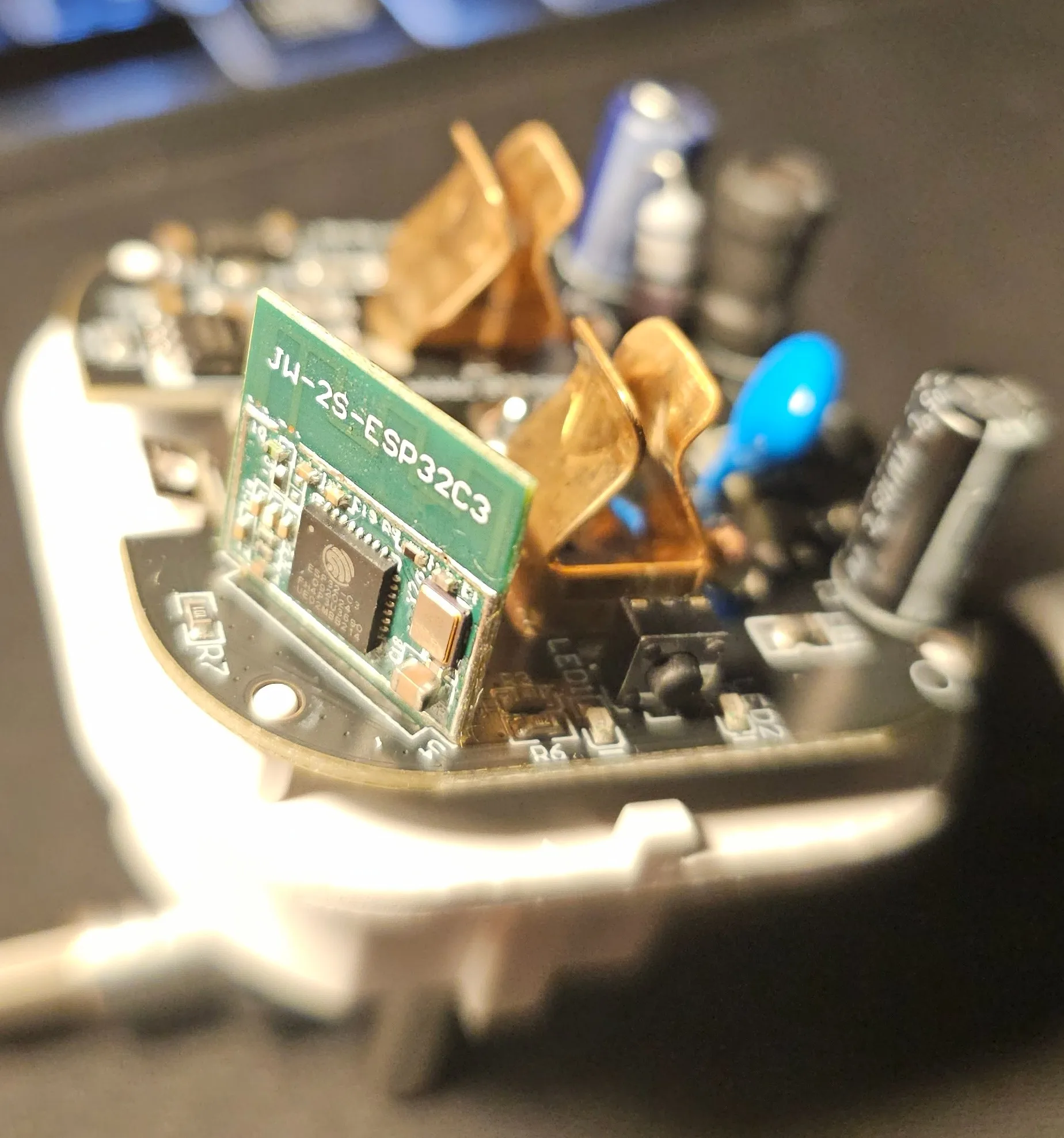

Build in ESP32C3 chip with 4M flash
Build in HLW8032 power statistics chip

Specification
Input voltage：100-240VAC 50/60Hz
Current：16A(Max)
Power rating：3680W

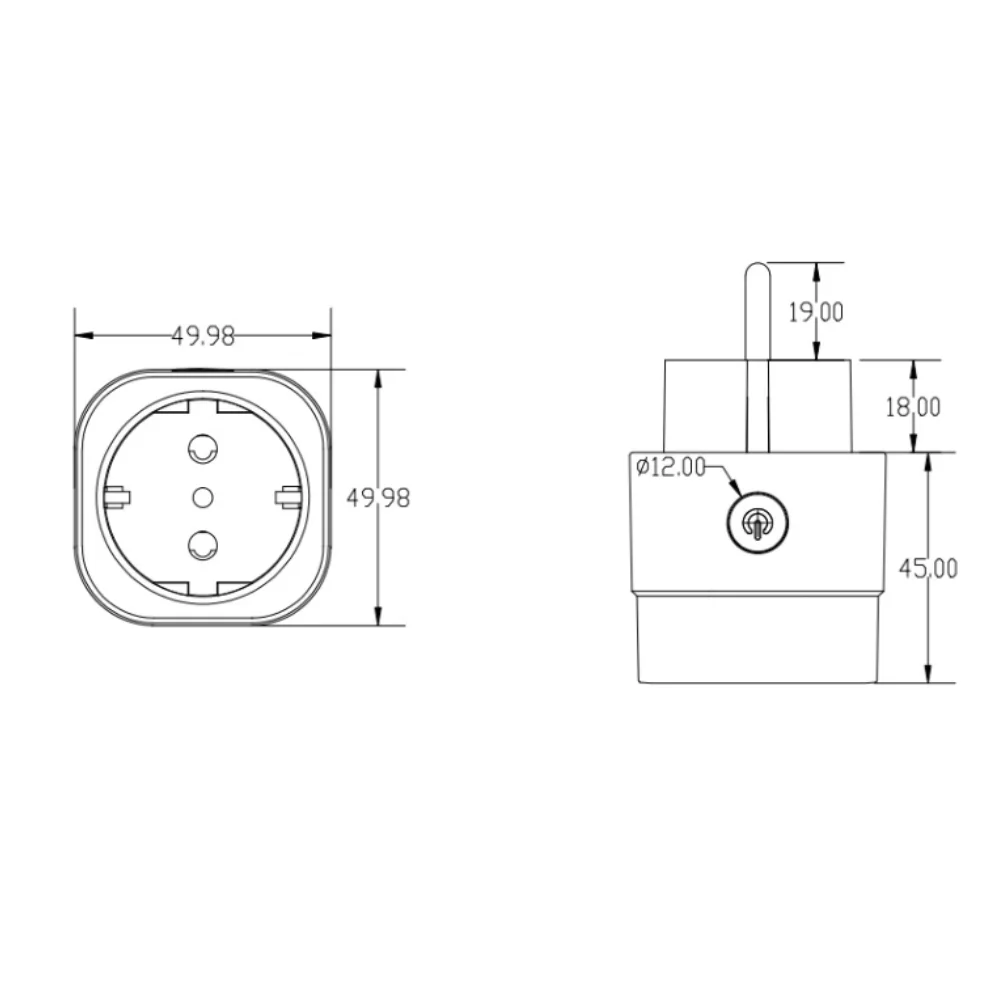

Product Size：L51*W51*H85mm
Standard：EU
Wireless standard：IEEE802.11b/g/n,2.4GHz
Housing Color：Whtie
Operation Temperature：-20℃～+50℃
Plastic material:ABS+PC
Fire-protection rating:94-V0
Package Size：62*62*86mm
Weight：80g
NO Calibration Needed
The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%
Pairs With Blutooth

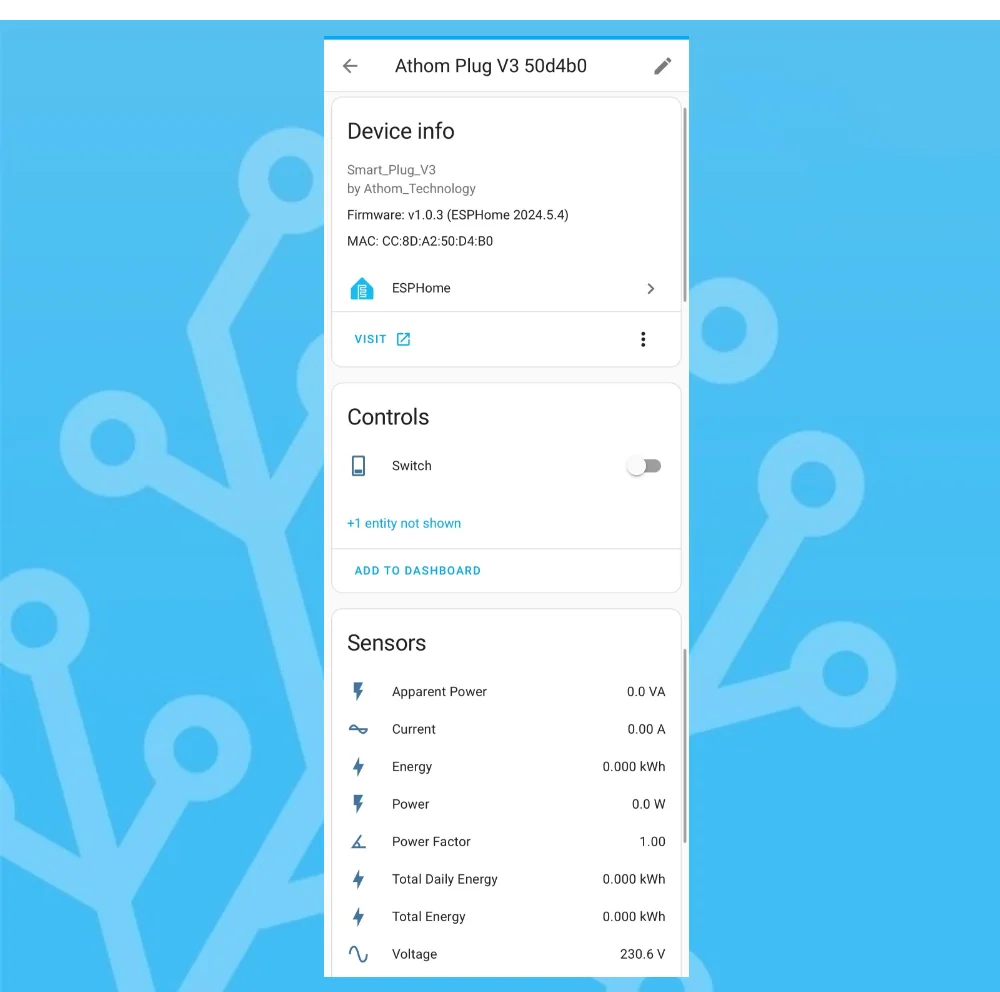

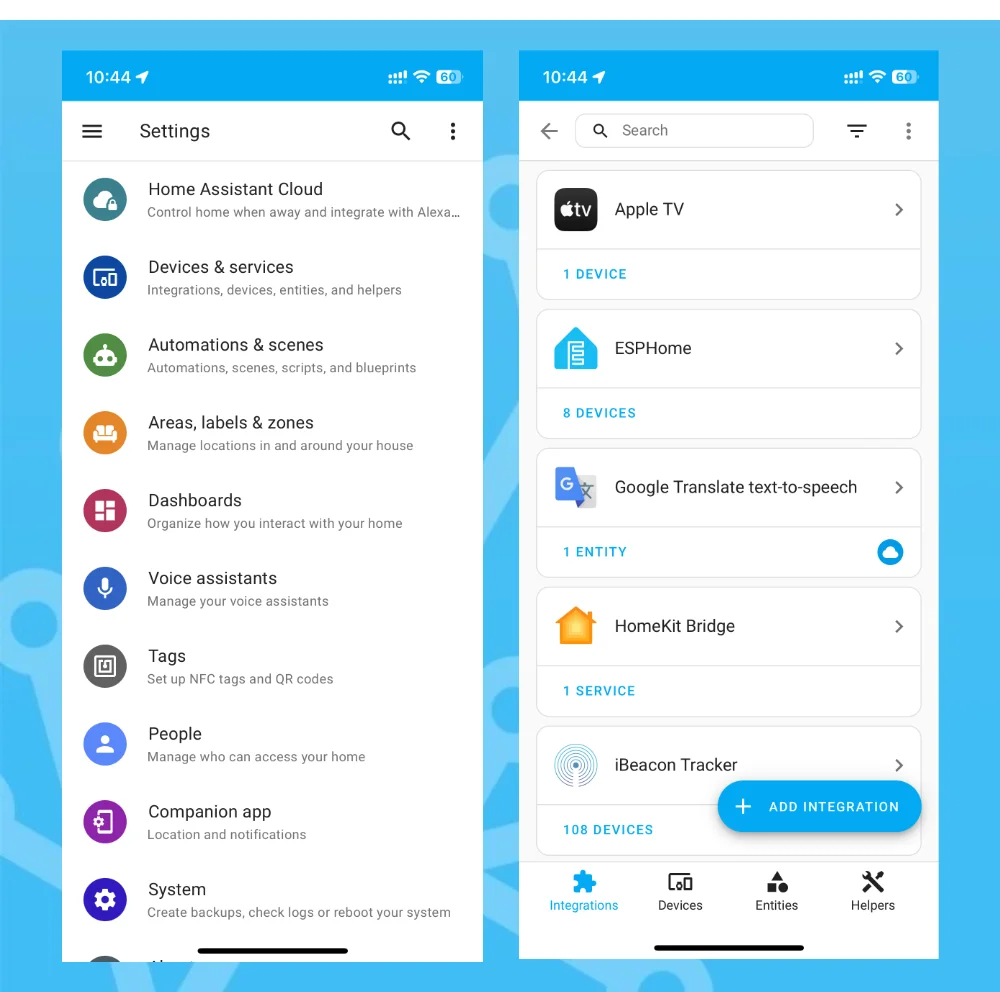

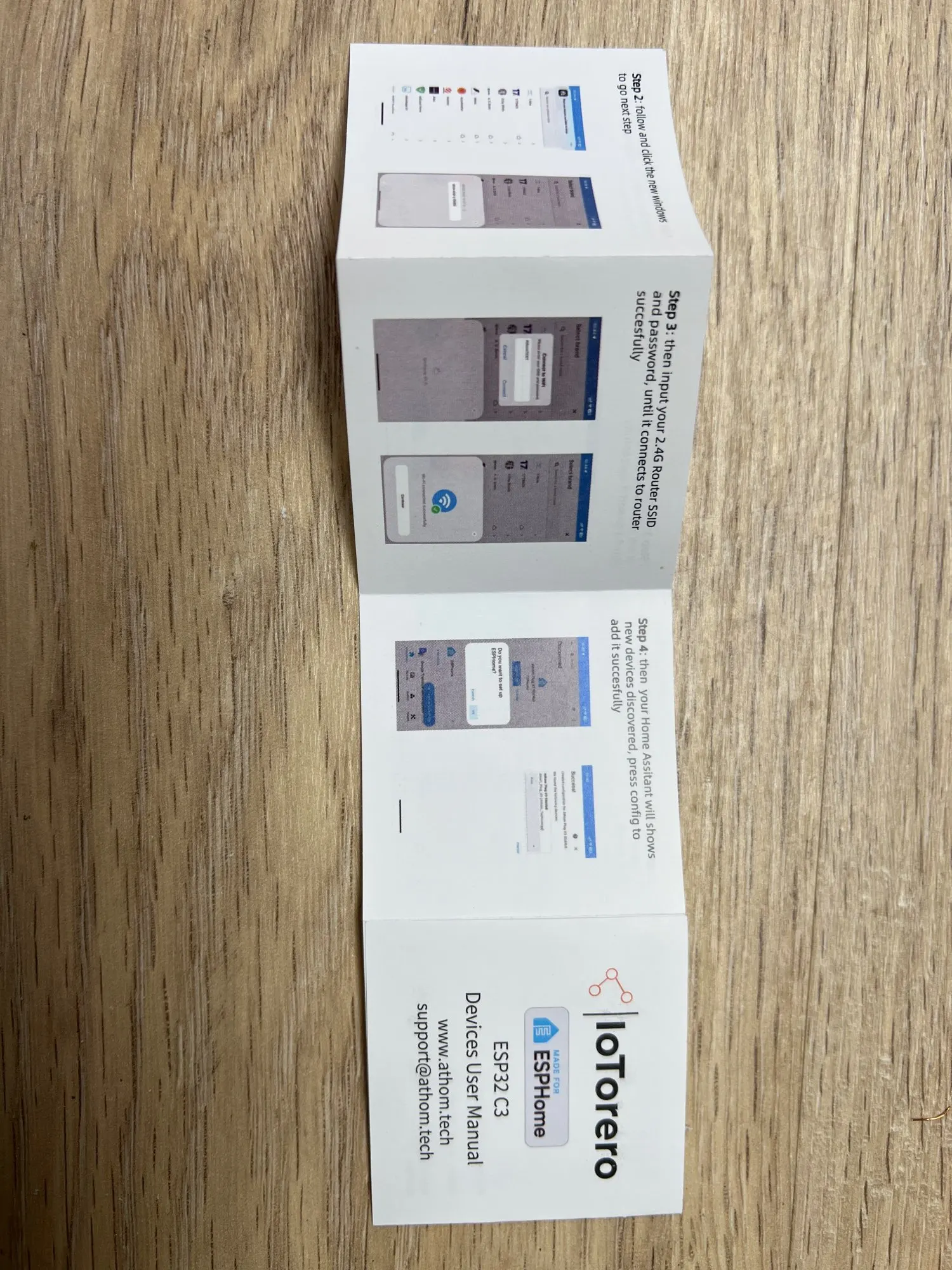

Open your Home Assitant App choose Setting-Devices&Services to discover the new devices
Yaml
//github.com/athom-tech/esp32-configs/blob/main/athom-smart-plug.yaml
GPIO
GPIO# Component
GPIO20 CSE7766 Rx

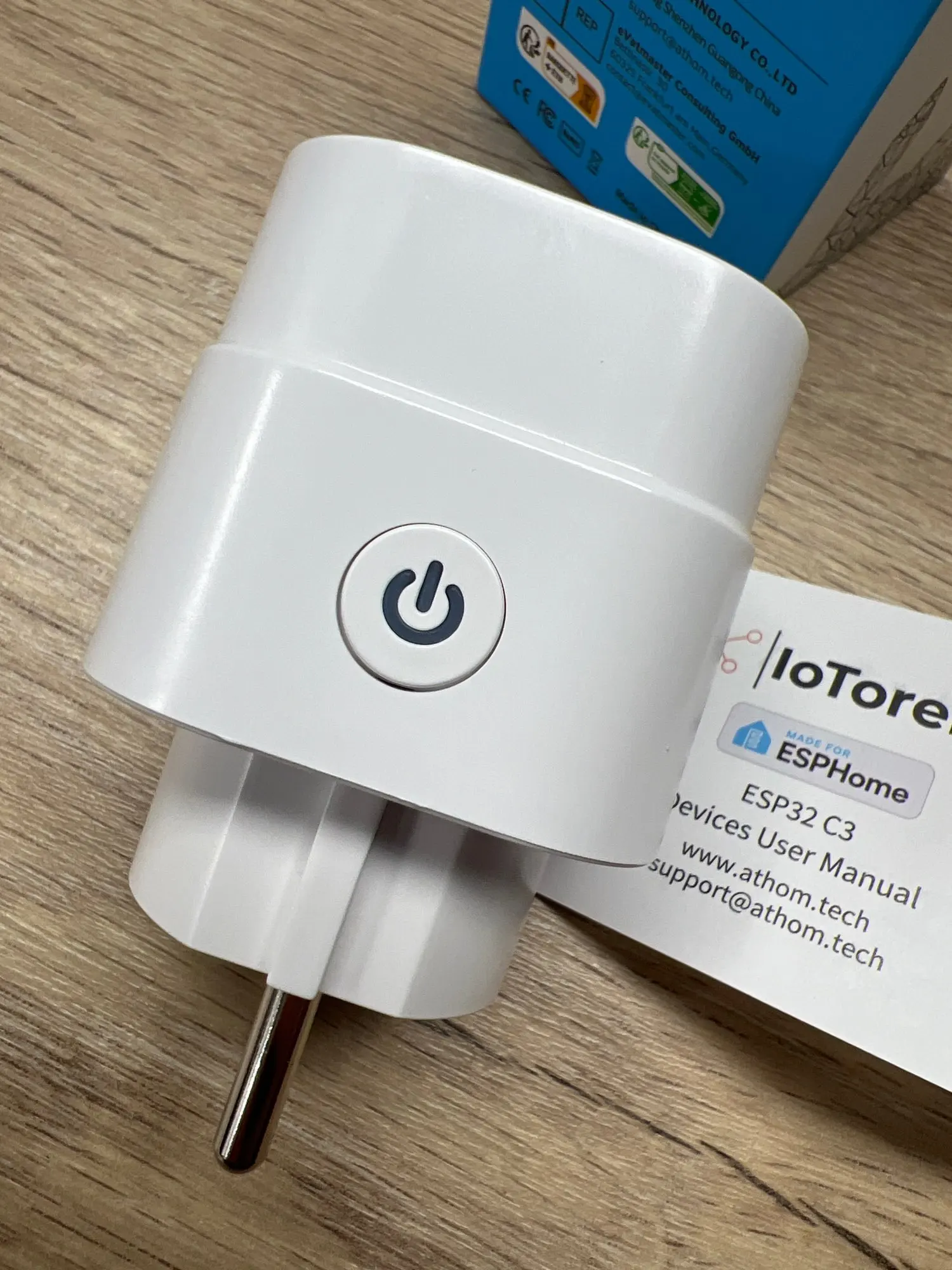

GPIO3 Button
GPIO5 Relay
GPIO6 Led
Note
HLW8032 occasionally report invalid power measurements for load values below 5W. During this situation it sometimes reports a valid load. By setting SetOption39 to 128 (default) it must read at least 128 invalid power readings before reporting there is no load.

To discard all loads below 6W simply set SetOption39 1 (0 will reset to default on next restart) so it will report no load below 6W.
