ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor Hub Tuya Smart Life APP Alexa Google Home Voice Control
Description
ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor Hub Required Powered by Charger Tuya Smart Life APP Alexa Google Home Voice Control
By Moes
2020 New Arrival Upgraded with More Personalized Points:
Update1:New ZigBee version with Alexa and Google Home for voice control supported.
Update2:Ulimitset and dimitset available in APP
Update3:ZigBee smart version with ZigBee hub required in Tuya Smart Life APP for easier wireless remote control
NOTE:After the motor is turned on, press the power button + down button at the same time, the blue indicator light flashes three times quickly, and it enters the network configuration state.
Main Features:
1.Smart Home Automation with ZigBee Hub Required: ZigBee protocol built-in requires a ZigBee hub connected before normal use.Automate your existing blinds, shades, curtains in the simplest and most cost-effective way. Motor can set upper & bottom limit positions and limits can be saved even when power off. Motor speed can be adjustable in Smart Life Tuya APP. Simply add motorized shades to your smart home with Smart Blinds Drive Motor!Compatible with a variety of shades, blinds, curtains, and drapes with the new update manual.(Note:The ZigBee hub is not included in the package,you need a separate purchase in our online store.)
2.New upgraded with Alexa and Google Home supported for simple voice control of connected devices to turn on/off them in a much easier way.(Note:Pay attention to the command with turn on/off available,not open/close.)
3.Control via Smart Life Tuya App Freely: Control your new smart blinds directly with Tuya Smart Life App or its intuitive Touch Strip controls. Even you want to move your blinds from your bed,your couch or with one touch on Gear.Wireless remote control your connected devices anywhere you like with ZigBee hub connected in advance.
4.Li-battery Charging: Powered by charger(adaptor is included) ensures long time continuous working with the large battery capacity.Even save more money and energy low power consumption.
5.Set schedule and timer of your blinds independently.Set custom schedules and accurate timers to your own need.No installers or a degree in rocket-science required. Easily install and setup Blinds Drive Motor in minutes. Works with any plastic beaded chain or metal beaded chain that is looped.
Parameter:
Model:AM43-0.45/40-ES-EB
Input Power:DC charger 8.4VDC
Lock-rotor current:1.8A
Speed Range:20-40rpm
Torque:0.45Nm
Rated Current:1A
Battery Capacity:7.4VDC/1000mAh
Frequency:2.4GHz
Password:8888
Load Bearing:3.5 KG
Packing Listing:
Moes Smart Blinds Drive Motor*1
Adapter*1
Screw*2
Gear*3
3M VHB*1
Customer Reviews
11 reviews for ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor Hub Tuya Smart Life APP Alexa Google Home Voice Control
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
J***T –
We are very satisfied with this Moes zigbee smart curtains engine. We programmed the engine synchron with the sun coming and sun running. The 2 sided adhesive tape supplied is super strong, so an extra bolt is not needed for fixation. It also glues strongly on a fat-free wall. Now we have 4 of these Moes curtains engines. in short: really recommended
J***T –
We really like the curtain motor. According to the clear manual, we allowed him to close the curtain half an hour after sunset. And tomorrow it goes perfectly again half an hour after sunrise. up again
W***S –
and it came 4. I still have to buy two more pieces and there will be full automation. I have some doubts about the solar panel
Shopper –
Works excellent. It was easy to set up and works with my blind as expected. Moes zigbee items have never let me down.
c***r –
Device works as expected. Installed on a chain roller and connected to my home assistant instance via zigbee (zha). Controls work great, but i’m disappointed in a few things. (1) the included daylight sensor/solar panel is not accessible via zigbee, and (2) the motor isn’t strong enough to roll up heavier roller shades. I ended up installing on a 3 foot wide roller shade, but i initially wanted to install it on an 8 foot wide shade which ended up being too heavy for the motor.
Shopper –
It rides very nicely. Well, I didn’t expect such good quality; this is already the third piece I’ve bought.
P***i –
It rides very nicely. Well, I didn’t expect such good quality, this is the second piece I bought.
E***r –

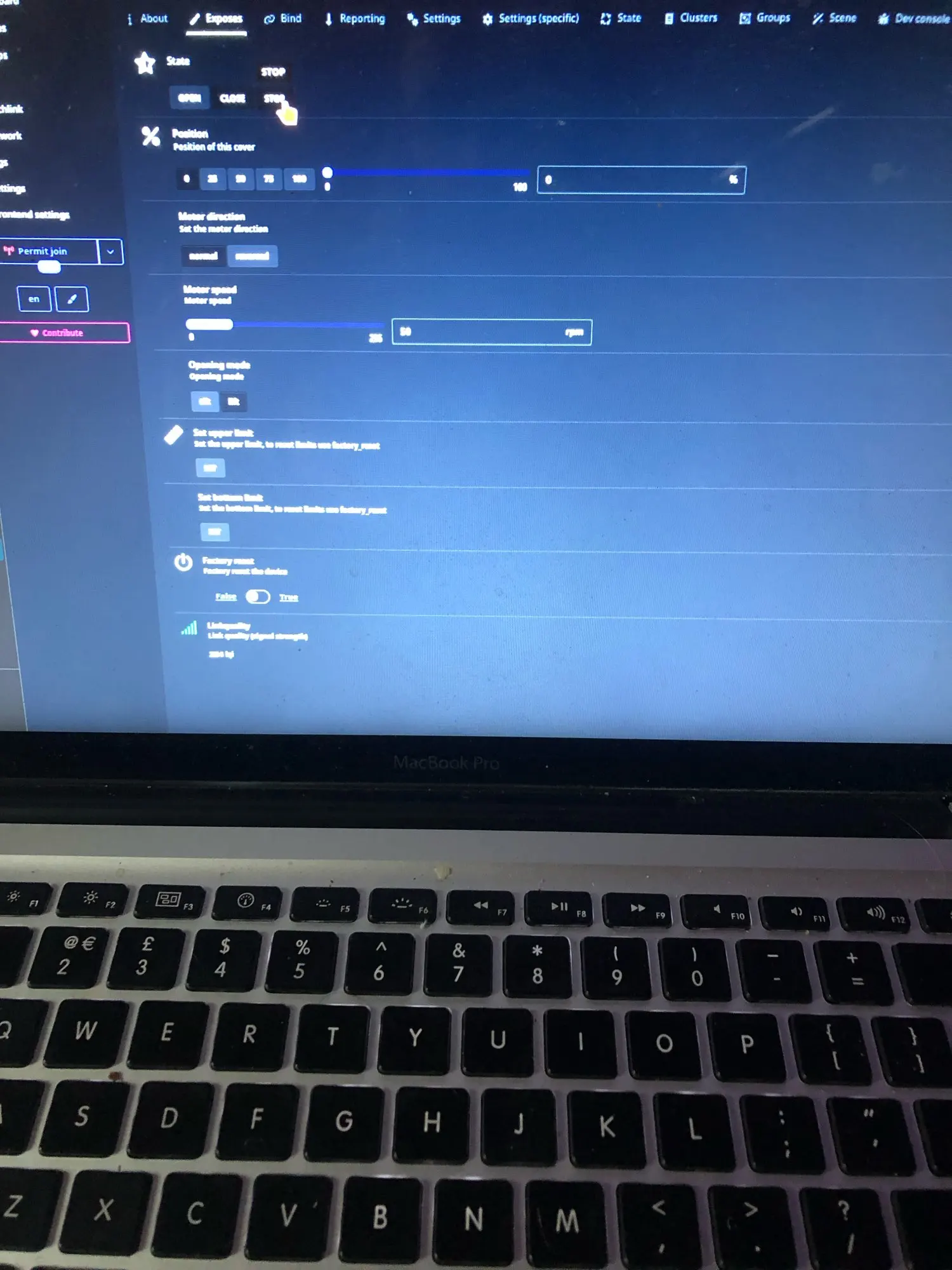

I bought two one worked. Hopefully just unlucky with the one that did not work. Works with zignee2mqtt and exposes everything i think. There is a small sun panel that it calls a “sensor” so maybe there is an extra thing in their app. Or it could be a mistranslation. It connects via a headphone style jack with more than 2 connectors, so i would not be surprised if there is an “illuminance” in the full item.
J***e –
Great, not the first time we order, everything is fine 👍
U***r –
Very well made. Both worked perfectly. The only thing i don’t like is that you change the price *after the item is added to my cart*…then you adjusted the price upward.
U***r –
Very well made. Both worked perfectly. The only thing i don’t like is that you change the price *after the item is added to my cart*…then you adjusted the price upward.
