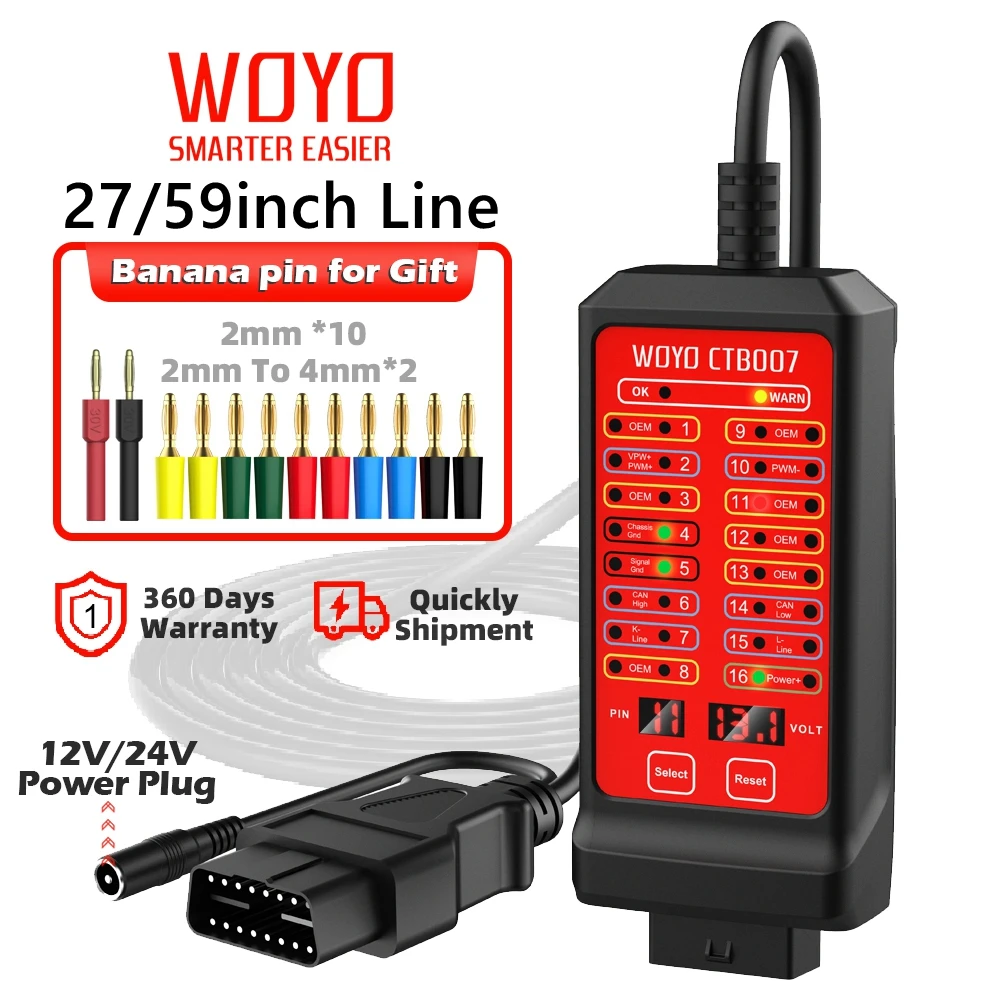

WOYO CTB007 OBD2 Breakout Box with 27/59in Cable for Vehicle OBD 2 Diagnostic Tool, 12V/24V CAN Tester Box
Description

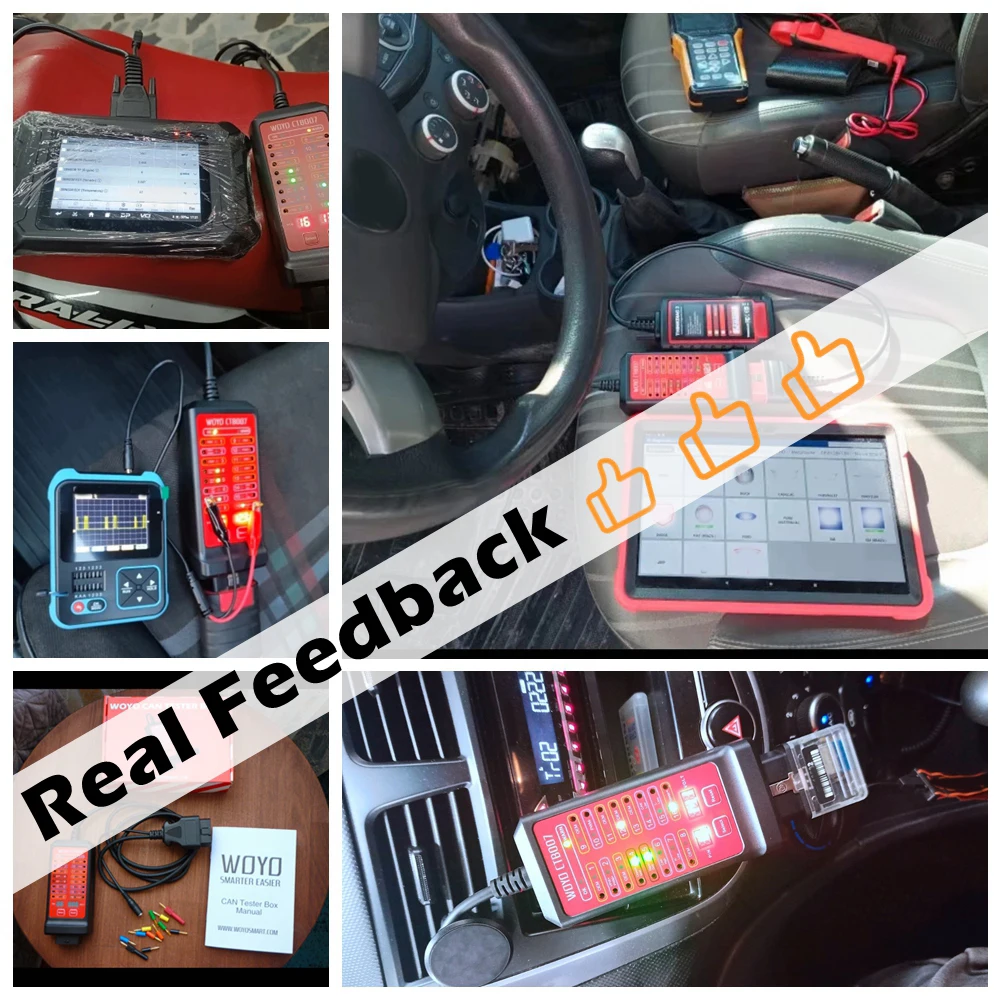

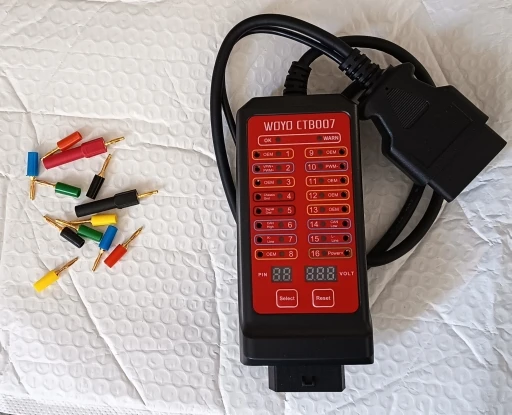

Real Feedback and Photo!!

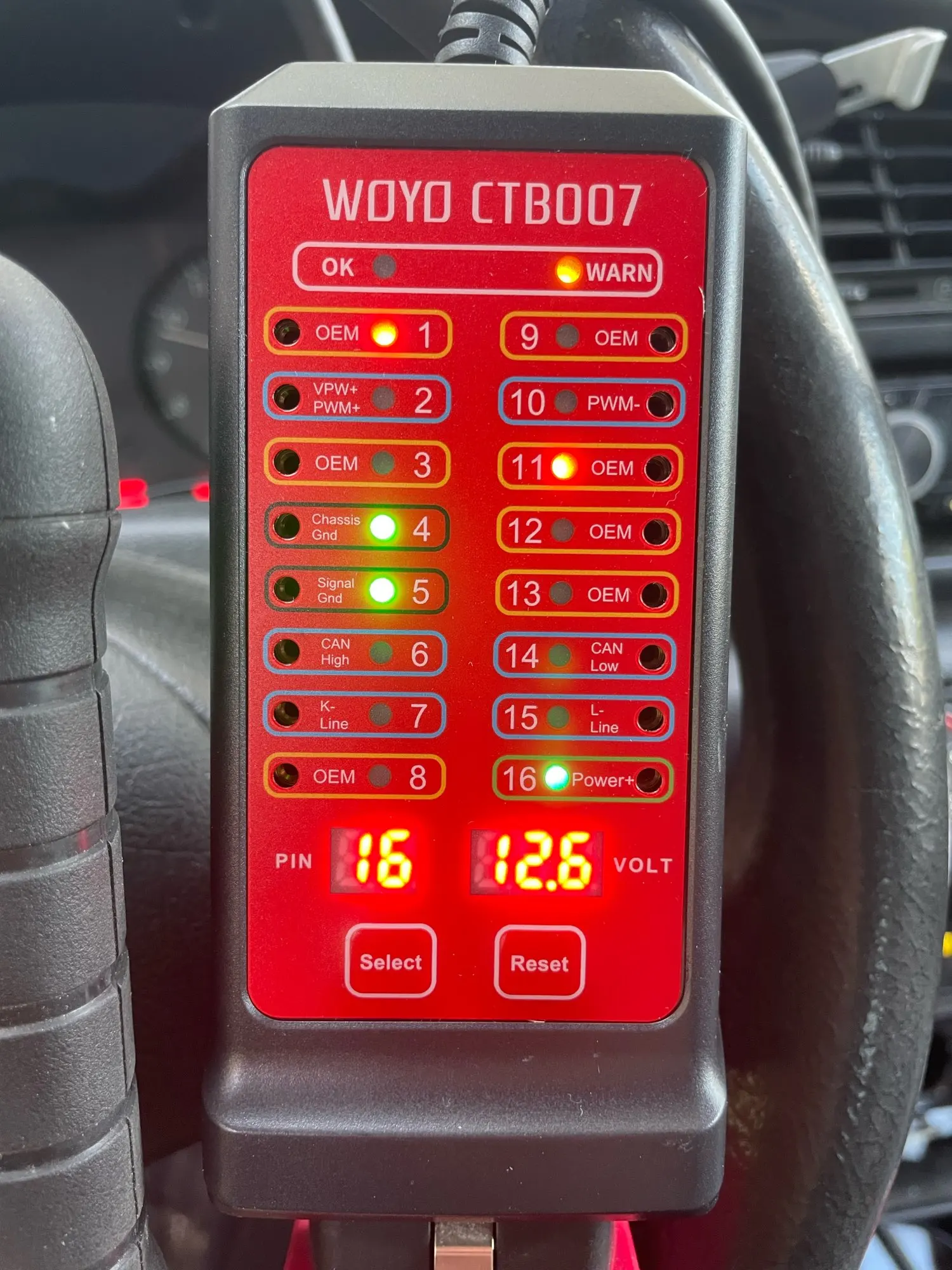

WOYO 12V/24V 27inch/59inch CTB007 CAN Tester on Bench

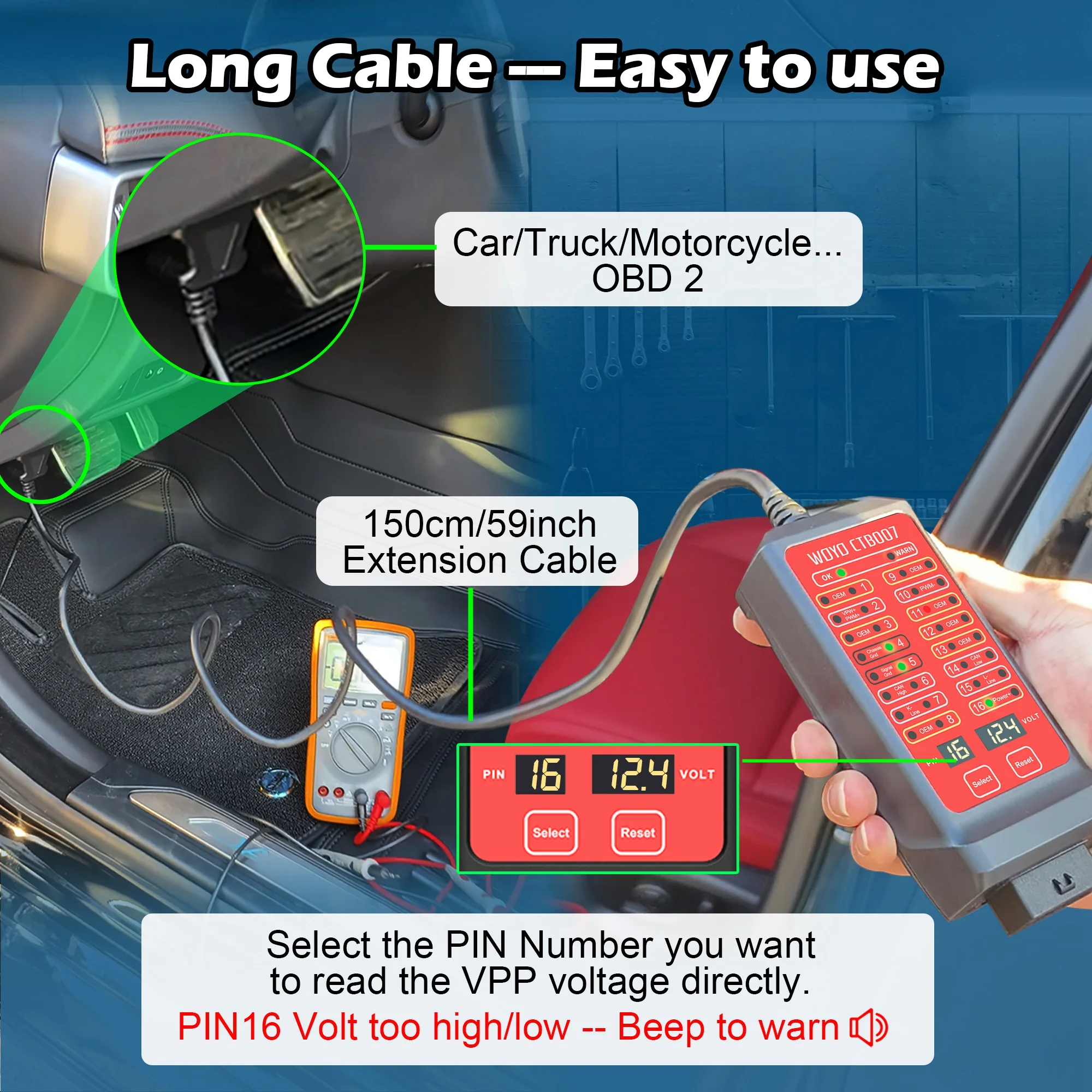

59inch/150cm model

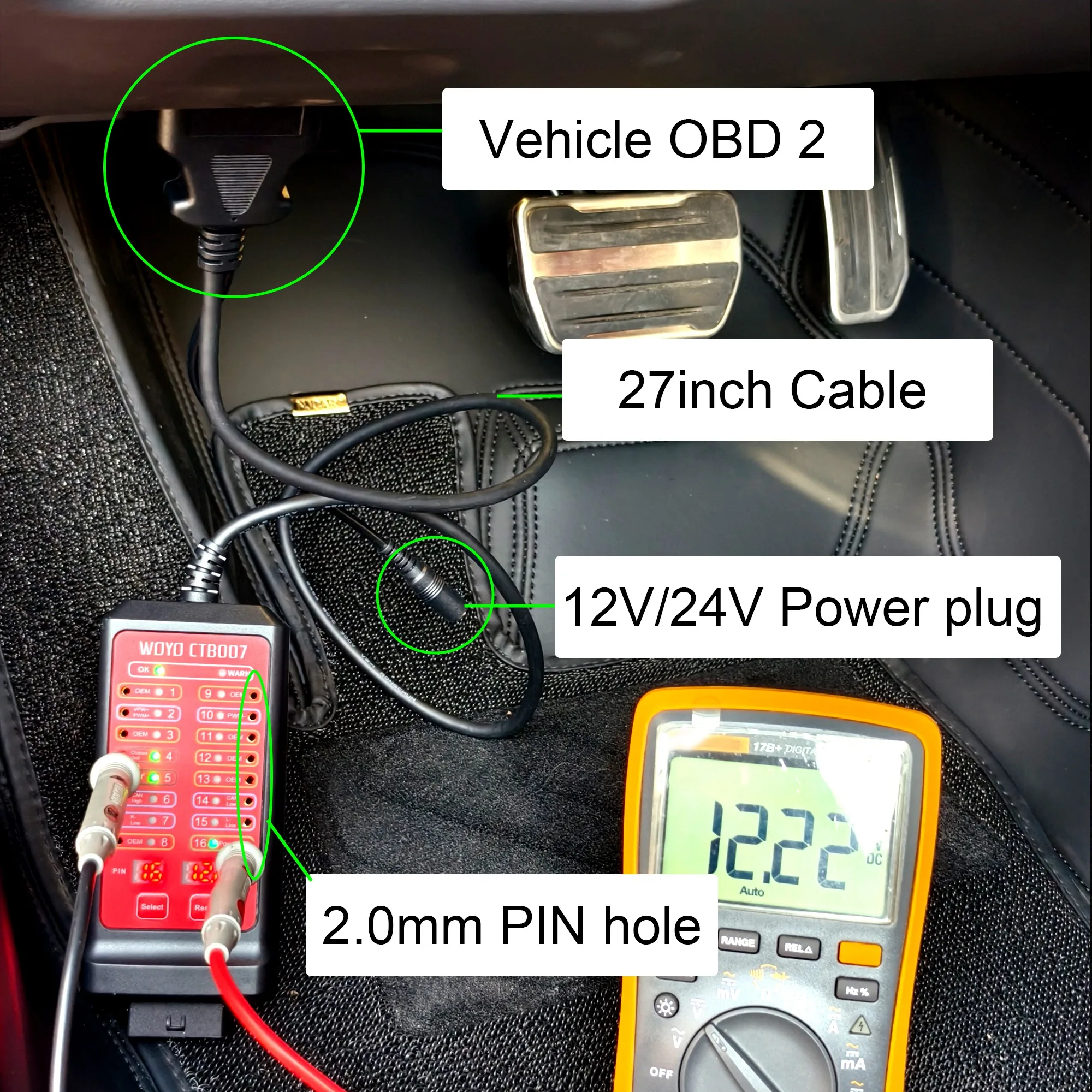

27inch/70cm model

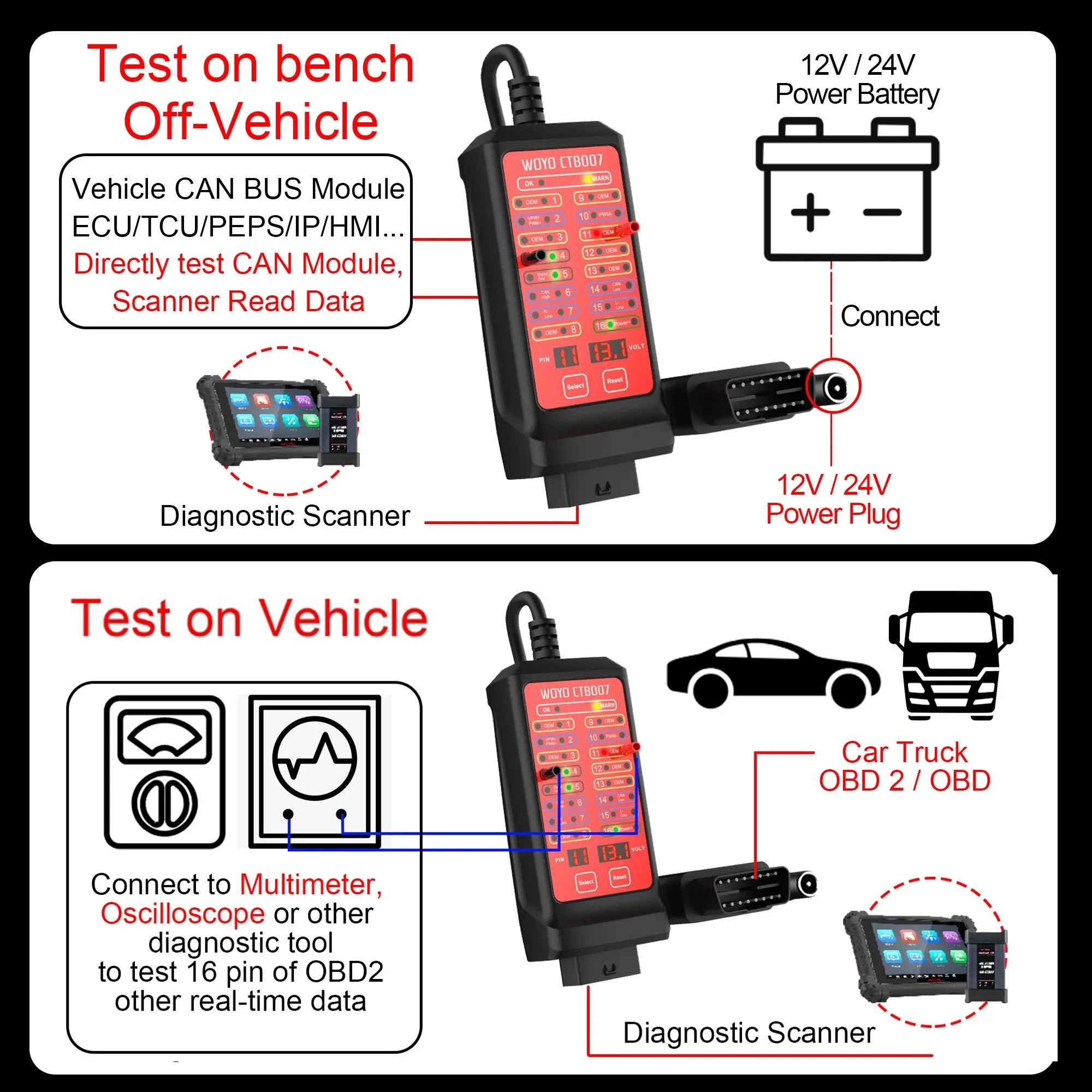

When you use CTB007
only connect with 12V/24V Power battery,
you can test with CAN BUS Module, like EPS/Headlight/…

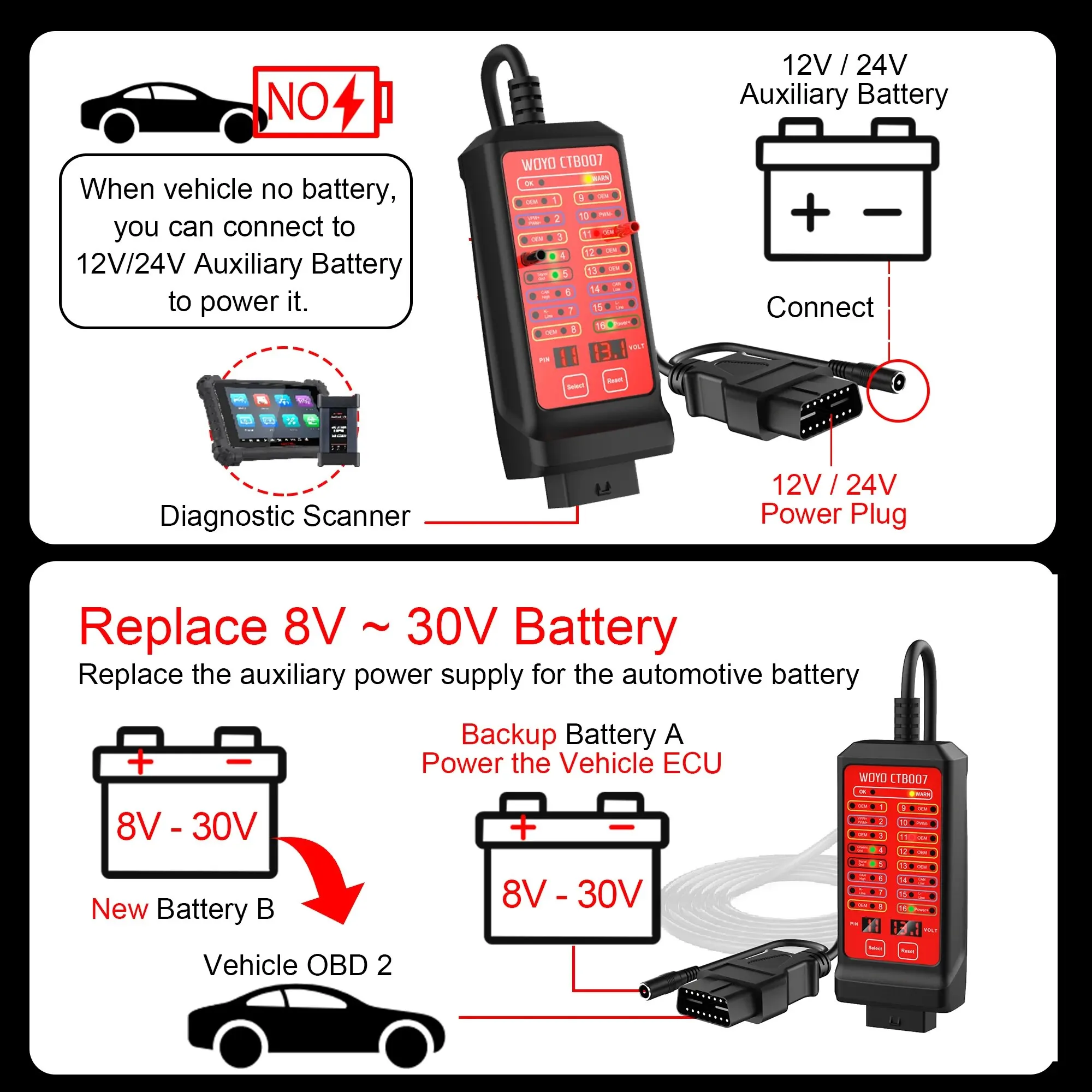

When your vehicle no battery,
connect with 12V/24V Power battery can power the car.
Feature:
1.CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems;
2.Testing DLC (OBD port) if any error before connecting connecting other diagnostic equipment to DLC, such as pin short circuit and polarity reverse connection ;

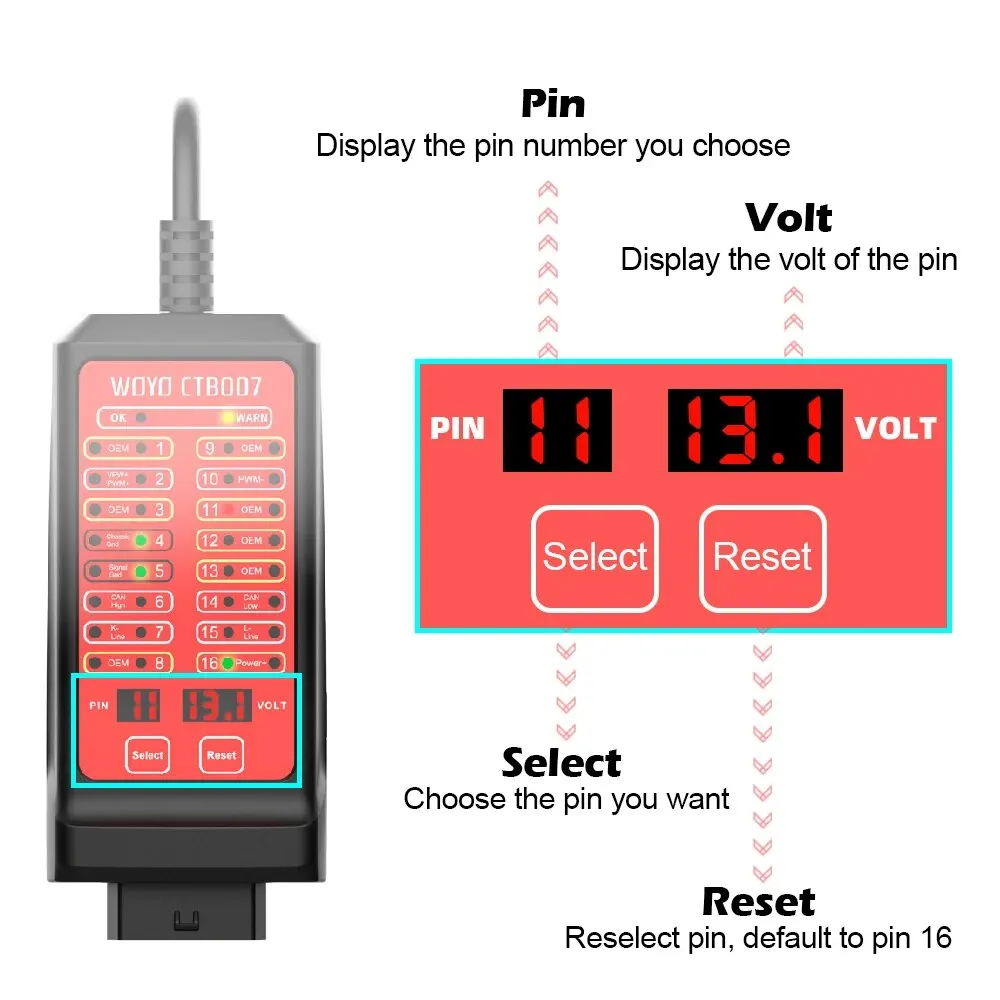

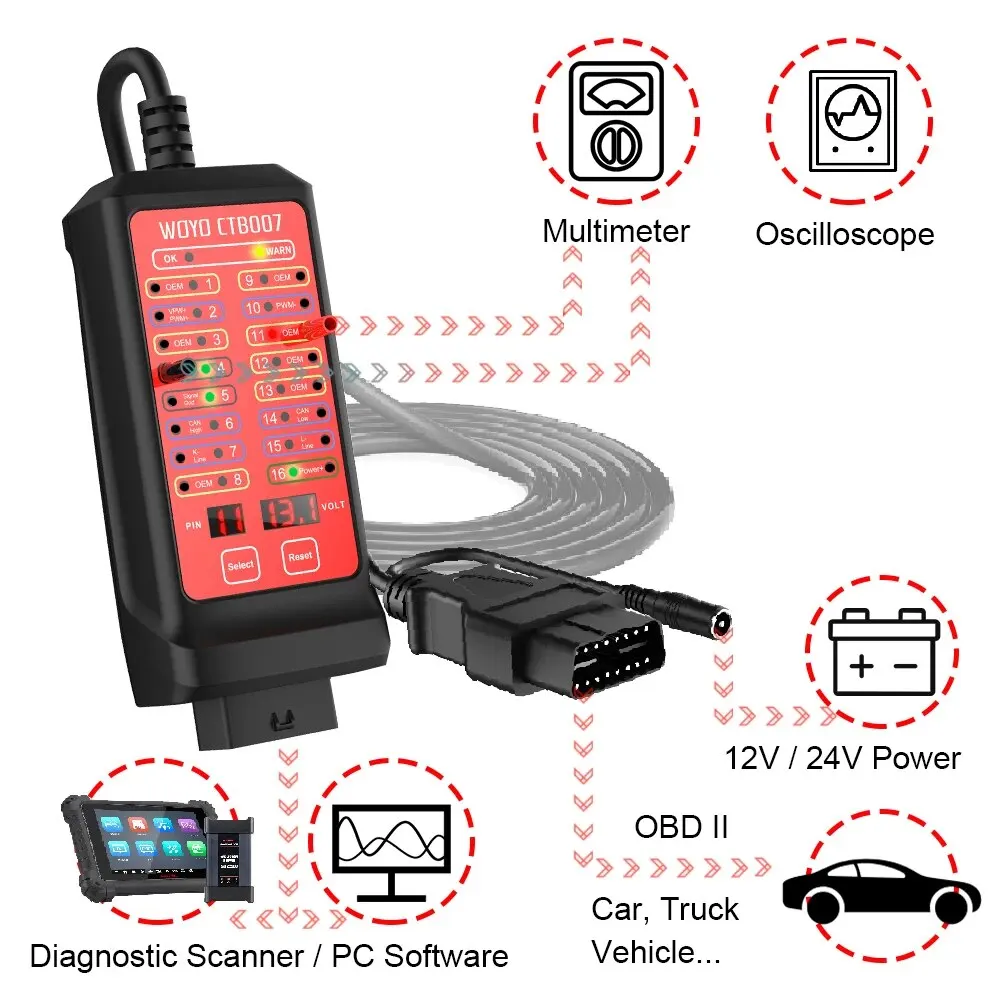

3.Real-time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter ;
4.Fastly connect 16 pins during vehicle maintenance diagnosis;
5.Monitoring input voltage of OBD when burning module, high and low voltage alarm;
6.Quick short obd porsche communication 3-7;
Short-circuit obd VW key all lost 1-6;
Short-circuit obd Mitsubishi remote control 1-4;
Short-circuit obd Toyota sync 4-13;
7.OBD workbench CAN boot box;
8.Replace the battery tool;
Specifications:
Input Voltage:9.0-32.0VDC
Maximum Load:2.0A
Resolution:0.1V
Overload Protection:Yes, PTC Fuse (Self-Healing)
Reverse Polarity Protection:Yes,LED On Pin 4&5 Turn Red
Protocol Standard:PWM(J1850)、VPW（J1850）、ISO 9141-2、DIS/ISO 14230-4、CAN(J-2284)
Operating Temperature:0℃-50℃，Humidity<70%
Banana Socket:16P*2.0mm

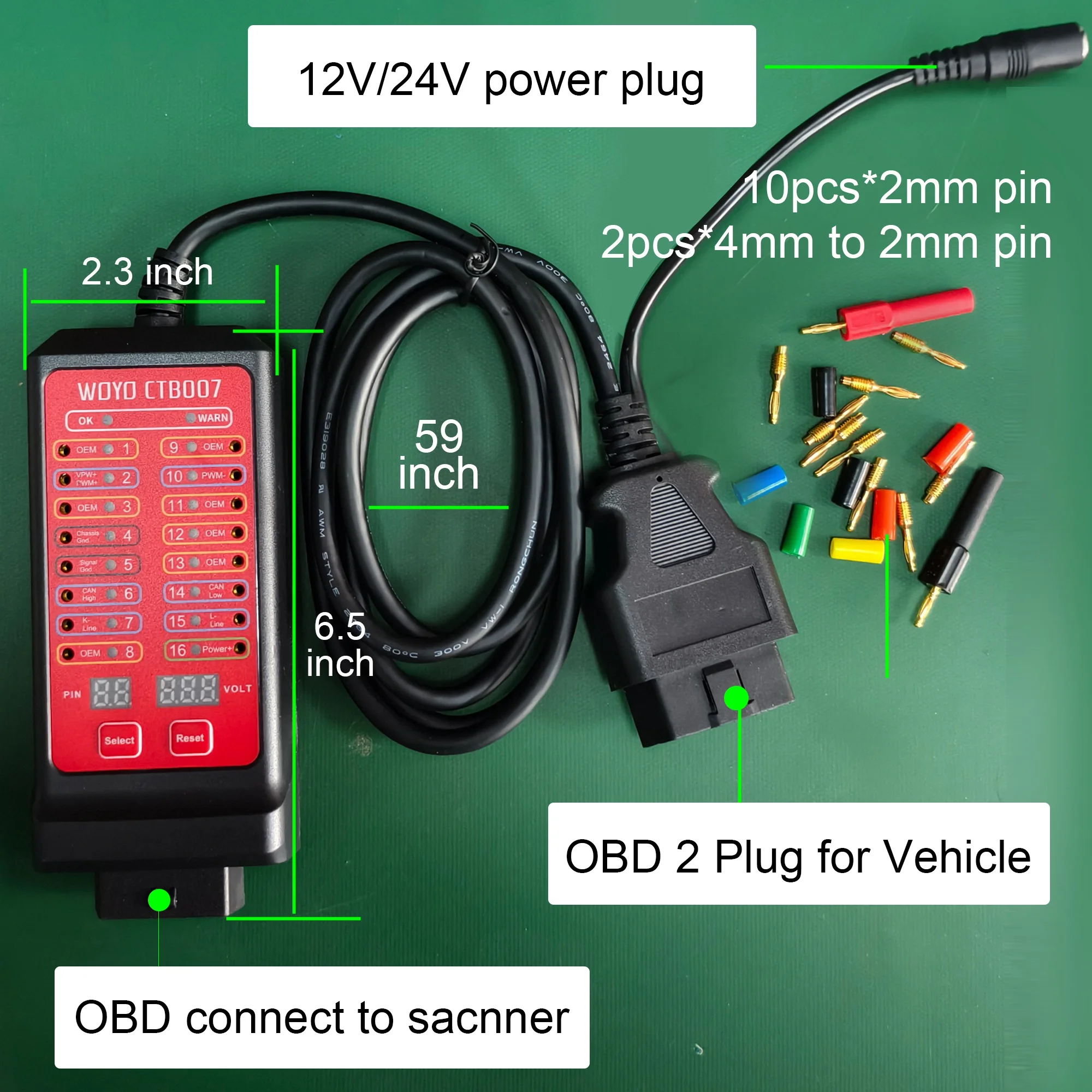

OBD cable length: 75cm(29.5inch) / 150cm(59inch)
WOYO CTB007 CAN OBD 2 Breakout Box
Customer Reviews
16 reviews for WOYO CTB007 OBD2 Breakout Box with 27/59in Cable for Vehicle OBD 2 Diagnostic Tool, 12V/24V CAN Tester Box
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
M***a –
The equipment is very good, it is very good to protect the scanner, you can realize to start when you are connected to the vehicle, from the battery supply, when you realize this, it is ready to observe that the protocol pins are without gallos and to be able to connect the equipment to start the diagnosis. The warning lights allow you to see that there are no errors to proceed, it has a high and low battery alarm, it is excellent for scanner protection, I definitely recommend them.
S***e –
Tested with obd2 scanner protocol signal accuracy, so i envy the knowledge, good for the mech!! !
J***e –
Thank you very much for that! Really great quality and very fast shipping! I’ve already tested the box and am very satisfied with it, exactly what I need.
Thank you to the seller and his entire team! !
2***r –
Thank you very much 🙂
g***r –
Correspond to the description.
P***s –
excellent product 👍
R***s –
The product works very well … I recommend buying it.
R***v –
very good tool, extremely useful
Shopper –
Great, this device is very useful in automotive diagnostics even though I don’t know how to fully use it yet, but it will come, I will learn!!!
l***r –
Very well, good product, thank you.
r***r –
I have received my package, well packed, the delivery person showed up and handed me the package with my signature, very nice. That’s what I like.
A***s –
Everything is fine😀
M***a –
Excellent, great material and quality of workmanship, you just need to buy the 12 volts and alligator-type connectors separately, still you can buy without any problem, thank you and the seller!
a***r –
Ok mulțumesc
Shopper –
Received very quickly, tested and works very well, especially for controlling CAN communication in a snap.
Shopper –

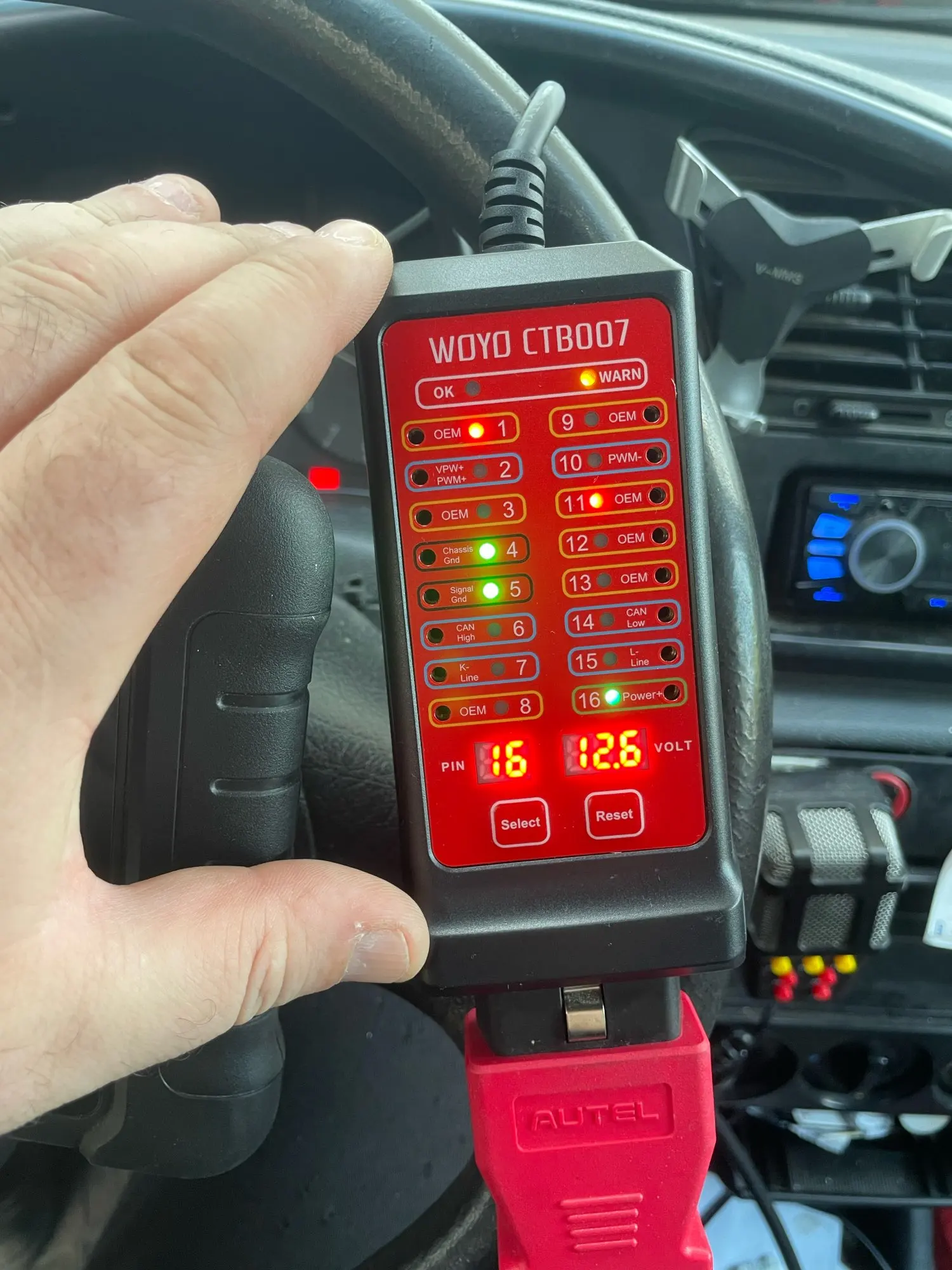

Works very well. Perfect for diagnosing issues at the OBD port.
