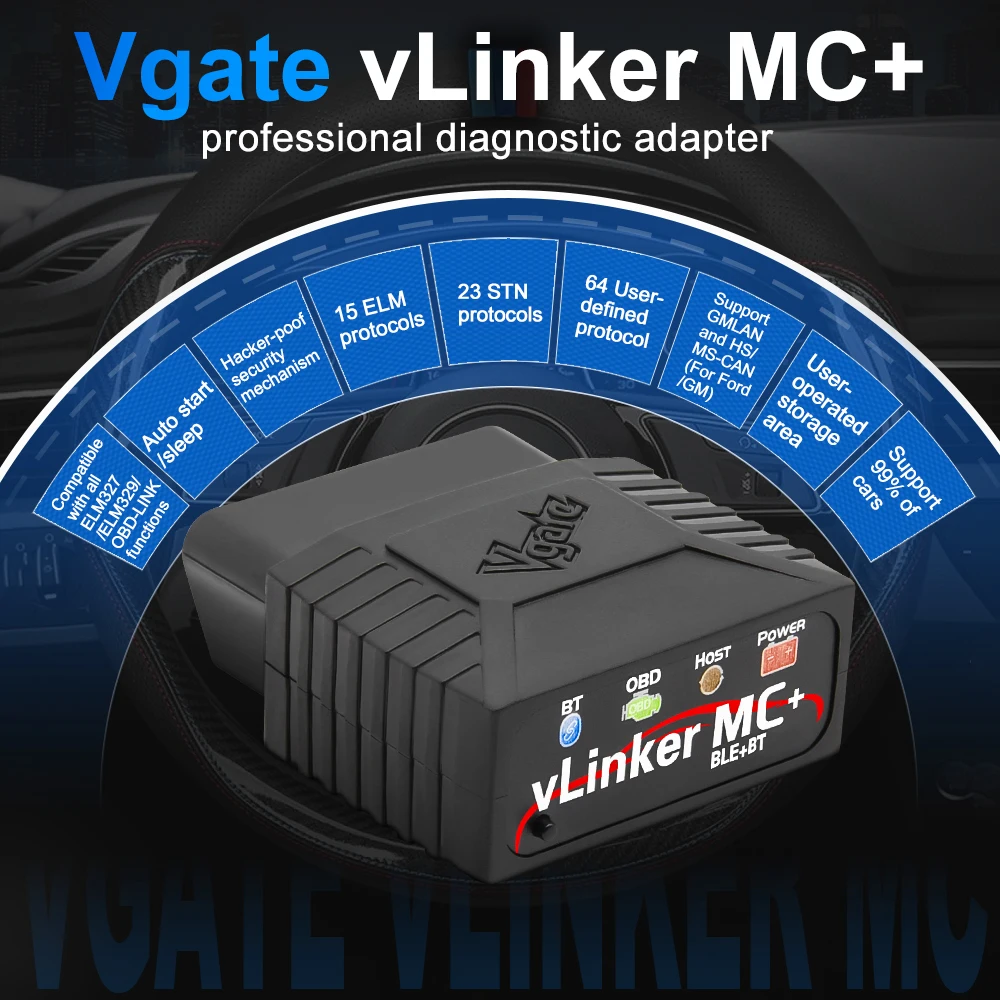

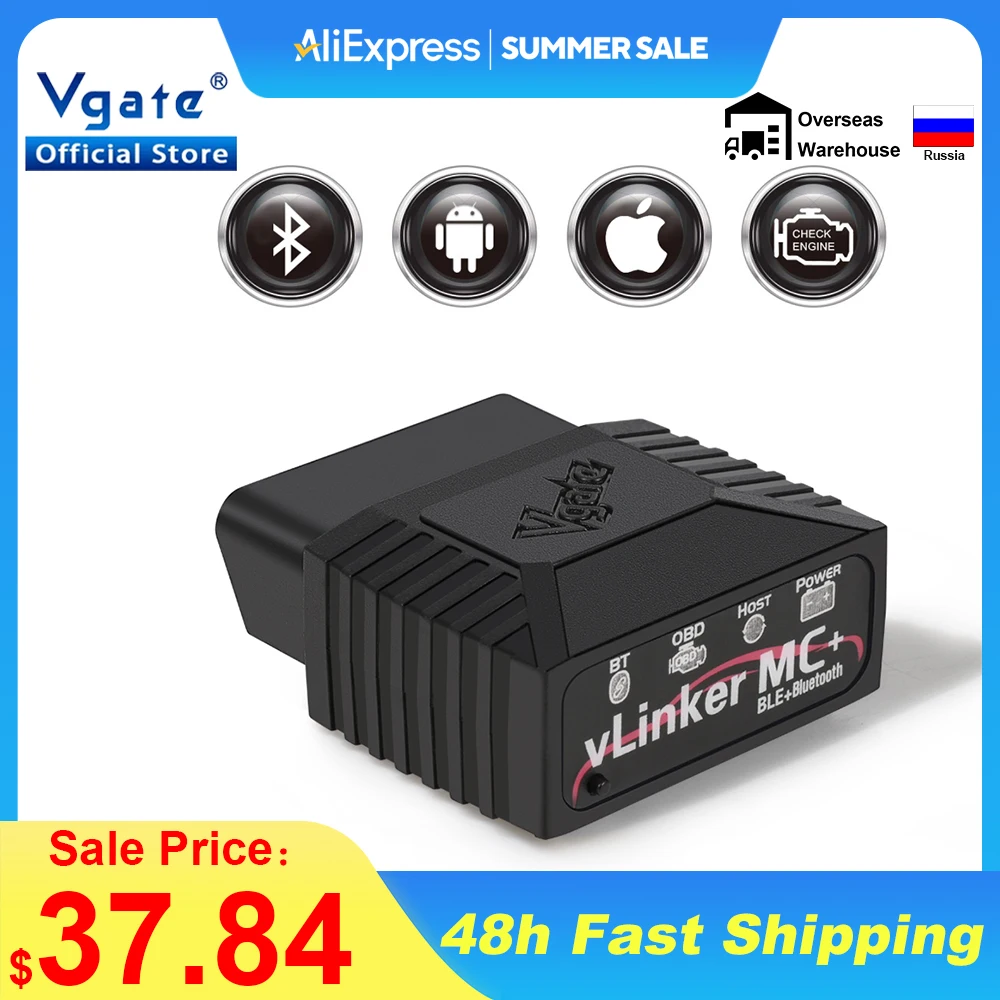

Vgate vLinker MC + ELM327 V2.2 BT4.0 BT3.0 OBD2 Scanner For BimmerCode For FORScan Auto Car Diagnostic Tools V1.5 HS/MS-CAN

Vgate vLinker MC+ ELM327 BT4.0 BT3.0 OBD2 Scanner For BimmerCode For FORScan For Android/IOS V1.5
How to use code to get discount:
Purchase Notes：
1.Our products support popular software such as:BimmerCode/Torque/Forscan/JScan/Auto Doctor/OBD Fusion etc.,We only sell adapters to be compatible with these software, but some of the functions of the software or the software itself are not free, you need to pay additional fees to the software company

2.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don’t connect to BT in phone settings.If you are using MC BT version on Android, you need to press the switch first, and then search for BT：vlinker MC-Android
100% Original Vgate vLinker BT3.0/BT4.0:

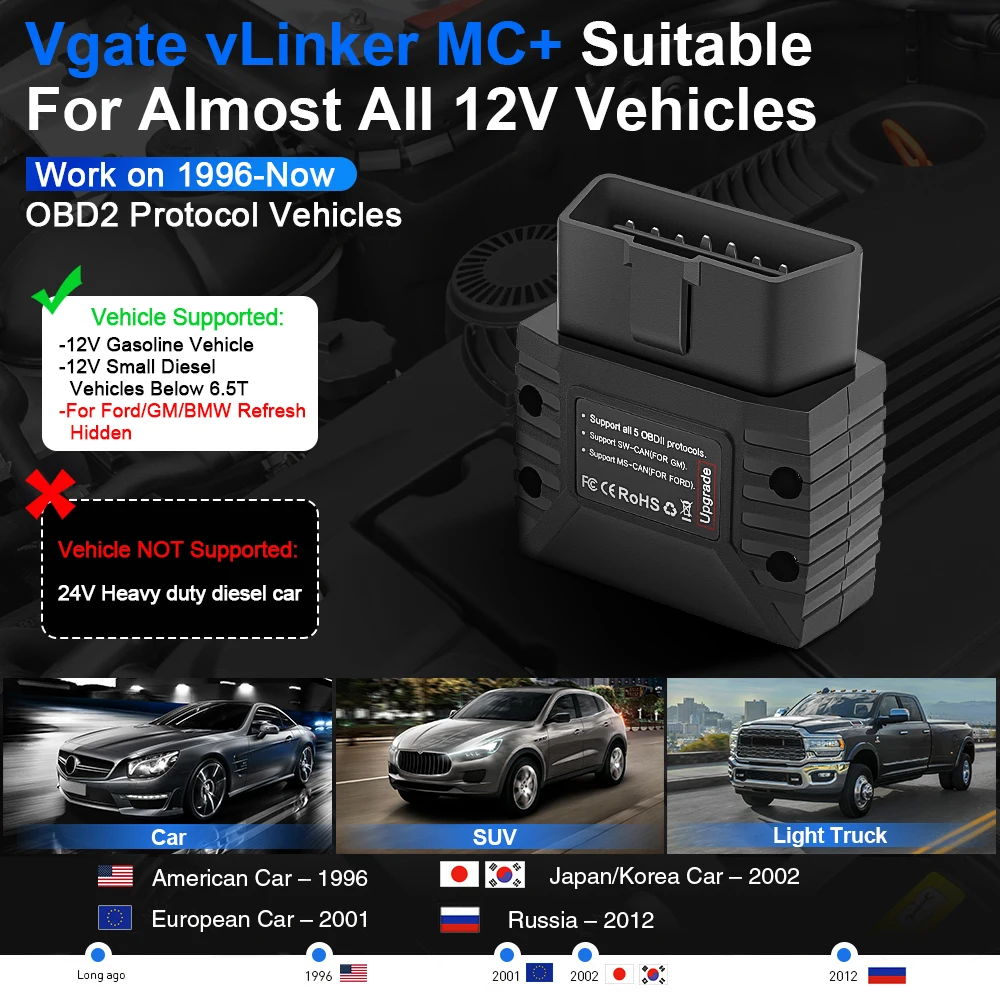

compatible with 99%+ world car models
1.Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc
2.Support Almost All ELM327/ELM329 Adapter Software
3.Automatic sleep and start to reduce power consumptione
4.OBD2 Standard Protocols+More protocols
5.Support user-defined commands
6.Request bytes up to 48 bytes
7.Support Firmware Update
8.Support user-defined APP
9.Support GMLAN and HS/MS-CAN (for Ford/GM)
10.15 ELM protocols/23 STN protocols/64 User-defined protocol
Support Protocols：
Multiple protocols：
–15 ELM format protocols;

— 23 STN format protocols;

— Up to 64 user-defined protocols.

OBDII 5 standard protocols：

— SAE J1850 VPW

— SAE J1850 PWM

— ISO 9141-2

— ISO 14230-4

— ISO 15765-4 CAN

Additionalprotocols：

— SAE J1939 CAN

— ISO 11898 (raw CAN)

— for GMLAN Single Wire CAN (for GMW3089)

— for Ford Medium Speed CAN (MS CAN)

Theseprotocolscover almost 99% of the OBDII Cars on the market
Software Support：
Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software.
Please Note：
We only sell adapters. If you need to charge for some functions of the software you choose, this money is paid to the software developer, not to us.
Rich instruction set, compatible with more APP software：
— Fully compatible with ELM’s AT command set;

— Fully compatible with STN’s ST command set;

— Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

–39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

— Compatible with ELM and STN power management solutions.

— Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

— Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

— Device sleep power consumption is less than 2 mA.

— OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

— UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

— 256-byte storage unit

— More than 100,000 erasable times

— Read and write operations on any unit in the storage area by using the VT command

— Mix ID Sending” mode of CAN protocol.

— Optional formatted send data according to protocol

— Multiple WM sequence settings

— Support AT command to manually set WM sequence

— Support for specifying a protocol or a full protocol-wide temporary WM sequence

— Support for a permanent link between a protocol and a private WM sequence

— Secure bootloader for easy firmware updates
Typical Applications：
• Vehicle telematics

• Fleet management and tracking applications

• Usage-based insurance (UBI)

• OBD data loggers

• Automotive diagnostic scan tools and code readers

• Digital dashboards
Special Function:
Fully automatic identification of vehicle protocols,quick reading of vehicle information

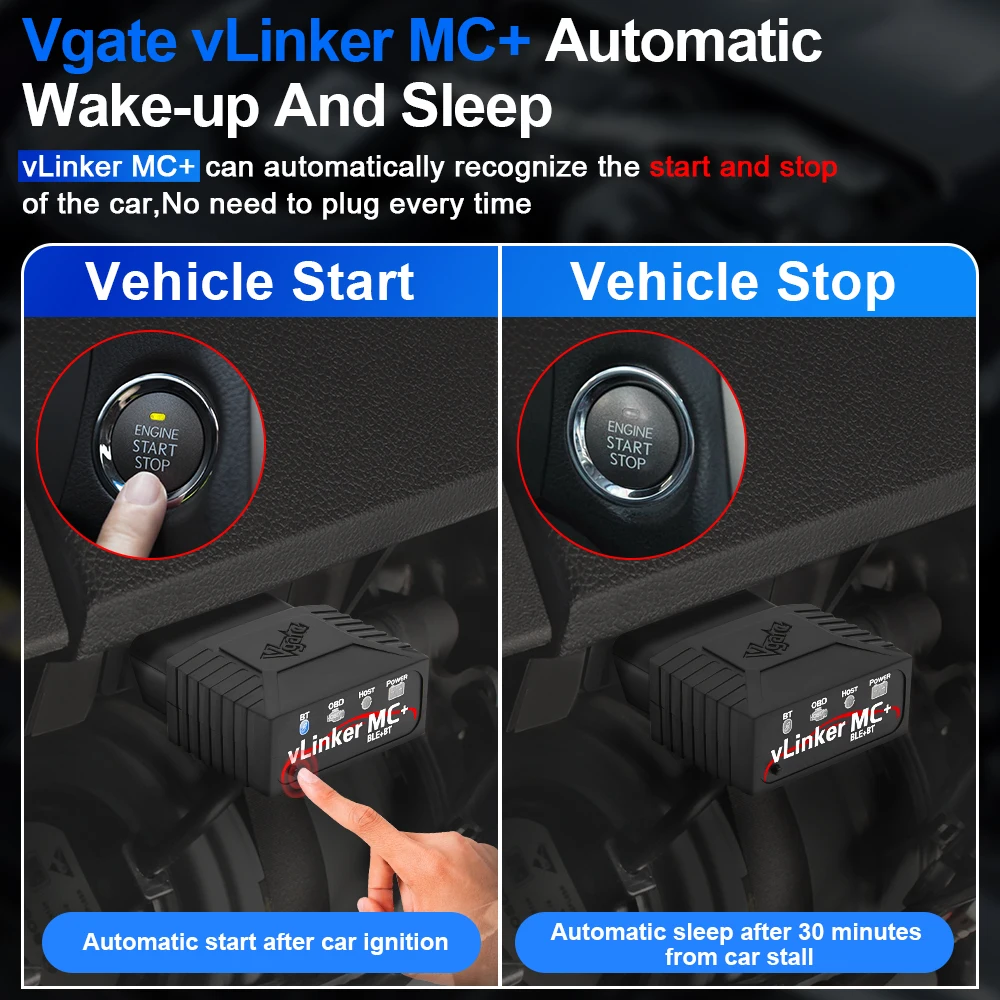

Fully automatic standby/start,no manual switch button required

(Automatic wake-up function does not support trams)

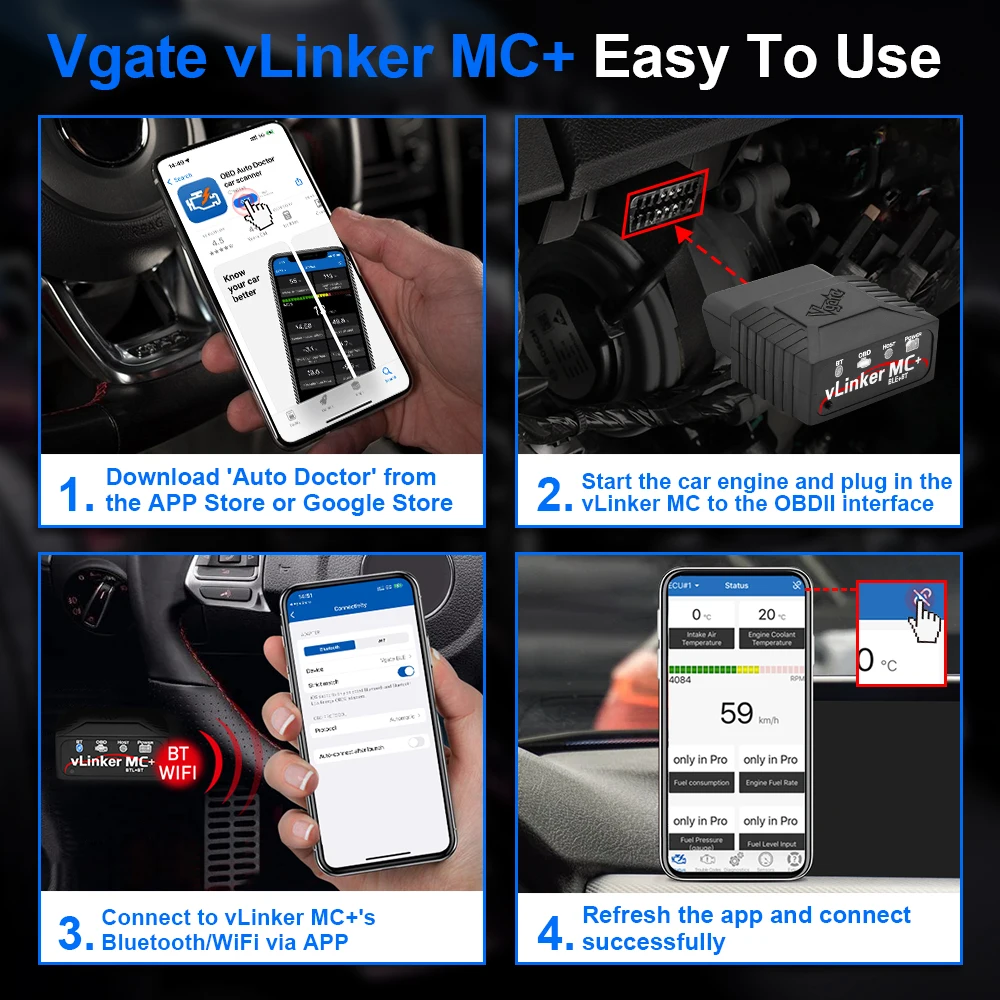

Connection method:
BT4.0/BT3.0：

1.Turn on the Ignition in the car

2.Plug in the adapter into the OBD Port

3.Turn on BT,BT only needs to be turned on

4.Open OBD Auto Doctor choose “Extras” ，click “Connectivity”,choose “BT”and “vLinker MC+” Drop out software and Enter again.
Vgate vLinker MC+ Bluetooth Operation Steps – Reference for Android users
Android System Operation Steps – Vgate vLinker MC+

1. Insert the product into the OBD interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the phone.

4. After pressing the Black Button on the product, the device name can be found on the phone. (Important Operation)

5. NOTE: Search for the device name “vLinker MC” or “vLinker MC-Android”and click Pair. (For Android system) Attention!! Do not pair “vLinker MC+” or “vLinker MC-IOS”

6. Enter the pairing code: 1234 . If the pairing is successful, you can open the APP to set up the connection.

iOS System Operation Steps – Vgate vLinker MC+

1. Plug the product into the OBD2 interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the iOS phone.

4. No need to configure Bluetooth device name in the iOS phone. Just enable Bluetooth button on the iOS device and continue to the OBD app Setting.

* NOTE:In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP’s official website.

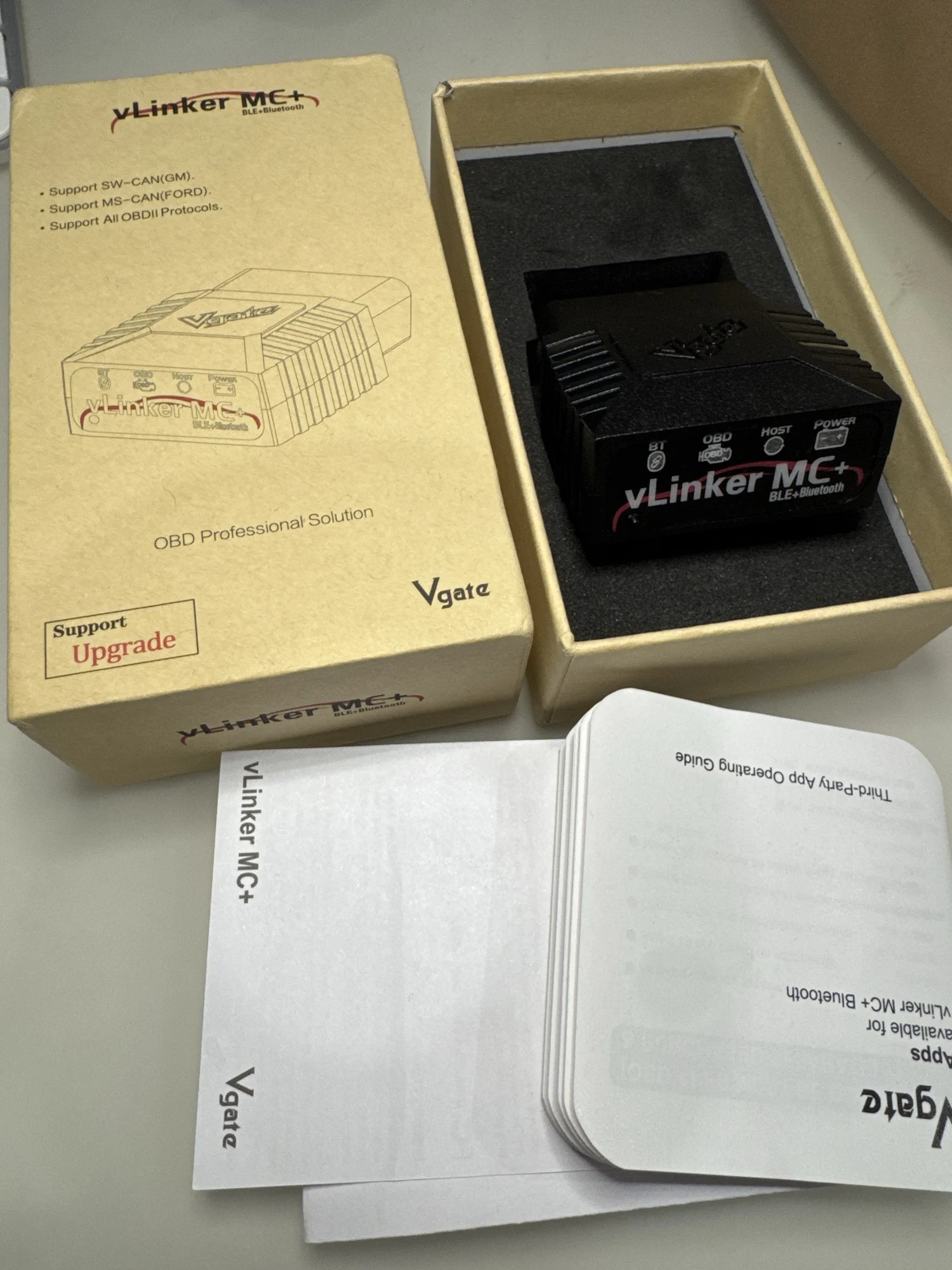

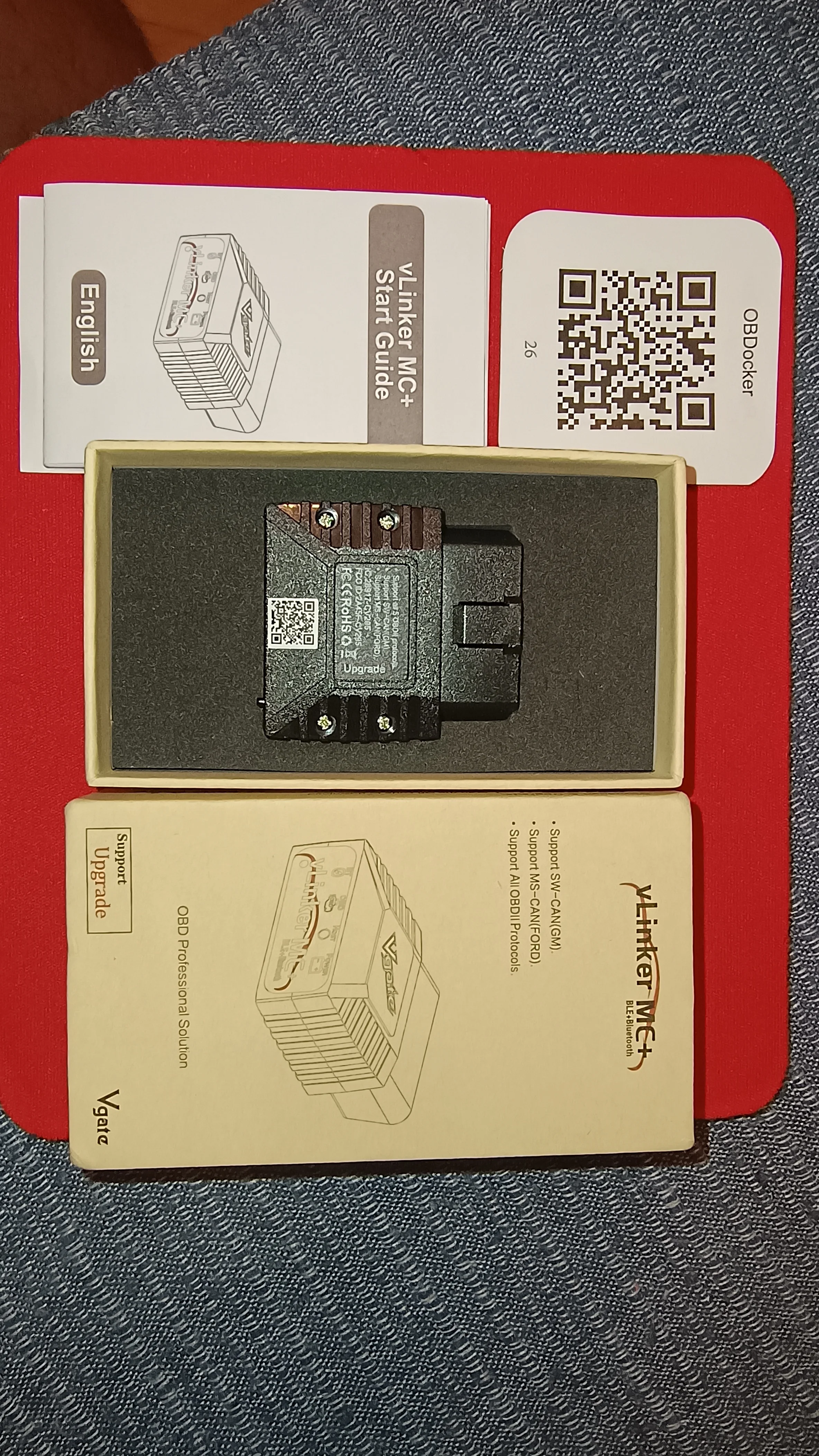

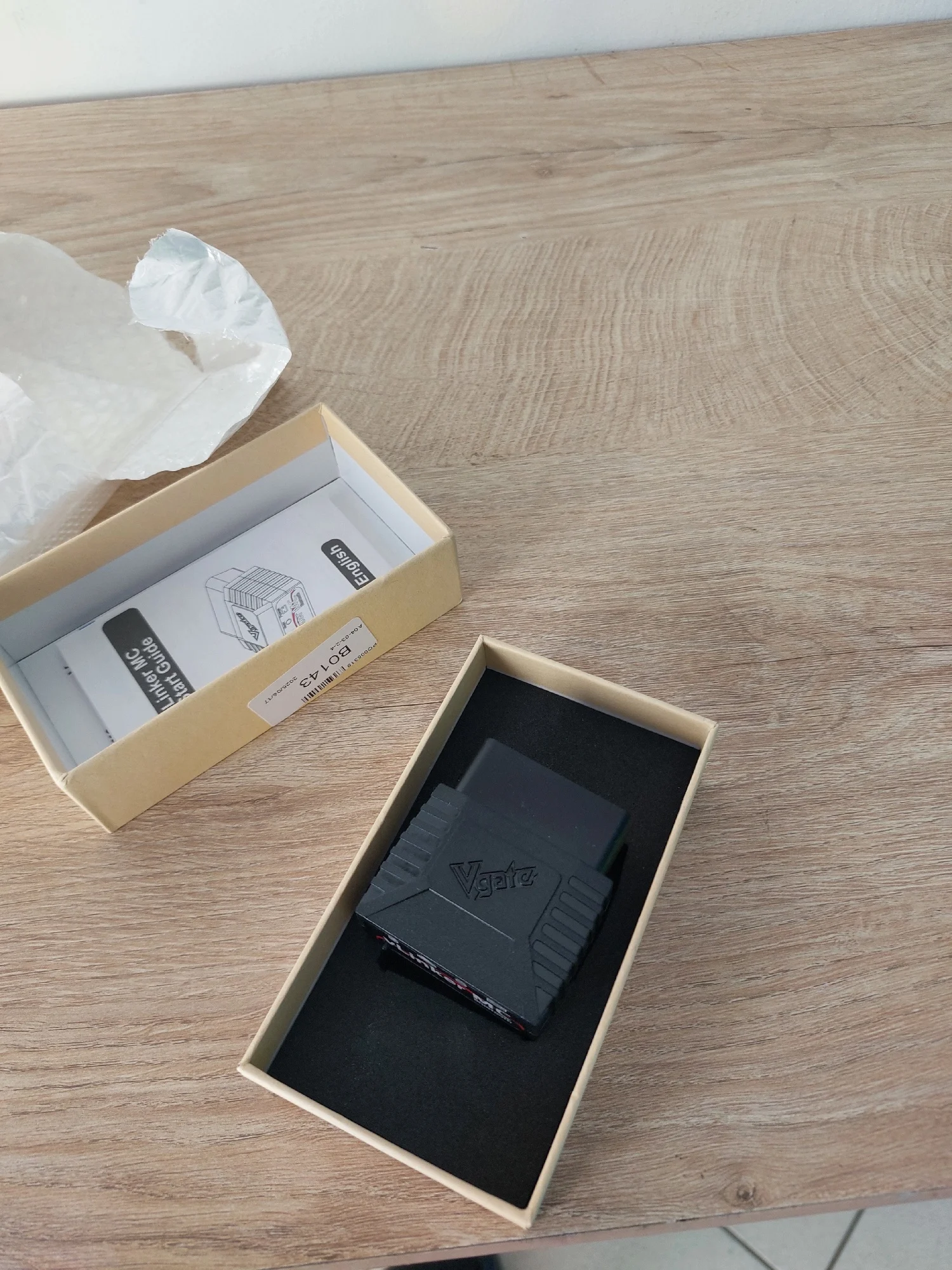

Package List：
1 x Vgate vLinker BT3.0/BT4.0
1 x User manual
