VDIAGTOOL V500 Pro Car Circuit Probe Tester Auto Electrical Tester Diagnostic Tools Multimeter Oscilloscope Relay Injector Test

NOTICE FROM SELLER:
1.Functions varies from different cars. Please contact the seller to check before purchasing.
2. All products in our store are guaranteed to be 100% original (with S/N serial number to check!)
3.2 years warranty and lifetime technical support from official service team,remote problem solving supported.
4. Fast delivery within 3-5 days from EU warehouses (FR/ES/PL), we bear the taxes.
The Fast Delivery
🚙From France: Send to Southern Europe countries, we have paid the tax. (3-5 Daysshipment)
5. 15-days local returns: Support return to French, Spanish and Poland warehouses (contact seller before return)
The 2025 upgraded version V500 PRO helps you solve all circuit testing needs at a lower price!

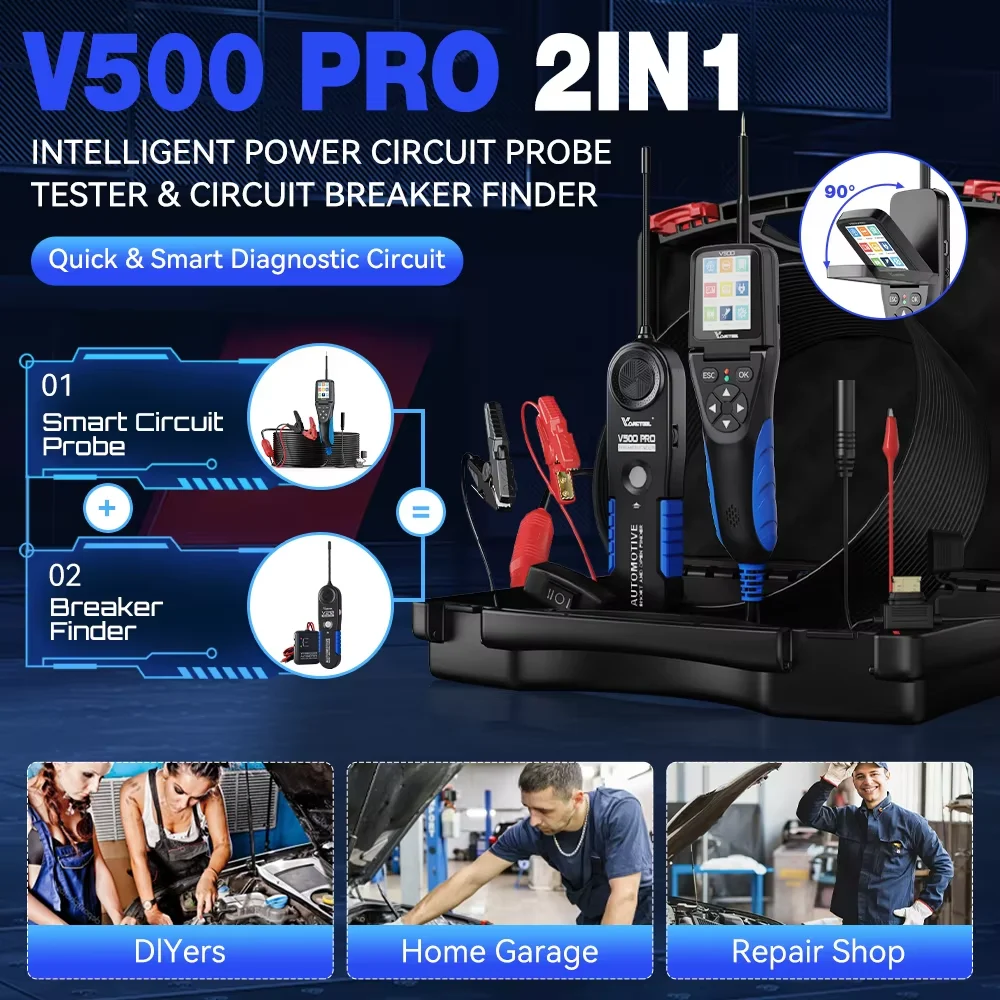

VDIAGTOOL V500PRO is a 2-in-1 automotive intelligent circuit probe kit. It can provide customers with a one-stop solution for automotive circuit diagnosis,covering all circuit tests : 🚩Smart test🚩Multimeter mode (voltage, resistance, diode and short circuit, current, frequency) 🚩Relay test 🚩Oscilloscope mode 🚩Injector test 🚩0-5V power supply 🚩Component activation 🚩Positive and negative detection 🚩Diode test 🚩Short circuit/open circuit test 🚩Wire tracking. Unlike most circuit testers on the market, the V500PRO smart circuit diagnostic tools can be easily switched between Mode 1 and Mode 2, covering all circuit problems, greatly helping customers save time and money!

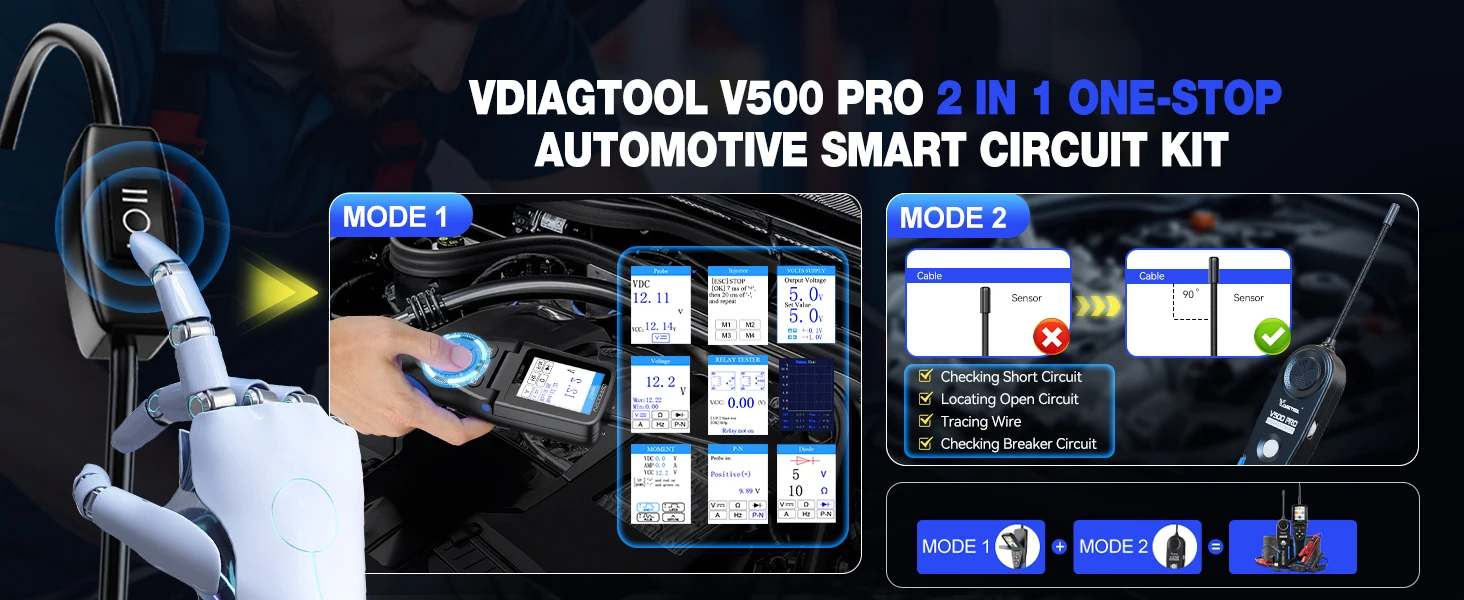

🚩Mode 1 is equivalent to the function of V500, and mode 2 is equivalent to the function of V210.

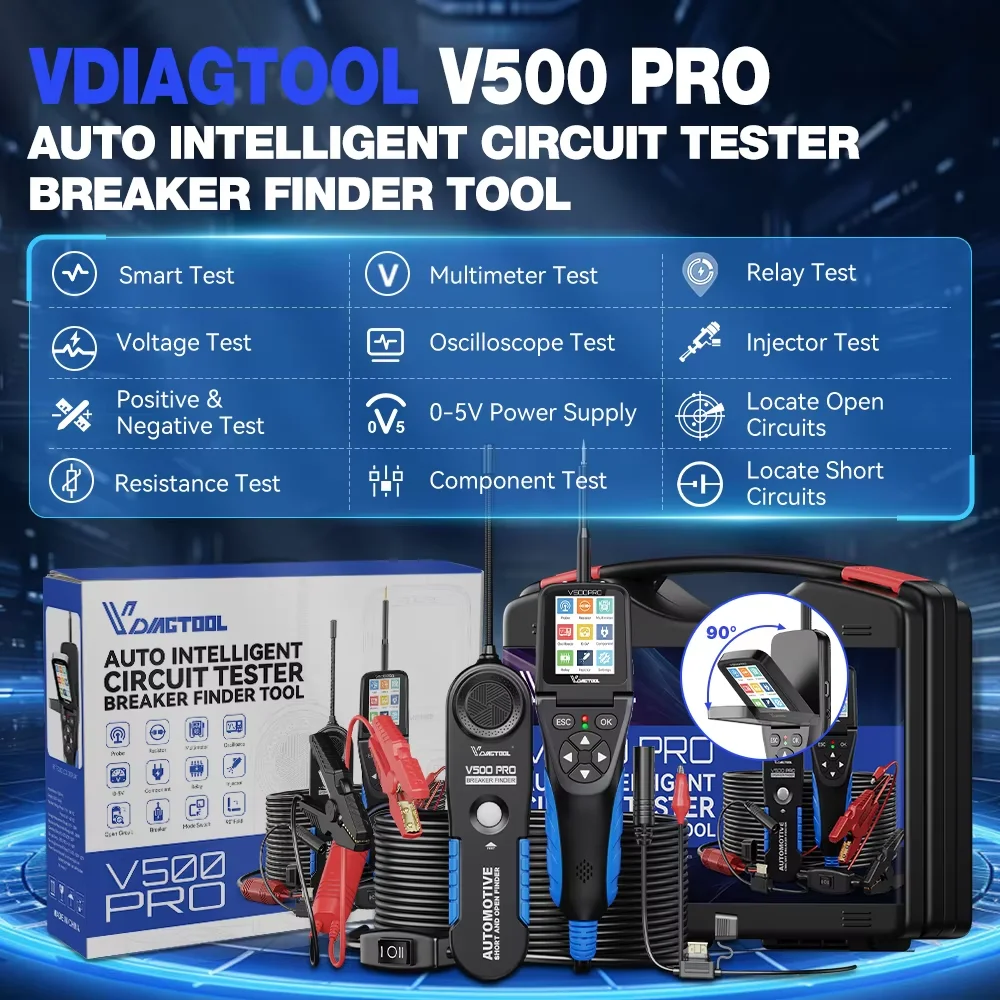

VDIAGTOOL V500 Pro Multi-Function Circuit Tester 🚗🔧 — Professional Automotive Electrical Diagnostic Tool

💡 All-in-One Circuit Tester to Solve Electrical Issues Efficiently & Save Time and Money!
🚀 Key Features
✅ Comprehensive Circuit Testing — One Device for All Your Needs
✔ Circuit Breaker & Open Circuit Testing: Quickly locate broken wires, short circuits, and current leaks
✔ AC/DC Voltage Testing: Measures both AC and DC voltage across a wide range
✔ Resistance Measurement: Accurately test circuit resistance for better fault detection
✔ Positive/Negative Polarity Test: Identify wire polarity to prevent misconnection
✔ Fuse & Relay Testing: Ensure the proper functioning of fuses and relays
✔ Signal Circuit Testing: Diagnose sensor signals for accurate fault detection
✔ Oscilloscope Mode: Visually display electrical waveforms for advanced diagnostics
🔎 Locate Open Circuits & Broken Wires Without Damaging Insulation
-Switch to Mode II and use the circuit breaker finder to pinpoint open circuits, short circuits, and current leaks
-Ideal for all types of vehicles, including cars, SUVs, trucks, motorcycles, RVs, tractors, boats, and more
-Trace hidden wires even in complex vehicle wiring systems
📊 Oscilloscope & Multimeter for Precision Testing
-Oscilloscope Mode: Provides real-time visualization of electrical signals, allowing for accurate troubleshooting
-Multimeter Mode: Measures Voltage (VDC), Resistance (OHM), Diode (DIO), Current (AMP), Frequency (HZ), and Polarity
-Suitable for advanced diagnostics such as fuel injection systems, sensor signals, and control module outputs
💉Injector Testing — Diagnose Fuel Injectors Easily
-Outputs pulse signals directly to the injector to check spray patterns and identify clogged or faulty injectors
-Saves time and money by eliminating the need for professional shop diagnostics
🔋 0-5V Adjustable Power Supply for Circuit Simulation
-Provides stable, adjustable low-voltage power for sensor and circuit diagnostics
-Simulates input voltage to debug sensors, test circuit behavior, and calibrate systems
-Prevents component damage due to incorrect power input, making it perfect for debugging low-power electronics and sensor systems
🔧 Component Activation & Signal Circuit Testing
-Directly powers various automotive components, including bulbs, radiator fans, starter motors, relays, window regulators, and windshield wipers
-Pinpoints short circuits that repeatedly blow fuses
-Tests sensor signals and identifies the root cause of diagnostic trouble codes (DTCs) from vehicle ECUs
🖥 90° Rotating Display for 360° Viewing
-The screen rotates 90°, providing a clear, unobstructed view from any angle
-Eliminates blind spots, ensuring a more efficient diagnostic process
🛠 2-Year Warranty & Online Update & 24/7 Tech Support:
-VDIAGTOOL V500PRO power circuit probe analyzer supports online update, 2-year quality guarantee and 24-hour professional technical guarantee to protect your after-sales service.
For any questions, feel free to contact us!

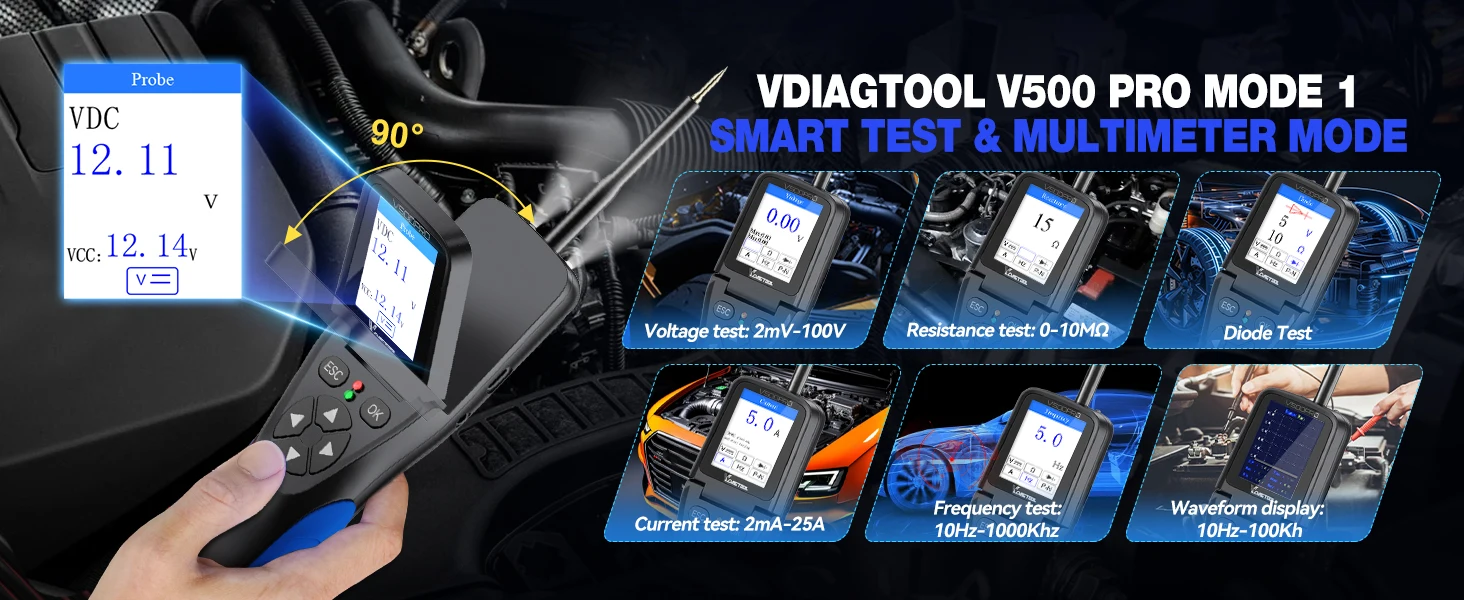

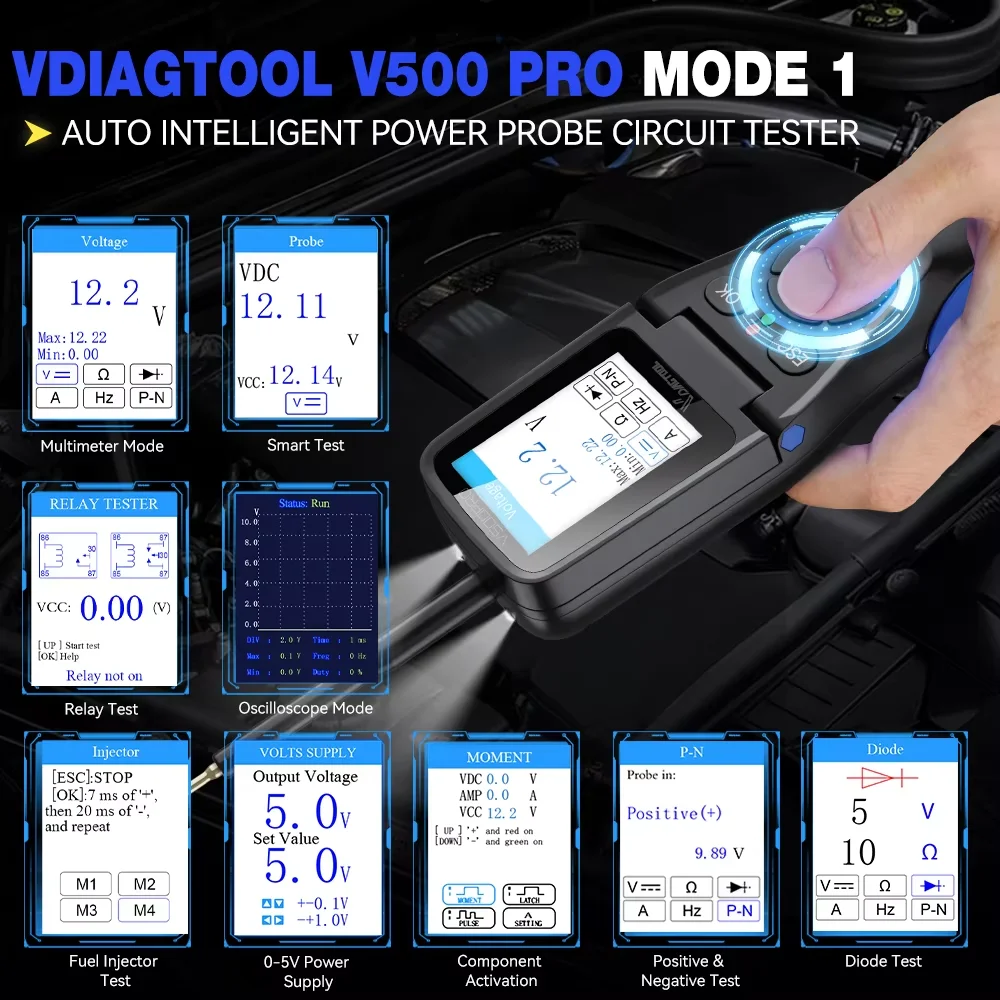

VDIAGTOOL V500 PRO MODE 1 Smart Test & Multimeter Mode：
Practical design:
✔️90° rotating screen: The main screen of VDIAGTOO V500 PRO circuit diagnostic tool can be rotated 90°. No matter from which angle, you can observe the circuit data on the screen 360° without blind spots, so that you can focus on analyzing circuit faults;
✔️Built-in flashlight: V500 PRO has a built-in flashlight, which is convenient for you to perform circuit diagnosis in dark environments;
Smart Test:
Different from traditional power circuit testers, the 2024 VDIAGTOOL V500PRO 2 IN 1 Automotive Power Circuit Probe Kit Breaker Finder Tester can automatically identify the signals under test, such as voltage, current, resistance and other parameters in the circuit, and save switching time between different test modes , allowing customers to focus on repairing circuit faults. In addition, V500PRO supports 90-degree screen rotation, allowing customers to observe data parameters on the screen at any angle; the built-in flashlight design allows customers to work normally in dark environments.
Multimeter mode：
Multimeter: The multimeter in the VDIAGTOOL V500PRO intelligent circuit probe detector is mainly used to measure basic parameters such as voltage, current, resistance, etc. in the circuit, and has a wide measurement range:
✔️Voltage Test：0.1-100V;
✔️Resistance Test: 0KR-200KR;
✔️Current Test：2mA-25A;
✔️Frequency Test: 10Hz-1MHZ;
✔️Oscilloscope:10Hz-100KHZ.

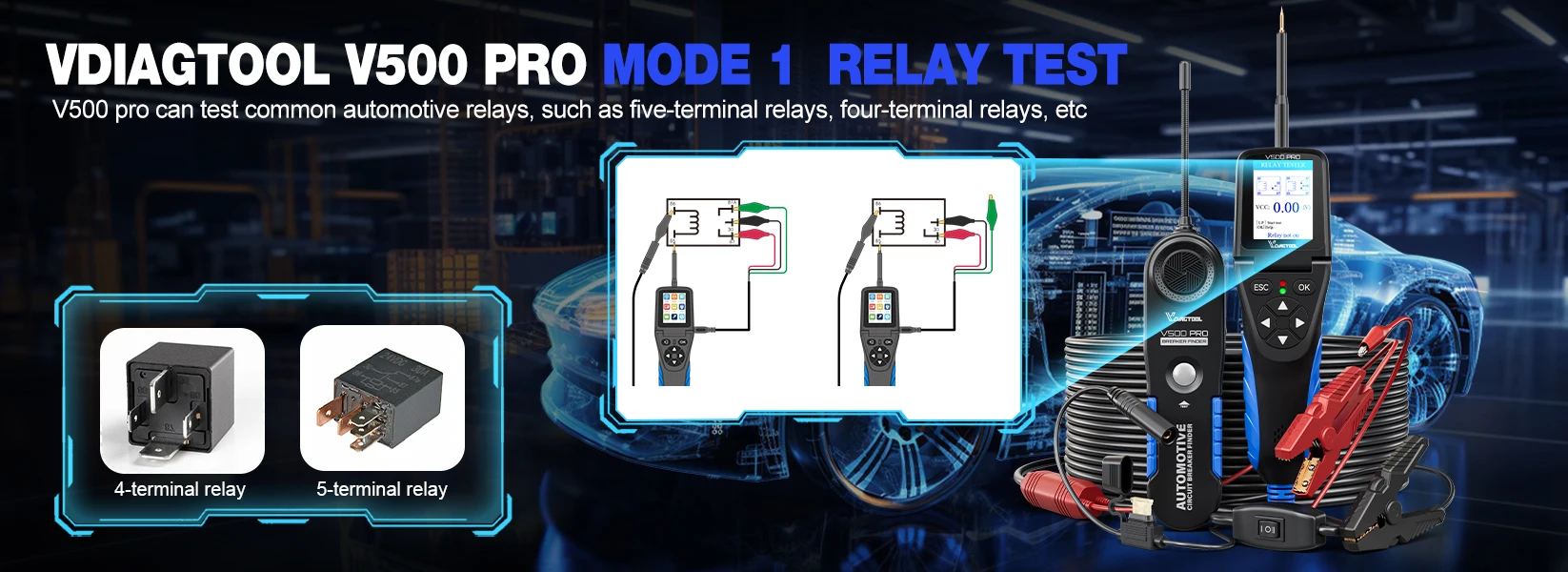

VDIAGTOOL V500 PRO MODE 1 RELAY TEST：
➤Relay testing is the process of checking the function and performance of a relay to ensure that it works properly in the circuit. By testing the relay’s coil voltage, resistance, contact status, etc., it is possible to diagnose whether the relay is damaged or failed, which is crucial to maintaining the reliability and safety of the electrical system.Common relay tests include:
✔️ Voltage test;
✔️ Coil resistance test;
✔️Relay action test;
✔️Relay delay and retention test.

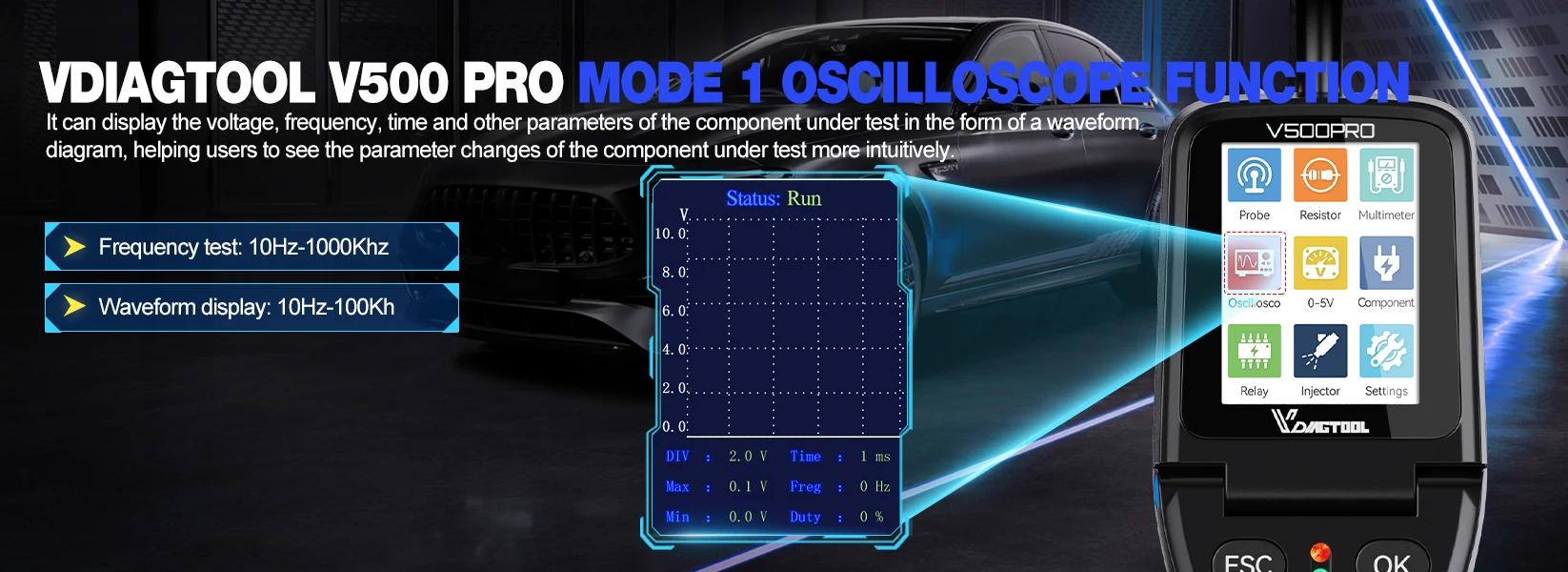

VDIAGTOOL V500 PRO MODE 1 Oscilloscope Function：
➤Parameter range：
✔️Frequency Measurement Range: 10Hz-1000Khz
✔️Waveform display: 10Hz-100Khz
➤Oscilloscope Function:
✔️Visual fault diagnosis: The oscilloscope mode visualizes the signal and intuitively displays the change of the signal shape, which makes it convenient for customers to quickly identify abnormal behavior in the circuit, such as waveform distortion, signal attenuation and other problems;
✔️Detect transient problems: Transient problems in the circuit (such as instantaneous voltage spikes, pulse interference, etc.) are sometimes not captured by static measurement tools (such as multimeters). The oscilloscope can display these transient signals in real time, which helps to find transient faults, such as power supply fluctuations or unstable signals;
✔️ Frequency analysis: The oscilloscope can not only display the waveform of voltage or current, but also help users measure the frequency, period and other characteristics of the signal. This is very useful for debugging and optimizing oscillation circuits, clock circuits or wireless communication circuits, helping customers accurately diagnose the frequency characteristics of the circuit;
✔️Capture repetitive faults: For periodic faults, the oscilloscope can find the problem by capturing and analyzing the periodic changes of the signal. For example, users can see if there is repeated noise interference or signal interruption, which helps to accurately locate the cause of the fault.

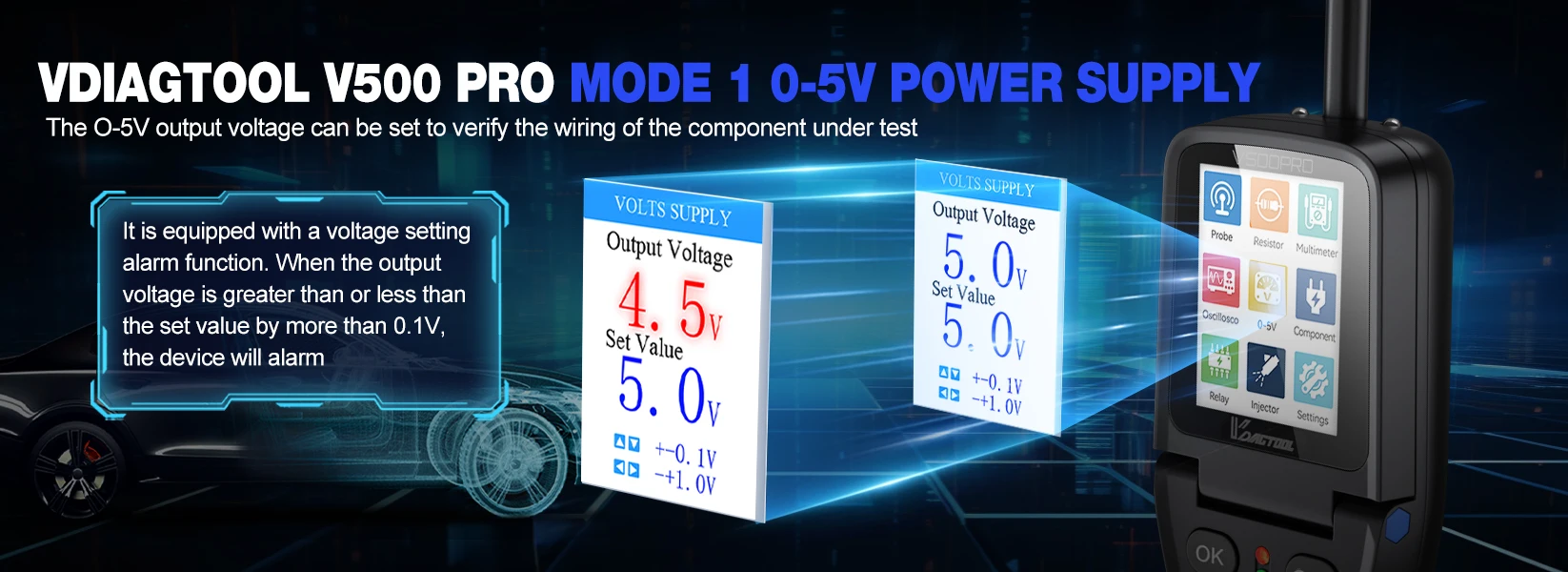

VDIAGTOOL V500 PRO MODE 1 0-5V POWER SUPPLY:
➤0-5V Power Supply provides a stable and adjustable low-voltage power supply for customers’ circuit diagnosis. It can simulate input voltage, debug sensors, test circuit behavior, and calibrate systems. Customers can use it to quickly locate circuit faults, avoid component damage caused by misoperation, and simplify the process of circuit debugging and optimization. It is especially suitable for debugging and diagnosis of low-power electronic devices and sensor systems. 0-5V Power Supply is commonly used to detect the following low-power electronic devices and sensor systems:
✔️Sensors: oxygen sensors, temperature sensors, pressure sensors, etc.;
✔️Motor drive modules: electric windows, electric seats, etc.;
✔️On-board communication modules: CAN bus interface and other low-power communication modules;
✔️Relays and switches: lights, fans and audio systems;
✔️LED indicators: engine fault lights, oil pressure warning lights, etc；
➤In circuit diagnosis, 0-5V Power Supply can bring the following conveniences to customers:
✔️Stable power output: Provides stable and adjustable 0-5V voltage to ensure that low-voltage circuits and equipment can work normally within the design range, avoiding component damage or functional abnormalities caused by voltage fluctuations;
✔️ Convenient debugging and testing: As an analog signal source, users can easily adjust the output voltage for various circuit tests and debugging, quickly verify the impact of different voltage inputs on the circuit, and improve the efficiency of troubleshooting;
✔️High safety: Compared with high-voltage power supplies, 0-5V power supplies are suitable for sensitive electronic components, reducing the risk during the test process, avoiding accidental application of excessive voltage and damage to the equipment, and improving the safety of use.

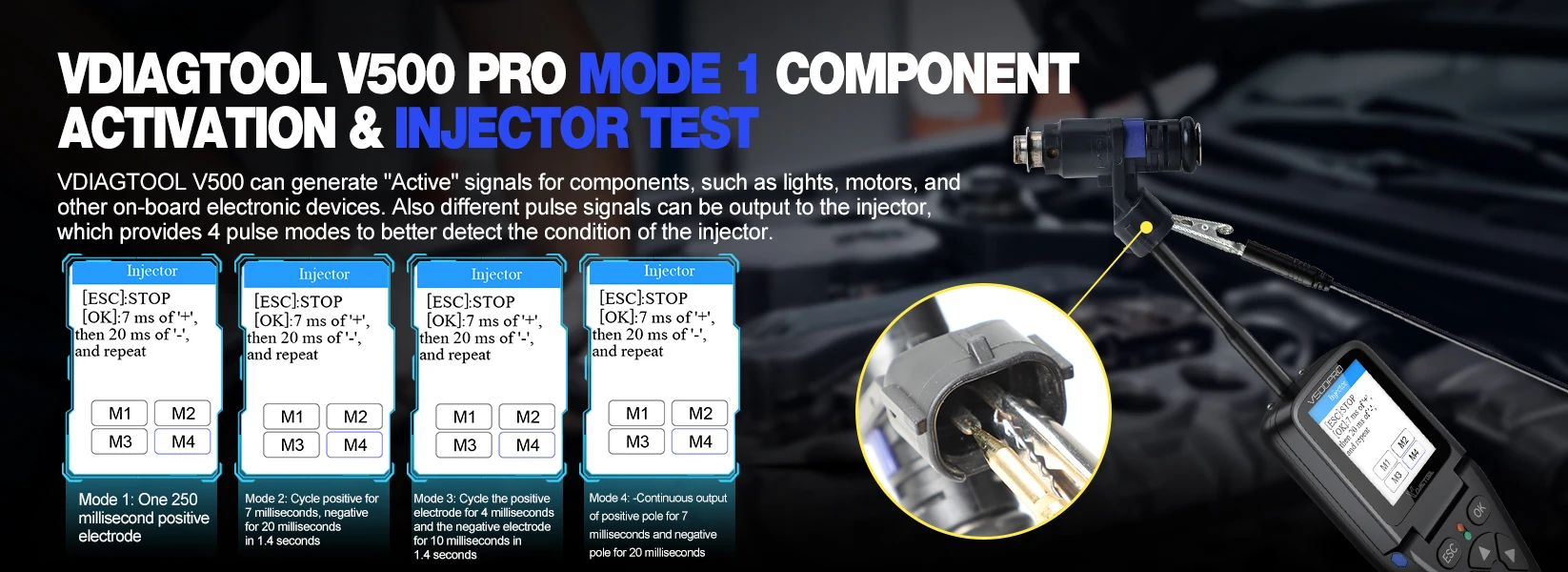

VDIAGTOOL V500 PRO MODE 1 Component Activation & Injector Test:
➤Component Activation：Component activation is mainly used in circuit testers to confirm and test the function and status of each component in the circuit. By activating different components, users can quickly identify faults and ensure the normal operation of the circuit. This provides customers with practical conveniences such as saving time, improving maintenance efficiency, and reducing unnecessary replacement costs.
➤Injector Test：Injector testing is often used to detect the performance and working status of automotive injectors. Through testing, the injection frequency, injection volume, and injection pattern of the injector can be evaluated to ensure that it can accurately supply fuel when the engine is running. There are 4 modes for injector testing:
✔️Mode 1: One 250 millisecond positive electrode
✔️Mode 2: Cycle positive for 7 milliseconds, negative for 20 milliseconds in 1.4 seconds
✔️ Mode 3: Cycle the positive electrode for 4 milliseconds and the negative electrode for 10 milliseconds in 1.4 seconds
✔️Mode 4: Continuous output of positive pole for 7 milliseconds and negative pole for 20 milliseconds
➤Through injector testing, customers can bring the following conveniences:
✔️Fault diagnosis: quickly identify injector problems, such as injector blockage, uneven injection amount, injector leakage, etc., to reduce troubleshooting time;
✔️Performance optimization: ensure the normal operation of the injector, improve engine efficiency and power output;
✔️Cost savings: avoid unnecessary injector replacement and reduce repair and maintenance costs.

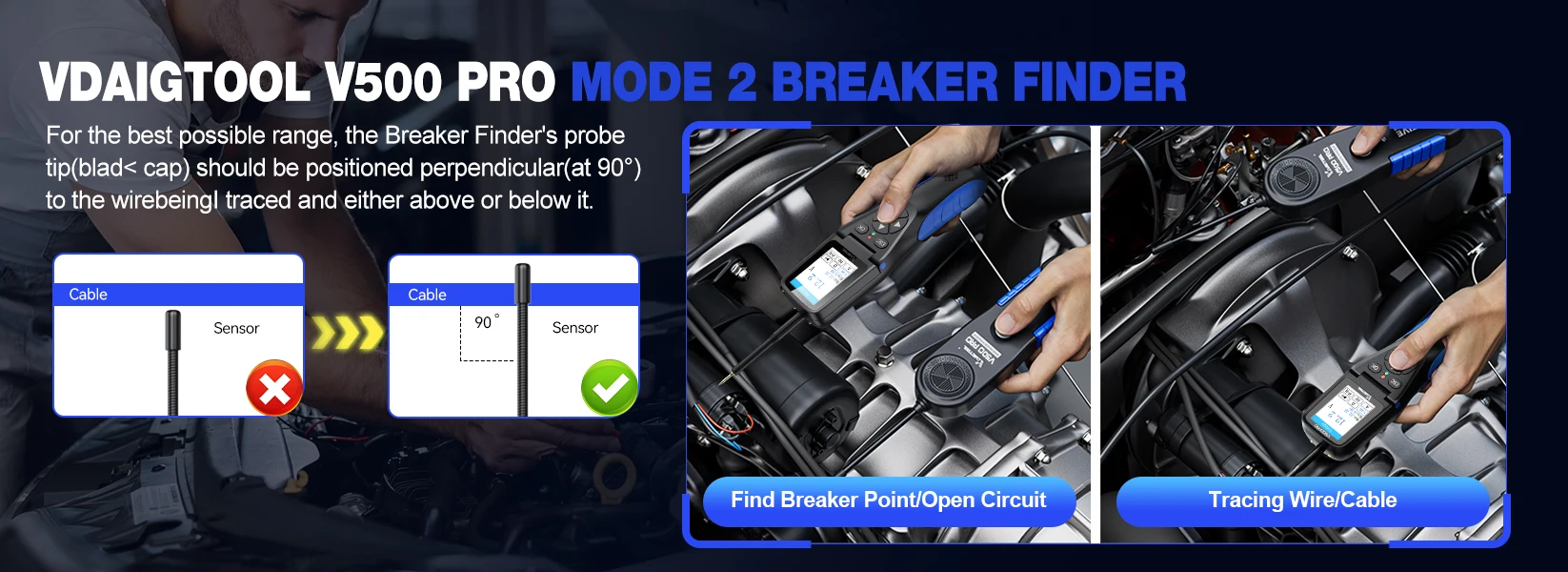

VDIAGTOOL V500 PRO MODE 2 Breaker Finder：
When VDIAGTOOL V500PRO 2 IN 1 Car Power Circuit Probe Kit Breaker Finder Tester switches to mode 2, it is equivalent to V210, with 3 test methods:
✔️Locate Open Circuits:
Open Wire Detector instantly detects and alerts you to open circuits. Easily locate short circuits, broken wires, open connections, current leaks, and trace wires. Transmitter and receiver LEDs indicate open or short circuit conditions;
✔️Wire Tracing:
Easy to use by just simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot;
✔️Check Short Circuits:
Automotive Short Circuit Finder allows you to identify intermittent circuit problems by flexing wires or connectors and listening for changes in the receiver tone. This automotive circuit finder with 6.7-inch flexible probe, It can helps reach wires in congested places.
V500 PRO More Other Compatibility:
➤ Supports 9 languages:
English;Chinese;French;Spanish;German;Russian;Italian;Portuguese;Polish.
➤ Supports Car models:
✔️ Support cars and SUVs;
✔️Support trucks
✔️ Support motorcycles
✔️ Support ships;
✔️Bus;
…………..
➤ Wide measurement range:
Operating Voltage: 9V – 30V DC
Voltage Measurement Range: 2mV-100V
Resistance Measurement Range: 0-10MΩ
Current Measurement Range: 2mA-25A
Frequency Measurement Range: 10Hz-1000Khz
Waveform display: 10Hz-100Khz
Operating Temp: 0℃-50℃/32°F-122°F
Working Environment Temp: 0℃-50°C/-32°F-122°F
Storage Temp: – 20°℃-70°C/-4°F-158°F

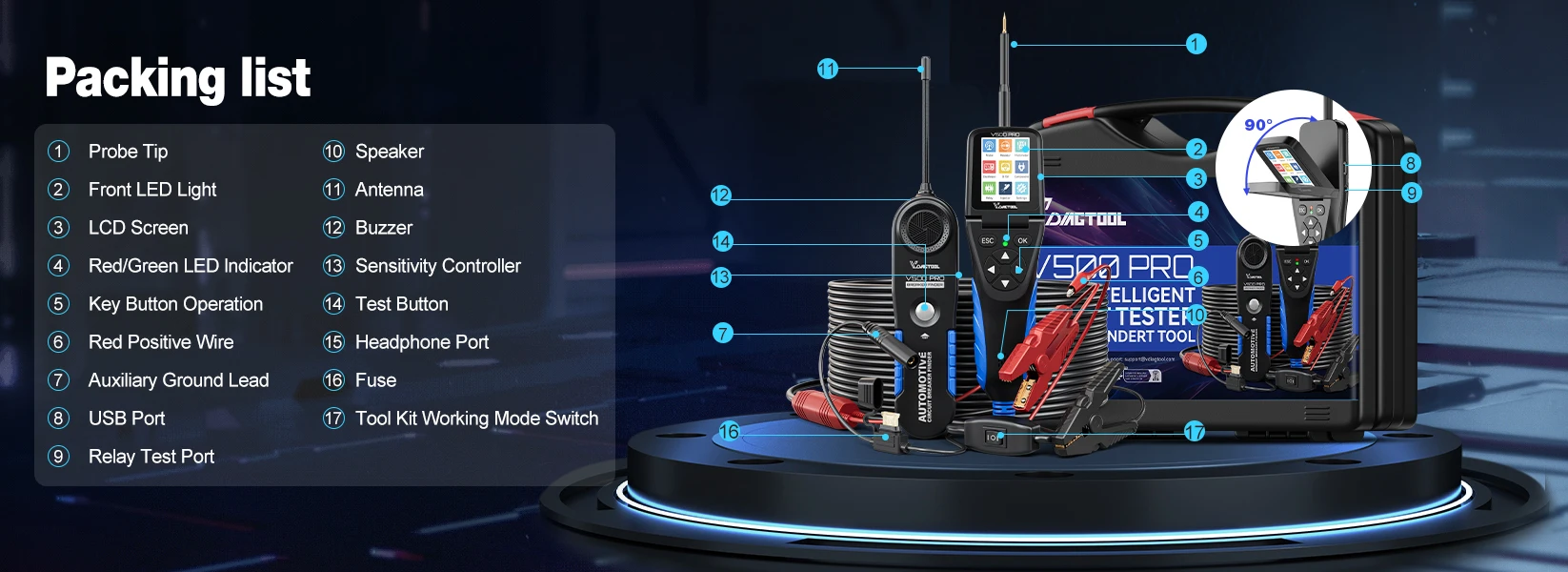

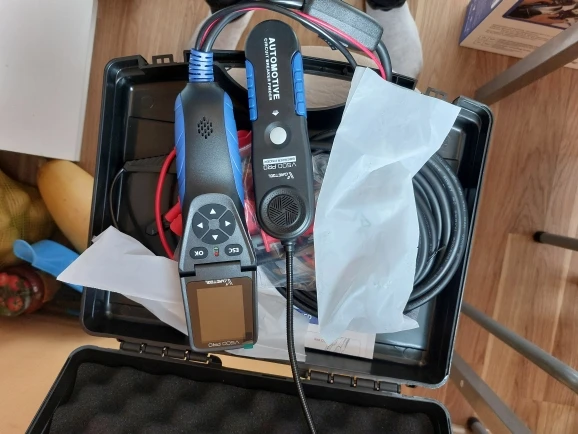

📦 Packing List

🔹 V500 Pro Circuit Tester × 1
🔹 Short/Open Circuit Finder × 1
🔹 Probe Tip × 1 + Fine Probe Tip × 1 + Extended Probe Tip × 1
🔹 Wire Piercing Probe × 2 (Test wires without stripping insulation)
🔹 Banana-to-Banana Plug Test Leads × 2
🔹 Fuses × 3
🔹 Relay Test Cable × 1
🔹 Alligator Battery Clip × 1
🔹 Type-C Data Cable × 1
🔹 User Manual × 1
