Tuya Smart Life WiFi Energy Bidirection Meter with Buzzer Overload Alarm App Monitor Solar Produced Consumed Power AC110V/240V

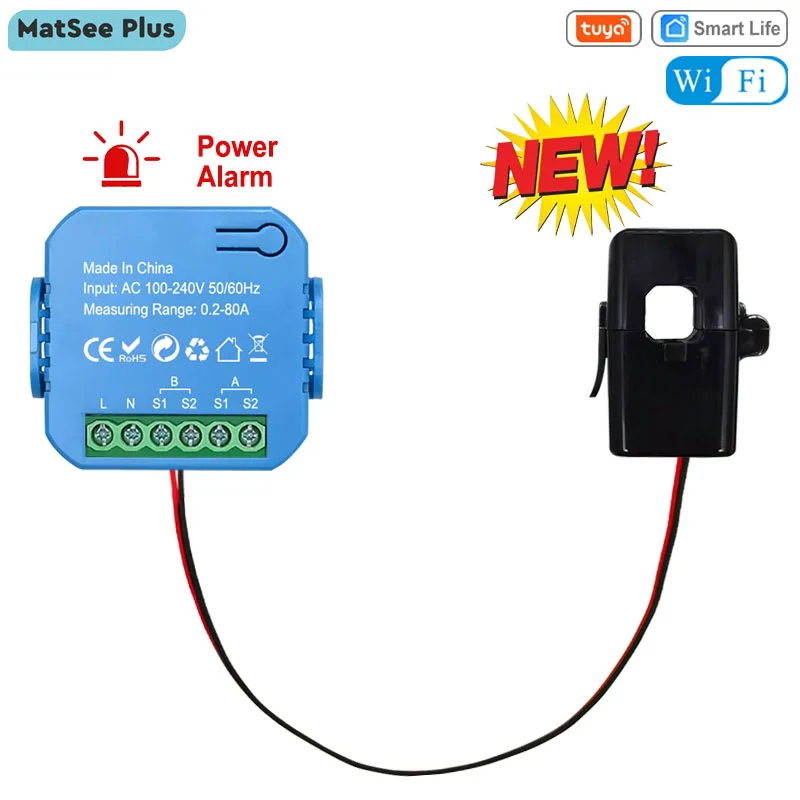

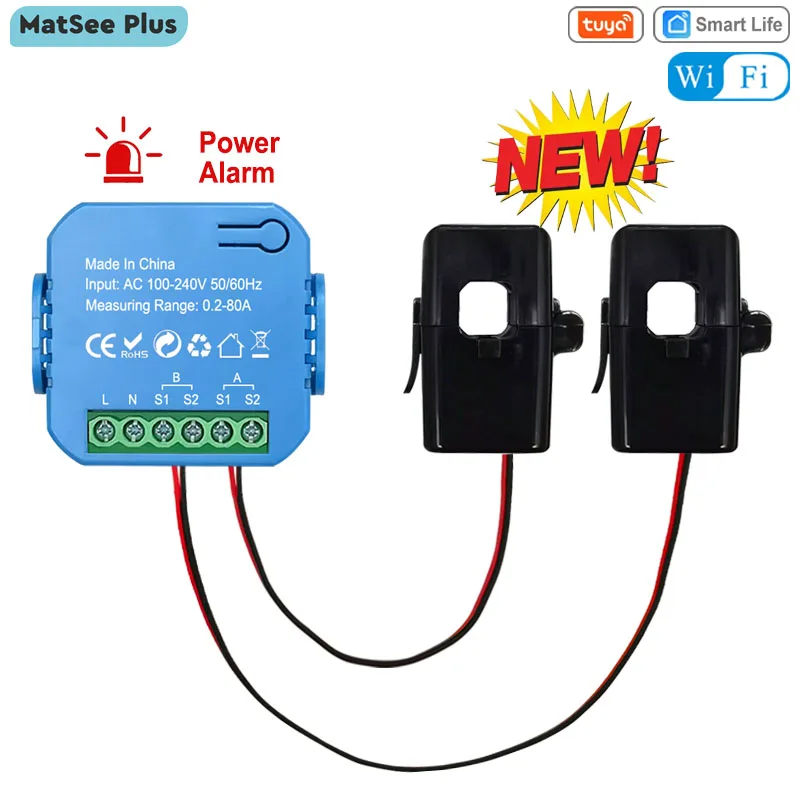

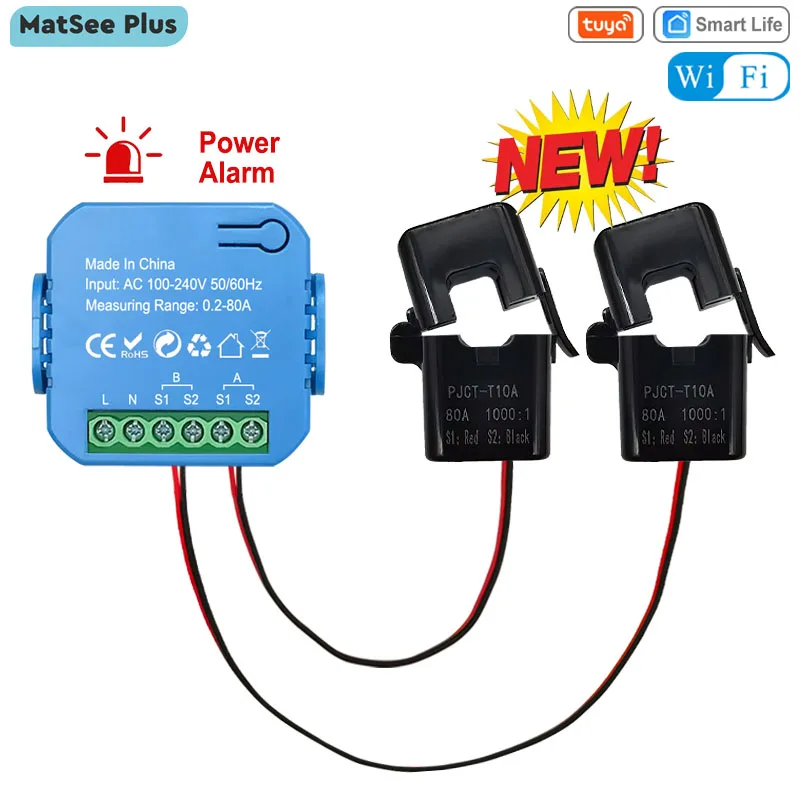

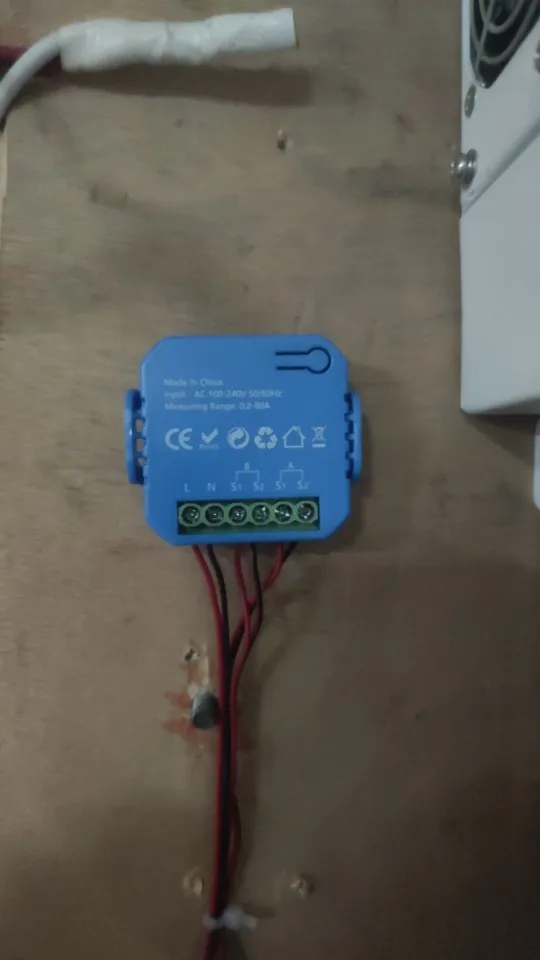

NEW ARRIVAL Tuya WIFI Smart Dual Channel Energy Meter with 2 Clamp 80A
1 Channel and 2 Channel is Available,

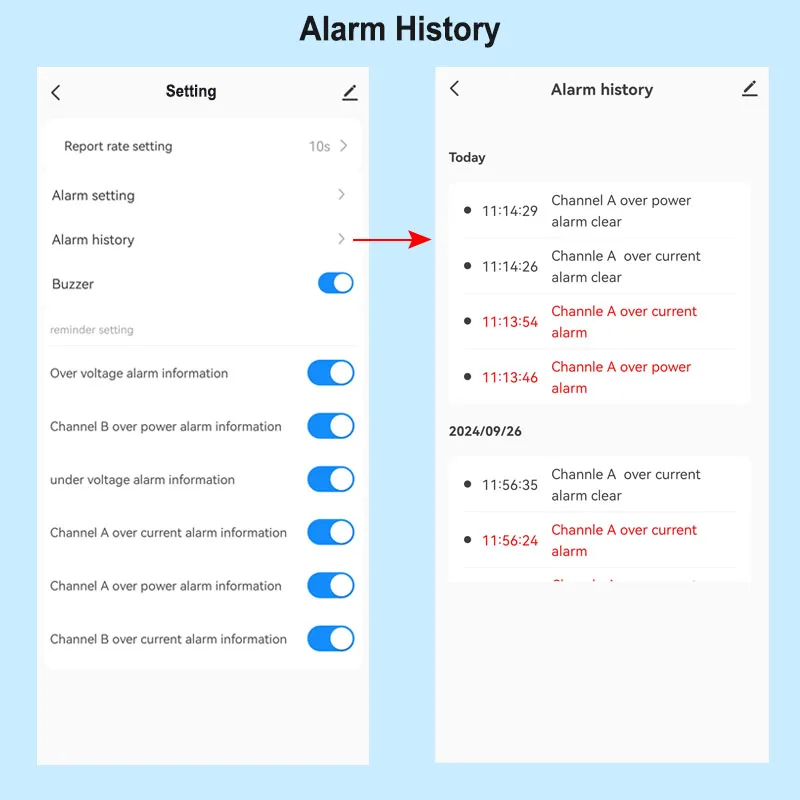

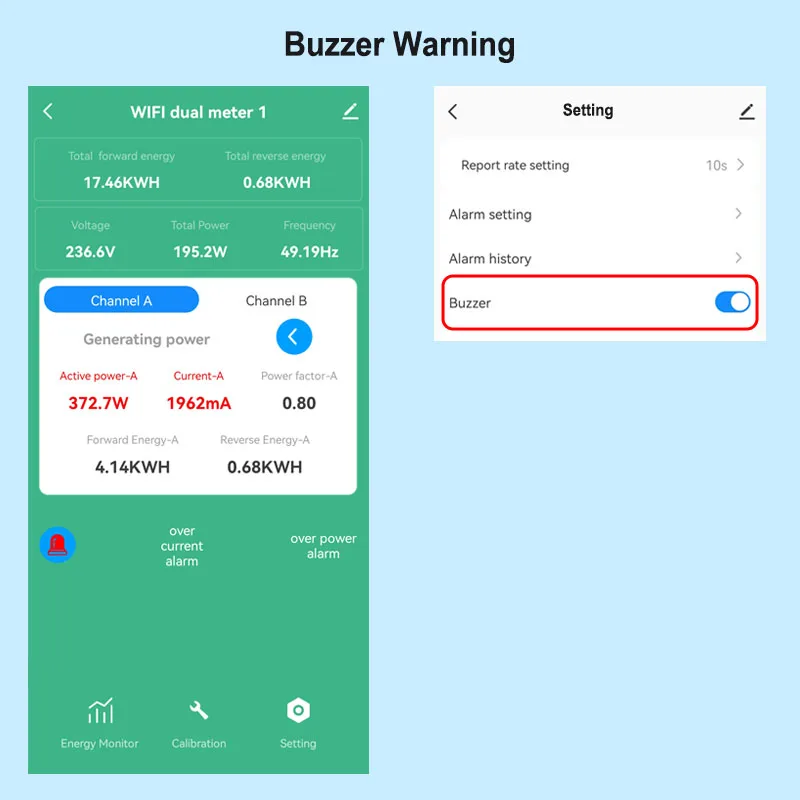

NEW FEATURE: Be able to set threshold value for Voltage, Current and Power, Buzzer Alarm and App Alarm when it reaches the threshold value.

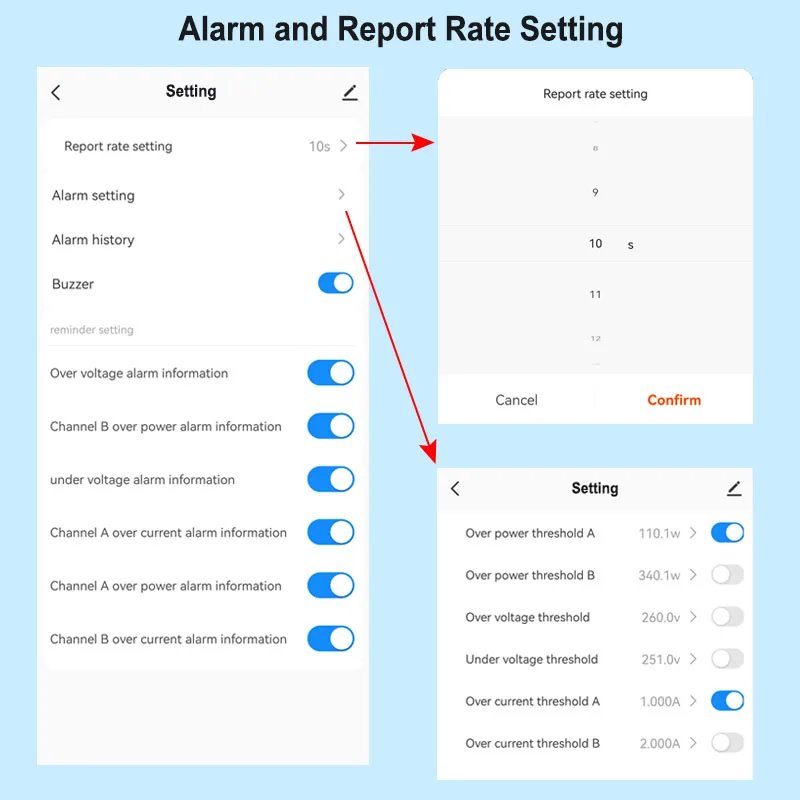

App Set threshold value for Voltage, Current and Power, when the value reaches the value , the device can buzzer alarm and App can send alarm message.
You can set the data reporting frequency.

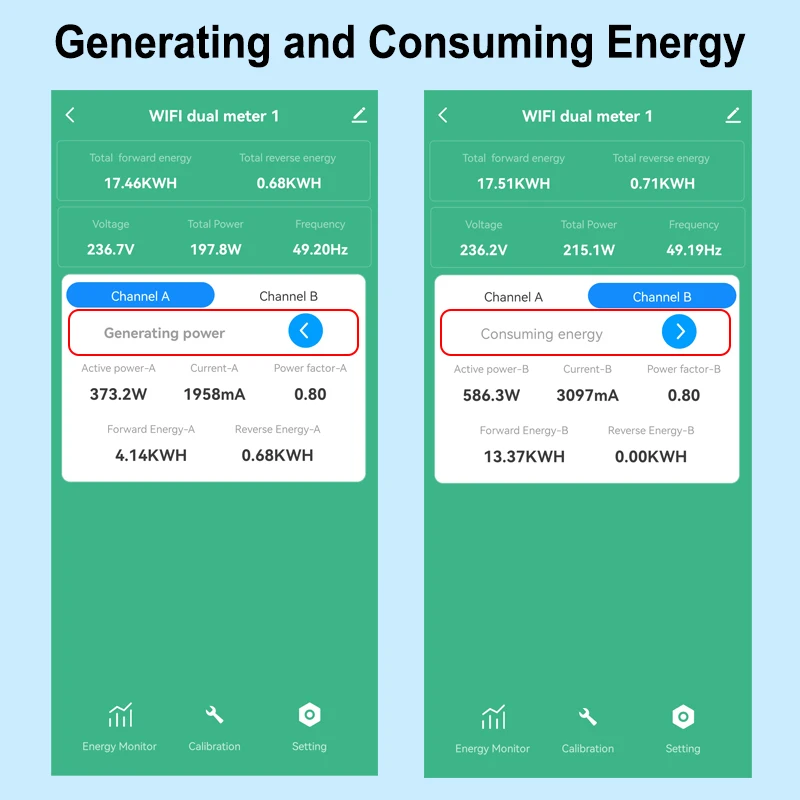

App can display Channel A and B Real-time power, current, voltage, power factor and frequency for Forward and Reverse direction clrealy
2 Channels For Reverse and Forward direction
1 Channle or 2 Channels are available to Choose
And you can read from App for each Channel
– Real-time total power of 2 channels of reverse and forward direction
– Power for Channel A and B Separately(W)
– Current(mA)
– Voltage(V),
– Power factor, and Frequency(Hz)

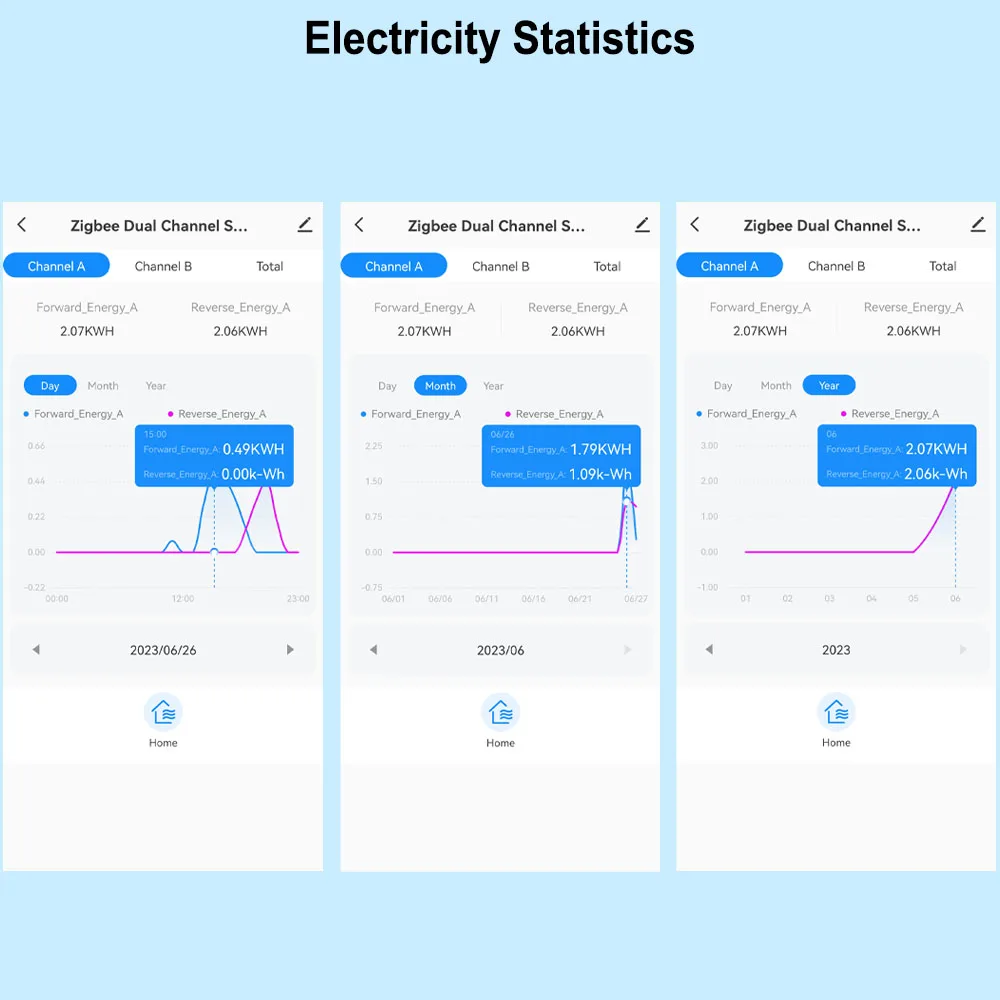

Electricity Statistic for each channel in Forward and Reverse direction.
Hourly Elec. (KWh)
Daily Elec. (KWh),
Monthly Elec. (KWh)
-Yearly Elec. (KWh)
Technical data:
Rated Voltage:100-240V AC 50/60Hz

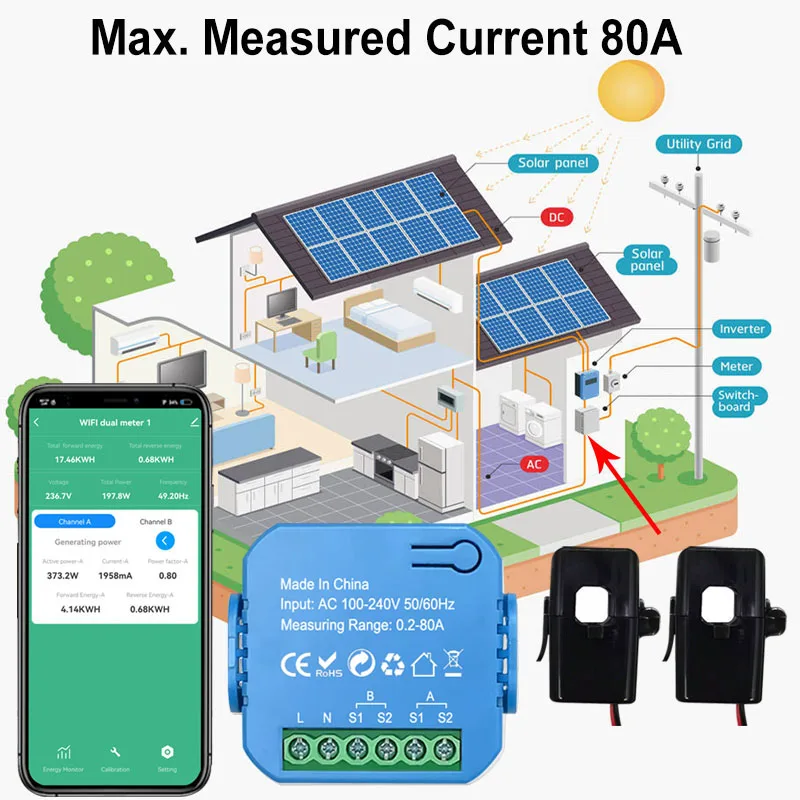

Measurable Current Range: 0.2A-80A
WiFi Frequency: 2.4GHZ (Not Support 5Ghz)
Ambient Temperature Range:-10°C ~ 55°C
Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction
Automation , It allows to make a Scene for this device working with other tuya devices
Set Automation for the Measured Device ,
For example, If Power or Current Is over the Value, then other tuya device starts to work .

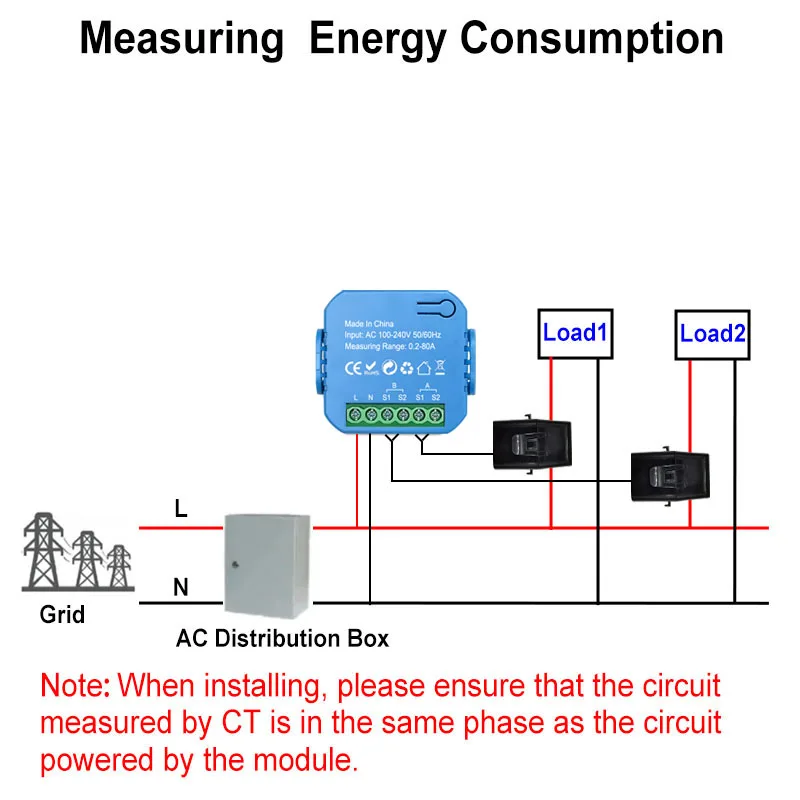

Wiring Diagram

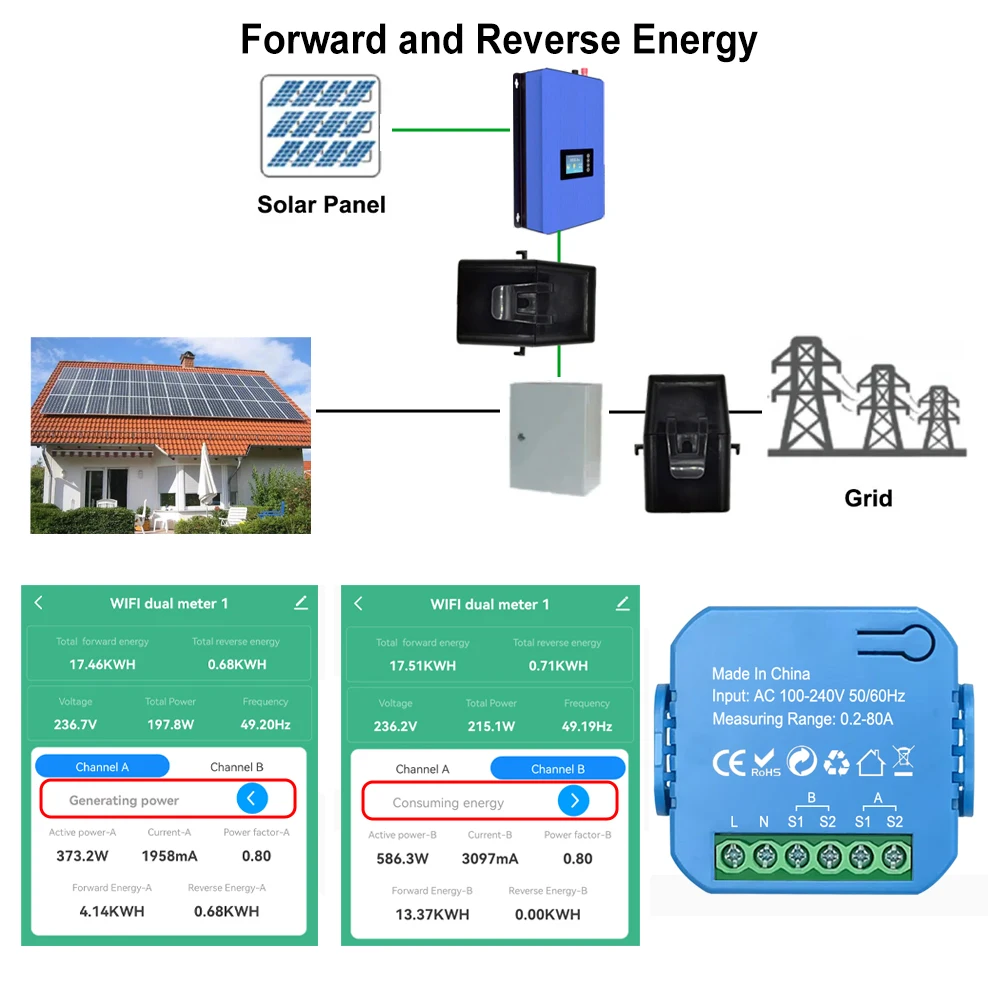

1. To measure the power ‘from Grid’ and ‘To Grid’
Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module.
2. Measure the power consumption.
Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module.

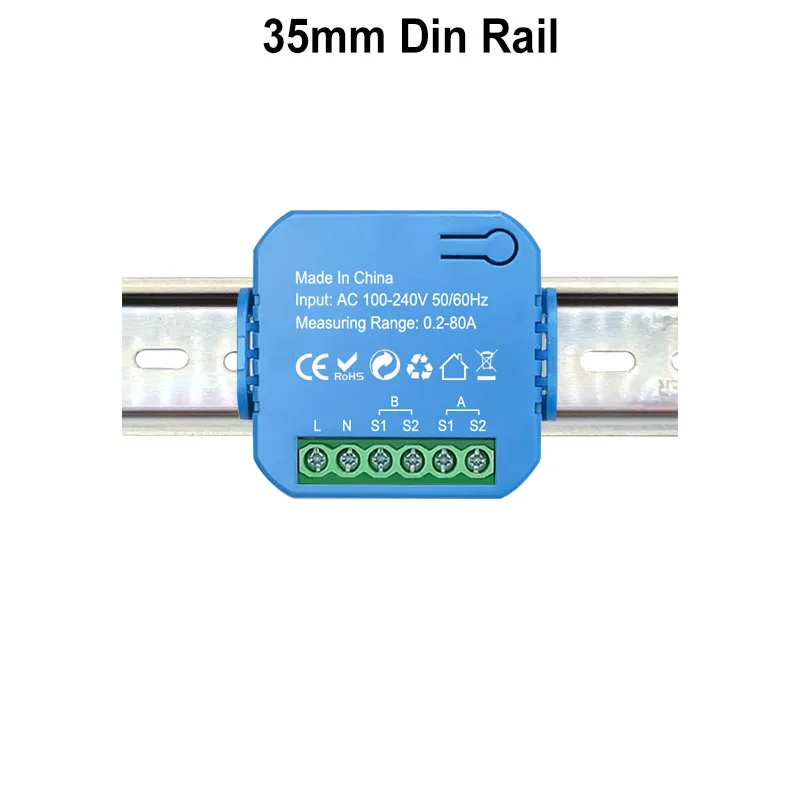

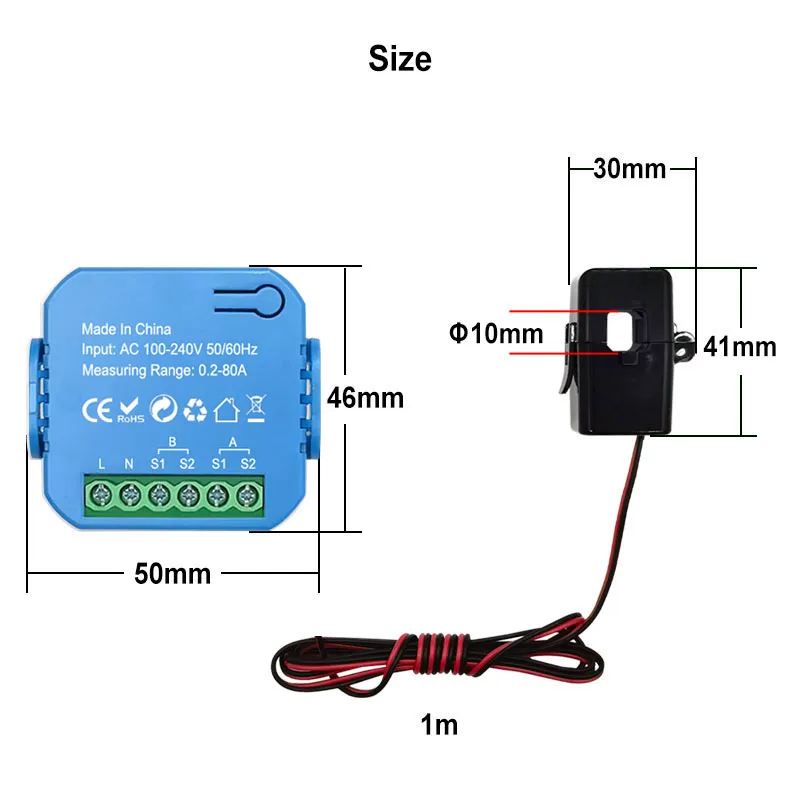

Small Size Module , Easy to Install
We guarantee good quality, every product will be tested before delivery. Not before Order
Q&A
Q : After I configure it with App , why App shows ‘shutdown’ ?
A : Only if you put a device’s wire (either live wire or neutral wire, not both) in the clamp, and turn on the device, then the clamp can sense the current, and App will show it is working
Q : I suppose P= U*I, why the value shows on App is not correct ?
A : Please consider the cos(Φ).
Because As resistances do not produce any phasor difference (phase shift) between voltage and current waveforms, all the useful power is delivered directly to the resistance and converted to heat, light and work. Then the power consumed by a resistance is real power which is fundamentally the circuits average power.
To find the corresponding value of the real power the rms voltage and current values are multiplied by the cosine of the phase angle, Φ as shown.
Real Power P = I2R = V*I*cos(Φ) Watts, (W)
