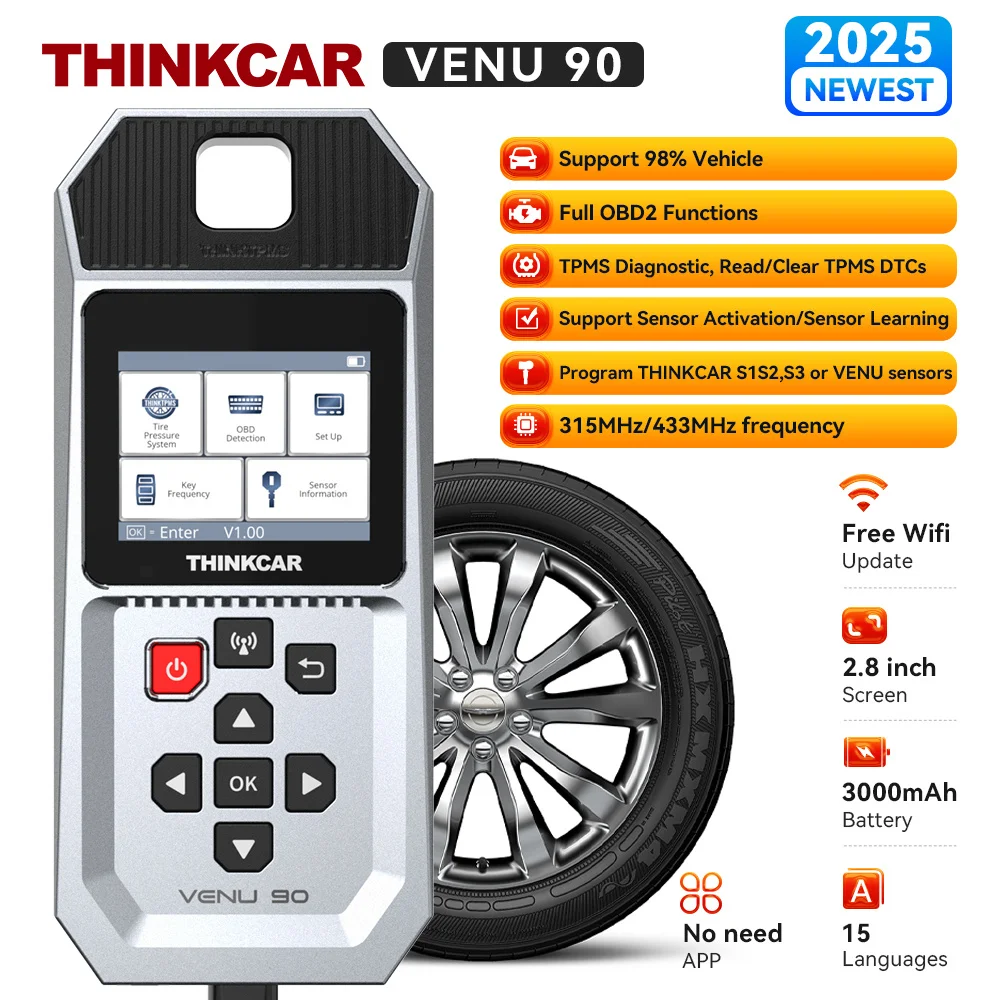

THINKCAR VENU 90 OBD Automotive Tire Pressure Monitoring Sensor TPMS Relearn Activation Programming Car TPMS Diagnostic Tools

THINKCAR VENU 90 is a sophisticated tire pressure tool that integrates sensor activation, programming, and learning capabilities. It features a new industrial design with sleek lines and an attractive appearance. Equipped with a WiFi upgrade function, it supports comprehensive programming for a wide array of sensors from THINKCAR, including THINKCAR, MUCAR, VENU, and others. The device is compatible with 99% of vehicle models on the market and effortlessly activates dual-frequency tire pressure sensors at 315MHZ and 433MHz. Beyond just sensor activation, the VENU 90 also offers TPMS diagnostics with features such as code resetting, and data stream reading. This makes tire pressure management and maintenance tasks a breeze for any vehicle owner. With the VENU 90, managing your tire pressure has never been easier.
What are the differences between VENU 90 AND VENU IPRO ?
Support Full OBD2 Functions
1)Read Codes:Read extensive current, pending and permanent codes in OBD system quickly

2)Clean Codes:Clear detected fault codes and turn off the Check Engine Light efficiently

3)Live Date:View graphical live data of vehicle’s computer module(s) for easy analyses

4)Freeze Frame:View the vehicle’s operating parameters at the moment a DTC is detected

5)I/M readiness:Read I/M readiness status to have a vehicle inspected for state emissions compliance

6)O2 sensor test:Perform O2 sensor test to check fuel efficiency and vehicle emissions

7)On-Borad Monitor Test:Read the results of on-board diagnostic monitoring tests for specific components/systems

8)Car Information Display:Retrieve the vehicle information of VIN, CINs, and CVNs completely

9)EVAP Test:Perform the component Test by allowing initiating a leak test for the vehicle’s EVAP system

10)DTC lookup:Every code comes with a desc
VENU 90 Tire Pressure Diagnostic Tools
Check TPMS and Sensor Status
How does the THINKCAR VENU 90 Work ?
VENU 90 works independently ,no need to connect to APP .It provides lifetime free updates via wifi .
VENU 90 Application Scenaries
1) Sensor Replacement.
2) Tire Rotation.
3) On-line Assembly and Inspection by OEMs.
4) Independently Detect Whether the Sensor Itself is Normal.
Sensor Activation
THINKCAR VENU 90 can activate all 315MHz/433MHz tire pressure sensors, and can read, copy, write sensor IDs and read tire pressure data (pressure, temperature, battery status)
Sensor Learning
The tire pressure matching learning function can perform tire pressure fault diagnosis through prompt learning steps, including code reading and code clearing.
Sensor Programming
VENU 90 supports unlimited repeat programming function, covering more than 98% of imported models with tire pressure system, and supports multiple ID generation methods: manual, copy, and automatic creation.
Note : This TPMS programming functions can only work with THINKCAR sensors
Operation Instructions
Before replacing the tire pressure sensor ,you need ti check the original vehicle sensor ,select the model menu corresponding to the vehicle and enter the [Activate} function to activate the original vehicle sensor.THINKCAR VENU 90 supports the activation of more than 98% of the pressure vehicle sensors .
Support more than 115+ brands
For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with the following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
–Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia: for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong

-Europe: for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot

–America: for Chrysler, for USA-Ford, for GM

And keep updating.
Support 15 Languages
English,German,Spainish,French,Italian,Polish,Portuguese.Russian,Japanese,Korean,Dutch,Turkish,Hungarian,Chinese
WIFI Upgrade Method
Enter [Setting]—Select [Wifi Upgrade] to enter the WIFI list and conenct to WIFI
SD Card Upgrade
Take out the device SD card and insert it into the SD card in the correct position.Insert the SD card into the computer and go to the //mythinkcar.com to download the THINKCAR tire pressure tool upgrade package.
Product Parameters
1) Model : Thinkcar VENU 90 Tire Tools

2) Display ： 2.8inches

3) Resolution : 320X240 pixels

4) Battery : 3000mah /3.8V

5) Working Temperature : -10℃-50℃

6) Size : 205*89*33.5mm

7) USB : TYPE-C

8) Wifi : Wifi upgrade

9) Diagnostic port : OBDII-16 PIN

Packing List
1PC THINKCAR VENU 90
1PC Type C Cable
1PC User Manual
