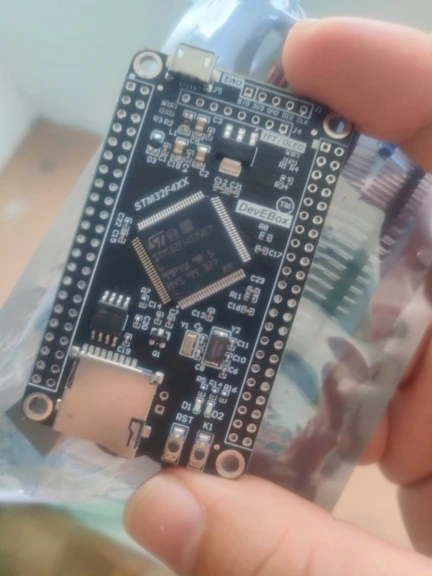

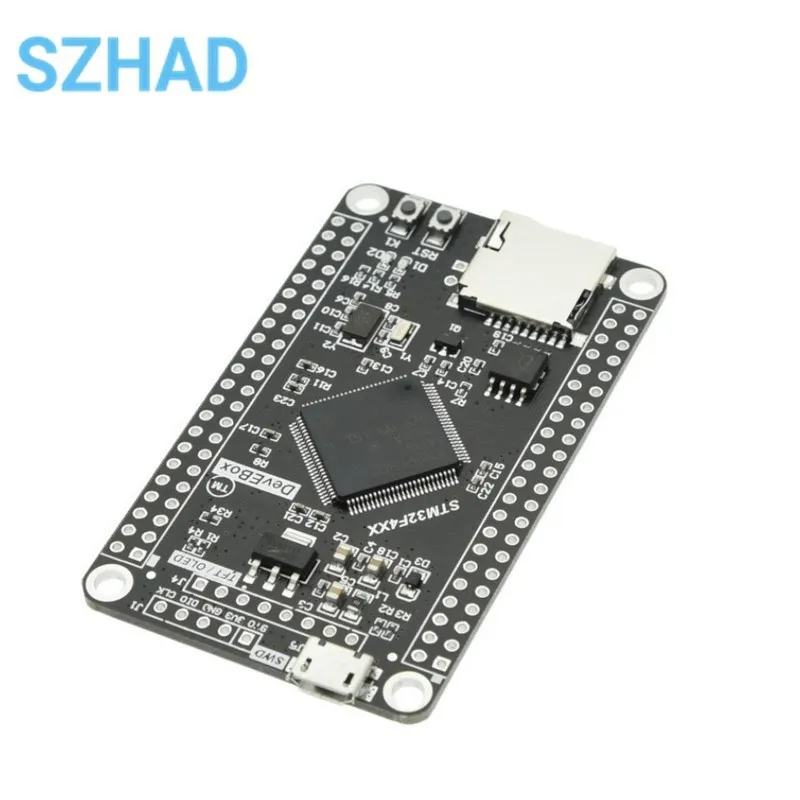

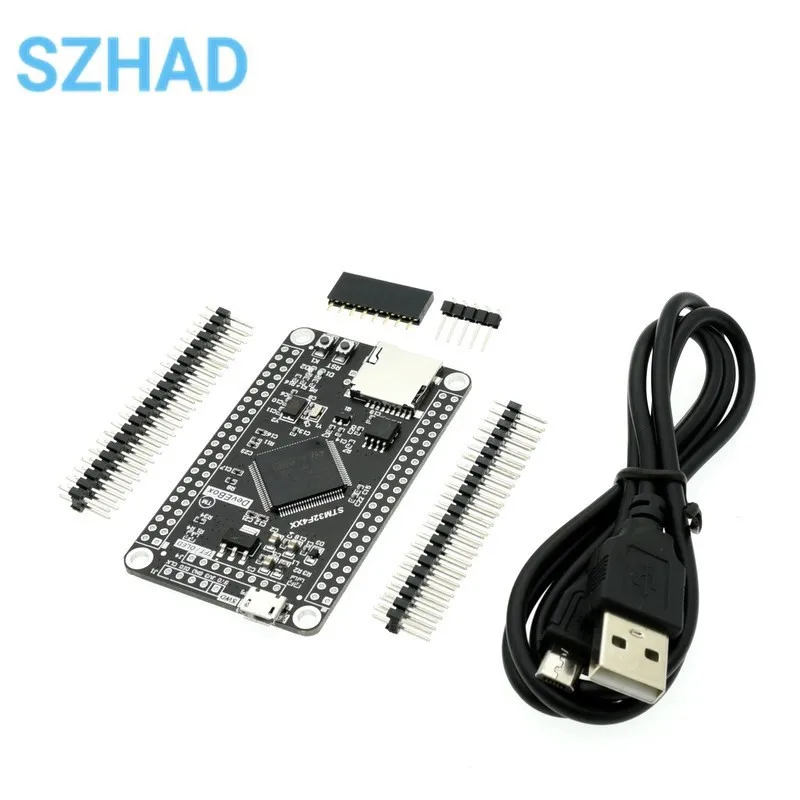

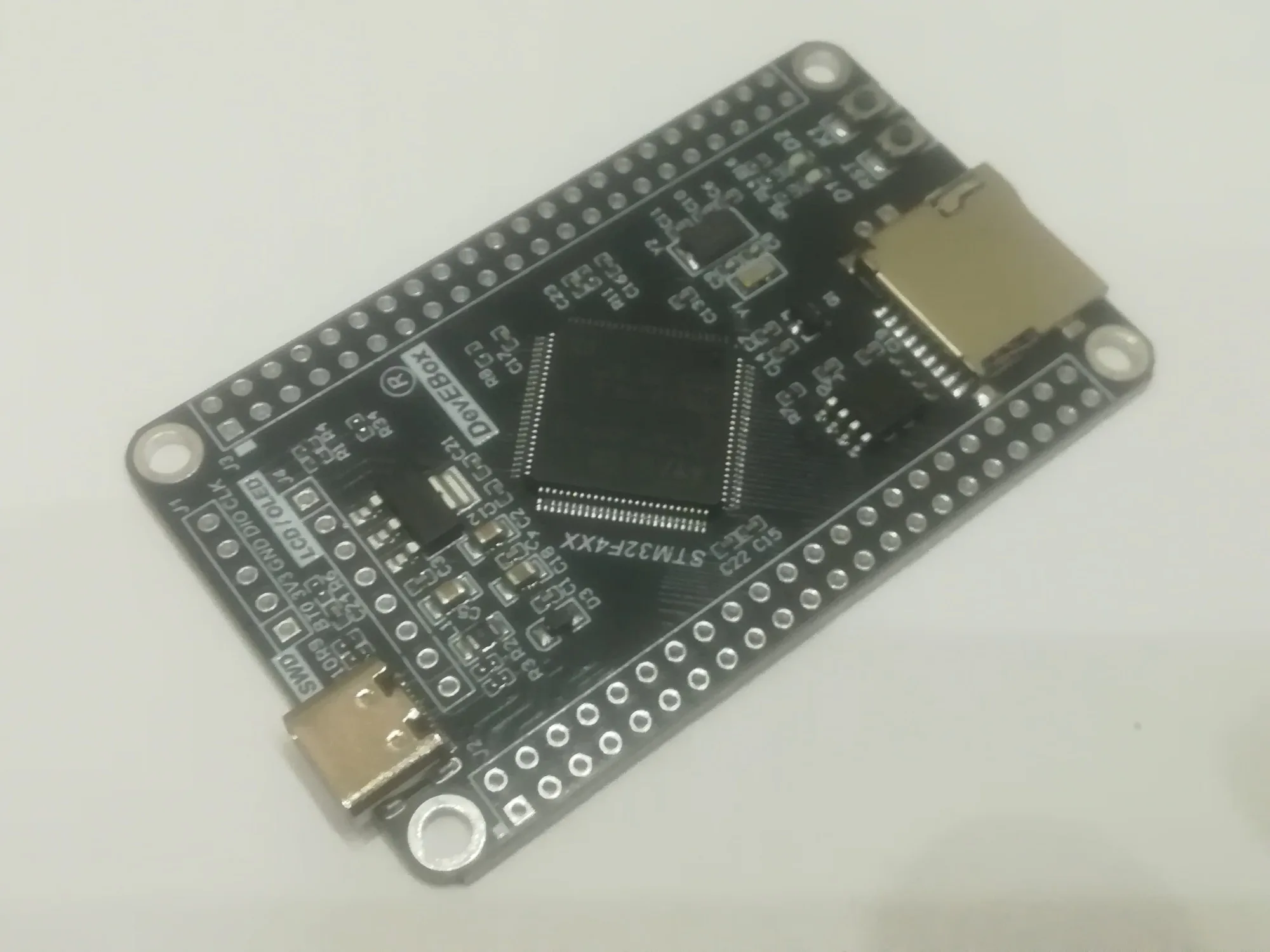

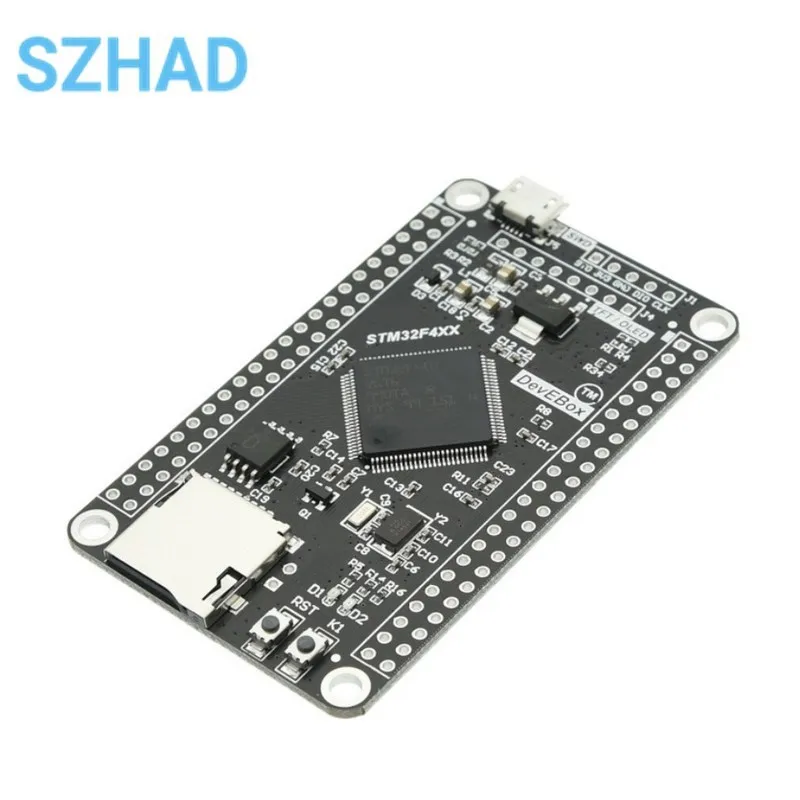

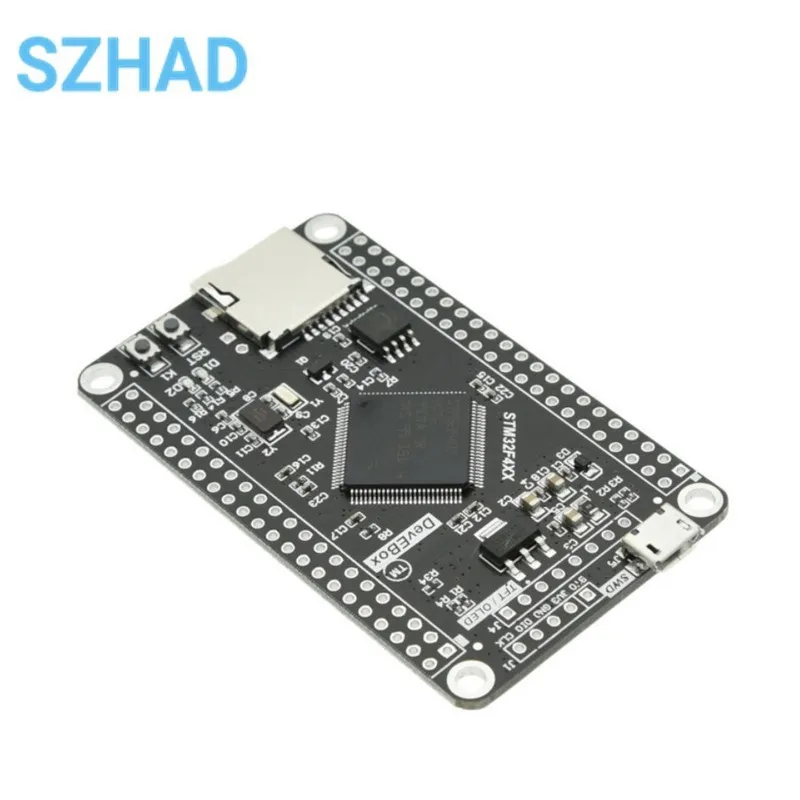

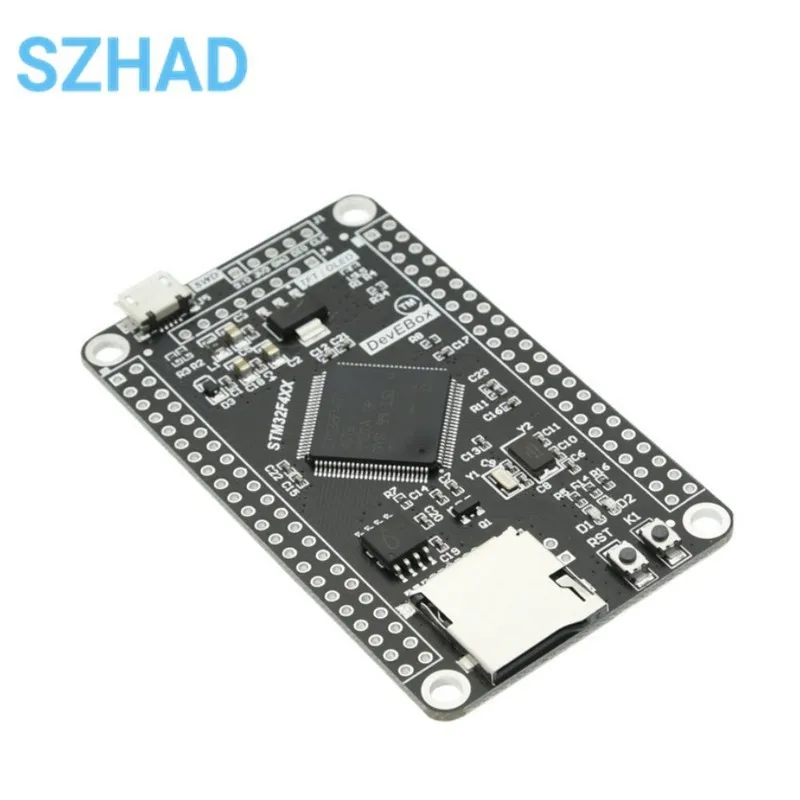

STM32F407VET6 STM32F407VGT6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board

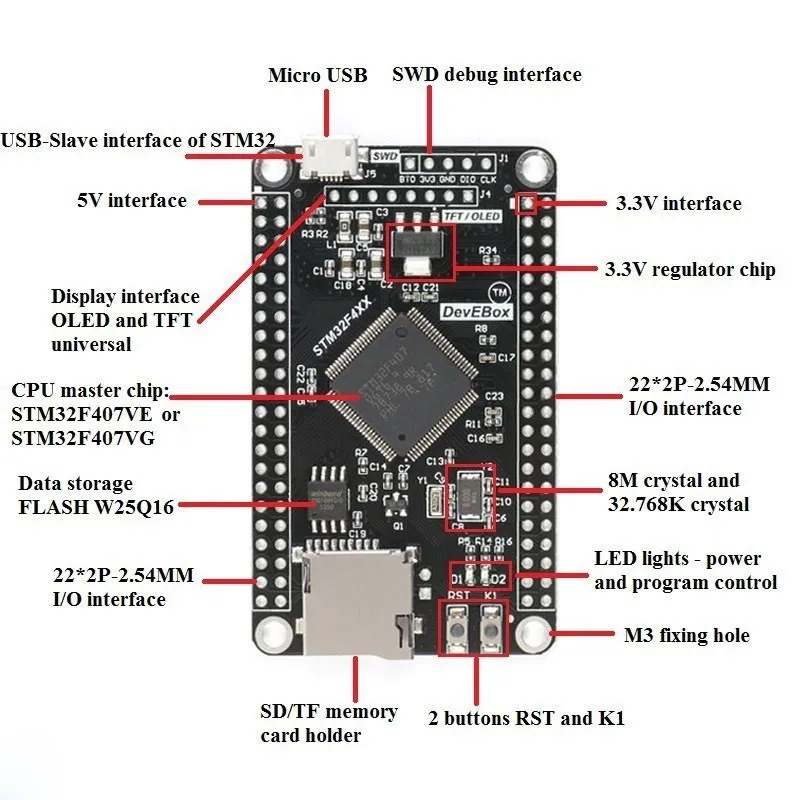

Product Features

USB interface support download (DFU download, not serial port

OLED interface – plug and play support 0.96 inch OLED

TFT liquid crystal interface

Connect 1.44 inch full color LCD

Connect 1.8 inch full color LCD

Data storage: W25Q16

High speed crystal oscillator 8MHz

Low frequency crystal: 32.768K

Power + programmable LED lights

User and reset button

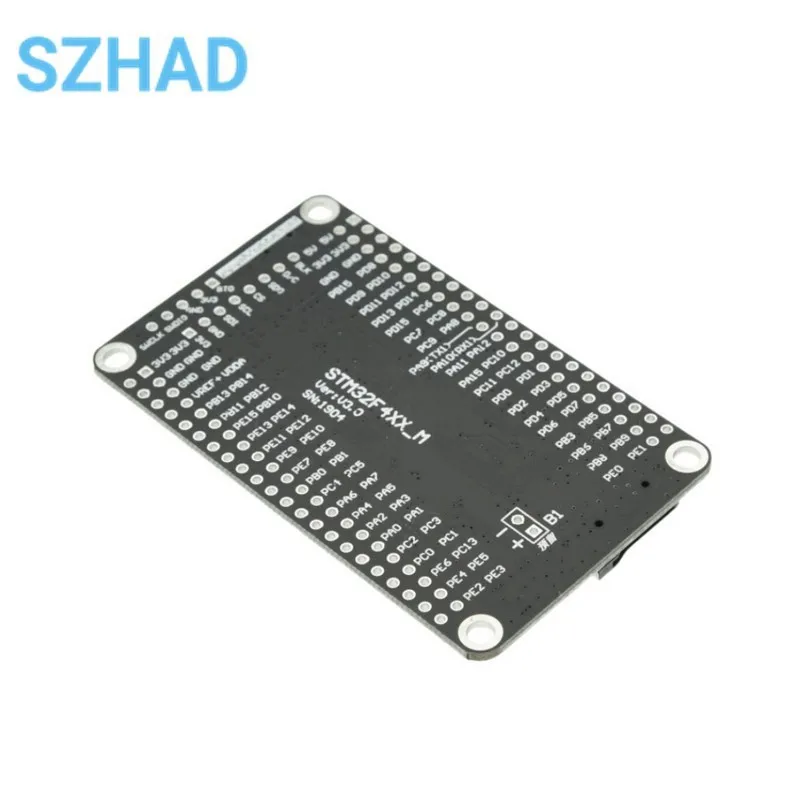

All CPU-IO leads 2.54 integer pitch pins

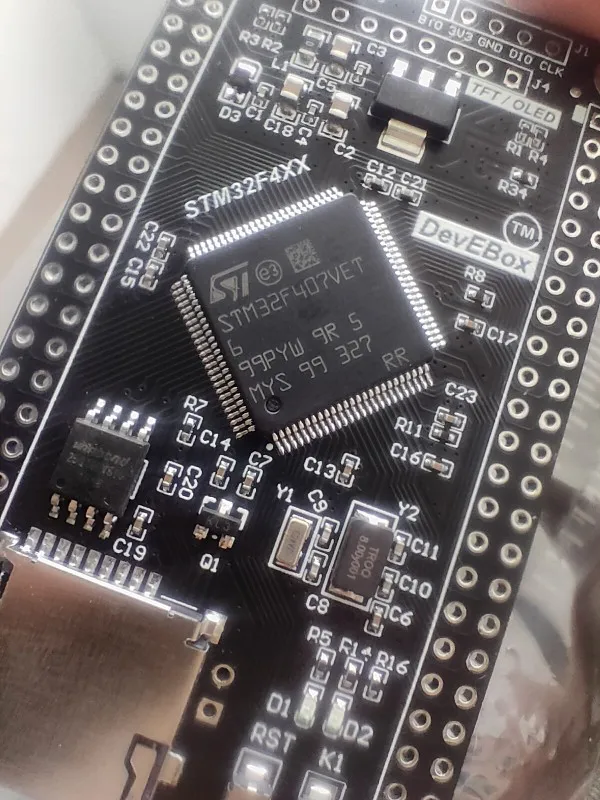

Chip Main Parameters (STM32F407VET6/STM32F407VGT6)

Core: Cortex-M4 32-bit RISC;

Features: Single-cycle DSP instructions;

Operating frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz;

Working voltage: 1.8V-3.6V;

Packing: LQFP100;

Storage resources: 512kB Flash (STM32F407VGT6 specification is 1M capacity)

192+4kB SRAM;

Resources: 3xSPl, 3x USART, 2 xUART, 2x12S, 3x12C;

1xFSMC, 1xSDIO, 2x CAN:

1 xUSB 2.0 FS/HS controller (with dedicated DMA);

1 xUSB HS ULPI (for external USB HS PHY)

1 x 10/100 Ethernet MAC;

1x 8 to 12-bit parallel camera interace;

3xAD (12-bit, 1us, time-sharing 24), 2xDA (12-bit);

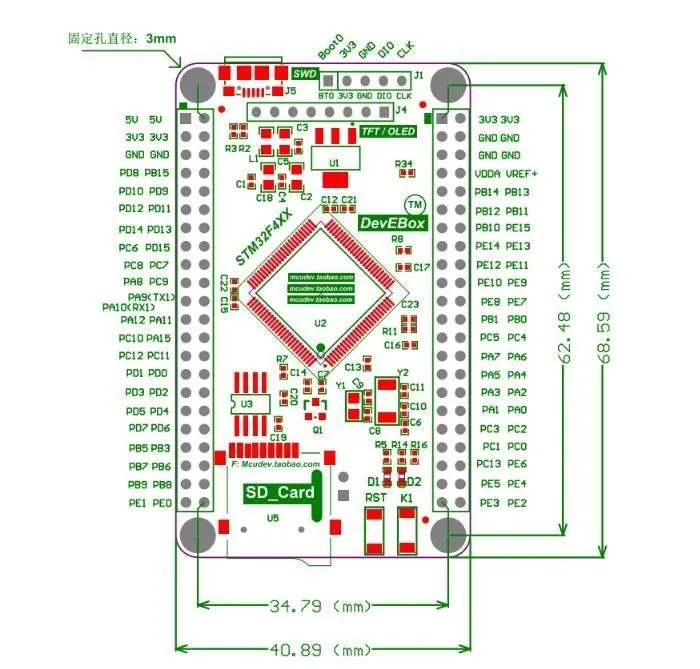

Product Size
