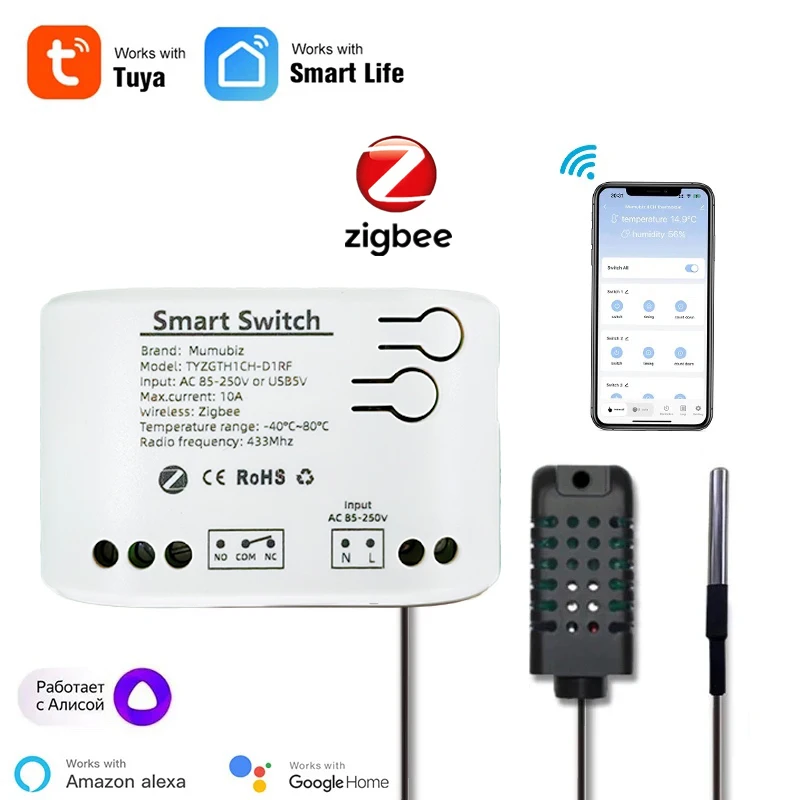

Mumubiz Zigbee 1 Gang Smart Switch with Temperature Humidity Sensor, Tuya Smart Life APP ,Passive Dry Contact Relay Match Alexa
Description
Notice
All functions of this switch must work under the Tuya ZIGBEE gateway. Please confirm that you have a ZIGBEE gateway before purchasing.
Waterproof temperature sensor with a settable temperature range of -20℃~80℃.
Temperature and humidity sensor and switch can be set from -20°C to 60°C. Please choose carefully before purchasing.
Overview:
This product is a universal switch for your smart home ZIGBEE system, which can automatically turn on/off any electrical appliance remotely through the mobile phone APP. When the ambient temperature falls within this range, it automatically turns the connected device on or off. It also supports scheduled power on and off and supports preset temperature ranges. Paired with the TH-10 Smart Switch and Sensor, you can make your home even smarter.

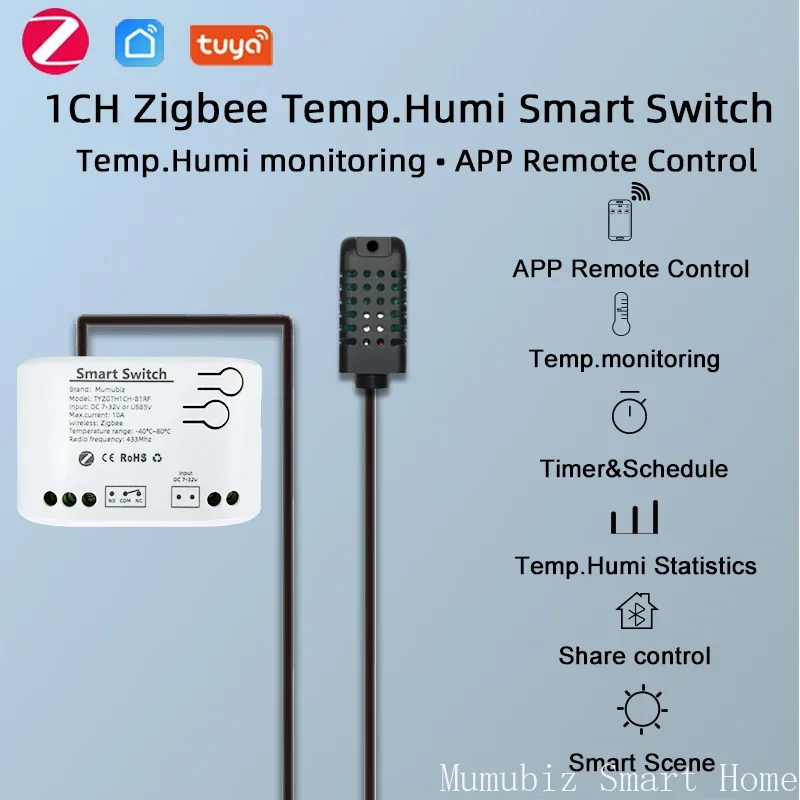

Specification:
Input voltage:AC 85V~250V / DC 7-32V optional
Max.Current: 2200W/10A
Wireless: Zigbee
Tem and Hum Sensor Measurement Range:Tem -20°~ +60°C & hum 0~99.9%RH
Tem Sensor Measurement Range:-20°~ +80°C
Display resolution: 0.1°C & 1%RH
Radio Frequency: 433Mhz
Working temperature: -20℃~70℃
Size: 69*41*20mm
feature:
*App support: Free iOS and Android mobile app Tuya Smart/Smart Life.
*Sync Status: Provides real-time device status to the application.

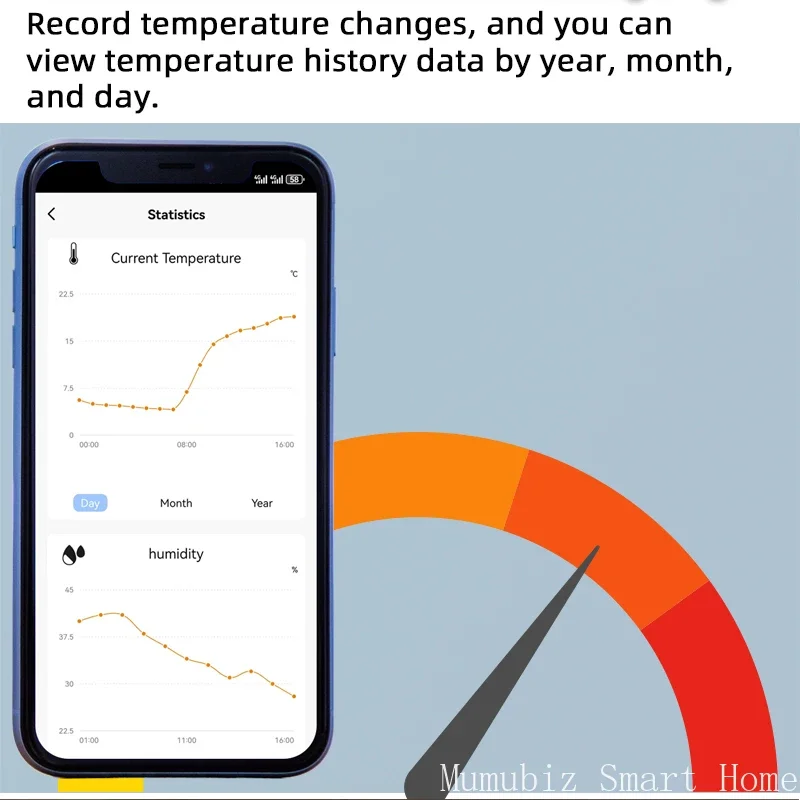

*Real-time monitoring: Monitor real-time temperature/humidity.
*Remote On/Off: Use high-precision sensors to turn on/off electrical equipment from anywhere.
*Shared Control: Control your smart home with your family.
*Timing: Supports 8 countdown/single/repeating scheduled tasks to be turned on/off at the specified time.

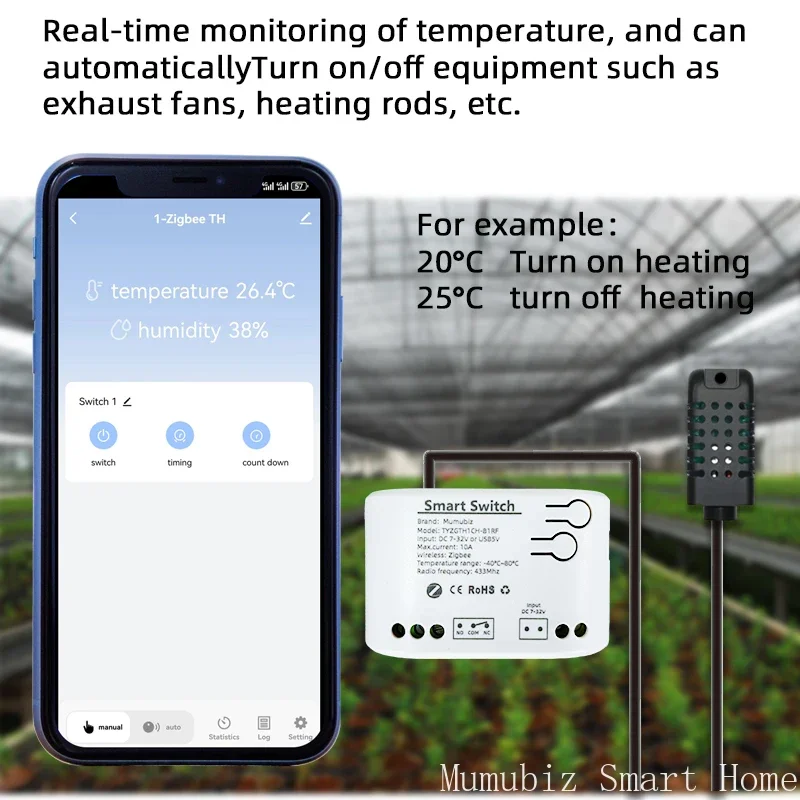

*Auto mode: Set automatic mode to turn on/off at specified temperature. scope.
*Manual Mode: Set manual mode to turn on/off instantly.
*Trigger smart scenes: Use the temperature value as the trigger condition for smart scenes to trigger the power on and off of other Tuya smart devices.
*Voice Control: Compatible with “Amazon” Alexa, Google Home, Yandex Alice.
*Waterproof temperature sensor (temperature switch only), using stainless steel temperature probe, high accuracy, widely used in daily life.
Customer Reviews
14 reviews for Mumubiz Zigbee 1 Gang Smart Switch with Temperature Humidity Sensor, Tuya Smart Life APP ,Passive Dry Contact Relay Match Alexa
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
M***a –
Often many devices for sale have both Zigbee and Tuya icons, in fact I bought several devices that work with Zigbee bridge/HUB/gataway NOT tuya, but unfortunately this one doesn’t.
In my setup I have a SONOFF Dongle USB Zigbee 3.0 gataway and to make it work with HomeAssistant I had to install a quirk, so recalling, to date it DOES NOT work with HA and Zigbee gataway not Tuya, unless custom configurations on HA.
Once configured, it works fine and the temperature shown is quite correct.
К***Ч –
Now it is in SPRUT.
The main criteria for me is a temperature sensor from 220V. with remote wire. 4жильный sensor. Compared to other devices +-0,2-0,4g. difference. There is probably a micro USB on the board for power? I didn’t try, I don’t need it. Inside the relay at 10A. Dividing into 2, we get a small load. I use it as a thermometer because… The device itself is warm, and there is no need for a battery. The heating will be controlled by a 35W well heating.
Expensive, like me.
Shopper –

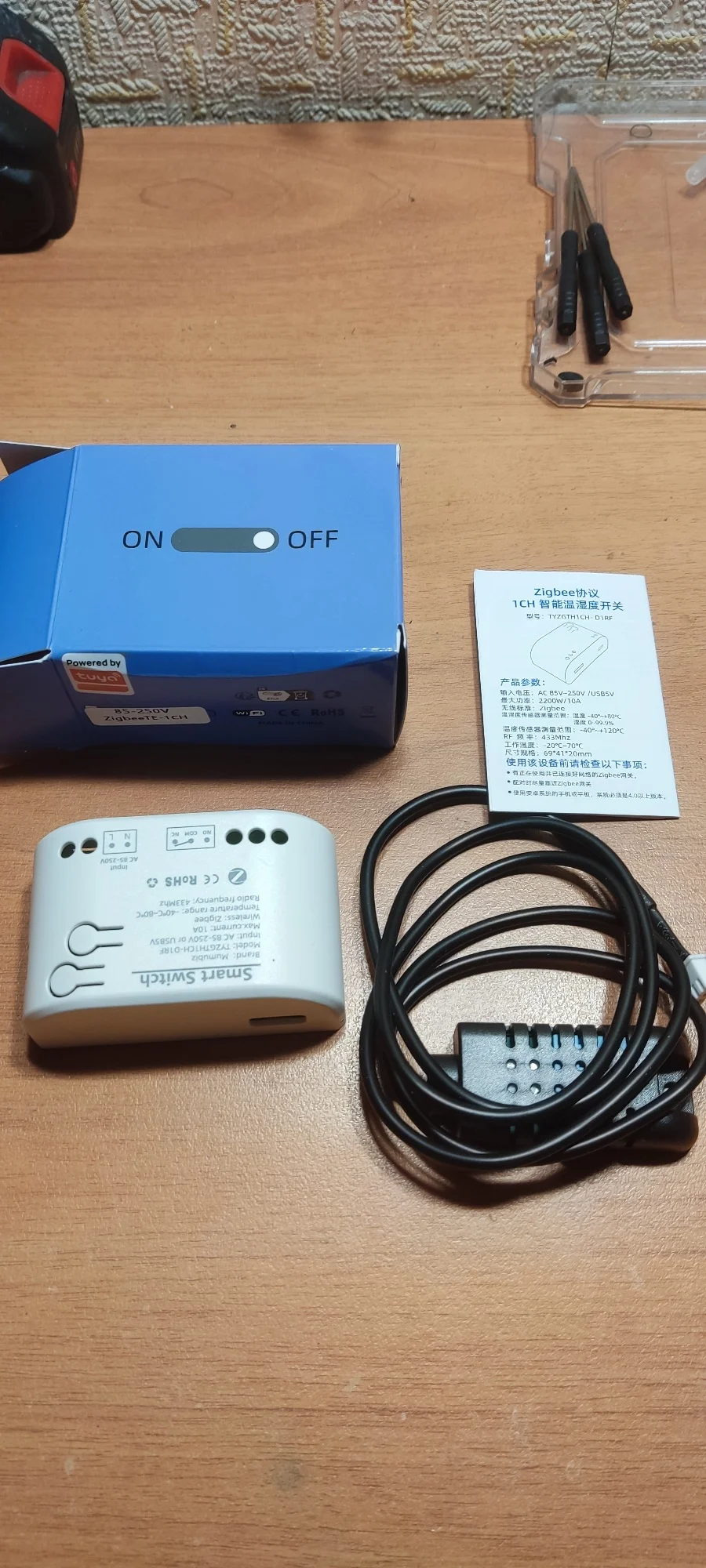

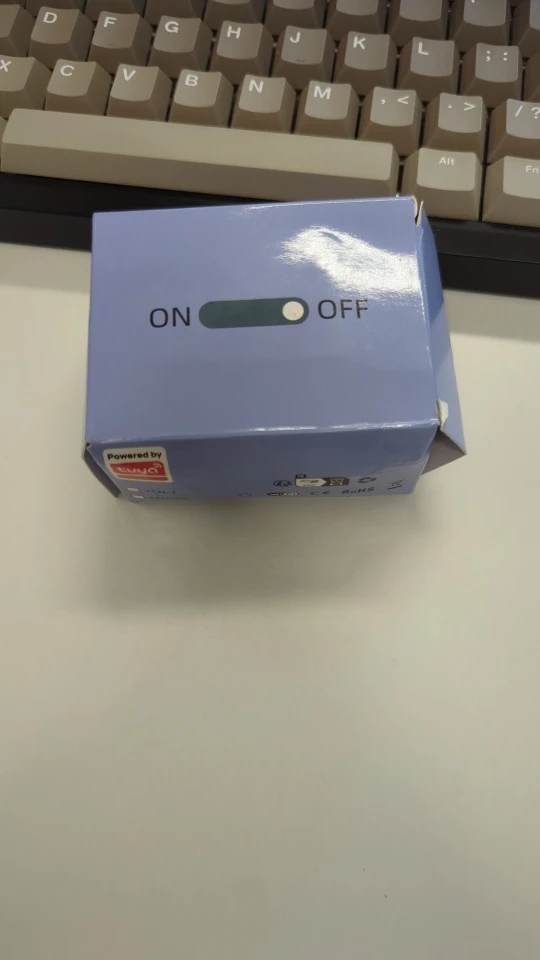

Strange packaging but not broken. It connects to zigbee easily. Cannot know if the temperature probe is accurate.
К***ч –

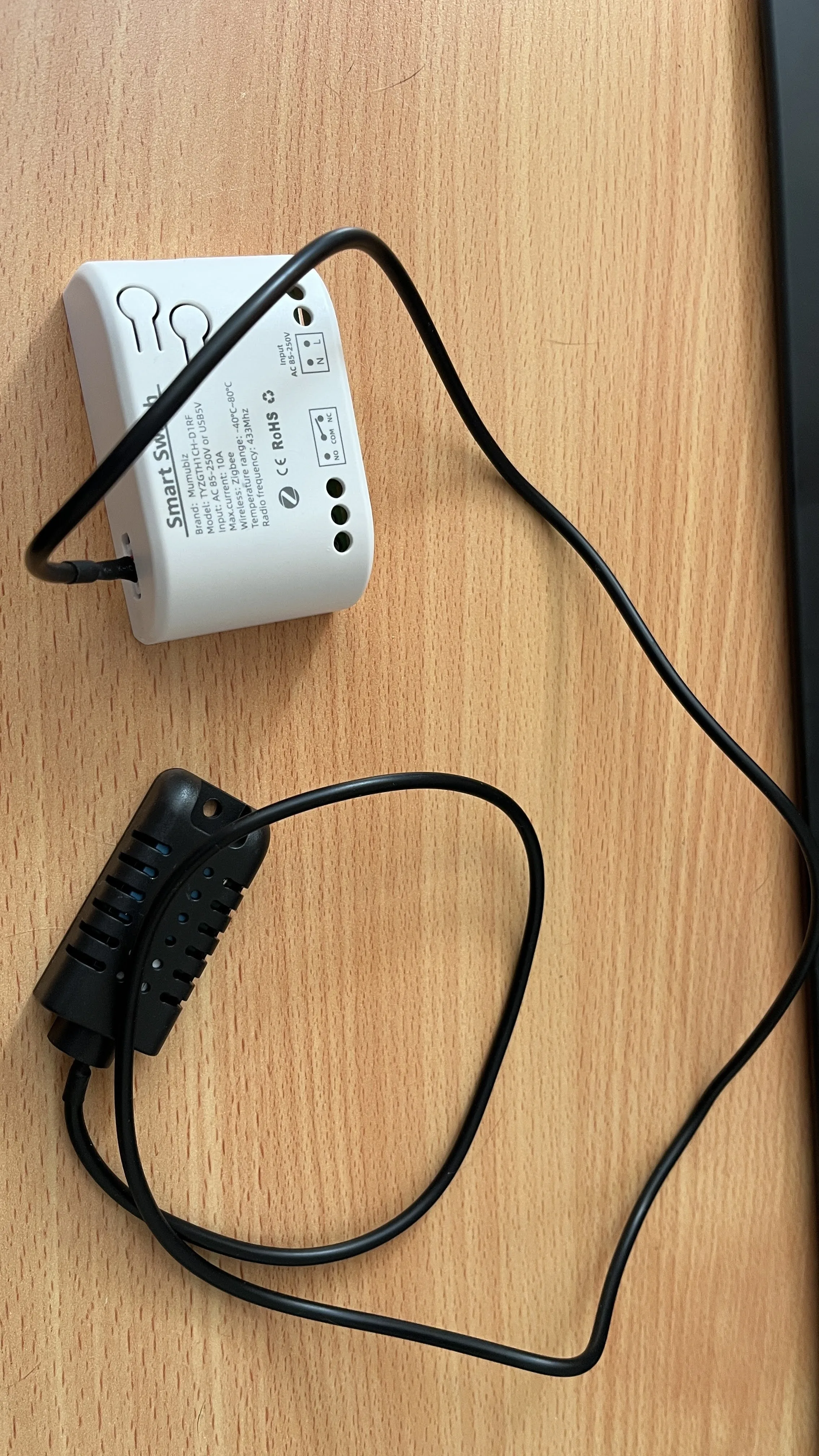

TYZGTH1CH-D1RF is detected and works with zigbee2mqtt, the seller did not give a clear answer. In the settings, there are calibration, manual mode, and auto-detection. I took the model powered by 220 V. The sensor is detachable with a three-pin connector.
J***o –
everything perfect, fast shipping and good quality.
P***y –
Fast delivery
everything is working
Connected to Home Assistant without any issues.
D***i –

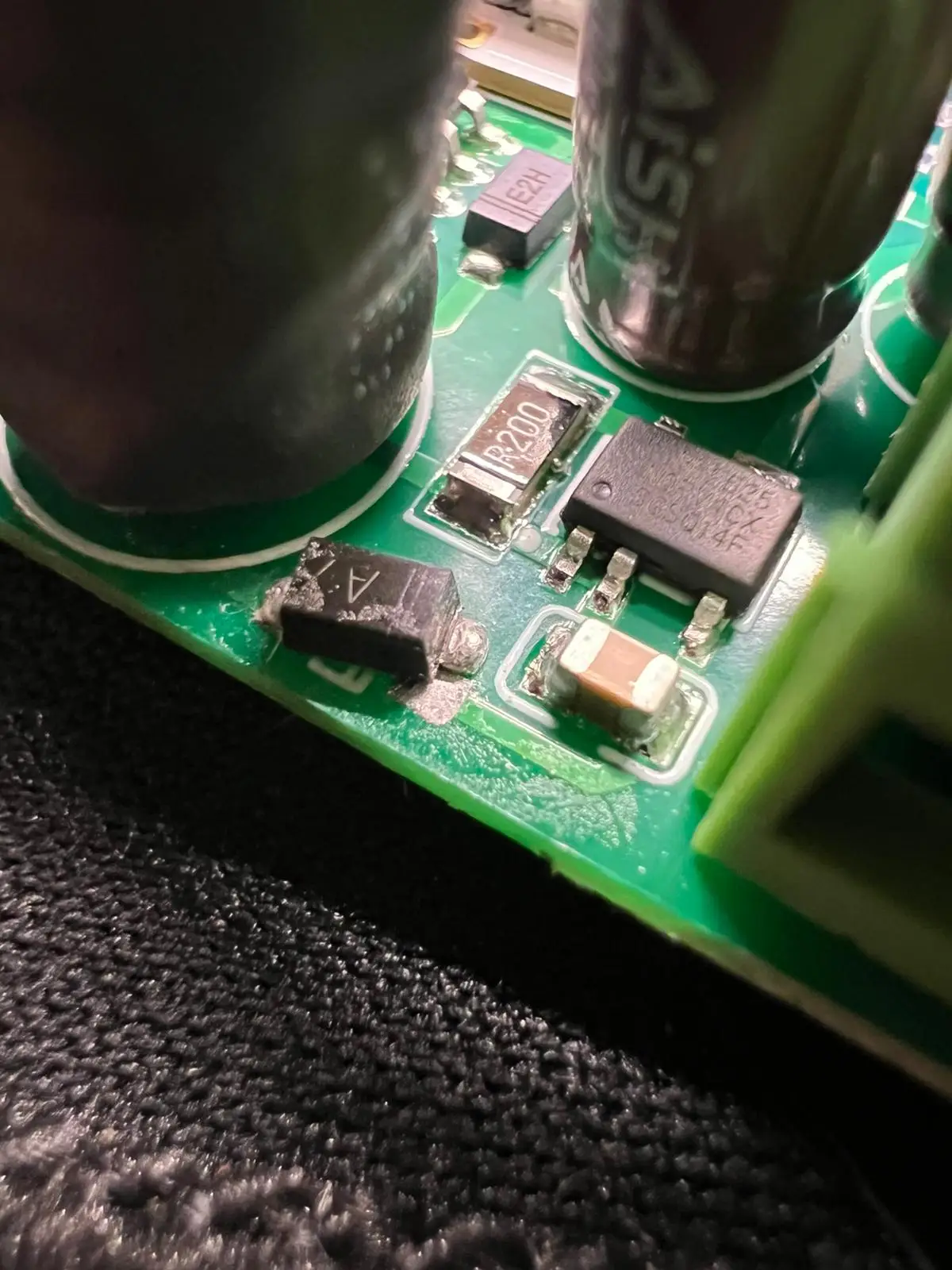

Arrived not working, the SMD diode is not soldered correctly (see photo); I used a soldering iron and re-soldered it; Now it works.
L***k –
Work well, as i need.
Shopper –

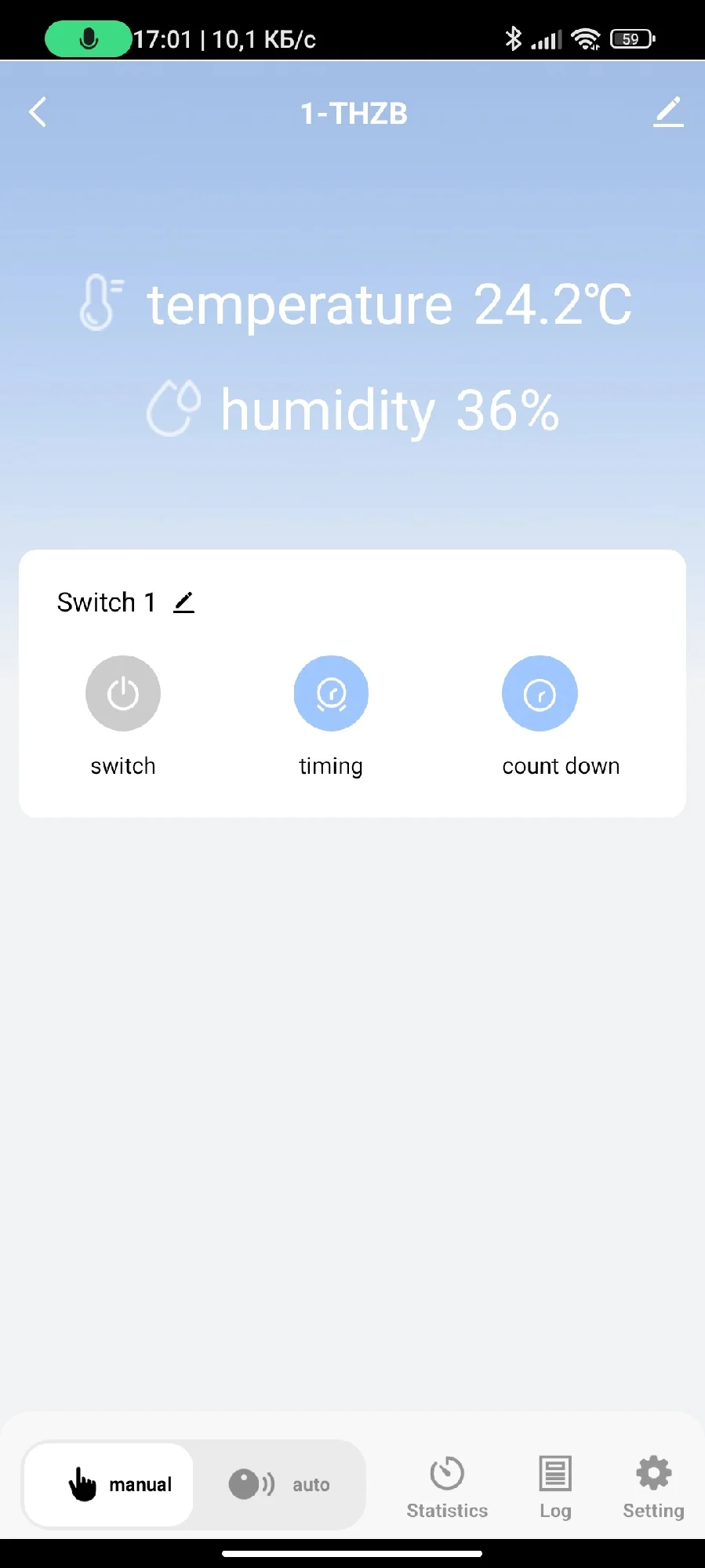

The temperature sensor is located at the outlet of the boiler to control the temperature of water supplied directly to the faucet. The sensor software is quite extensive, there are log records, the possibility to calibrate indicators, various settings (visible in the screenshots). The sensor is flexible, so it doesn’t fall off when turned off, switched, or the light flickers, which is very useful for me.
Shopper –

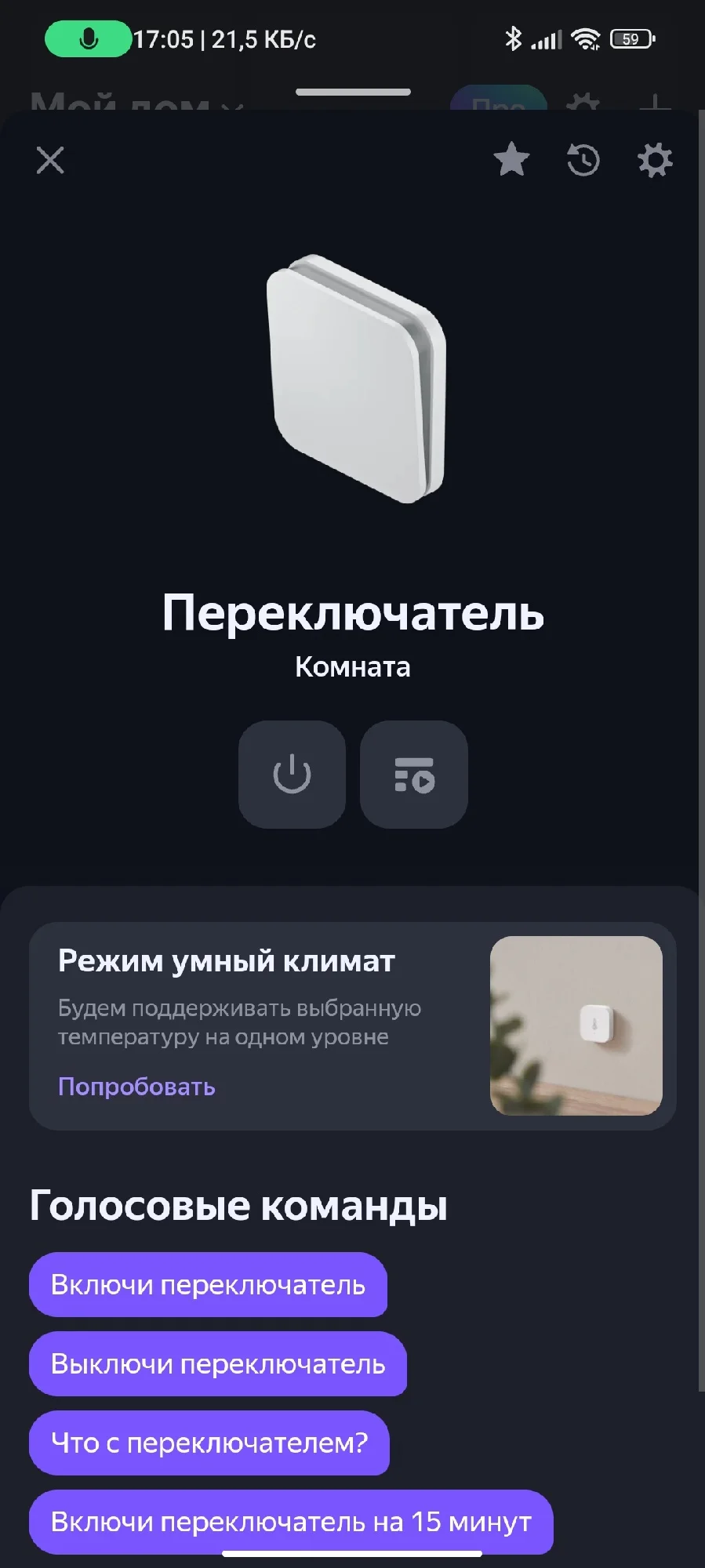

Arrived without damage, connected power via USB and it worked; haven’t tried connecting to 220 yet. Connected to Smart life and works, but in Alice it shows as a switch and doesn’t transmit temperature.
Б***ч –
There is a template for Spruthub.
Shopper –
The switch works fine with home assistant zigbe2mqtt and the version i bought can be powered by usb or directly connected to the mains (220v).

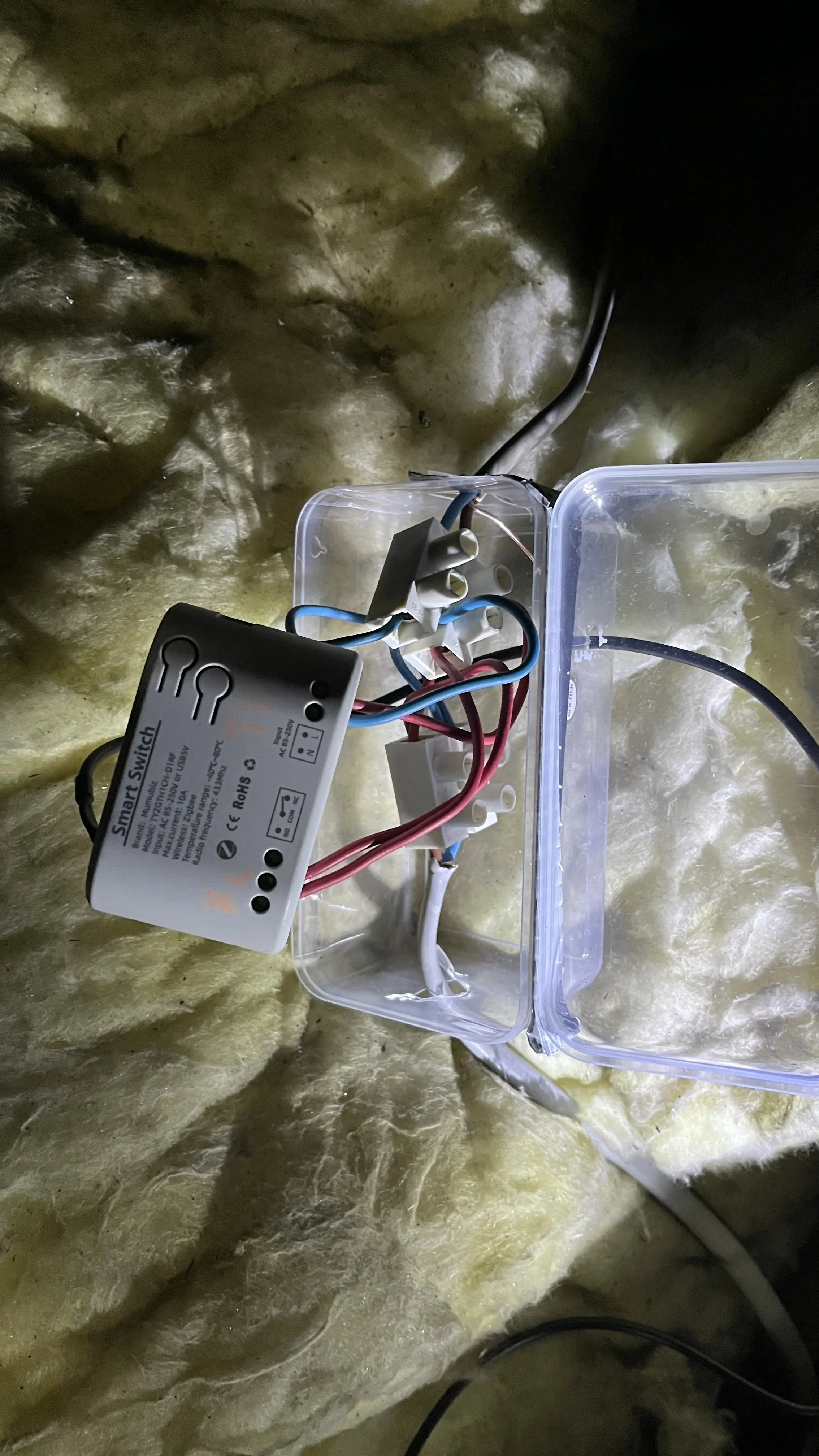

In my case i connected it directly to the ceiling light in the loft above the bathroom.

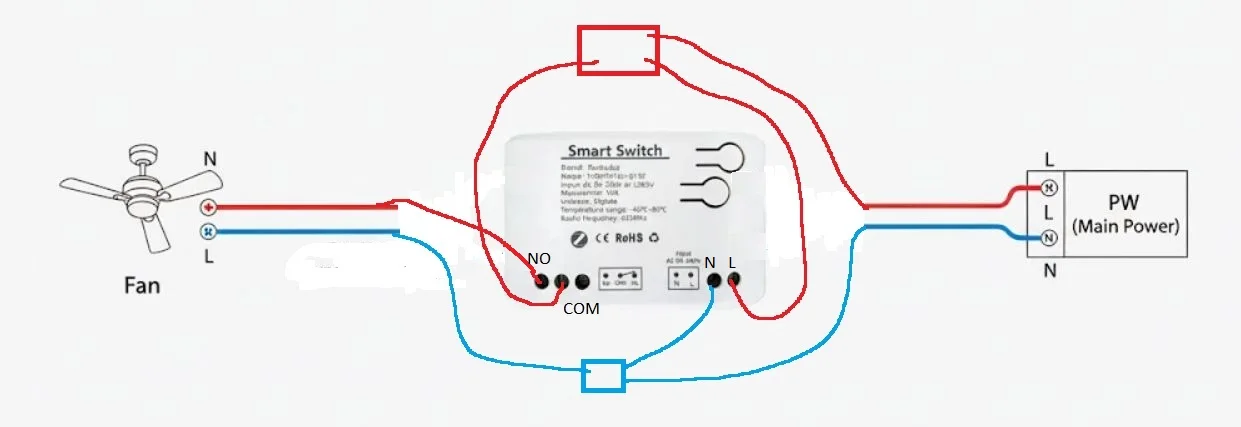

Sorry about the crappy diagram.
Z***k –

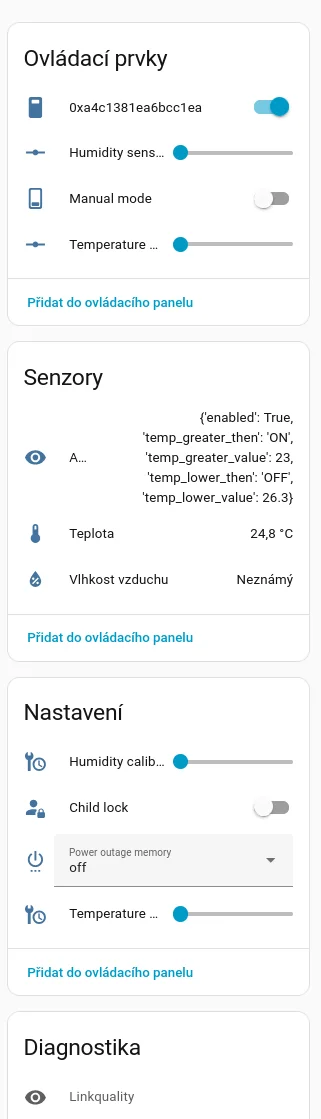

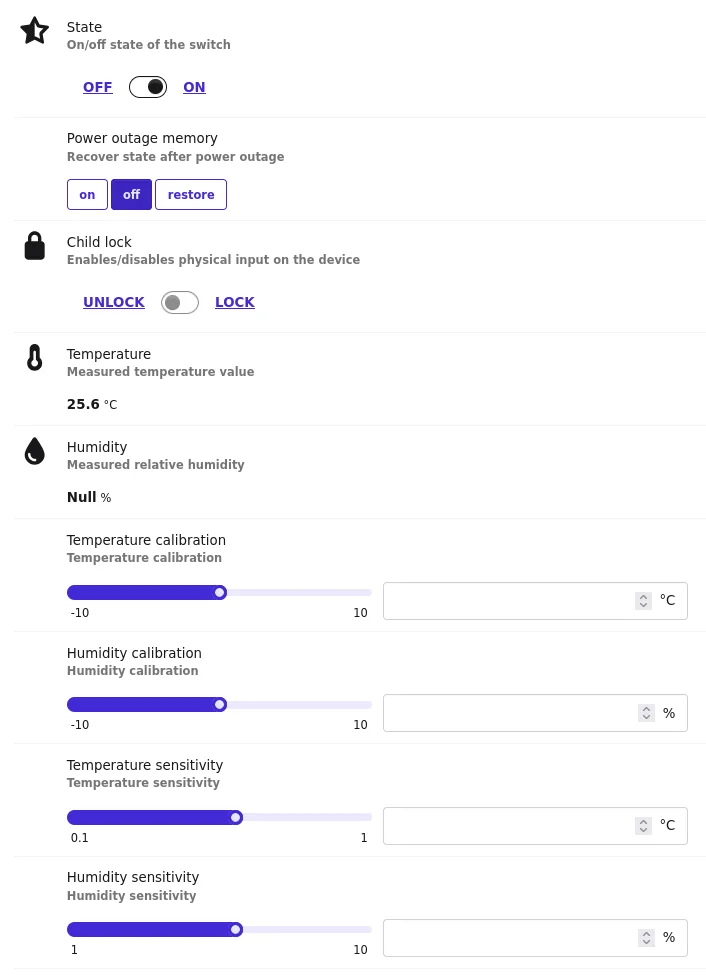

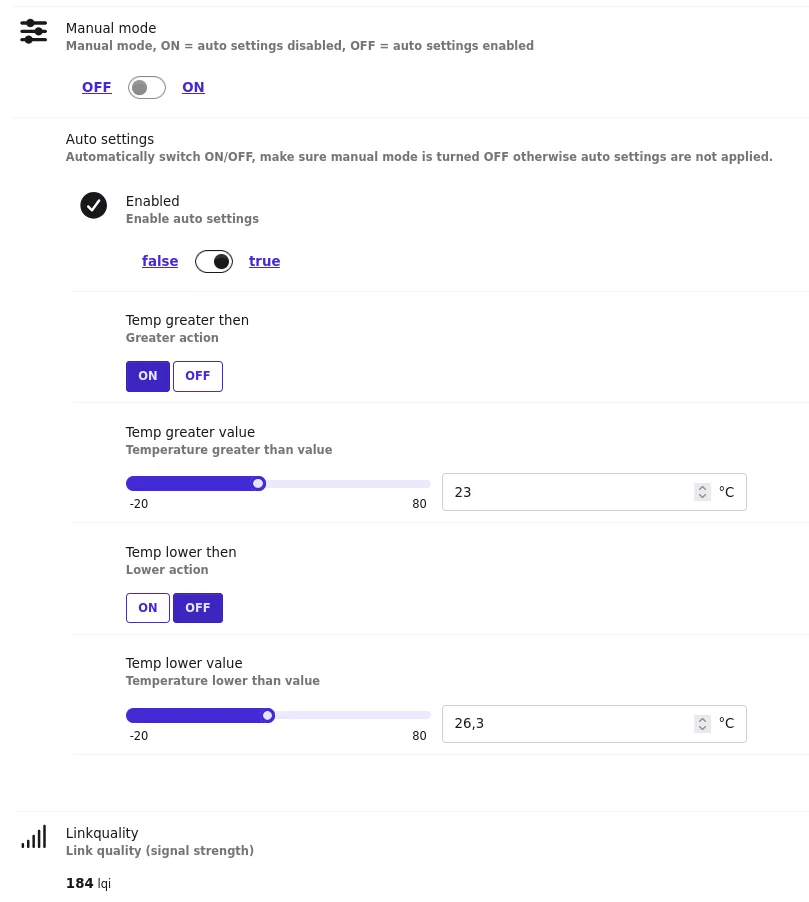

It works well with zigbee2mqtt and home assistant. But, im not able to enable child lock. It is locked for few seconds, but after clicking to the button, lock will go to unlock state. It is some way to improve support in ha, but in z2m it is okay. And i dont understand for such device have two buttons. There is no din-rail mount, neither holes for screws. It have simple internal automation for on/off based on temperature.
“click” in internal relay is very silent, so i assume that there is small relay inside – only for small current.
Despite some disadvantages, it is fully usable.
Notice: i have temp only variant, so humidity is “null”.
Я***ч –
They sent me a 4-channel one, which I don’t need, and it’s also cheaper than the 1-channel one.
