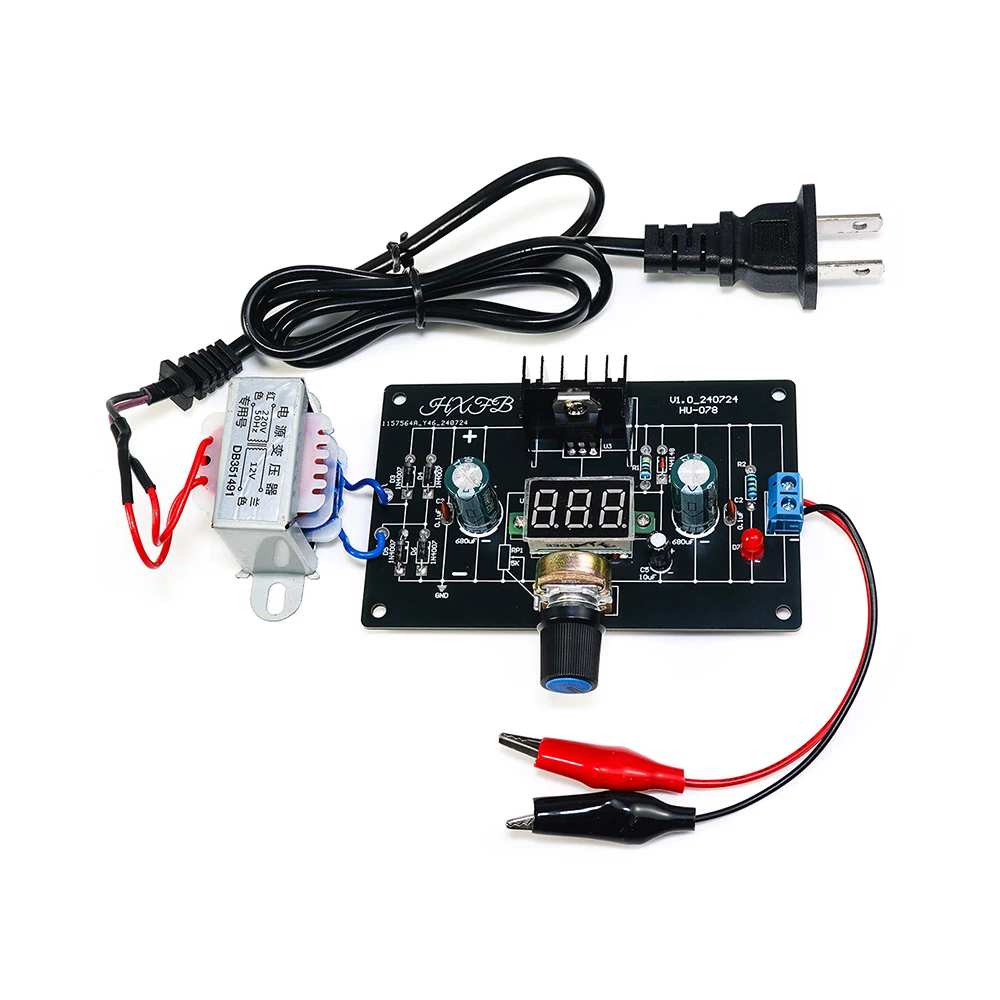

LM317 Adjustable Power Supply DIY Kit DC Regulated Power Supply Module Component Welding Electronic Production Bulk
Description
Features:
1. The core of the LM317 three-terminal adjustable voltage regulator, the output voltage can be continuously adjusted within the range of 1.25V to 12V, to meet the diverse circuit testing and project needs
2. Designed for electronics enthusiasts and students, through hands-on assembly and welding, practice theoretical knowledge, deepen the understanding of the principle of DC regulated power supply, enhance the welding skills and circuit debugging capabilities
3. Not only suitable for electronic production, maintenance and debugging, or educational training, DIY project development ideal choice, multi-purpose, enhance learning and work efficiency

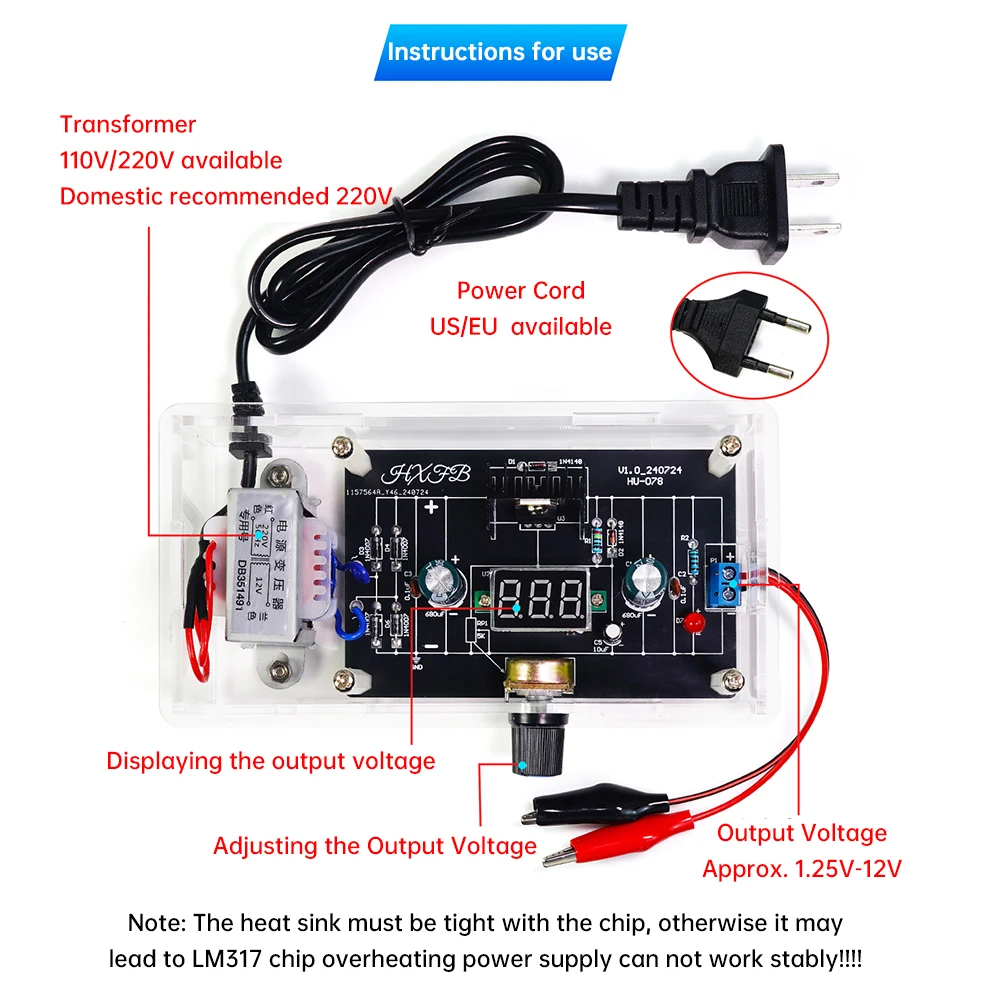

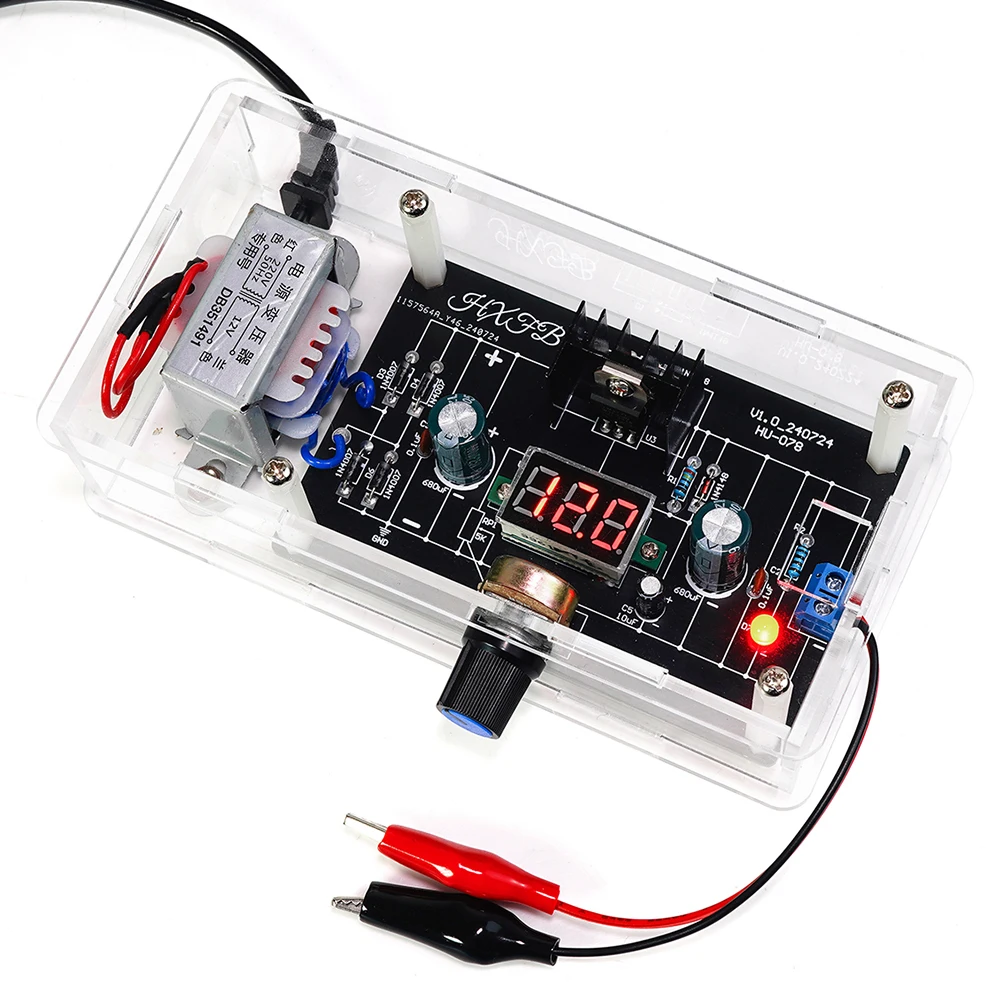

4. Comes with a voltmeter to display the output voltage, easy to view and adjust

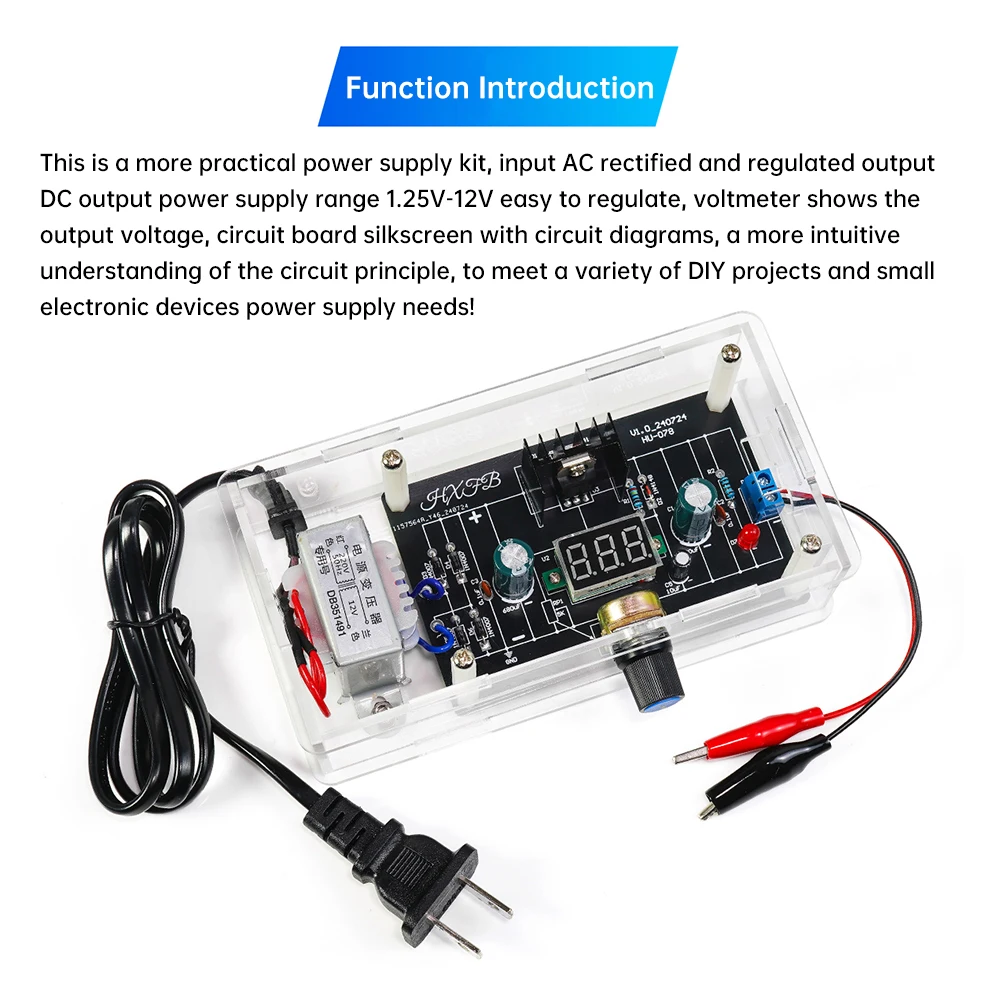

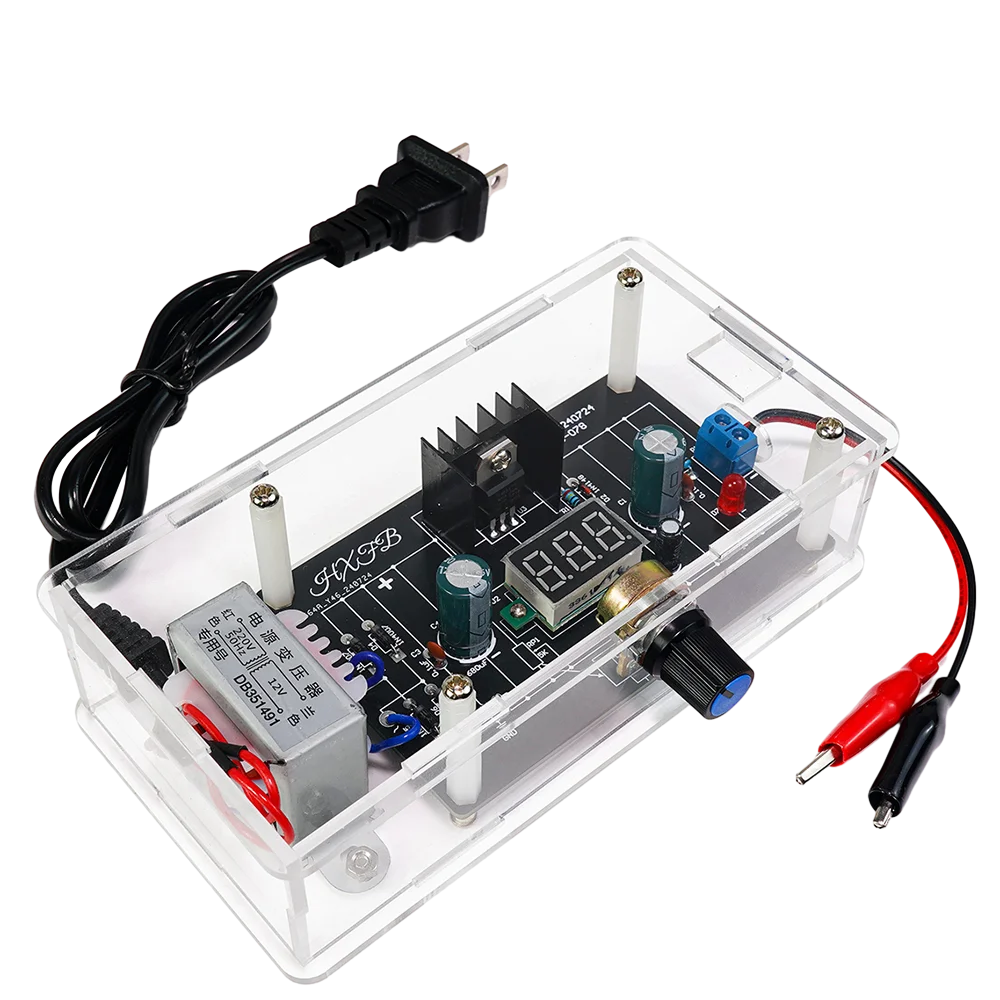

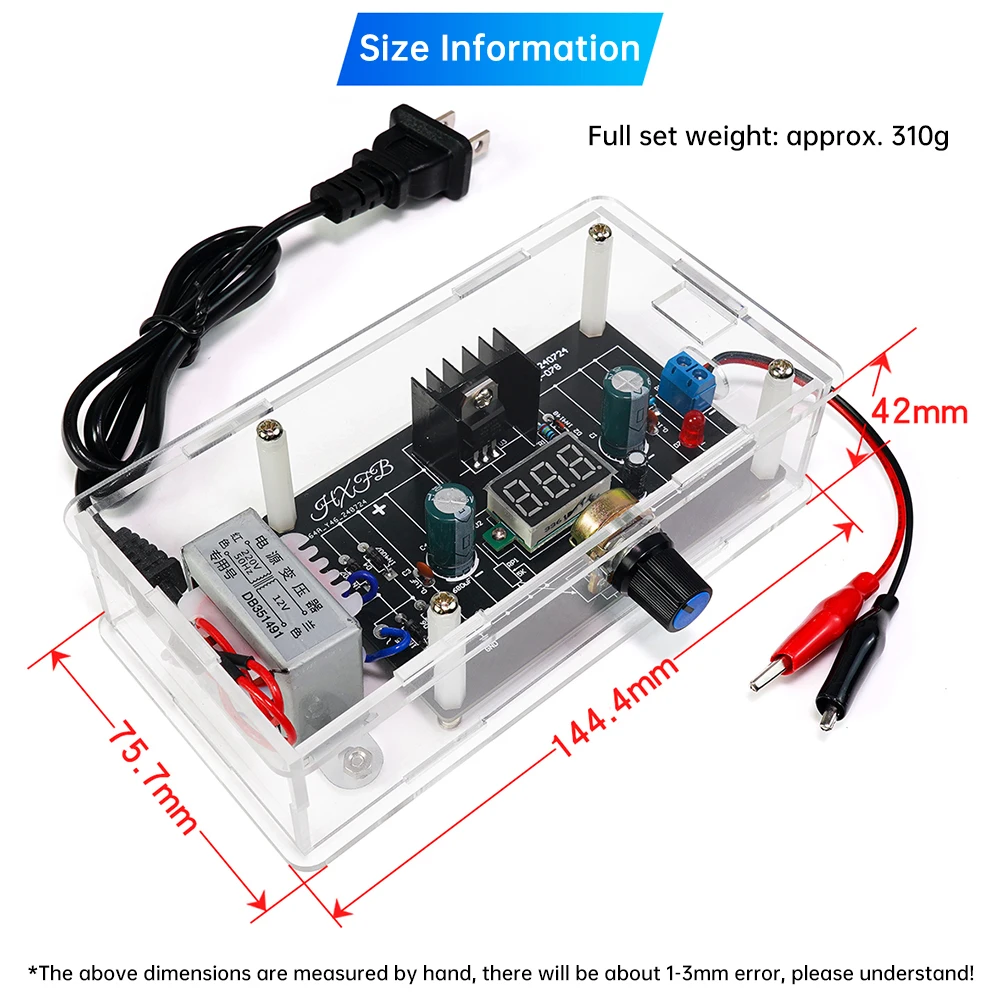

5. Transparent acrylic shell, protect the circuit board at the same time more beautiful, rounded corners
Parameter:
Power: 2W
Input voltage: 110V/220V (optional)
Output voltage: about 1.25-12V
Maximum current: output voltage 5V, current about 200mA

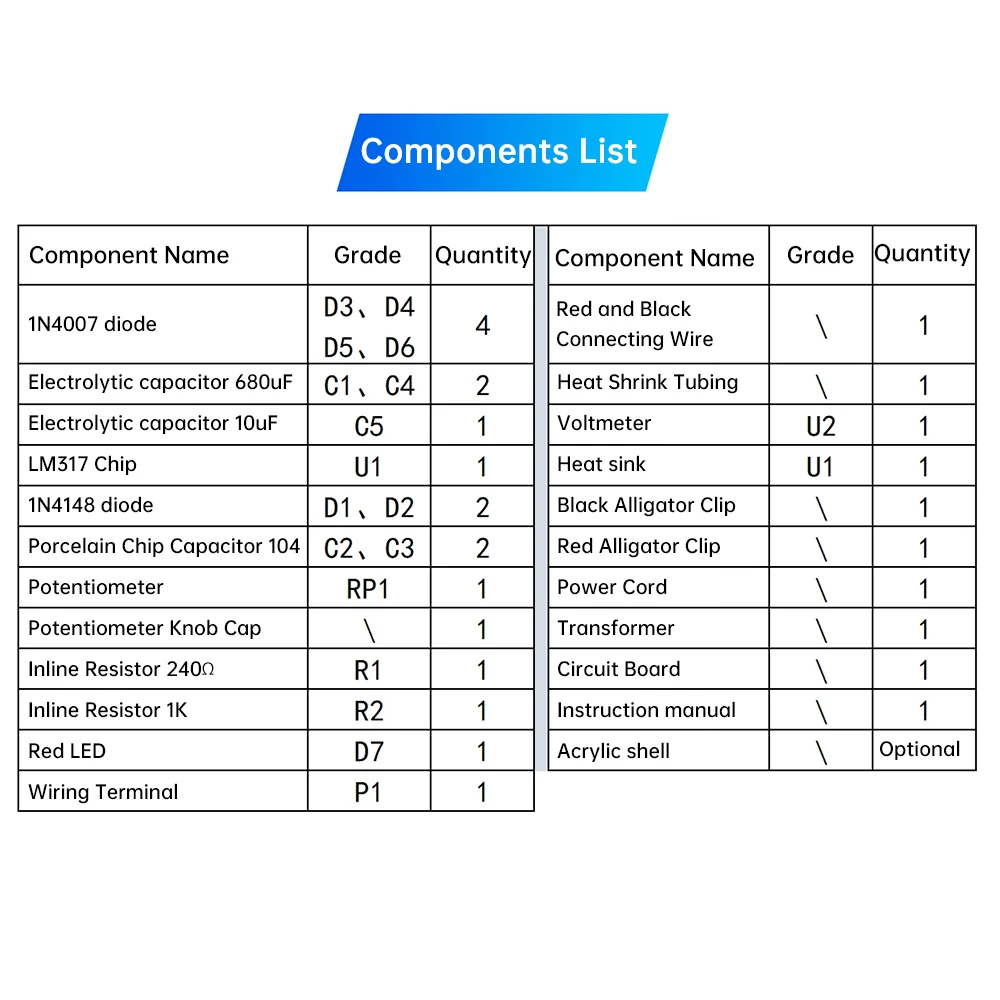

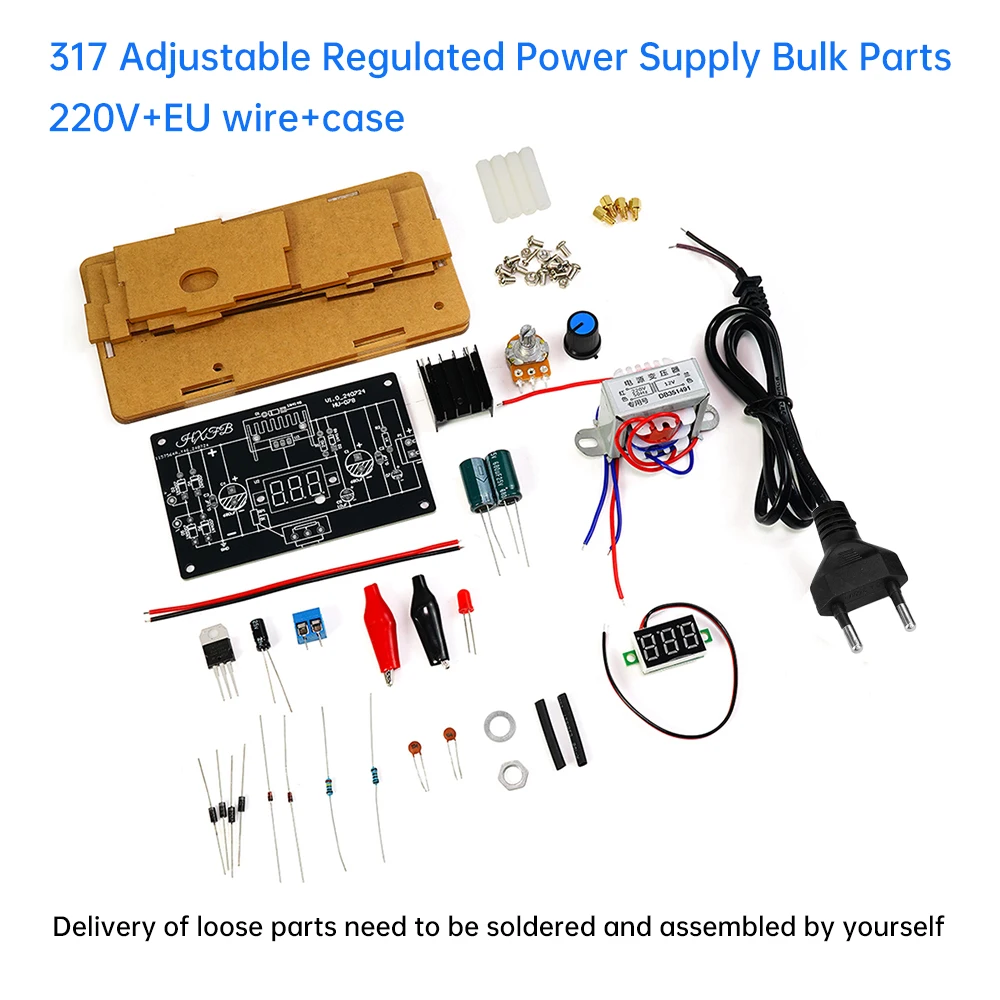

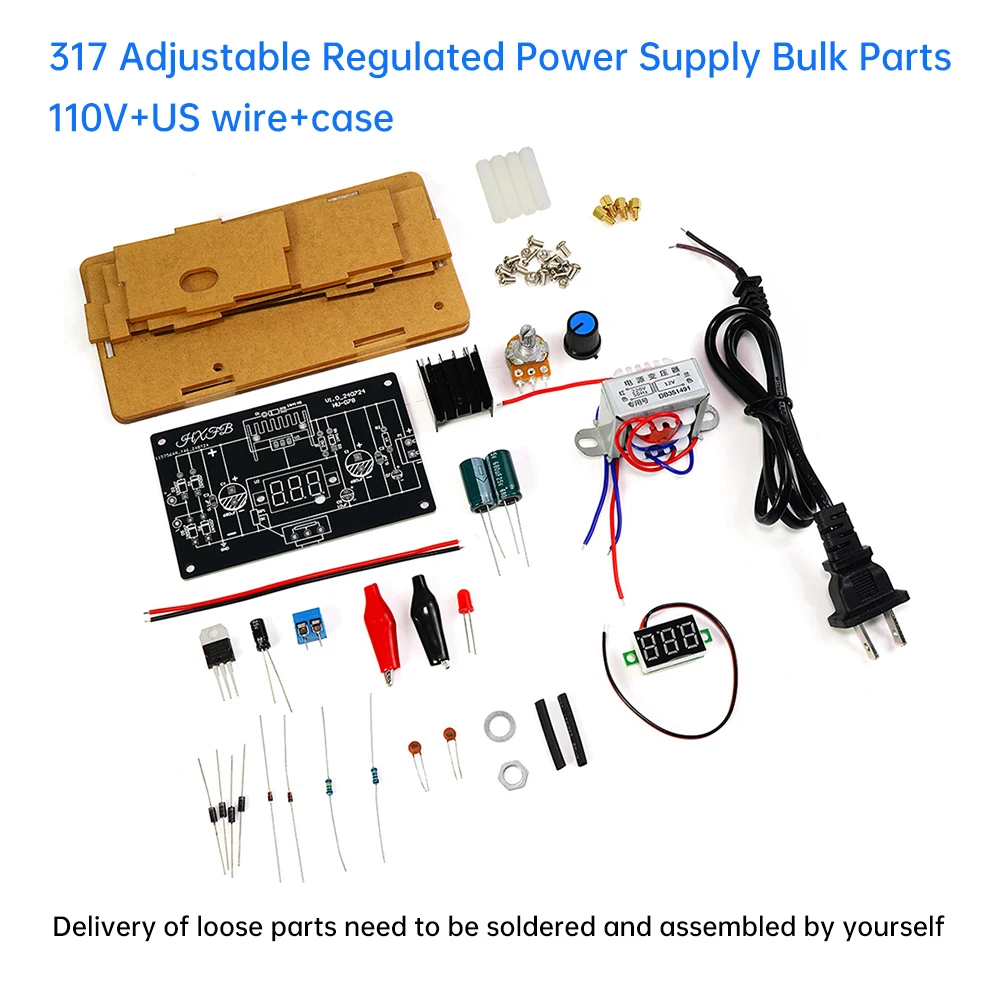

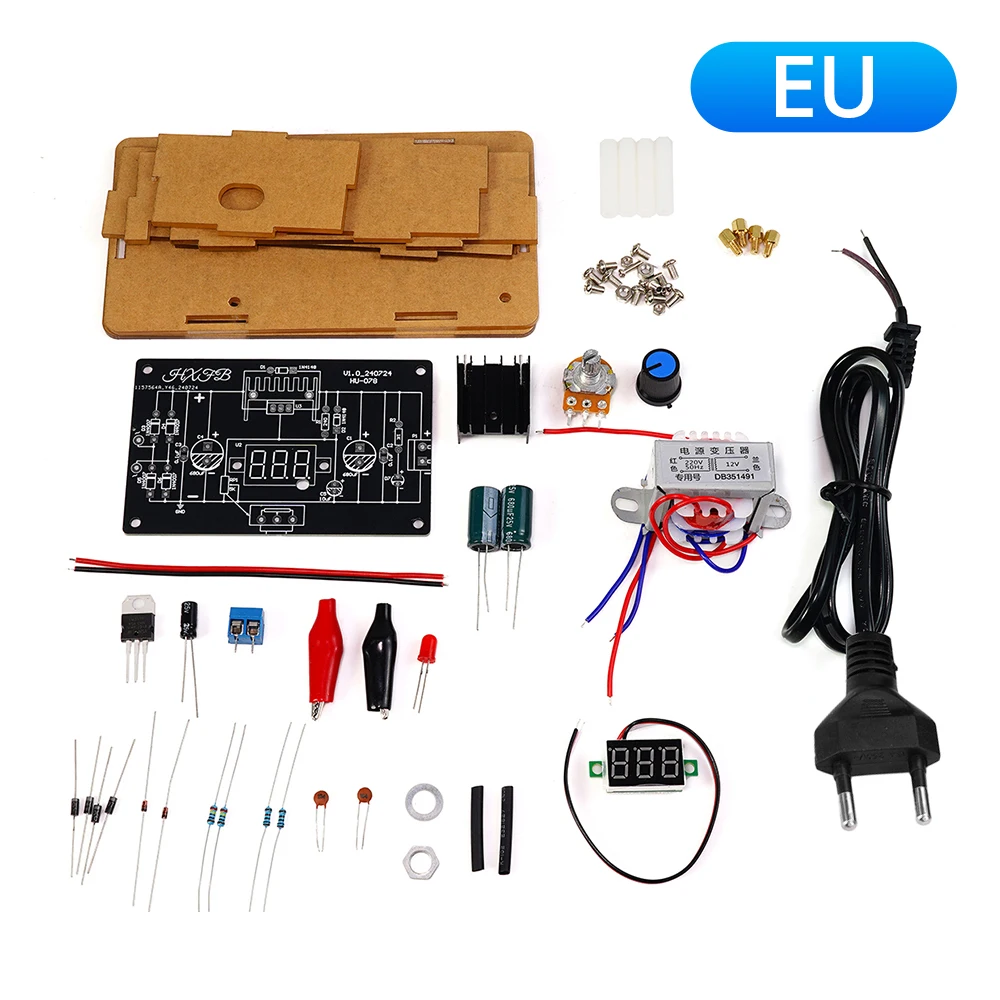

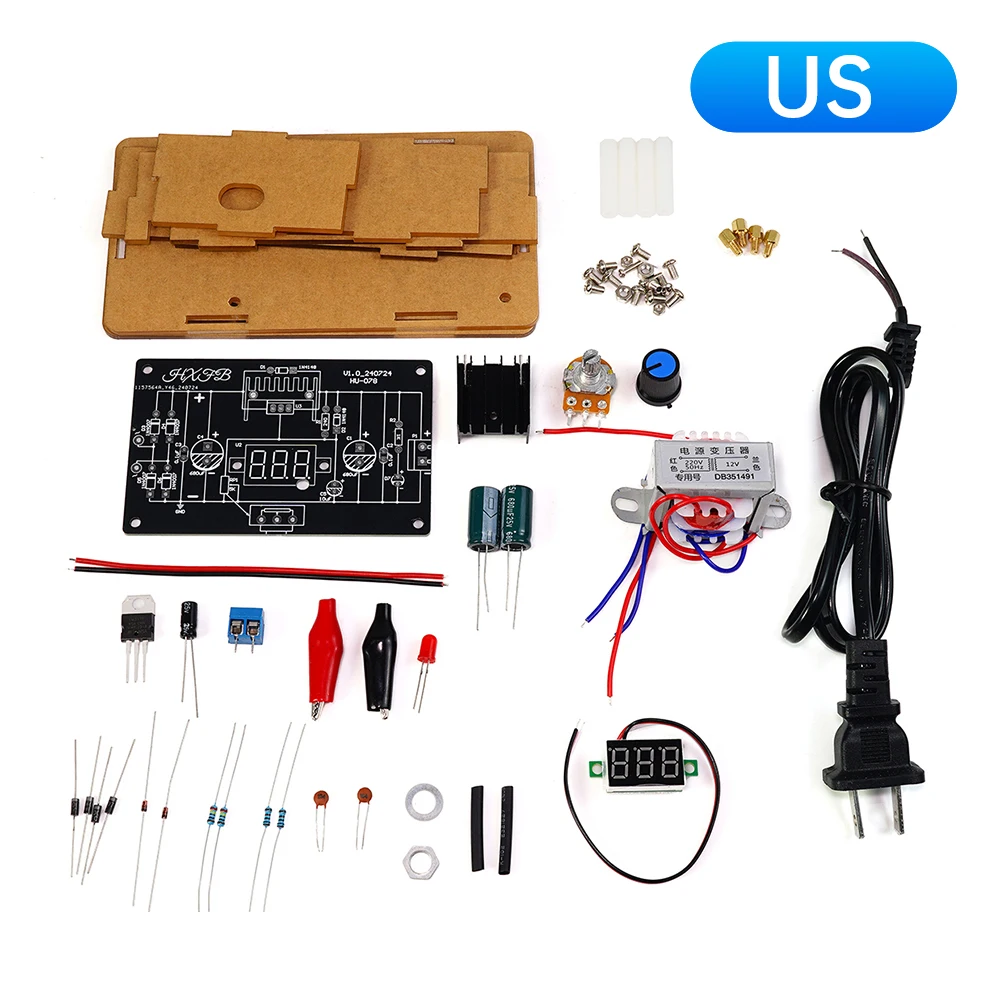

Package include:
Voltage regulator DIY kit *1
Customer Reviews
12 reviews for LM317 Adjustable Power Supply DIY Kit DC Regulated Power Supply Module Component Welding Electronic Production Bulk
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
C***a –
Product was as described. The board is very well marked and the assembly instructions are very good. Operation is fine. Very smooth output.
a***r –

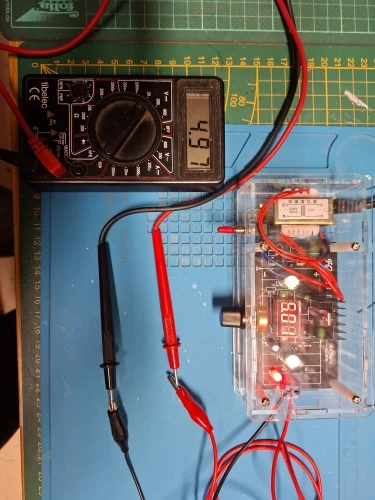

Performs well. Took time to assemble with clear instructions. Output 1.2v to 15volts not only 12v. Love the clear enclosure. Mine is 110v.
C***a –
Product was as described. Clean output.
B***n –

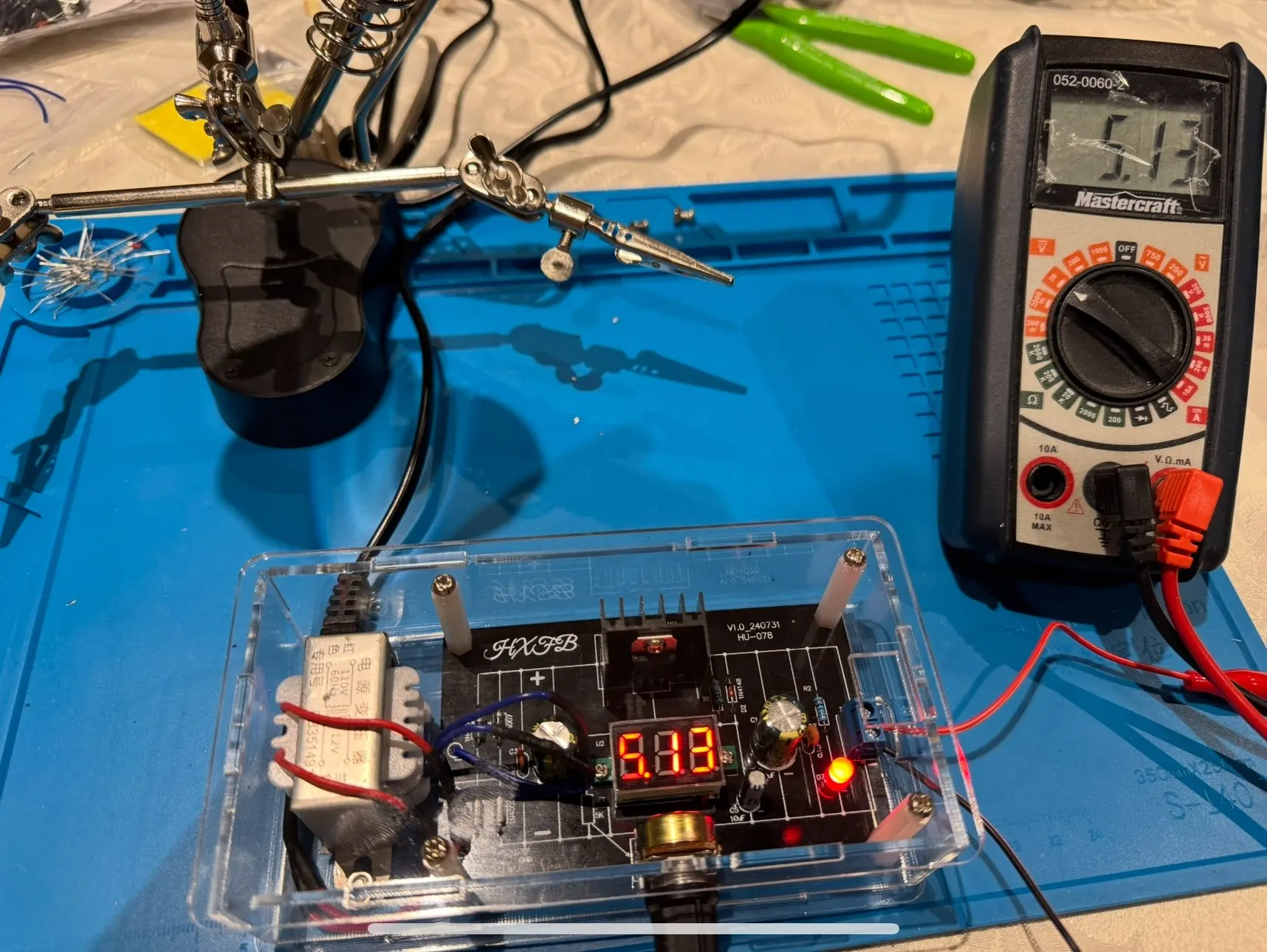

I just finished it last night and now i have a nice adjustable desktop power supply. Thanks from the united states! !
P***o –
everything is ok, I still have to solder it, but it’s the second one I’ve bought. the other one works well, just don’t exceed the current (a few hundred amps).
Y***Y –
What a beautiful little project. Took about 2-3 hours with my very novice soldering skills. Instructions were very clear. And there’s even a great video to follow along — even without understanding what’s being spoken in the video, it is very clear. Thanks for a great little kit! !
f***r –
Everything fine, excellent seller.
T***A –
Excellent little power supply with a very good quality/price ratio, and quite pretty by the way.
Very practical for testing components and small assemblies before final integration.
The circuit is absolutely not compact, the components breathe and cool, the layout is explicit so it’s quite educational to understand how a power supply with decoupling works.
Shopper –
Ive had issues with getting items through the speedx delivery service in east us, but this one made it after i made an arbitrary update to my delivery instructions on their platform.
The only complaints i have about the item really come down to the case. One of the acrylic panels was broken and i needed to hot glue it back together. Another panel had holes that didnt properly line up with the output screw terminals, which means i need to remove that panel anytime i want to install different output wires.
The circuit works nicely and has current limiting built-in. If you short the probes, thats maximum current which could possibly damage the circuit if it were not for the current limiting. Because of the current limiting, voltage drops immediately down to ~0.02v.
You can set the output anywhere from 1.5v to 17.7v, so it’ll work well for low voltage projects.
C***s –
A fun little cheap project to learn about pcb’s. The directions could be a little better and easier to understand.
Shopper –

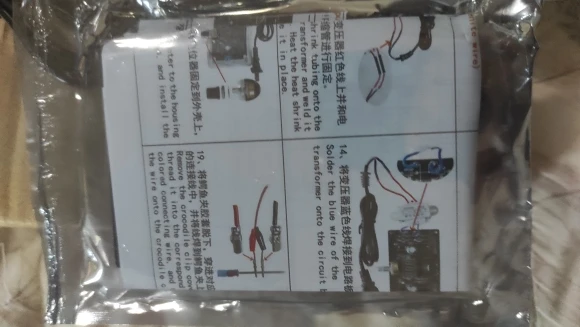

Excellent kit with clear building instructions in chinese and english. Works very well once assembled. I have just added a power switch on the 12v circuit and longer wires for the output.
U***r –
Easy assembly. Works nicely
