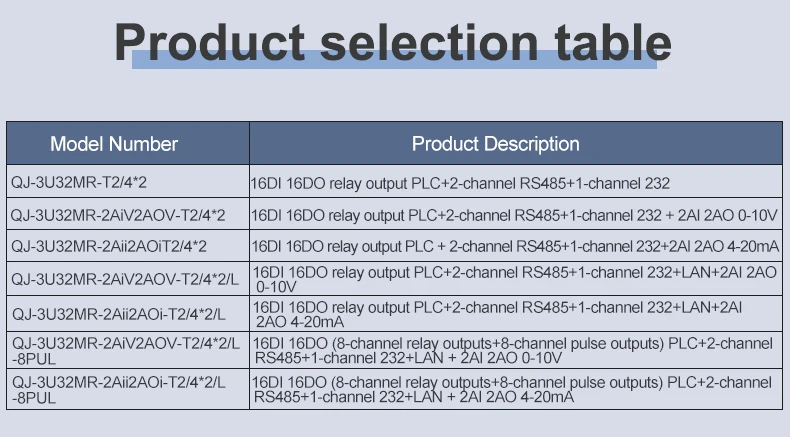

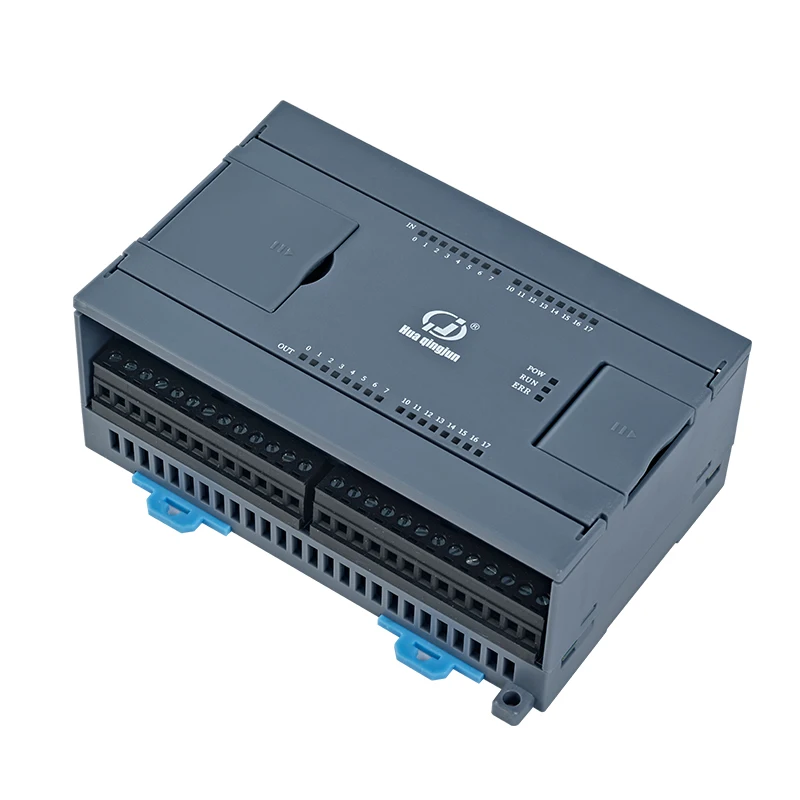

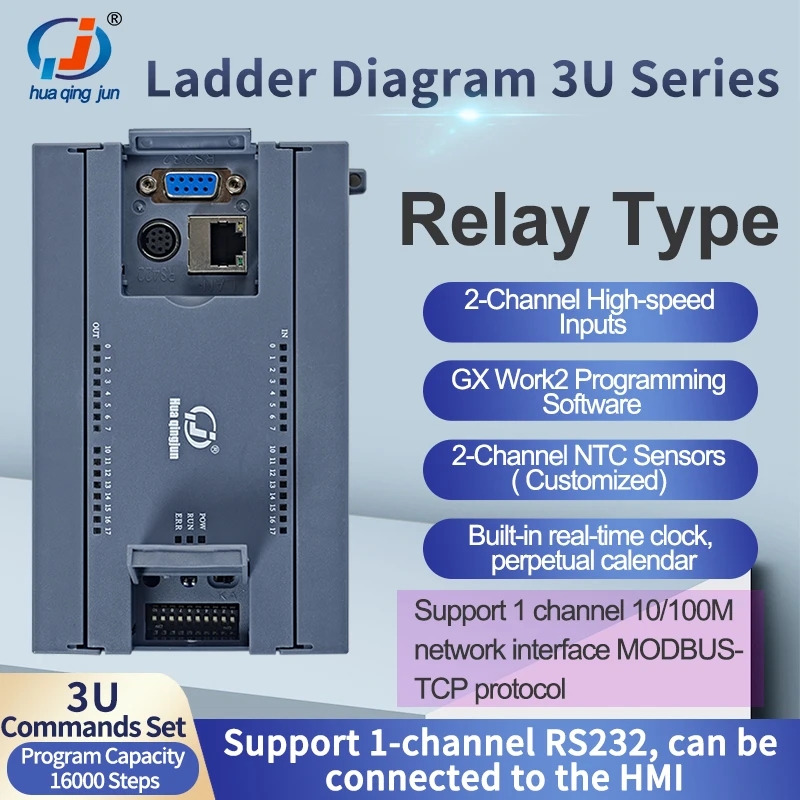

Huaqingjun 16DI 16DO Relay Output PLC RS485 232 LAN Ladder Diagram 2AI 2AO 0-20mA PLC Controller for Industrial Automation

Product Description

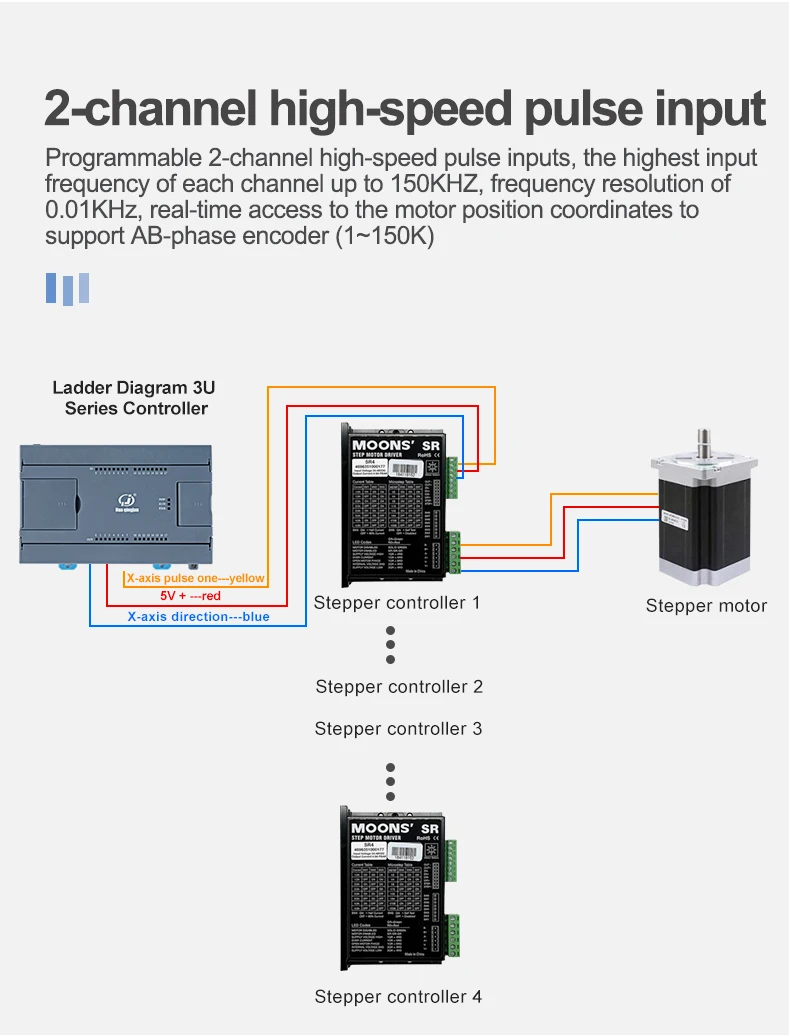

1. High-speed Input:
2-channel X00 X01 (200khz)
Trigger voltage 9-28VDC
Trigger current >3mA

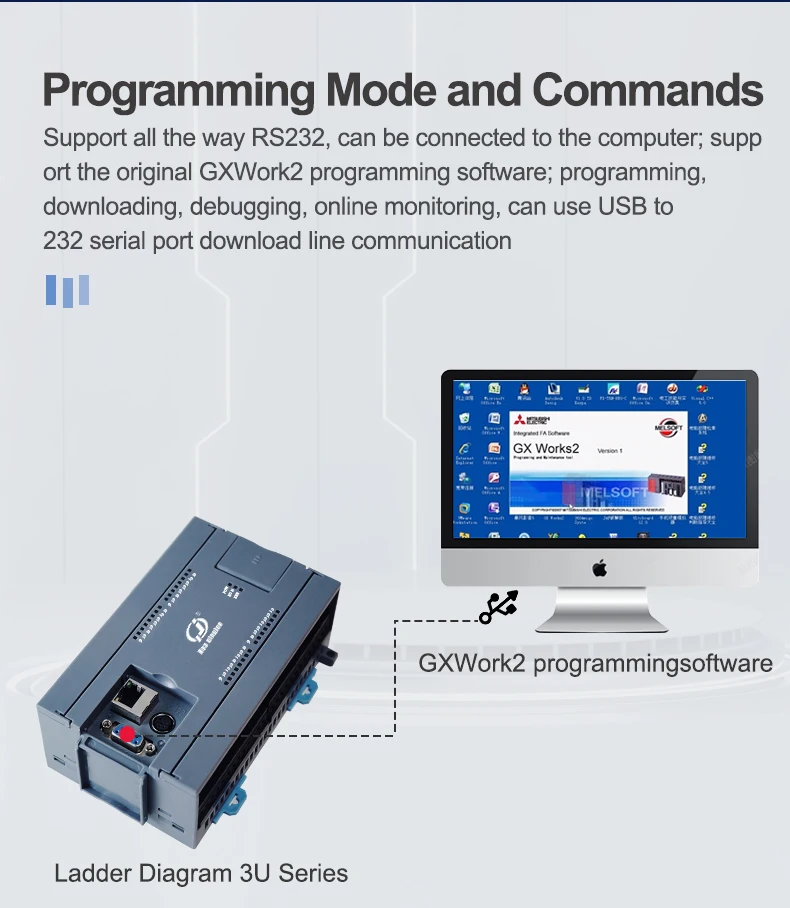

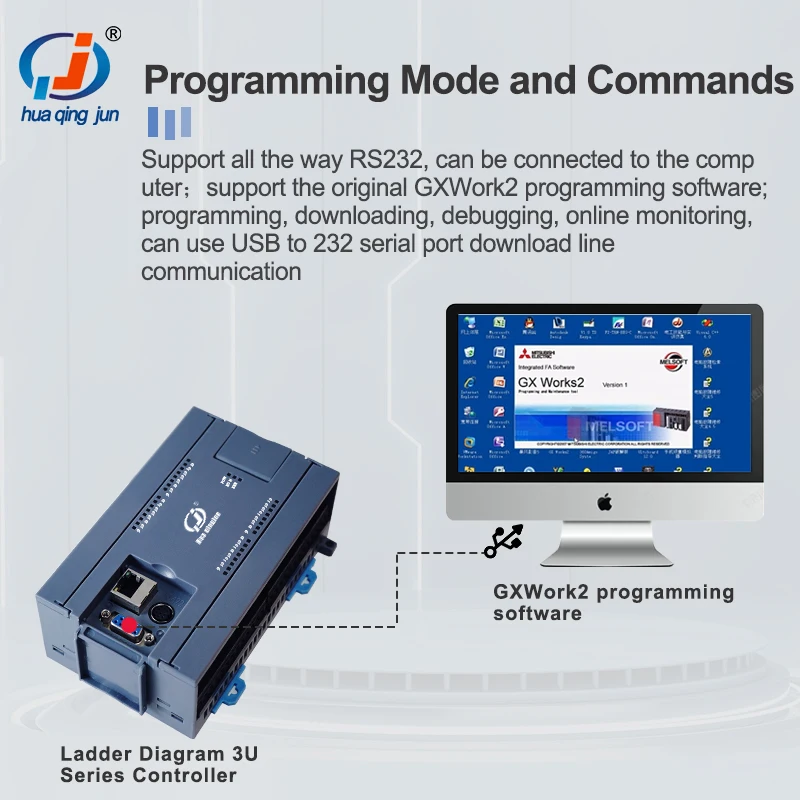

2. 232 Communication Port:
Channel number: 1
Baud rate range: 1200~115200Bps
Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2
Protocol: MODBUS-RTU
Isolated voltage: 24VDC

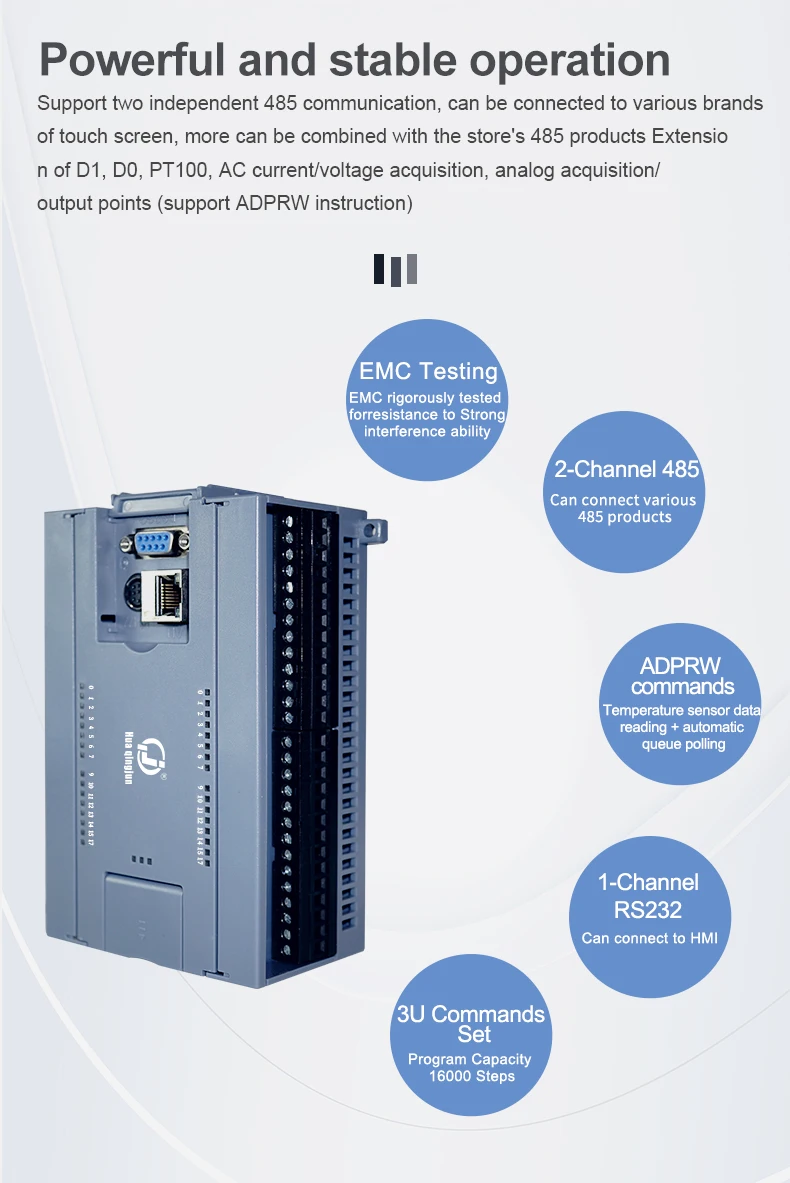

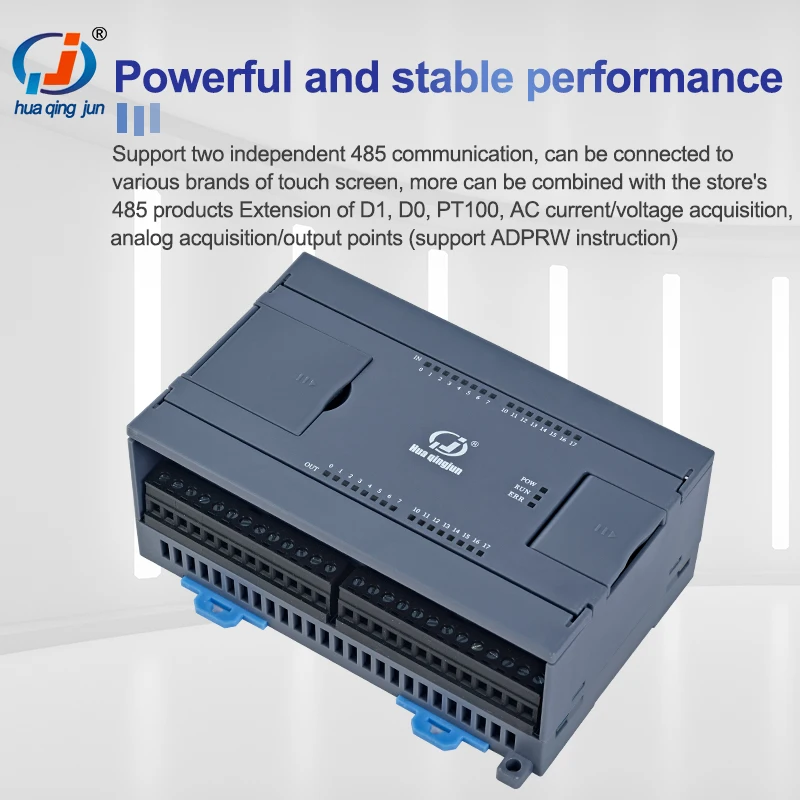

3. 485 Communication Port:
Channel number: 2

Baud rate range: 1200~115200Bps

Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2

Protocol: MODBUS-RTU

Isolated voltage: 5kVrms

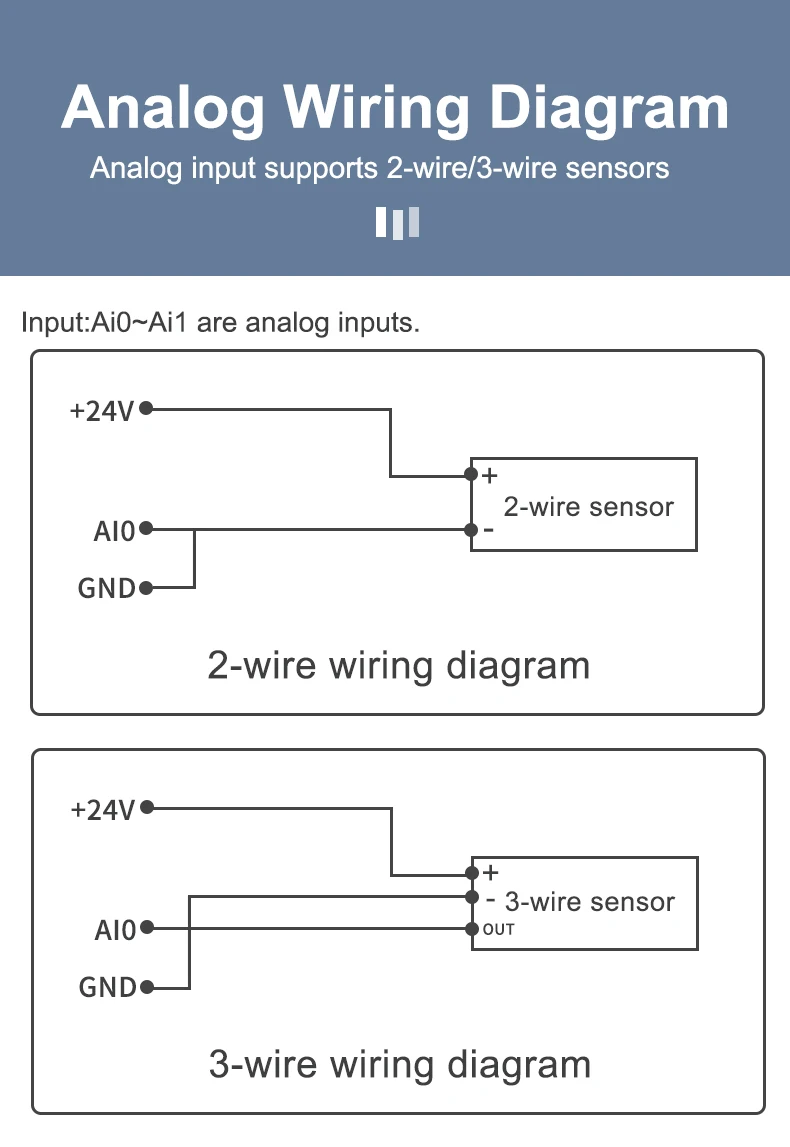

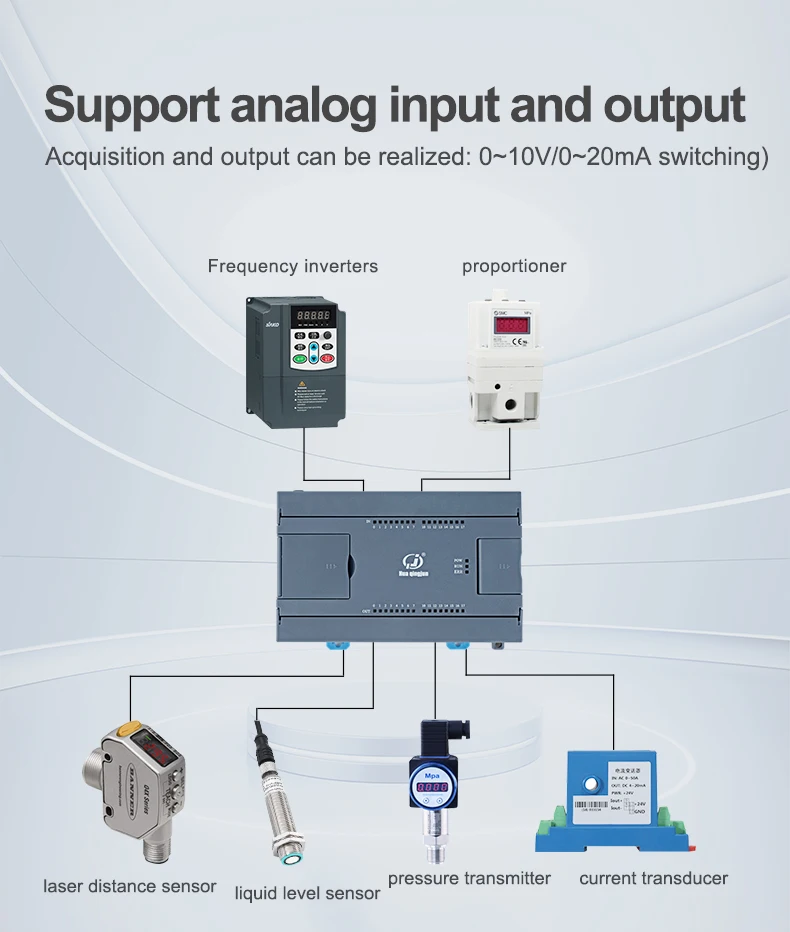

4. Analog input port
Channel number: 2

Current input range: 0~25mA （3~28VDC）

Voltage input range: 0~10VDC

Acquisition interval: 0.1~1Khz

Ultimate voltage: 28VDC
5. Analog output port
Channel number: 2

Current input range: 0~20mA (24VDC)

Voltage input range: 0~10VDC (<=20mA)

Response time: Greater than 10mS

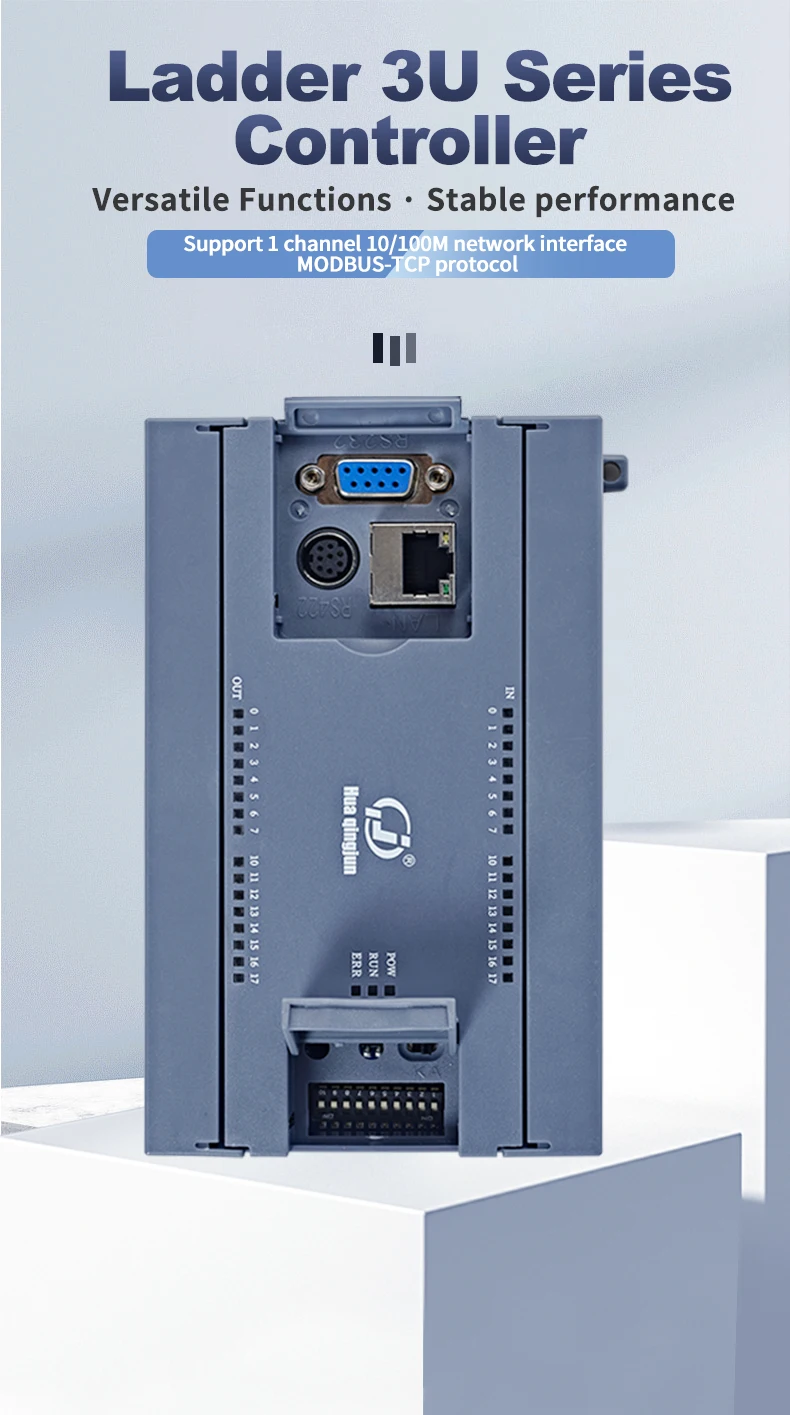

6. Ethernet port
Number of socket channels: 4

Supported protocols: MODBUS-TCP protocol

Maximum support for 4 slaves

Bandwidth: 10/100Mbps

Support for downloading programmes
Company Description
PACKING & DELIVERY
Packaging Details: standard paper box
Lead Time: 1-5 days after payment for sample order
10-25 days after payment for big order
