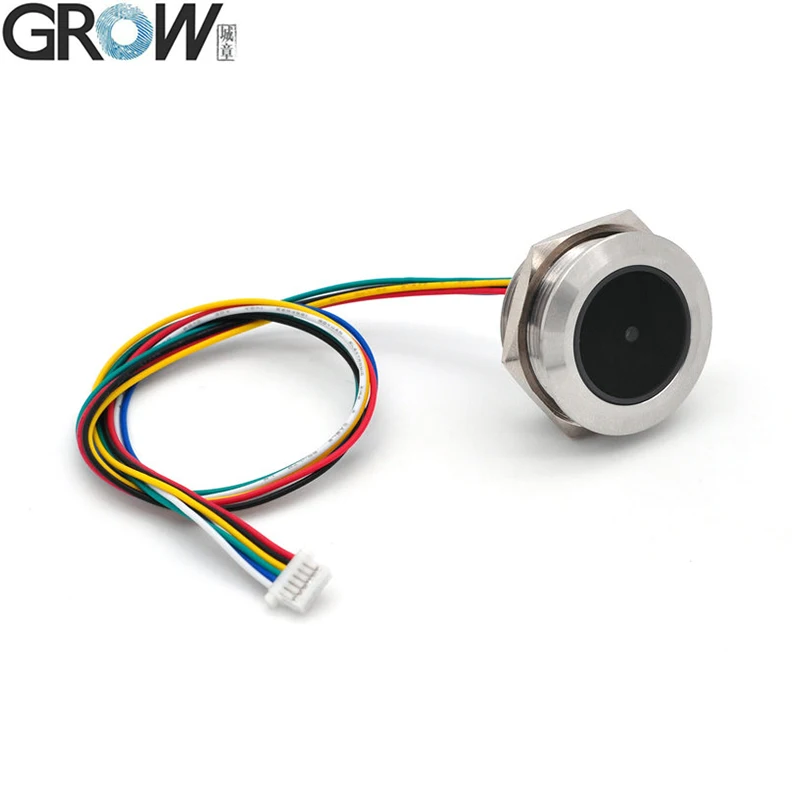

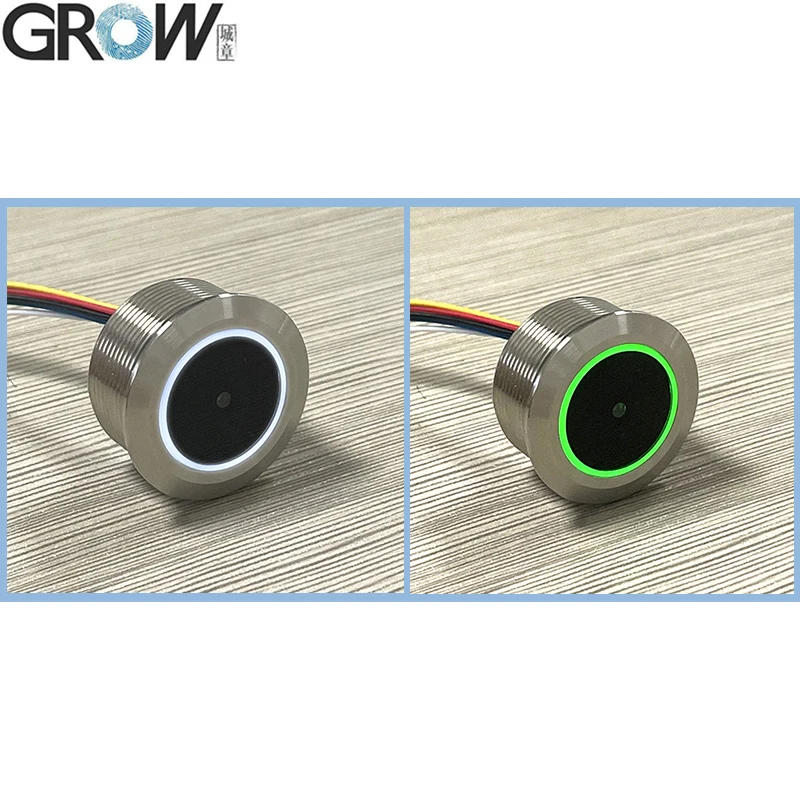

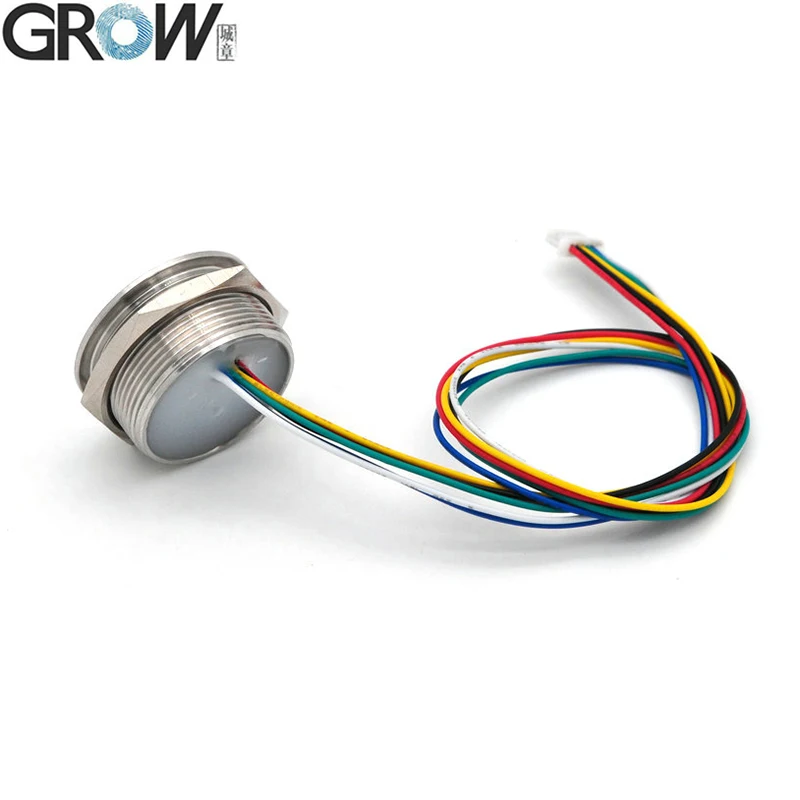

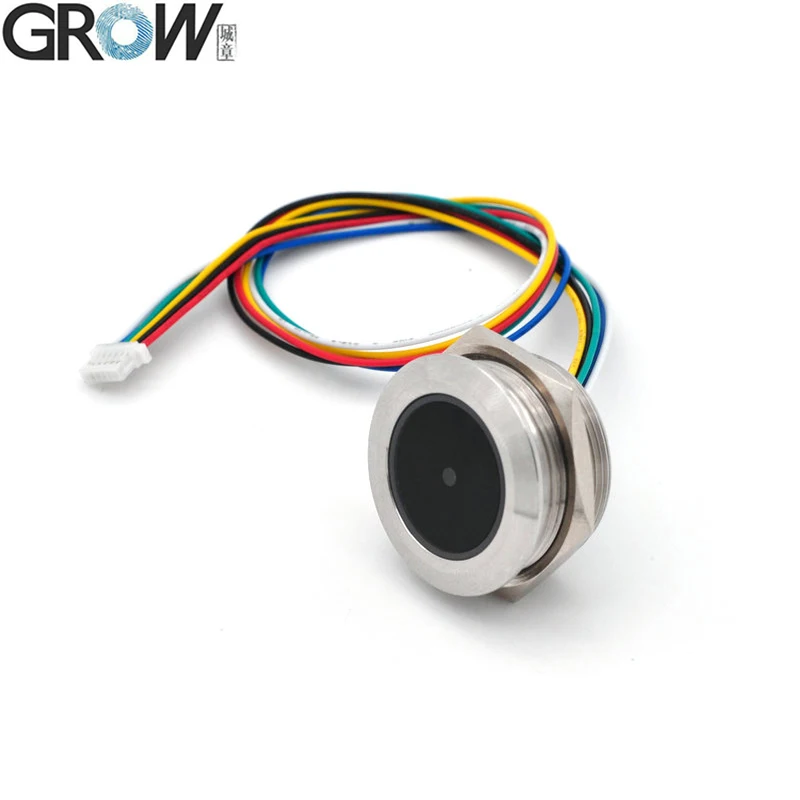

GROW GM861 UART/USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module With Stainless Steel Enclosure White Green LED
Description

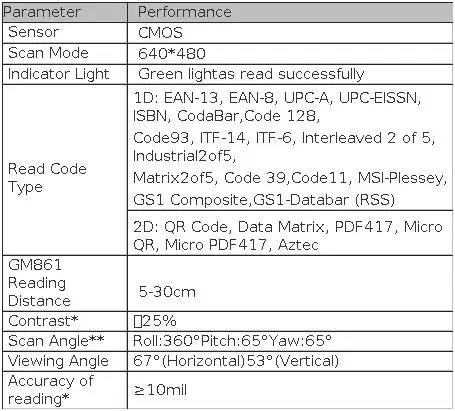

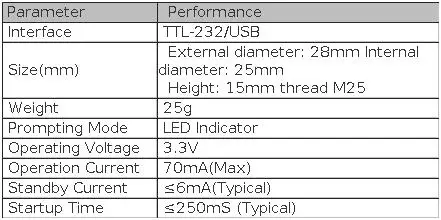

Mechanical/electrical Parameters:
·Provide User Manual
·CE Certificate
You can download the GM861 user manual from this website link:
//www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
GM861 video on Youtube:
//youtu.be/h6O3mDBp5ew

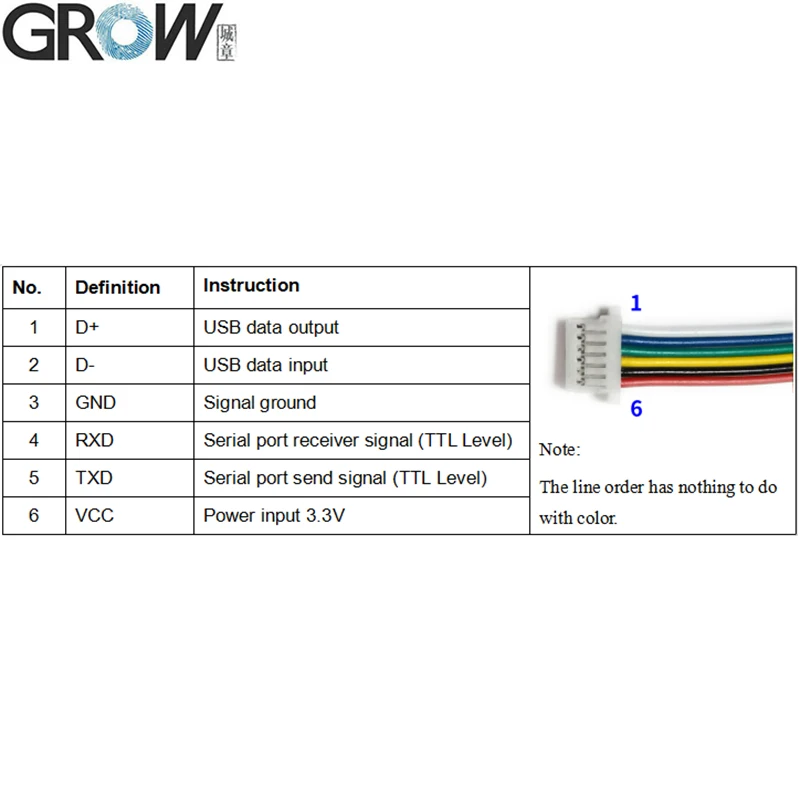

Size&Interface Definition:

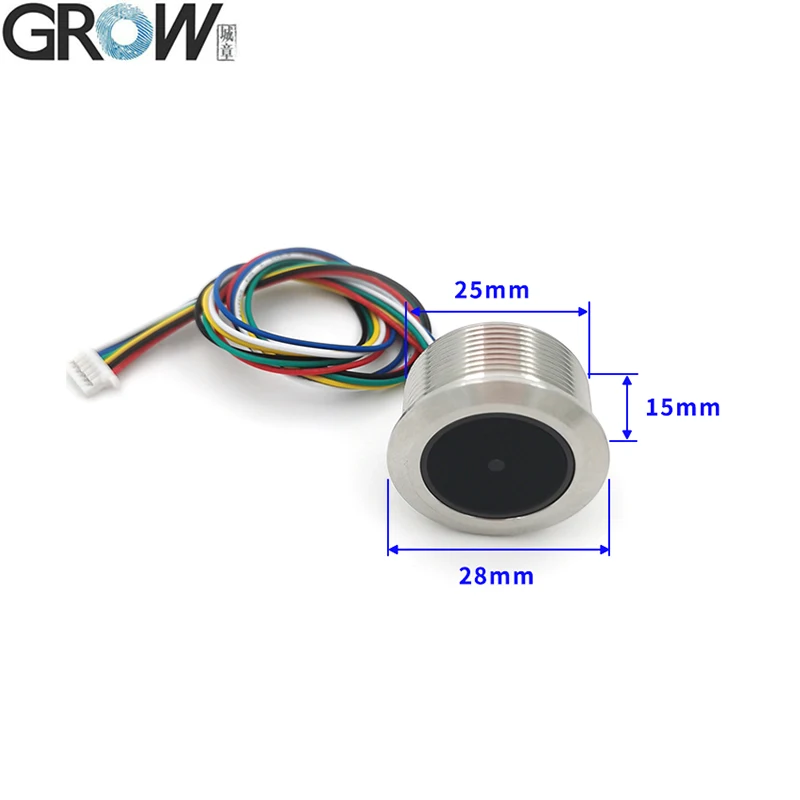

External diameter: 28mm, Internal diameter: 25mm, Height: 15mm, Thread M25
Customer Reviews
2 reviews for GROW GM861 UART/USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module With Stainless Steel Enclosure White Green LED
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
D***u –

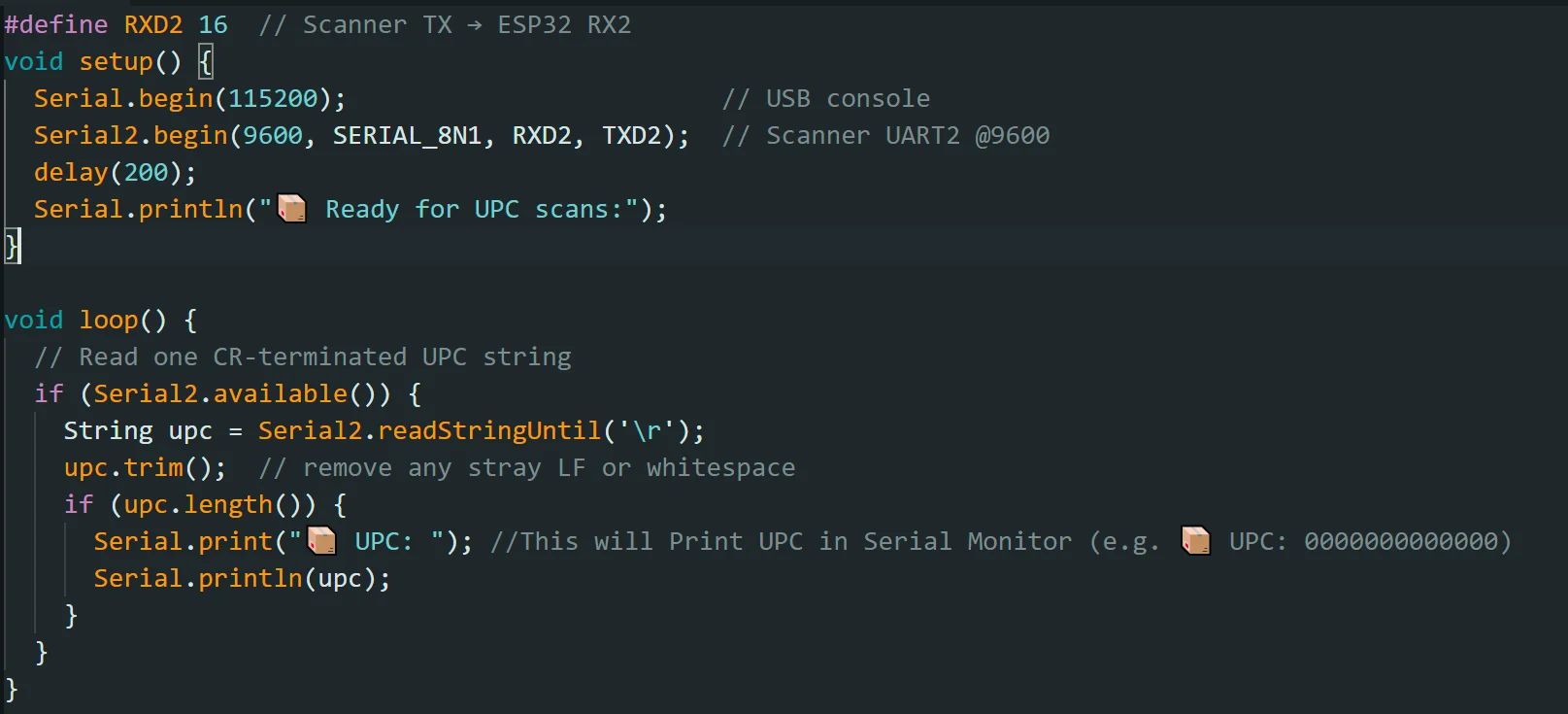

Works perfectly with esp32 over uart. Since we are reading the data from a scanner, we only need to use gnd, vin(3.3v), and tx wires. I was doing multiple things to set this up, and none were working. Simple scan reset qr code from the user manual given in section 1.8, and then scan serial output qr code in section 2.1, baud 9600. This will work like a charm.
Just connect the scanner tx pin to esp32 pin 16(or any pin you decide to make rx), vin to 3.3v, and gnd to gnd and voila…
Shopper –
Delivery was OK. The quality of the sensor is excellent. It worked immediately. 👍🏻
