GROW GM812 Series 1D/2D QR Barcode Scanner Reader DC5V USB/UART Interface For Arduino Windows PDF417 Qr Bar Code Module

GM812 series have GM812-S and GM812-L model.
The only difference between GM812-S and GM812-L is the lens.

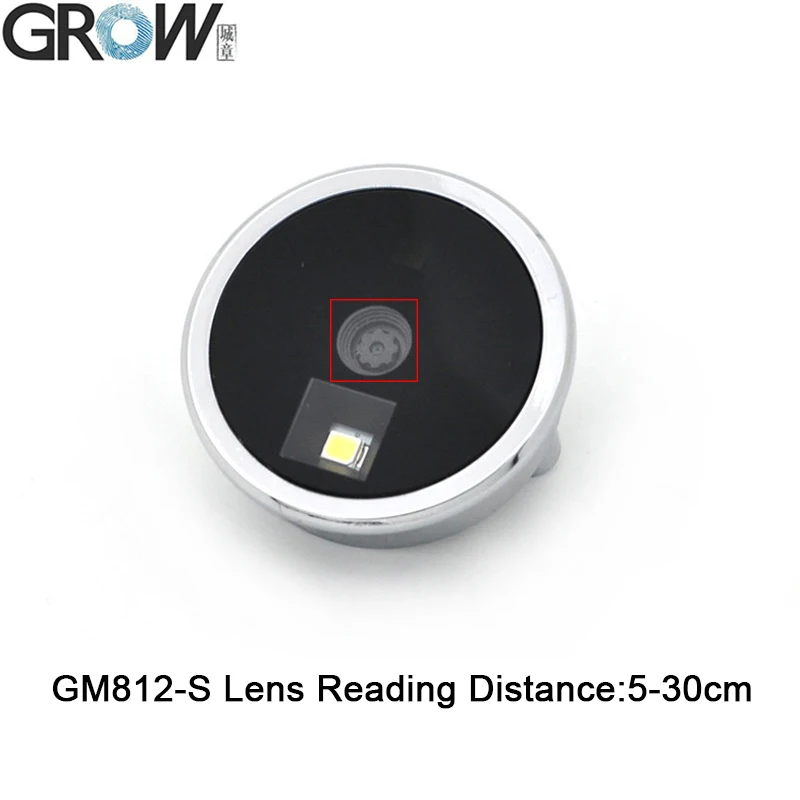

GM812-S lens reading distance is 5-30cm.

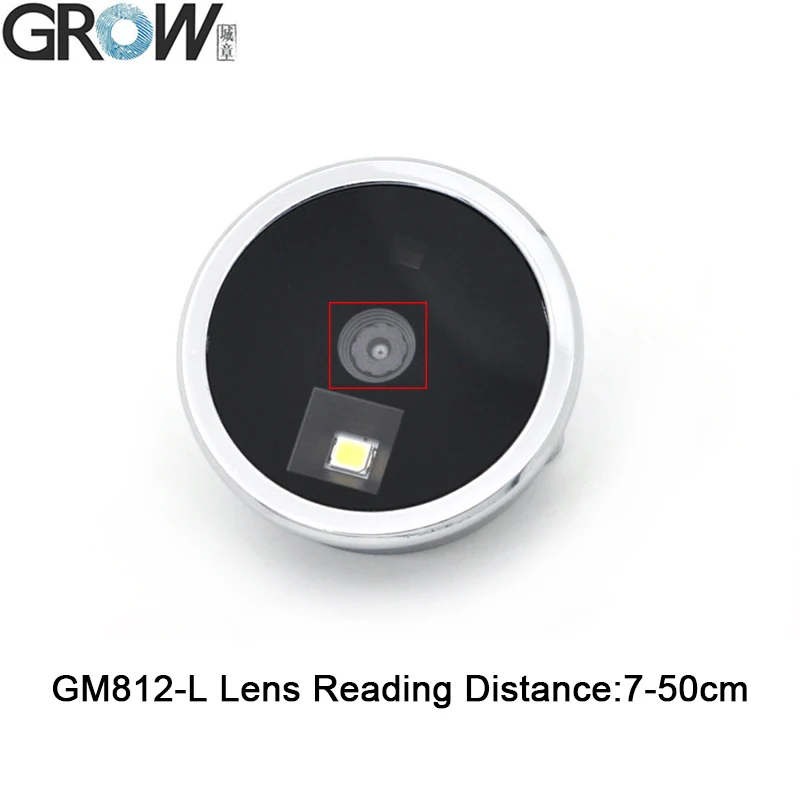

GM812-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)
GM812 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.
GM812 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

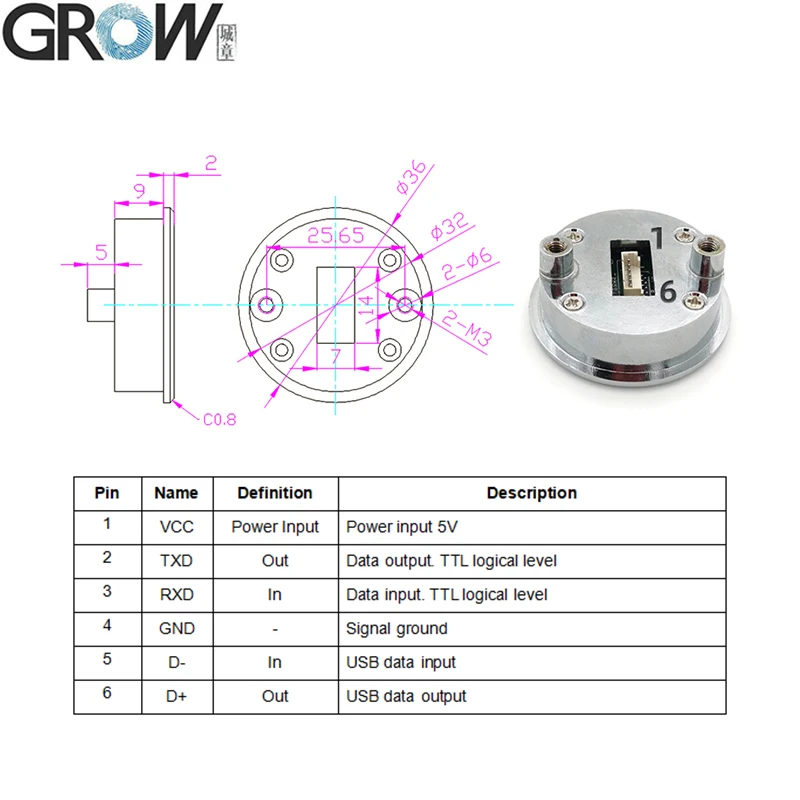

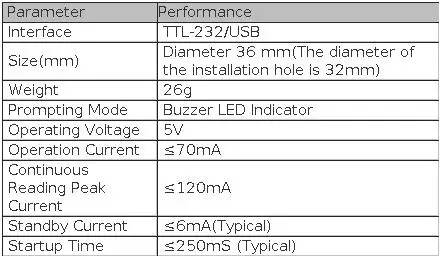

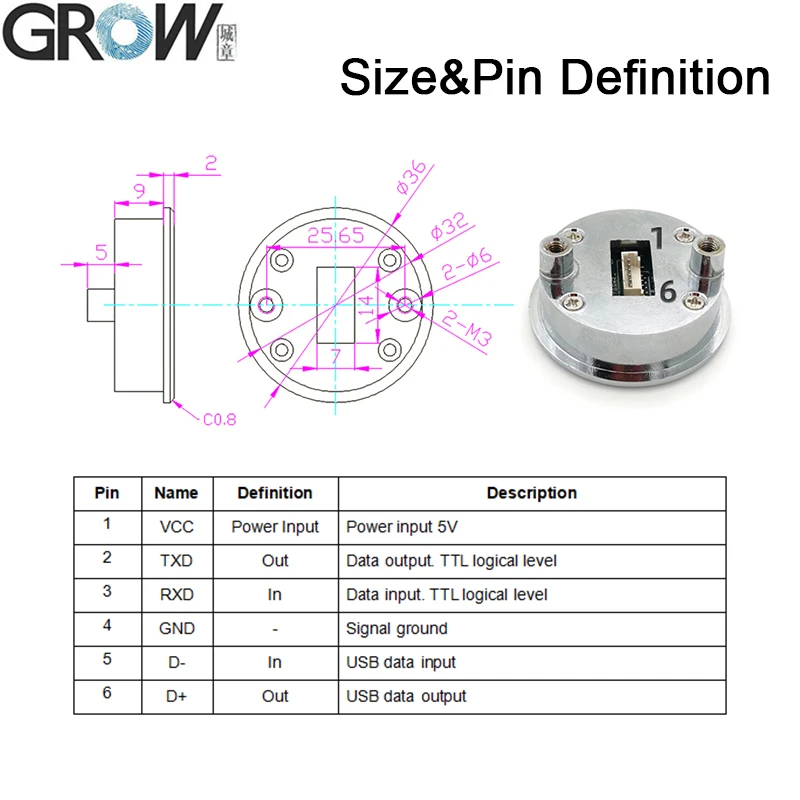

Mechanical/electrical Parameters:

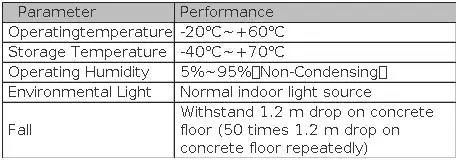

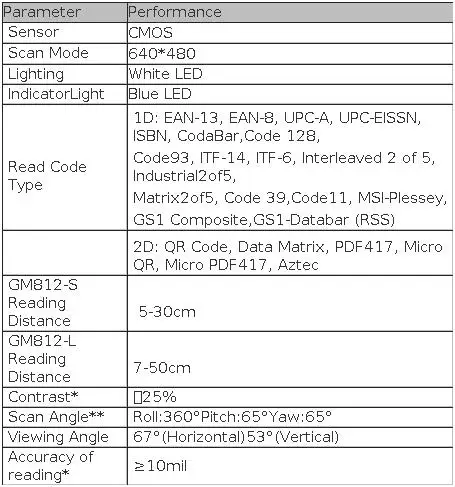

Environmental Parameters:
·Provide User Manual
You can download the GM812 Series user manual from this website link:
//www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
GM812 Operation Video on Youtube:
//youtu.be/NvV9cFb6p-A
