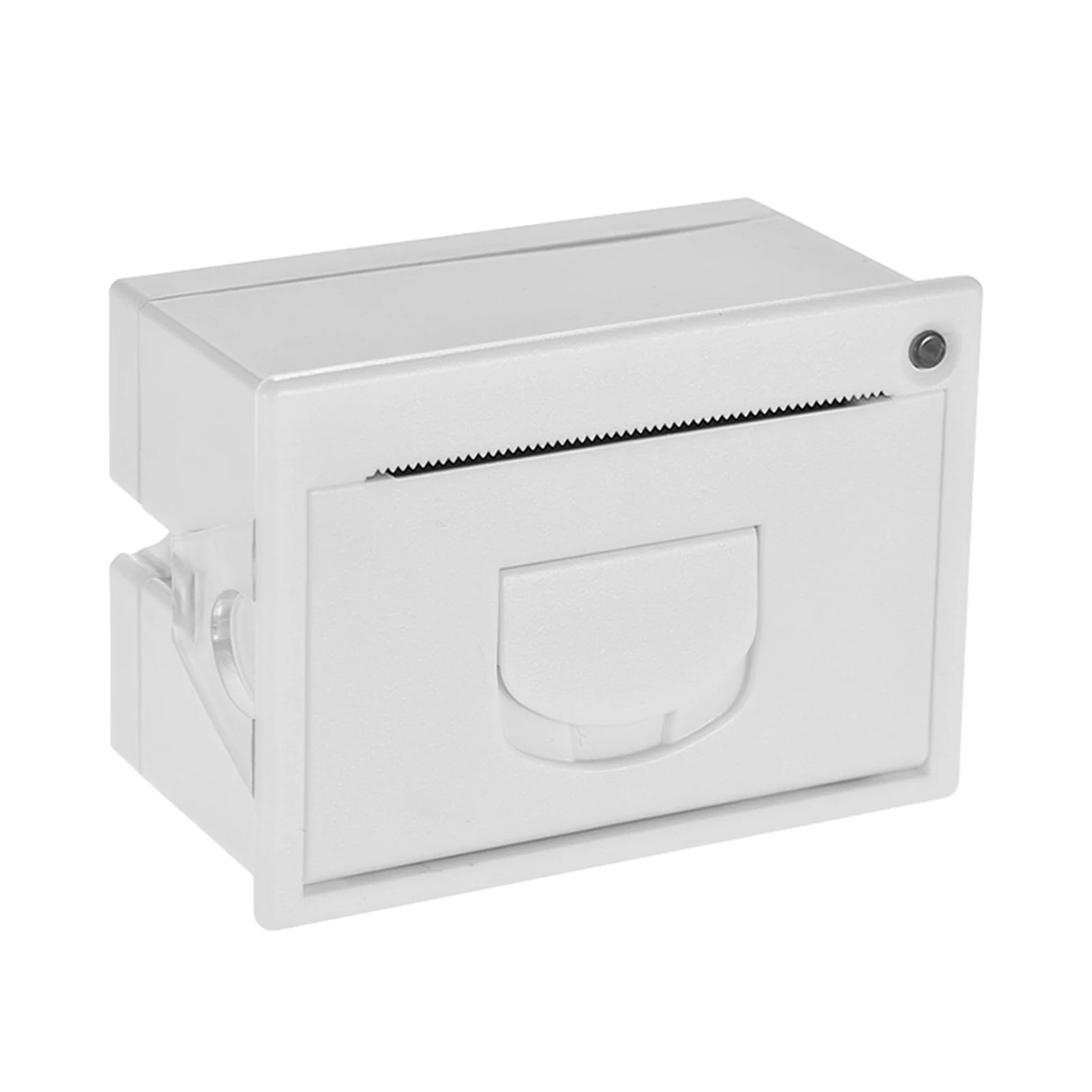

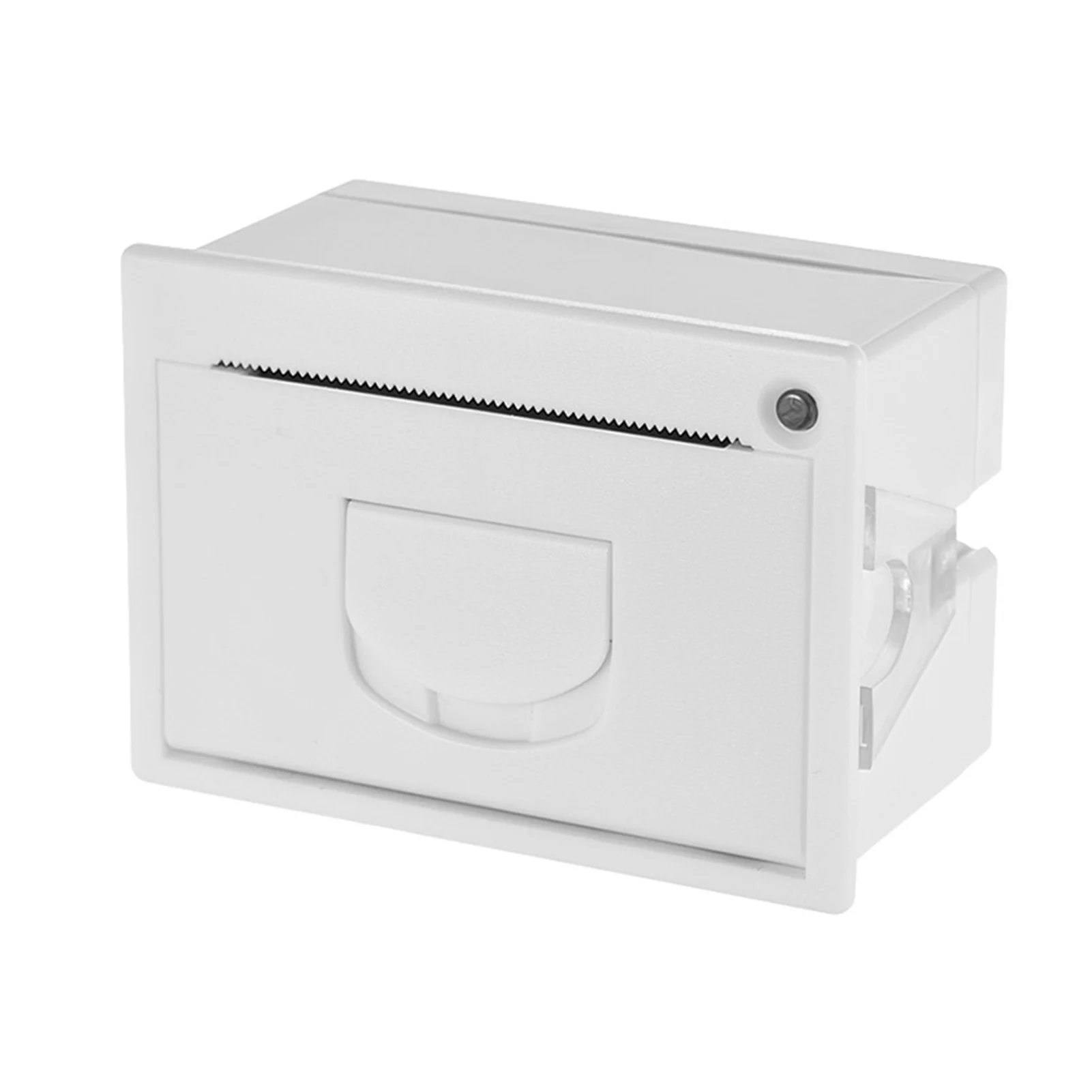

GOOJPRT QR204 58mm Mini Embedded Receipt Thermal Bill Built-in Printer TTL RS232 USB Interface High Speed Printing 50-85mm/s
Description
Features:
Decent mini body, practical and portable.
Replace the paper from the front panel, convenient for operation.
Low noise thermal printing, works quietly and do not bother the others.
Up to 80mm/s printing speed, greatly improves your working efficiency.
No ribbon/ catridge needed, reduce consumption and environment friendly.
Supports ESC/ POS print command.

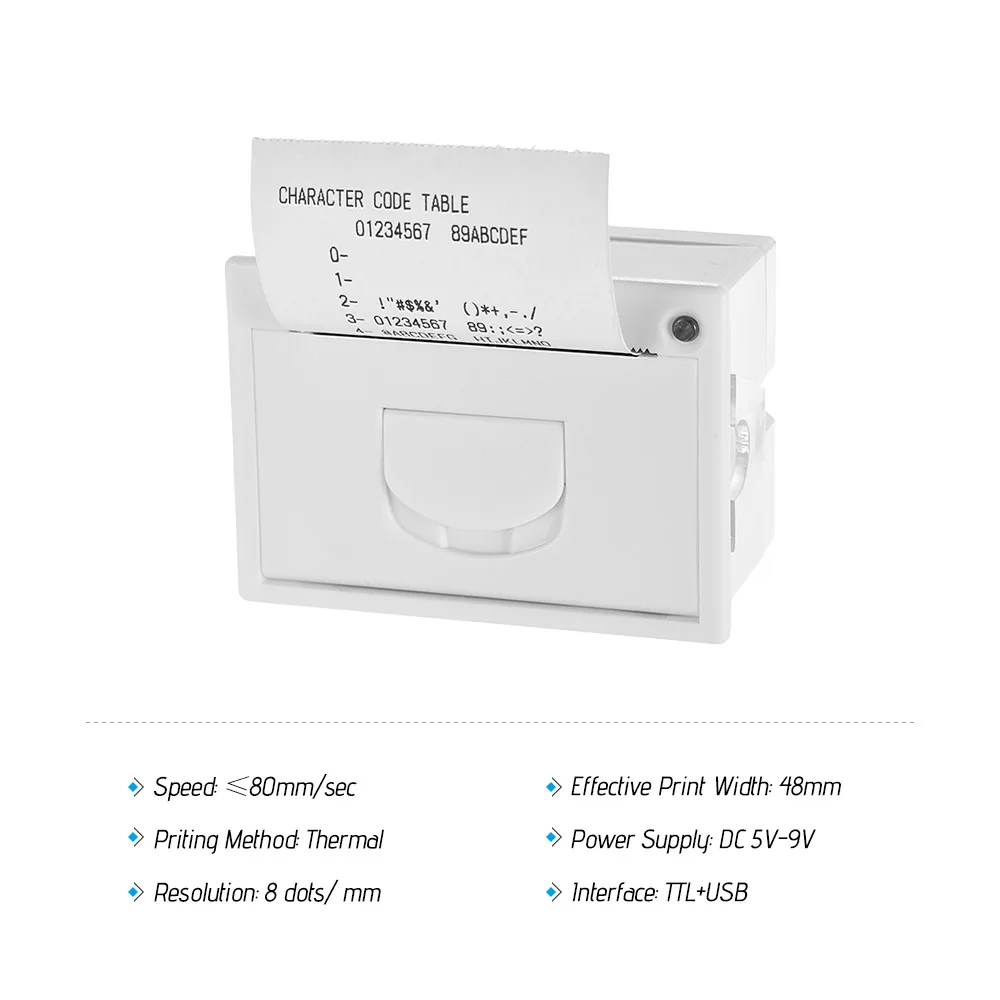

Specifications:
Interface: RS-232+USB/ TTL+USB (Optional)
Printing Method: Thermal
Resolution: 8 dots/ mm, 384 dots/ line
Effective Print Width: 48mm
Character Set: ASCII, GB2312-80 ( Chinese )
Print Fonts: ANK: 5 * 7, Chinese: 12 * 24, 24 * 24
Paper Type: Thermal paper
Paper Width: 57.5 +/- 0.5mm
Roll Diameter: 30mm (max.)
Reliability: Mean Cycle Between Failure (MCBF) 500 million lines
Embed Depth: 43mm
Power Supply (Adapter): DC 5V-9V
Operating Temperature: 5℃-50℃
Humidity: 10%-80%
Storage Temperature: -20℃-60℃
Storage Humidity: 10%-90%
Compatible System: Windows, IOS, Linux, Android
Item Size: 8 * 5.7 * 4.3cm/ 3.1 * 2.2 * 1.7in

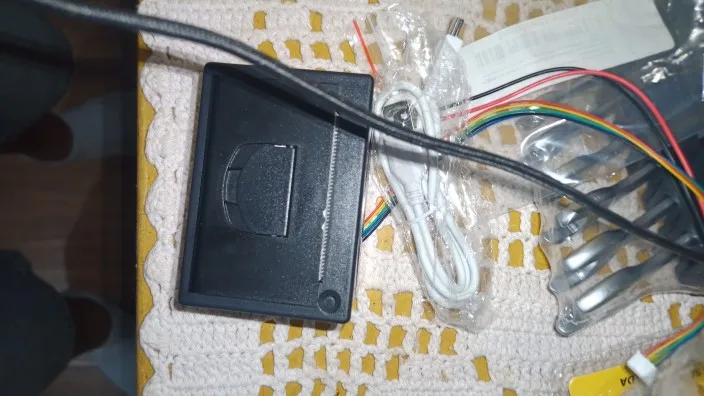

Package List:
1 * Printer
1 * USB Cable
1 * Wiring Harness
Customer Reviews
11 reviews for GOOJPRT QR204 58mm Mini Embedded Receipt Thermal Bill Built-in Printer TTL RS232 USB Interface High Speed Printing 50-85mm/s
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Appliances
Bedding
Christmas Decorations
Decor
Health & Medical Equipment
Lighting
Smart Home
Storage
Textiles
g***. –
Ready to use. Use adafruit library to connect with arduino. All wires included. External dc adapter 9v 2a required to supply enough power. 4 paper rolls included.
Б***ч –

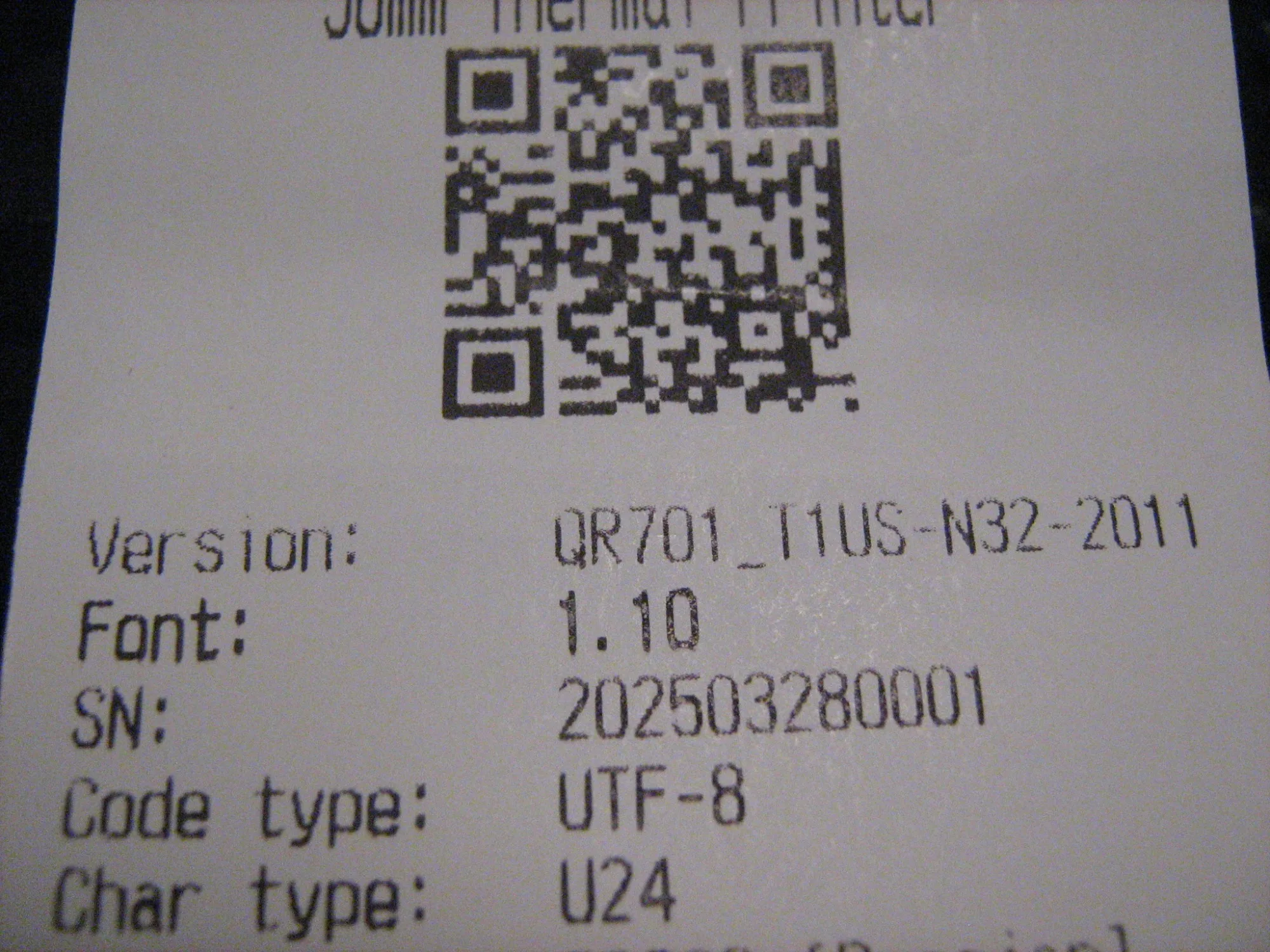

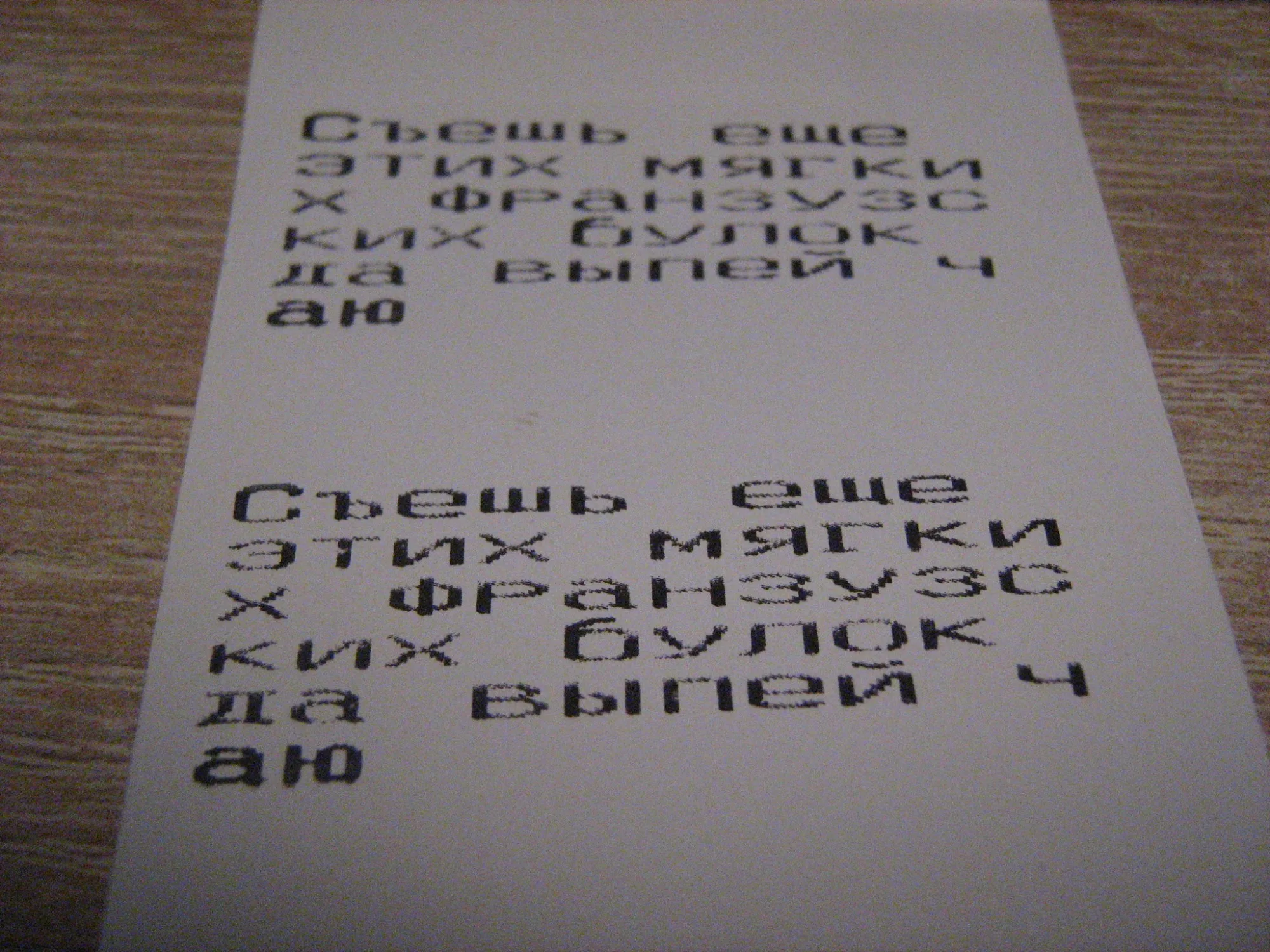

Overall, the printer is working, but it was printed unstable from the box; there were spaces and stripes periodically. I disassembled and sharpened it with an invoice in the head housing on both sides, into which a pressure drum is inserted when the lid is closed. Now it prints much better. I also asked the seller for a program for configuration and connected the Cyrillic to UTF-8, so printing Russian letters with graphics is not required.
T***l –
Super
T***A –
high-quality product
Shopper –
Works perfectly under ttl to usb adapter and python 3.12, unfortunately couldn’t get it working under the usb cable provided
B***d –
Received this yesterday, works perfectly! Not sure what i’m going to do with it yet.
D***r –
Exactly as expected, appears to be solidly made.
K***r –
The zip provided by the seller containing the drivers and documentation (not available in English) is detected as containing a virus.
Shopper –
Surprisingly fast delivery. Great quality.
p***s –
Great little printer. Works well with the Adafruit Thermal Printer Arduino library. The Adafruit library doesn’t utilize the QR204’s embedded QR code functions though you can send the commands manually over a serial connection. Recommended.
s***r –
Second one of these i’ve bought, easy to use and setup with arduino.
