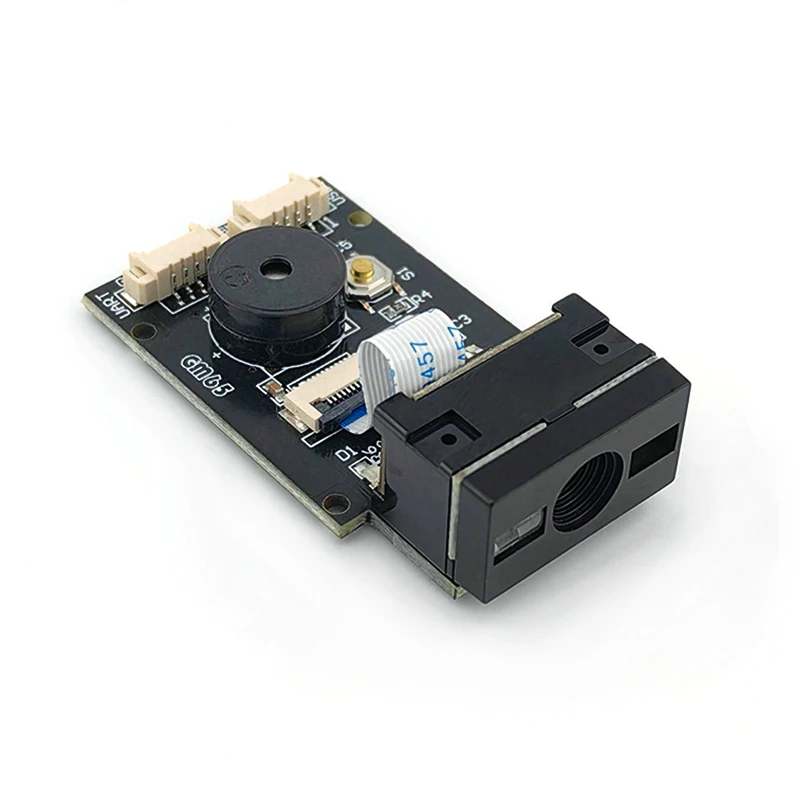

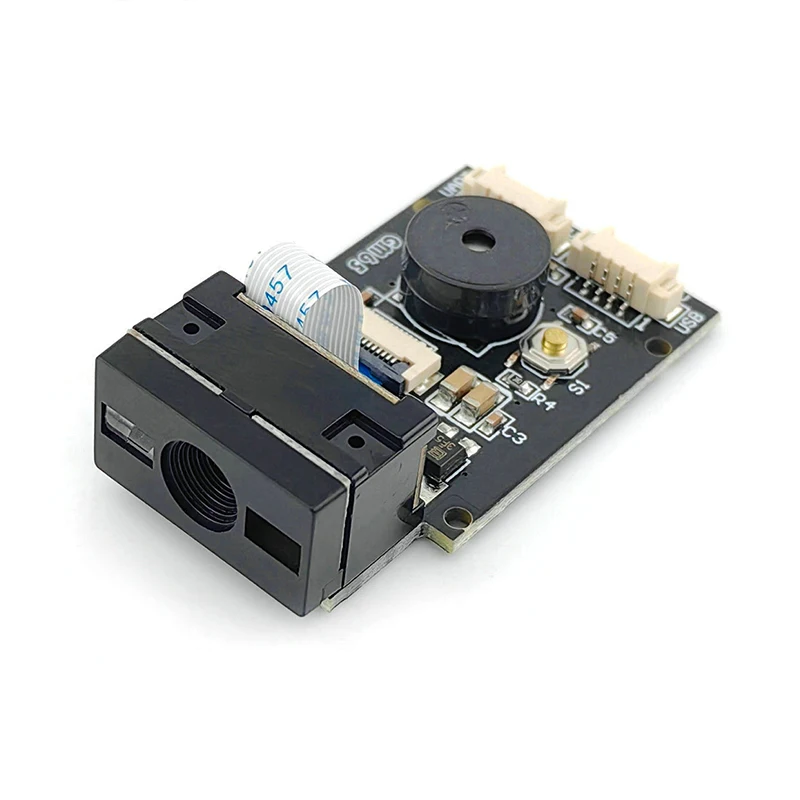

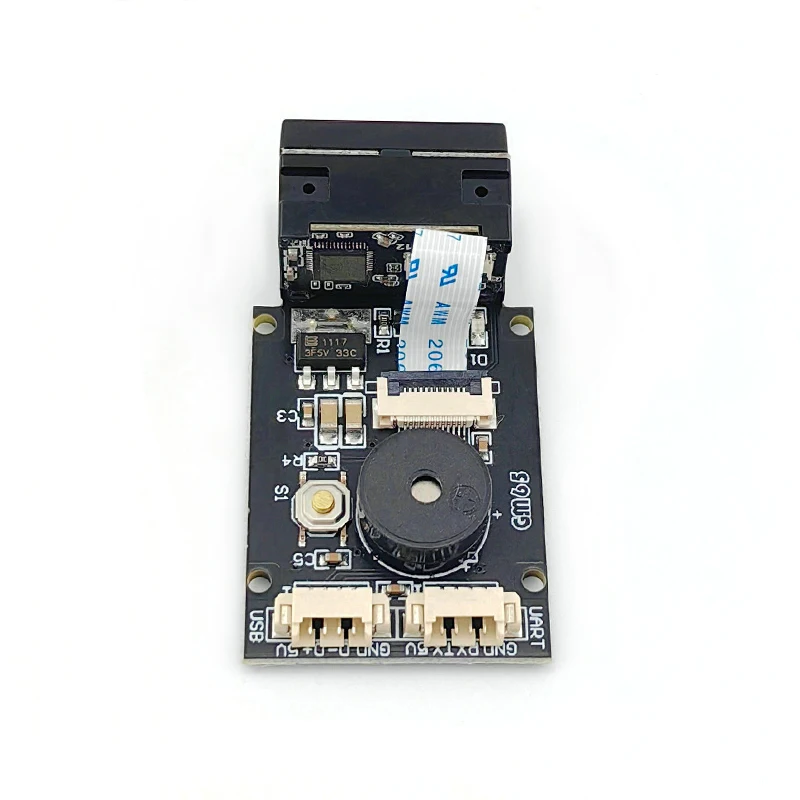

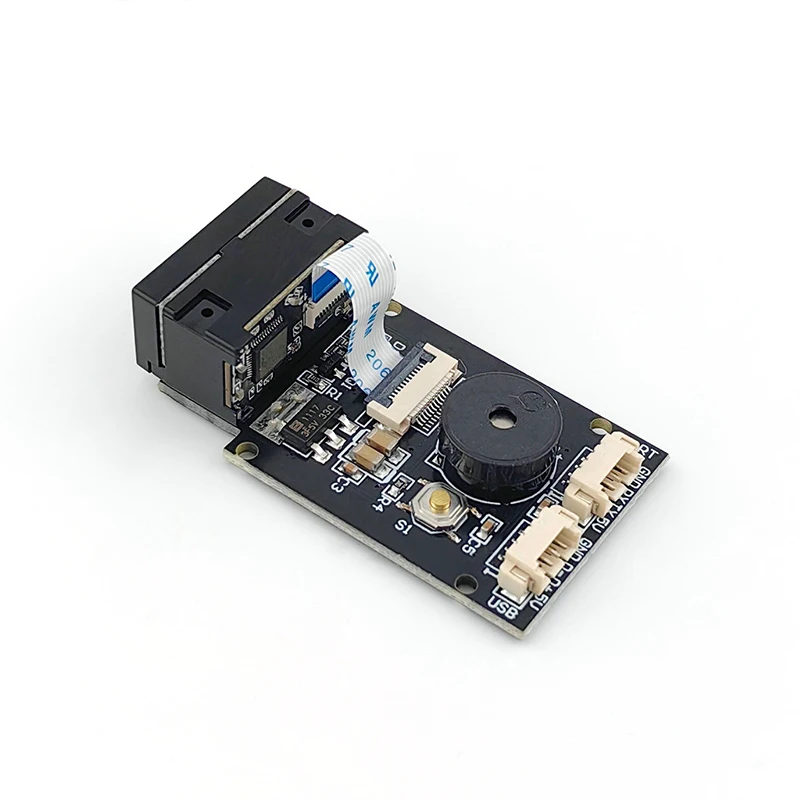

GM65 1D 2D Barcode Scanner USB UART PDF417 Bar Code Reader QR Code Module CMOS With Cable For Bus Supermarket Hospital

GM65 Features:
​1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
​2. High-efficiency recognization and high upload speed for improving your working efficiency.
​3. With buzzer for reminding you that the scanning successfully or not.
​4. Compatible with USB and UART interface.
5. Over 180 configurable options
​6. Macro support replace a string in the bar code with another
​7. Programmable preamble postamble and termination strings
​8. Superior reading performance utilizing advanced decoding algorithms

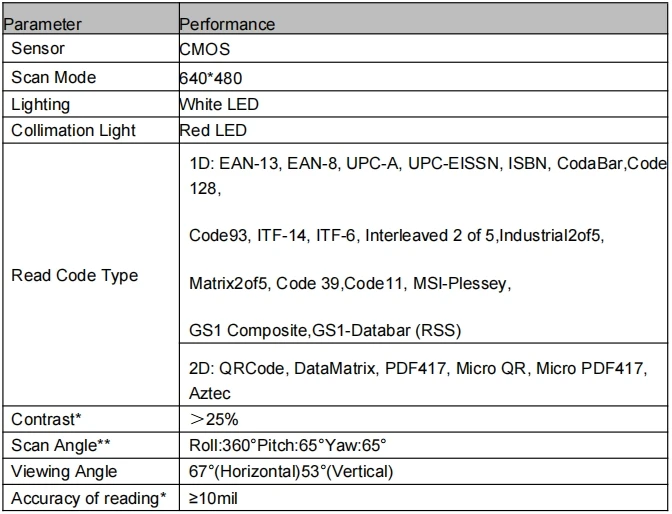

GM65 Parameters:

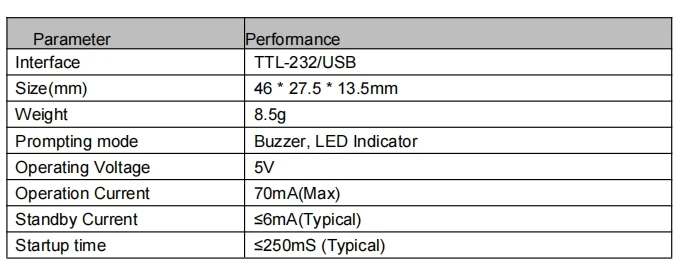

Mechanical/electrical Parameters:

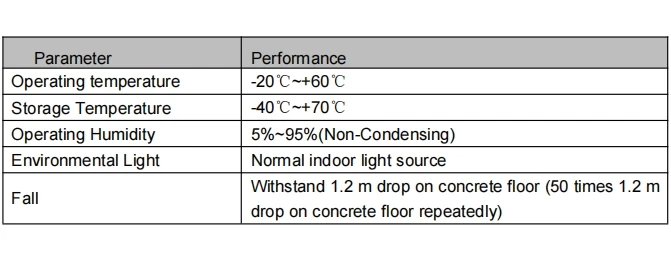

Environmental Parameters:
You can dowload GM65 user manual from the following website:
//www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
GM65 Operation Video on Youtube:
//youtu.be/8S2HvjtlIe4
Scan Head Size:

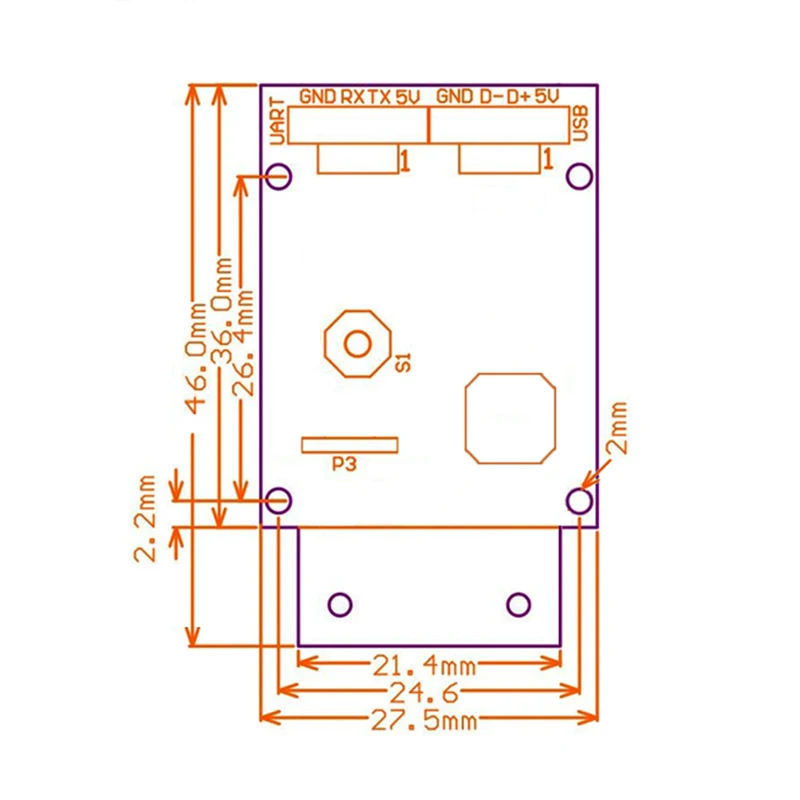

Control Panel Size:

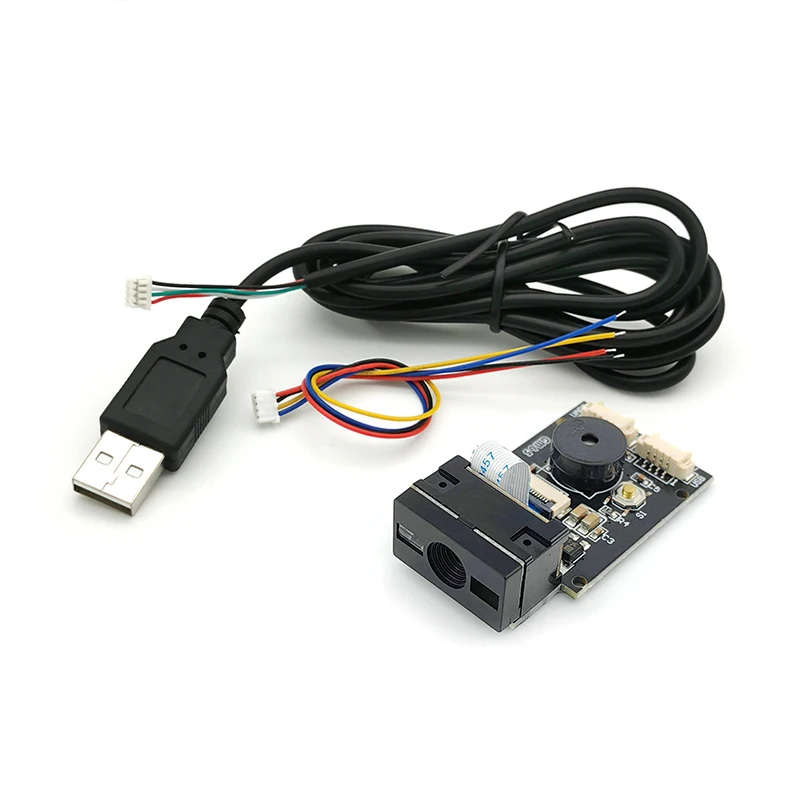

For shipment list, please see the following photo:
