eWeLink WiFi Smart Curtain Blind Switch for Roller Shutter Electric Cutain motor motorized blinds Voice Control by Alexa

Use For
Electric Curtain
Electric Blinds
Electric Roller Shutter
Electric Garage Door
Electric Shutter Door

You can remote control your curtain by Mobile Phone APP or Alexa Google Home.
Also the WIFI curtain switch can percentage open/close the curtain(0%-100%).

Note
1.Before you place a order,please check that your curtain/shutter have limit switch.The curtain switch need to work with curtain/shutter have limit switch.

2.To use the percentage open close the curtain, you need to make the switch record the time for open and close the curtain.The step in the middle of the page.

3.It don’t recommend to connect to other device(except curtain,shutter,blinds),if you need to connect to other device,it will be better you could ask the seller.
Size:
EU Standard: 86*86*32mm
(EU Standard also Suitable for UK Standard)
US Standard:120*72*32mm
Percentage Adjustment the Curtain by APP(0-100%)
You can adjust the height of the curtain by APP.The range can be 0-100%.
You also can percentage adjust the height of electric curtain,garage door and shutter door
Spain Warehouse
Spain Warehouse can send parcel to :Spain, Portugal , France , Germany , Italy , Austria , Czech Republic, Denmark , Luxembourg , Netherlands , Belgium , Hungary , Poland , Slovakia , Slovenia.

Feature:
Percentage Open/Close curtain(0%-100%)
Touch Button: Pause/Open/Close
App Control:Pause/Open/Close
APP Name: eWeLink
Voice Control :Works with Amazon Alexa,Google Assistant
Time Schedule
Share Control
Smart Scene
WIFI Protocol:only support 2.4GHz,don’t support 5GHz
Certification:CE,Rohs,FCC
Specification:
Power Supply:95-250V AC
Max Current: 10A/250V
Max power:2200W
Wireless: IEEE 802.11 b/g/n 2.4Ghz
Security: WPA-PSK/WPA2-PSK
Material:ABS+Temp Glass
Size: 86*86*32mm EU Standard
(EU Standard also Suitable for UK Standard)
Size:120*72*32mm US Standard
Function
【Percentage Adjust the Curtain】
You can adjust the curtain by APP.The Percentage range can be 0-100%.
You also can percentage adjust the electric curtain,roller shutter,garage door and shutter door
【Touch Button】
High Sensitity,Once you touch the button,the curtain switch will turn on/off Immediately.

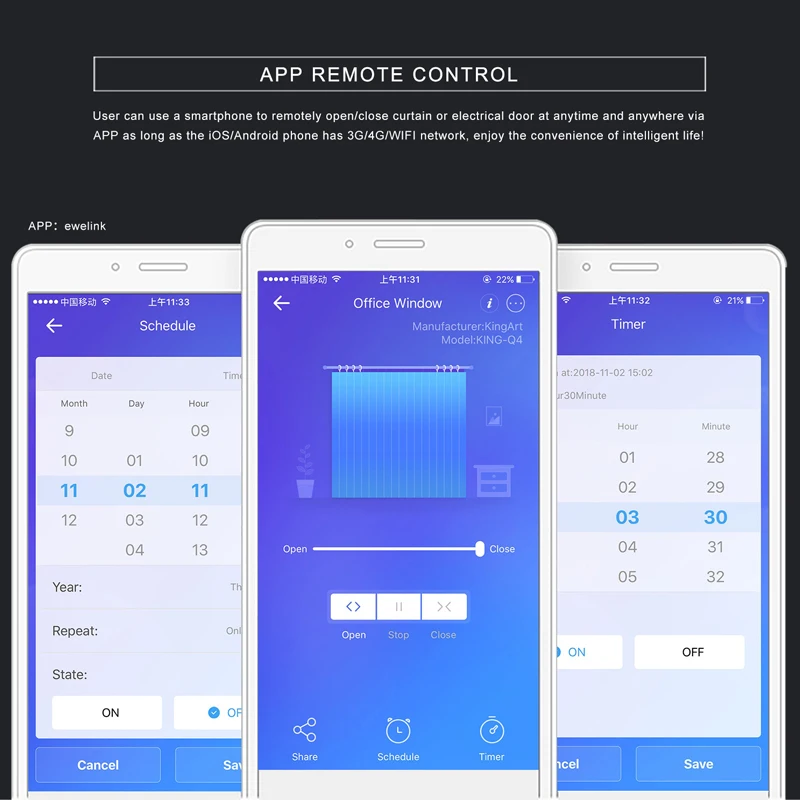

【APP Remote Control】
eWeLink APP can be used to remotely turn on/off the curtain. You can control the curtain in APP anywhere and anytime.
【Mobile Phone Control】
When you go outside or at home ,you can use your smart phone to control the curtain with 4G Mobile Network or WIFI.
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the curtain.
【Share Control】
One device can be controlled by Multiple phones,you can share the device with your family member.
【Group Control】
Set all of your smart switches in a group by Tuya Smart Life app. Then one-click to turn/off all your home appliances by smartphone.
【Timing/Countdown Function】
Create schedules to automatically turn on/off curtain switch.So you can save energy and electric fee.
【Smart Scene】
Creating scene to trigger ON/OFF your home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
How to make the Switch Record the Running Time for Open and Close the Curtain(Must set it for percentage function)
To make the switch work perfectly,please make the Switch Record the Running Time for open and close the curtain, so you could use the percentage function to Open/close shutter by eWeLink APP

A.Record the Running Time for open the curtain:
1.Firstly make sure that you closed the shutter fully, press the ”PAUSE” button for 5 seconds until the indicator blinking,then press the “open” button.
2. When the shutter open fully,press the “PAUSE” button.the switch will record the running time.

B.Record the Running Time for close the curtain:
1.Make sure that the shutter was open fully,Press the “PAUSE” button for 5s until the indicator blinking,then press the “close” button.
2.When the shutter closed fully,press the “PAUSE” button .The switch will record the closing time.
NOTE
The running time of the relay(the open button)is 120 seconds,the running time of the relay can’t be change even you make the switch record the running time for open curtain.The running time of the relay still keep 120 seconds.

But the running time of the relay will not affect you use the curtain switch.Because when the the curtain open fully,the limit switch will stop the motor to run.

For example,when you use APP to open the curtain at 50%,and the curtain will stop at 50%,but the relay will continue to run for 120 seconds.

The default running time of the relay (the closing button) is 120 seconds,you can change the running time of the relay after you make the switch record the time for close the curtain.

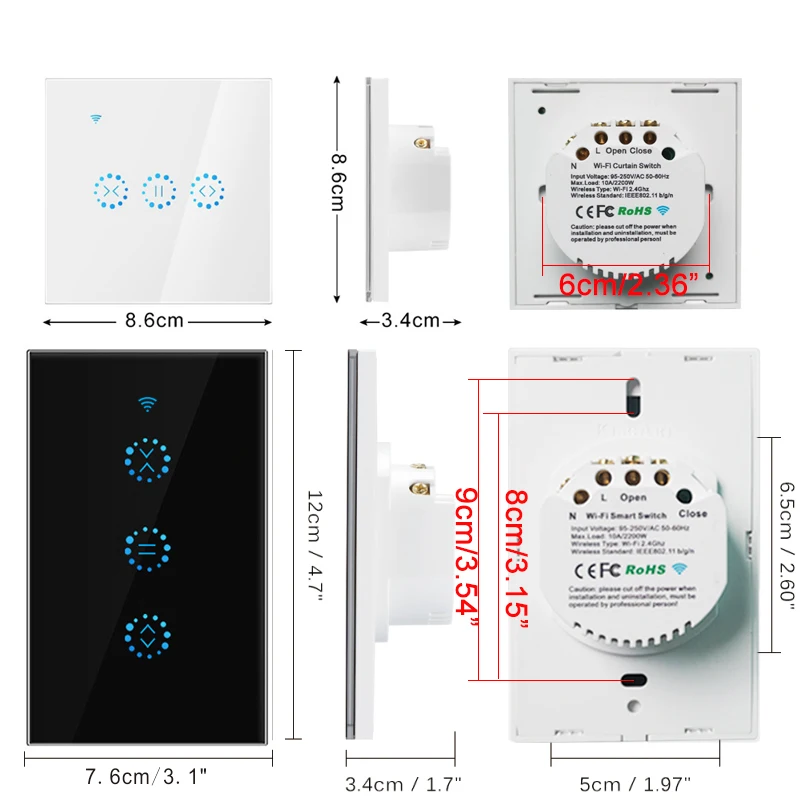

Size

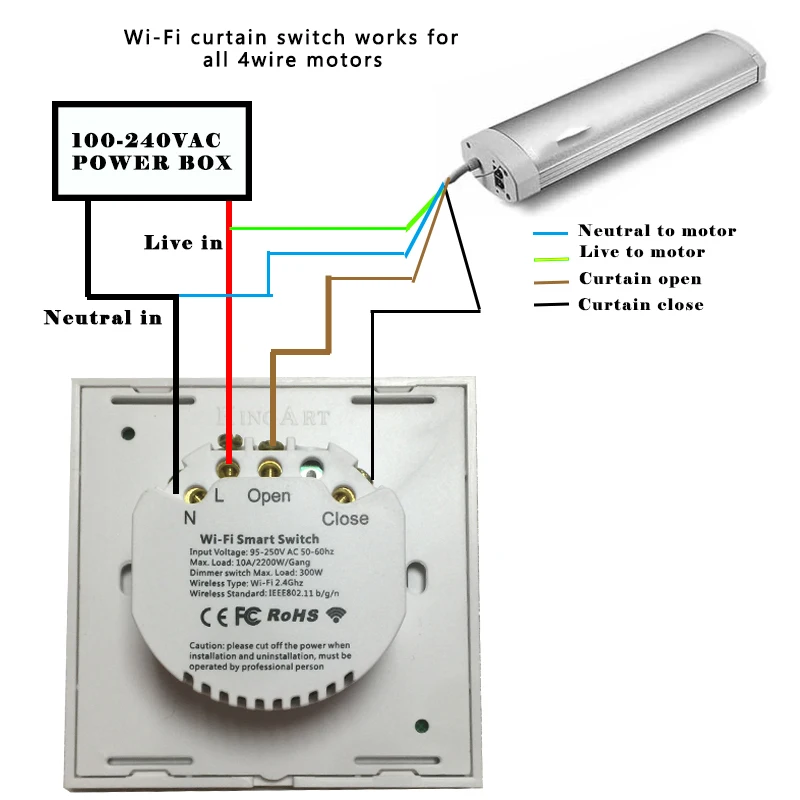

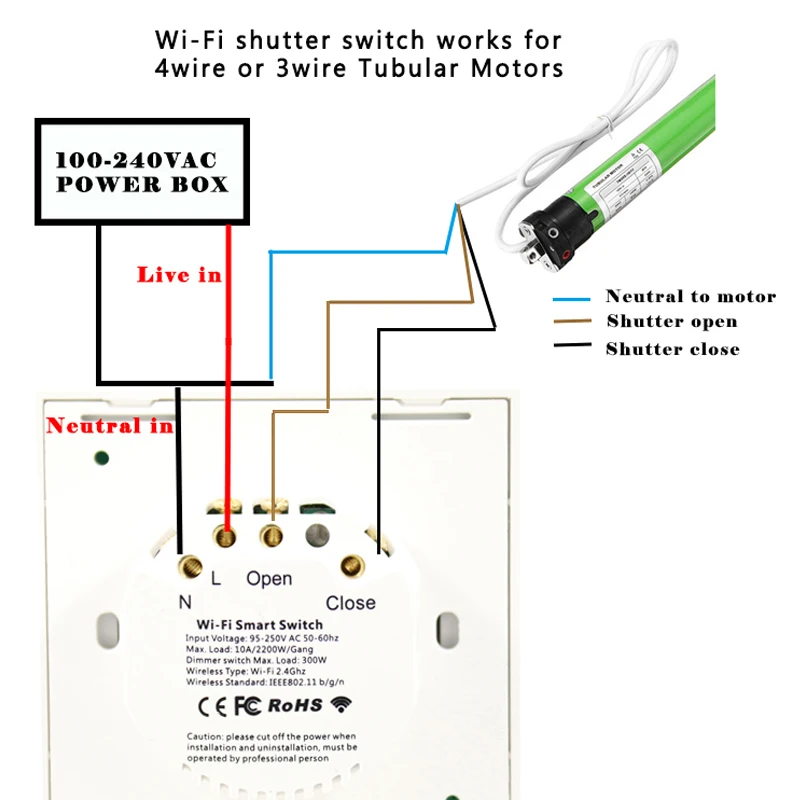

Wiring diagram
Please note at least 3 wires must be required for your motor, Live Wire 1, Live Wire 2 (for OPEN and CLOSE), and Neutral wire , otherwise it can’t work with the motor , The switch can be compatible with any electric shutter motor with 90-250V AC voltage input, 2200W Max. like Somfy, Dooya, A-OK, etc, but the neutral wire must be required for installation.
