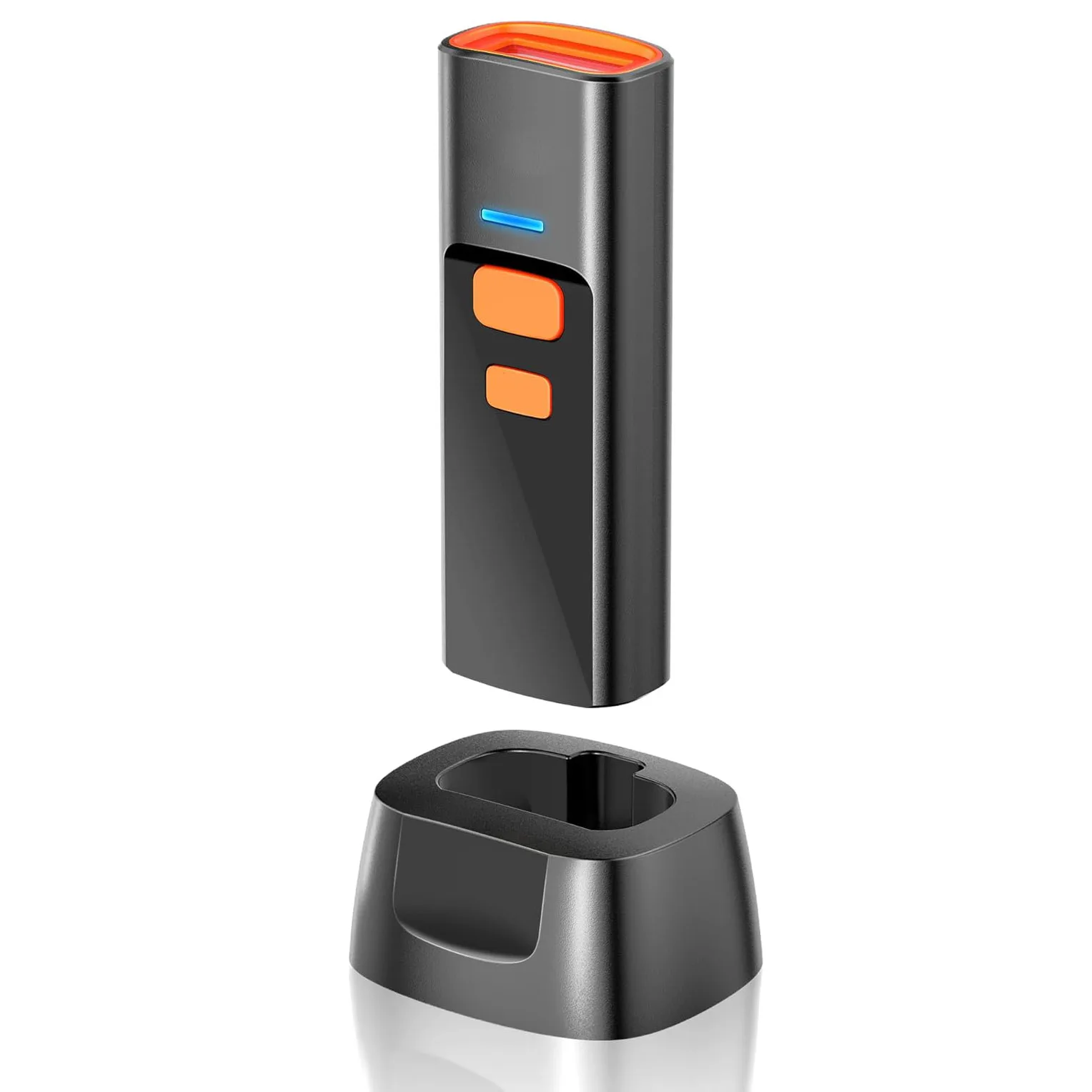

Bluetooth 2D Barcode Reader with Charge Base Support Mobile Phone iPad Wireless Barcode Scanner Mini 1D 2D QR Bar Code Reader

HBAPOS Wireless 2D Mini Barcode Scanner 3-in-1 USB Wired 2.4G Cordless Bluetooth Bar Code Scanner Portable 1D 2D QR Code Reader with charge base
Features
●Don’t need any driver, plug and play.
●Read 1D and 2D code on screen and paper.
●Super battery capacity is up to 1100mAh.
●Charge time is 3 hours and continuous scanning time is 12 hours.

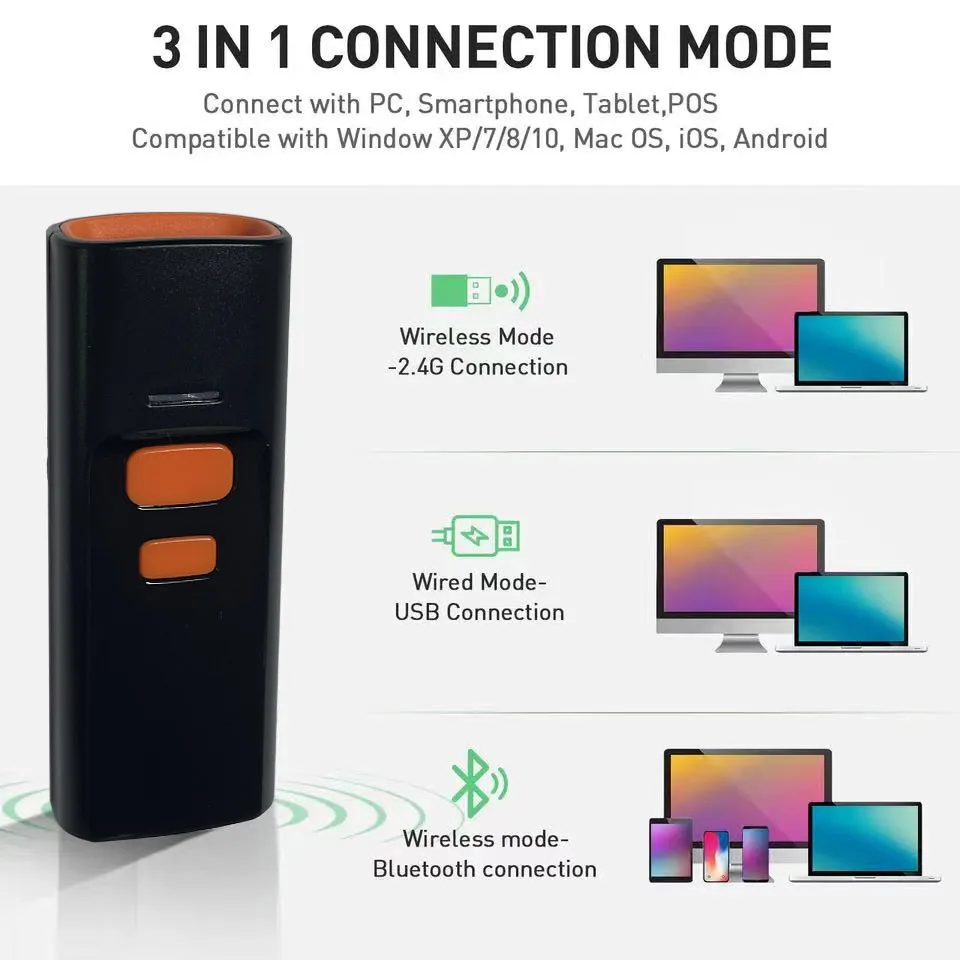

●Communication model: 2.4G, bluetooth and type C cable.
●Communication distance(open air) : 2.4G:50 meters, Blutooth: 30meters.
●Smart body, unique and ergonomic design, comfortable operating sense.

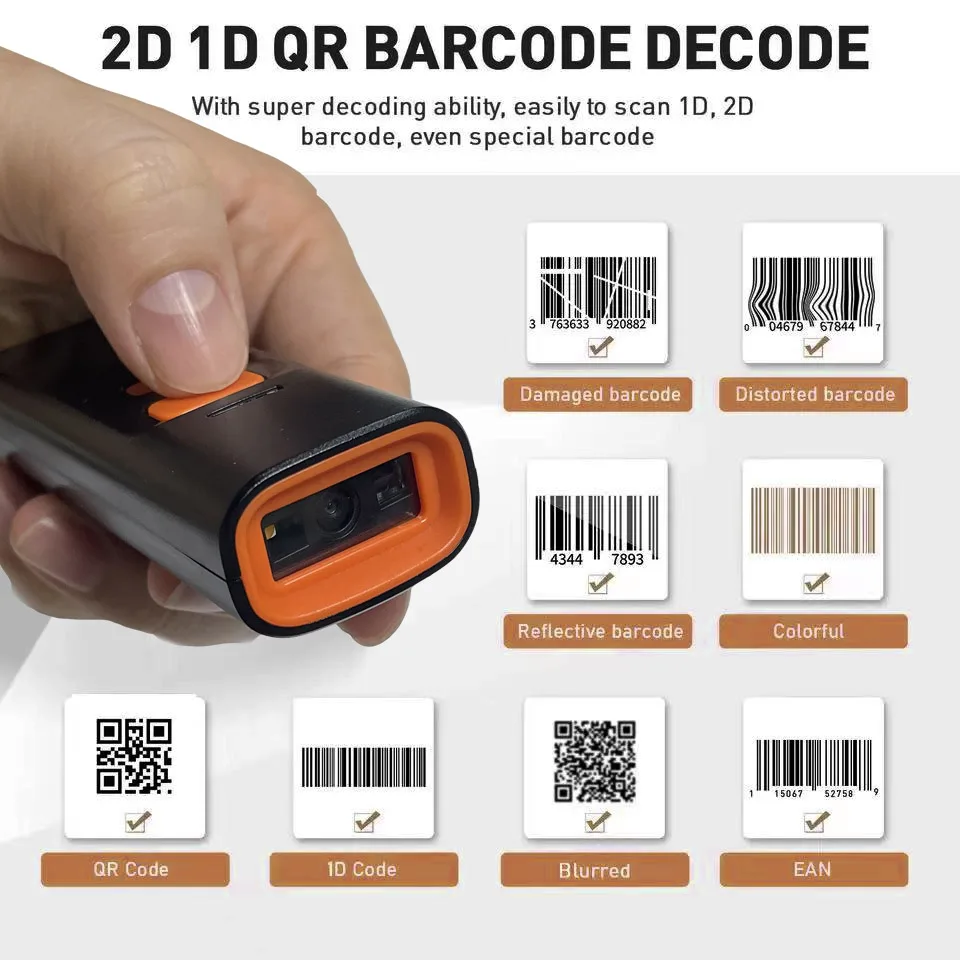

DECODE CAPABILITY
1D：Code 128、EAN-13 、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、ITF-25（Interleaved 2 0f 5）、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA 25、MSI Plessey，etc.
2D: QR Code, Micro QR Code, Data Matrix，PDF417,，etc
OPERATIONAL PARAMETER
Image(Pixels):640 pixels(H)*480 pixels(v)
Scan Mode: Key trigger/ auto sensing/ continuous scanning
Light Source: White LED
Srorage Capacity: 350Kb(over 20,000 product codes)
Depth of Field:
QR (15mil) 10~180mm
Data Matrix(10mil) 10~110mm
PDF 417 (7mil) 25~105mm
UPC/EAN (13mil) 30~290mm
Code 39 (5mil) 30~110mm
Code 128 (13mil) 35~290mm
PDF417 (6.67mil) 15mm~120mm
Scan Angle : Roll: ±360°，Pitch:±50°，Skew: ±50° (Test Conditions：CODE39,10mil/0.25mm,PCS90%)
Field of view:36° (H) x 28° (V)
Read Resolution: More than 5 mil
Print Contrast:: More than 25%
Indicator: Buzzer, LED Lights
Communication model: 2.4G, Bluetooth (HID, SPP, BLE) and USB type C cable.
Communication Distance :2.4G: 80meters (open air) ,Bluetooth: 20meters (open air)
PHYSICAL CHARACTERISTICS
Scanner Dimension H x W x L:Scanner :89.7mm*32mm*20mm(3.5*1.25*0.78inch)
Weight :50g (scanner net weight)
Material:ABS + PC
Cable:Standard 1M straight
POWER PARAMETER
Input Voltage:5V DC±10%
Working current:180mA
ENVIRONMENTAL PARAMETER
Operating Temperature:-20°C to 50°C
Storage Temperature:-40°C to 60°C
Working Humidity :5% to 95% relative humidity, non-condensing
Drop Durability :Designed to withstand 1.5 Meters drop

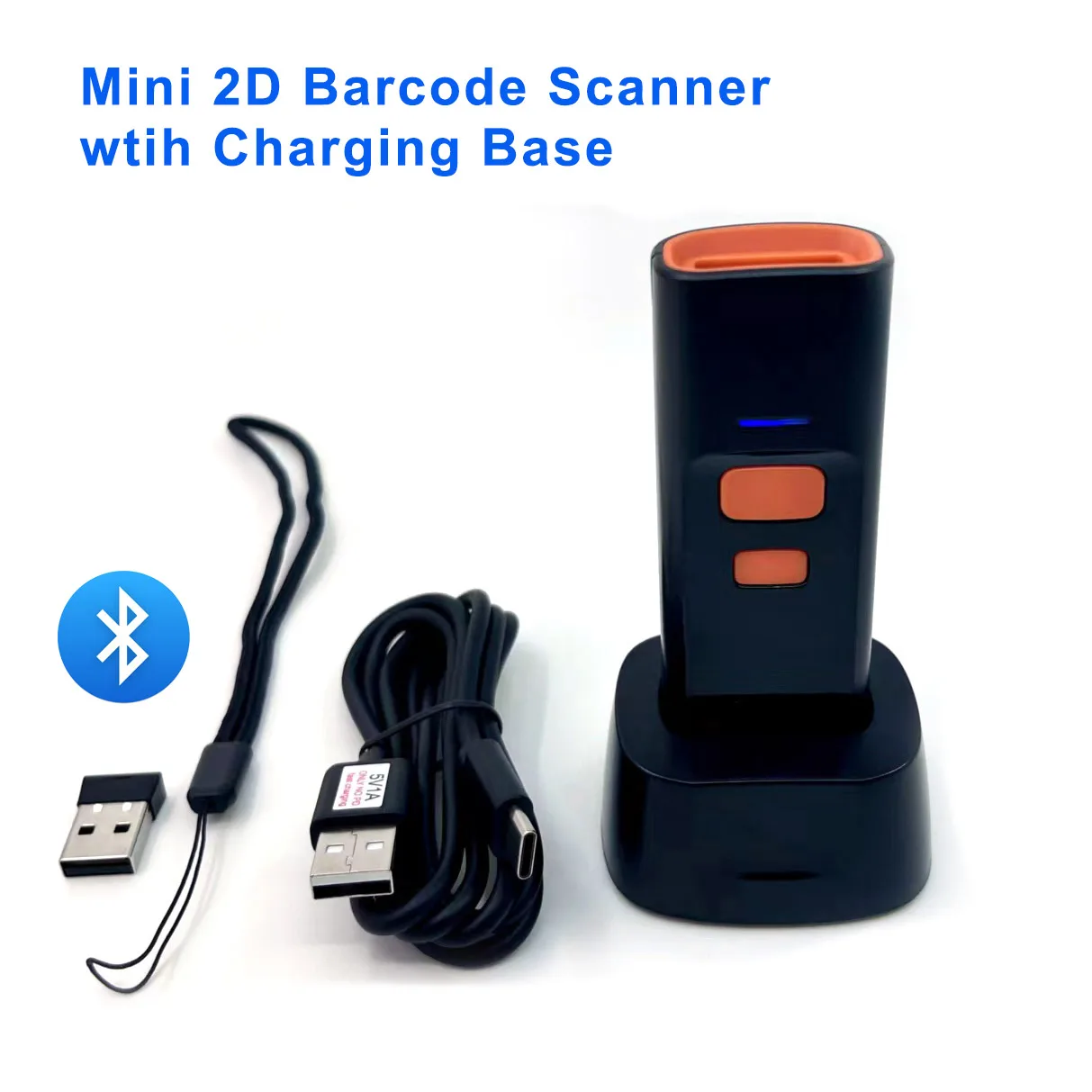

Package included：
1 * barcode scanner，
1 * charge base,
1 * USB cable,
1 * 2.4G dongle
1 * user manual
