4K 8MP 360X Zoom Wireless WIFI IP Camera IVM4200 P2P ONVIF IMX415 SD 256GB IP Camera

4K 8MP IP Camera adopts highly integrated
MSTAR338Q+IMX415 processor, extremely low power consumption and strong
stability; supports H.265 compression algorithm to ensure image quality while
effectively reducing network bandwidth occupation; powerful network function,
support standard Support Hikvision protocol, and compatible with iVMS-4200,
support RTSP, RTMP and other protocols, support alarm picture upload FTP
server, alarm picture to E-Mail, support mobile phone remote monitoring;
High
sensitivity, high signal-to-noise CMOS image sensor
Using the
MSTAR338Q processing chip+ IMX415 CMOS
The
highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)
H.265
compression algorithm, effectively reducing network bandwidth, supporting dual
stream, supporting mobile phone monitoring
Support
humanoid recognition to trigger SD card recording, SD card capture, voice
alarm, message push, email alarm and other functions.
support
fog function, support WDR, HDR. Support strong light suppression function.
Support
humanoid recognition and humanoid alarm
Support multiple
network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP,
DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.
Support
ONVIF protocol,Hikvision protocol
Support
for manufacturer dynamic domain name and third-party dynamic domain name
resolution
Support
alarm picture sending E-Mail
Support
alarm picture upload FTP server
Support
alarm sound outputs
Support
timing capture pictures to FTP server
Support
static IP, also support dynamic IP (DHCP)
Support
P2P plug and play
Support
IE, Google, Firefox browser
Supports
up to 6 users to browse at the same time (3 users per stream)
Provide
motion detection (area, sensitivity can be set) alarm function
Support
UPNP automatic port mapping
Support
Micro SD card function, support up to 256GB Micro SD card
Support
PC client to download SD card video
Support
mobile phone download and playback SD card recording
* This is
a professional camera, please use a computer or NVR connection to use it. Of
course, it also supports mobile APP connection, but the mobile APP can only
realize some simple functions.
*Caution:This
camera is a DIY semi-finished product.Without a casing, all components and
wiring are exposed, and it is easy to cause the camera to malfunction due to
improper operation.Buying a DIY semi-finished camera requires the buyer to have
a certain hands-on ability and basic knowledge of electronic circuits.If you
don’t know anything, please don’t buy it.We provide buyers with a full range of
technical support.Of course buyers don’t need to worry, If a component fails,
we will provide you with a replacement service.And provide long-term technical

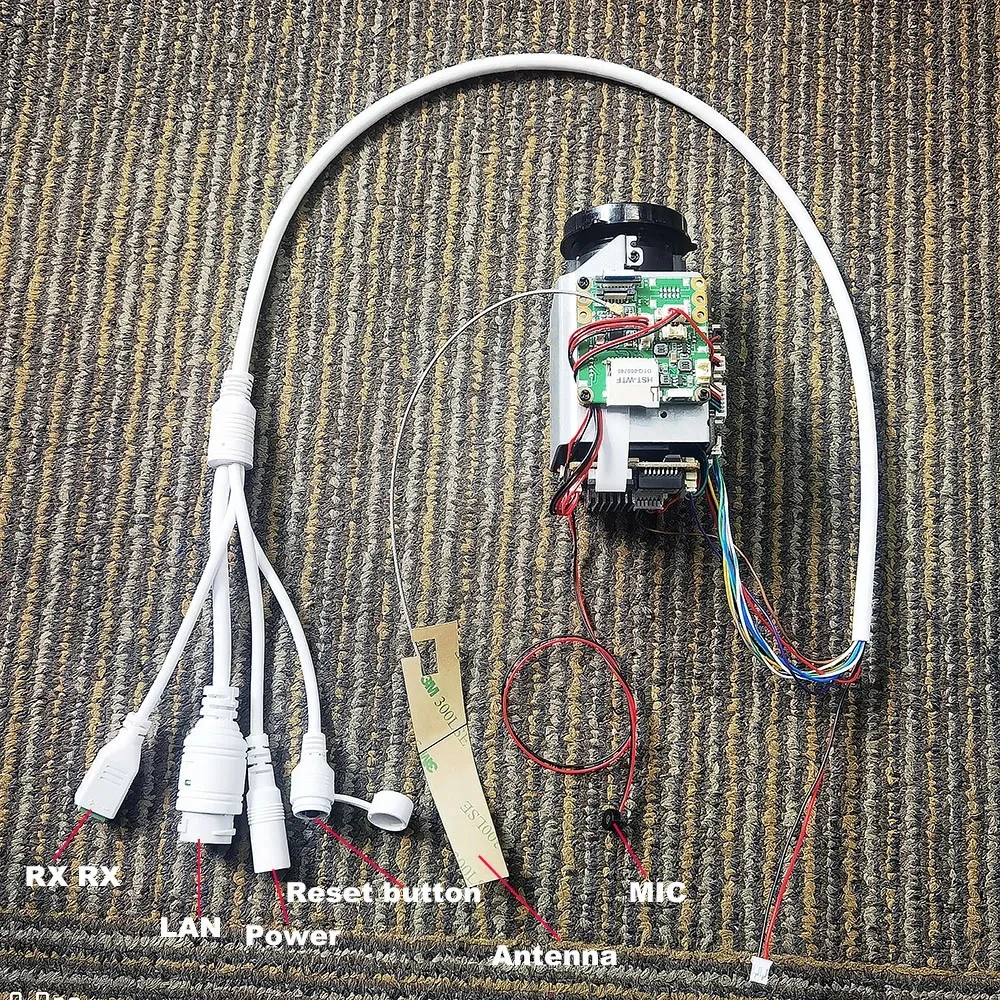

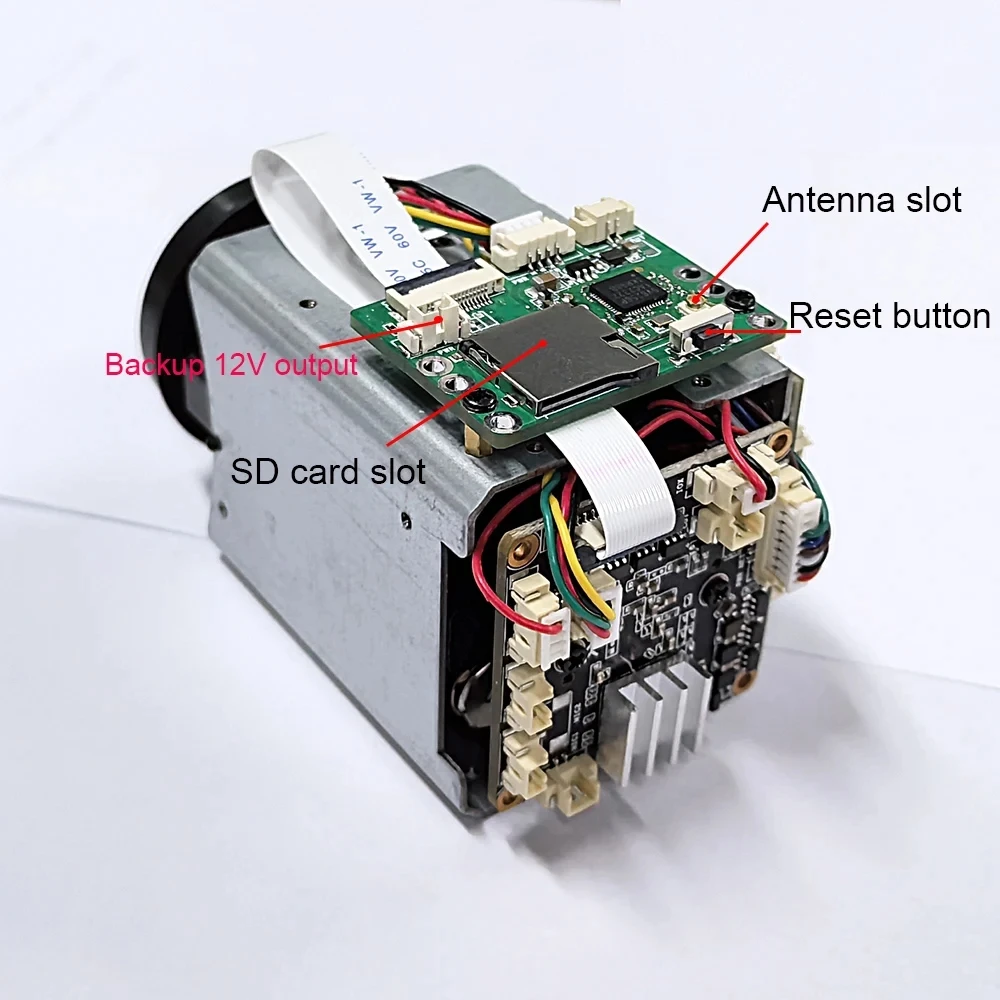

Interface definition diagram
About the protocol specification of the camera sent to the external MCU to control the lighting：
Data is sent through CN2: TXD1 UART1 (Pleco-d, 9600)
PC Software:
Browser interface:
