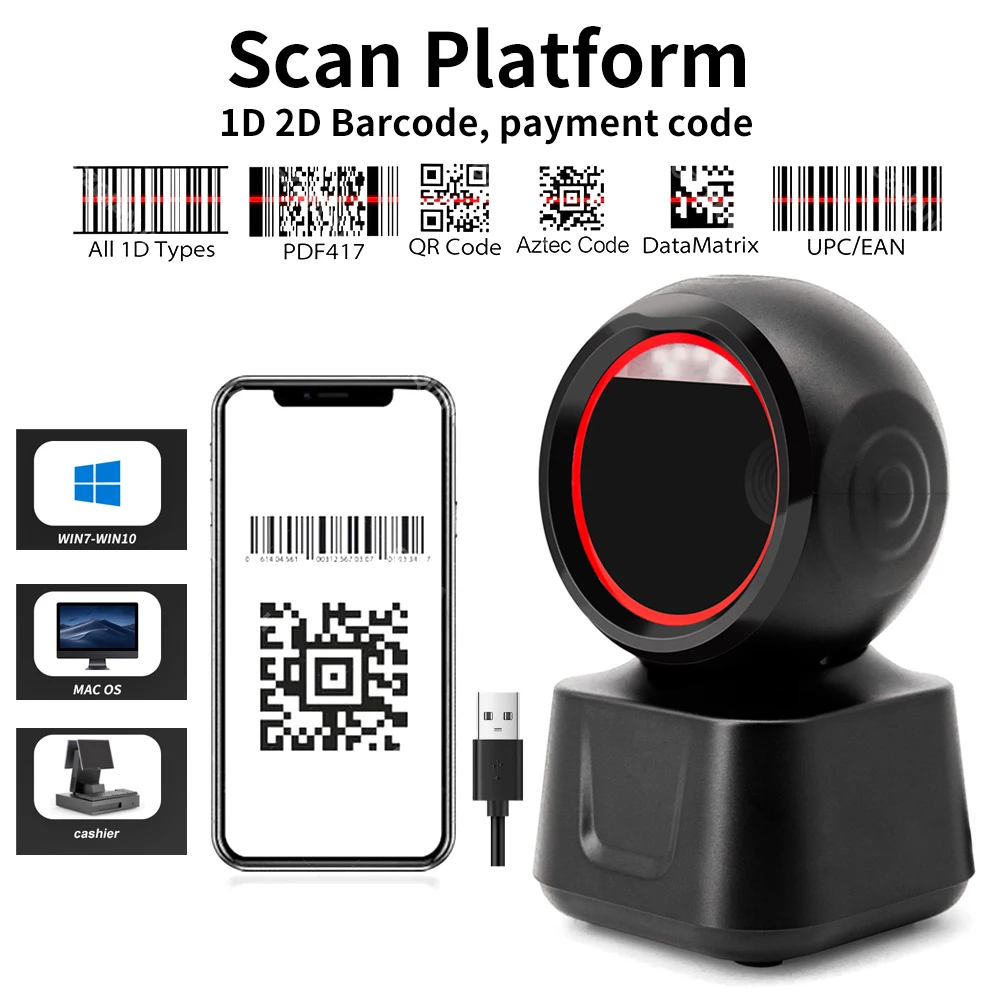

2D Barcode Scanner Image Platform Durable Desktop Scanner 1D 2D QR Code Reader USB Omnidirectional High-speed Precision Scanner

Product features：

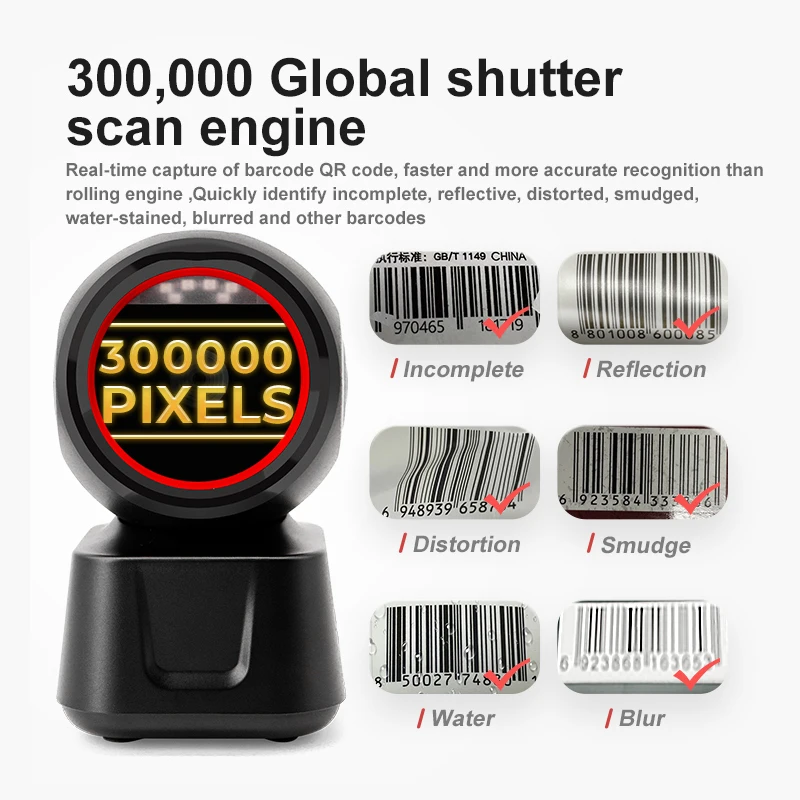

1. Equipped with the new 300,000 global exposure scan engine

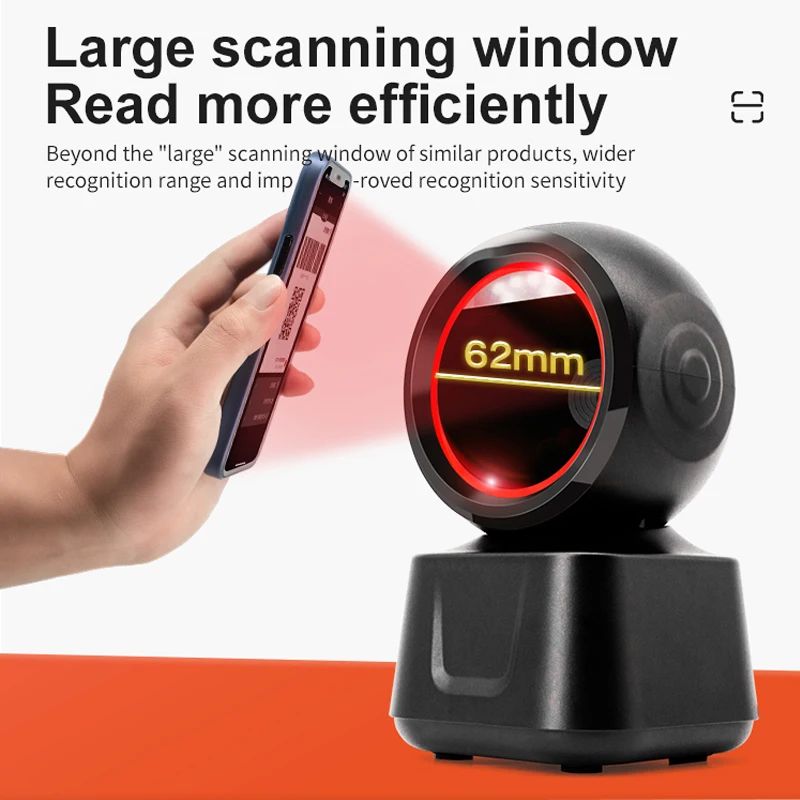

2. Larger scanning window for easier reading
3. Adjustable angle, flexible and easy to use
4. Frequently used function buttons, easier to set up
5. 4 styles of prompt sound, soft and bright LED indicator

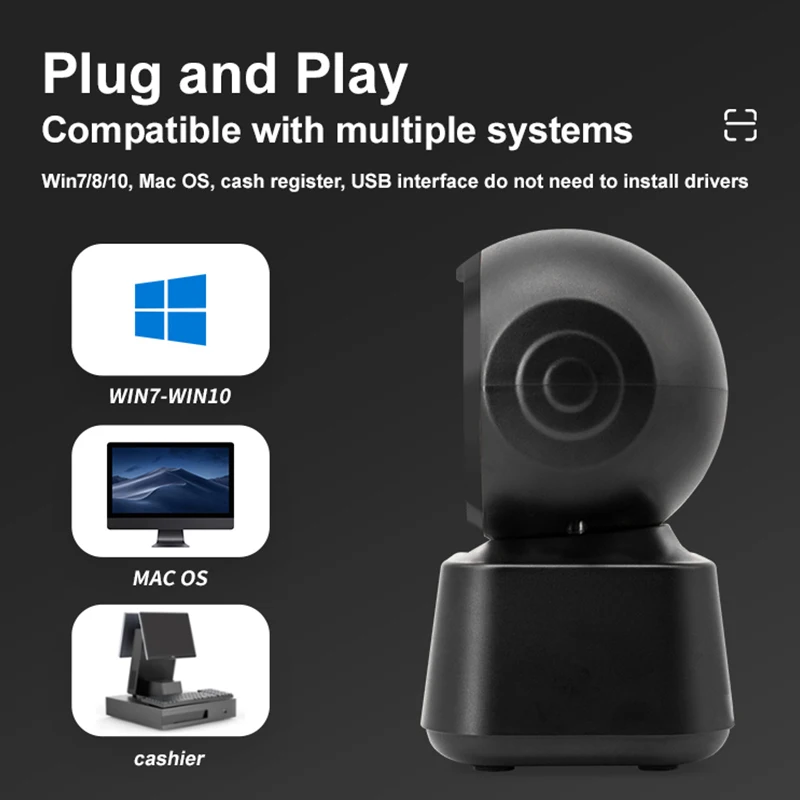

6. Rich interface, strong compatibility, support a variety of systems and cash registers
Physical parameters
Scan mode: Auto-sensing/continuous scanning
Communication interface: USB-HID keyboard,USB-COM virtual serial port,RS232 serial port
Interface type: USB TYPE-B
Prompt mode: Buzzer,LED light
How it is set up: Press the key to set and manually scan the setting code in turn
Housing material: ABS+PC
Cable standard: Straight line 1.3m
Exterior dimensions: 158 mmx92mmx94mm
Weight: Net weight 335g; Gross weight 345g
Performance parameters
Scan type: CMOS global exposure
Resolution: 640*480
Light source: 617nm red LED
Scan angle: ±60*,±54°, 360* (left and right, front and back, turn).
Scan rate: 120 times/sec
Field of view: 48*(H) x 30* (V)
Printing contrast: Minimum 20%.
Decoding kind:
1D: EAN13,EAN 8,UPC-A,UPC-EO,UPC-E1,Code128,Code39,Code93,
Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14,
RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite
2D: QR Code, Data Matrix(DM), PDF417,Han Xin,Micro PDF417,Micro
QRCode, MaxiCode, Aztec Code, Code16K, support mobile screen reading
Minimum resolution: 4thousand
Electrical parameters
Input voltage: DC 5V±10%
Current: Working: 240 mAh; Standby:190 mAh
Environment parameters
Temperature: 0°C-50°C(working);-20*C~+70*C(storage).
Humidity: 5%-95% non-condensing
